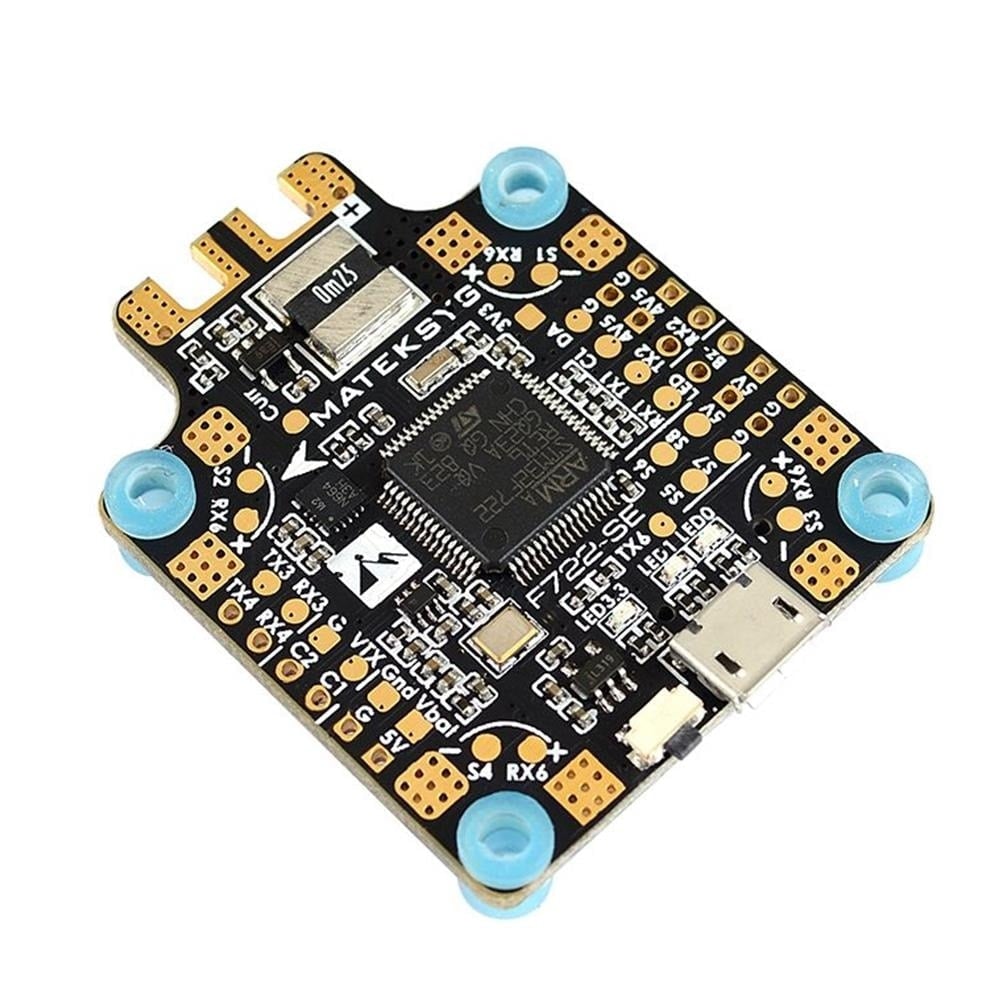

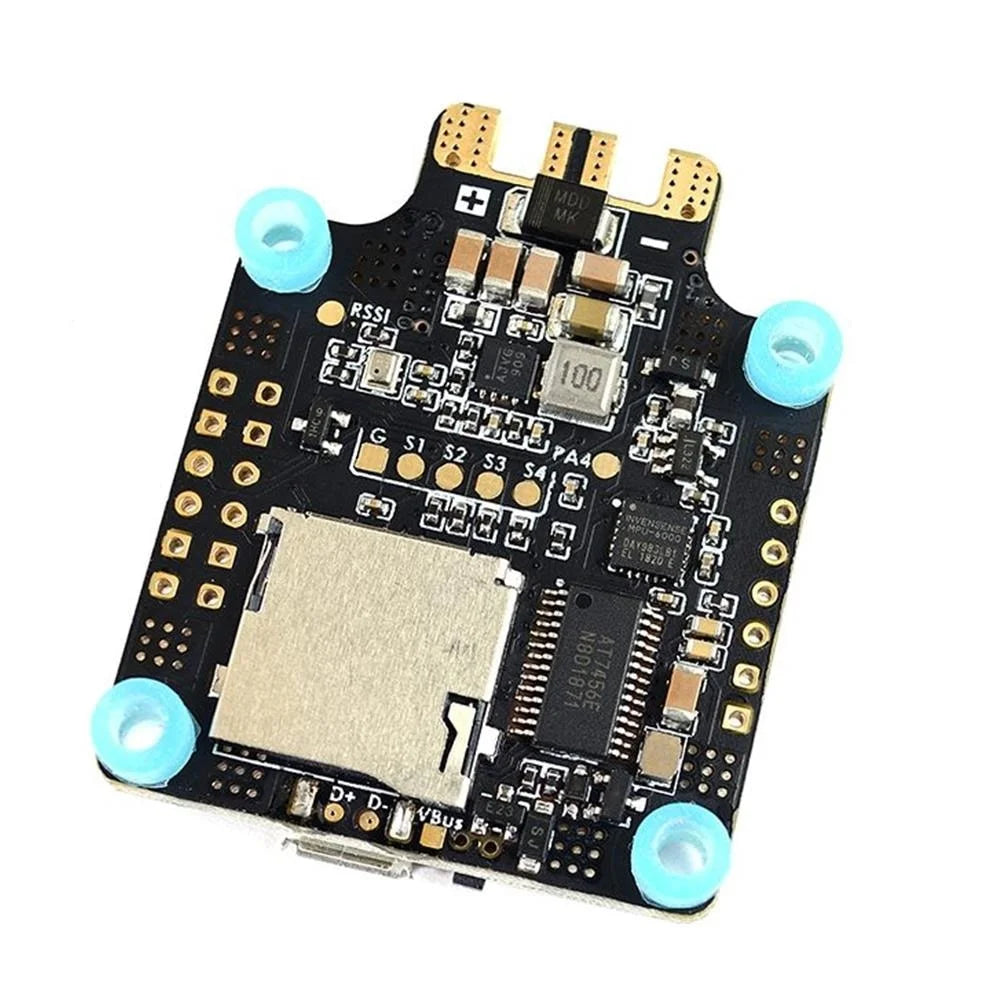

Matek F722-SE AIO Flight Controller

This is an all in one F7 based flight controller from Matek. This board features a dual IMU, and dual camera input support and a VTX on/off power switch make this FC stand out form the rest. At the heat is a powerful STM32 F7 MCU running at 216Mhz. To get the best measurements the dual IMU setup gives you the stable and vibration tolerant readings from the MPU6000, while giving you the ultra fast 32Khz update rate from the ICM20602. The F722 also inlcudes a BMP280 pressure sensor and the usual betaflight OSD chip. Blabkbox logging is done via the MicroSD card slot ( SD card sold here )

Key Features

• 5x Uarts (1,2,3,4,6) with build-in inversion
• 1x Softserial supported
• 8x Dshot/Proshot/oneshot outputs
• 1x I2C
• 4x RX6 pad(one per cornet) for BLheli32 ESC telemetry
• 4x individual ESC power/signal pads
• 1x Group of G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND
• 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
• - Vbat filtered output power for VTX, Switchable via AUX (modes tab-user1)
• - Dual Camera image switchable via AUX (modes tab-user2)
• Camera control: Yes
• Smartaudio & Tramp VTX protocol: Yes
• WS2812 Led Strip : Yes
• Beeper : Yes
• RSSI: Yes
• Additional ADC for INAV analog airspeed

Specifications

• Brand Name: Matek System
• Model: F722-SE
• Item Name: F7 Dual Gyro / ACC Flight Controller Board
• MCU: STM32F722RET6 216MHz
• IMU: MPU6000 & ICM20602, Dual Gyros built-in (SPI)
• Baro: BMP280 (I2C)
• OSD: AT7456E (SPI)
• Blackbox: MicroSD card slot (SPI)
• Firmware: BetaFlight / INAV
• Target: MATEKF722SE
• Size: 36x46mm
• Mounting Hole: 30.5x30.5mm
• Weight: 10g

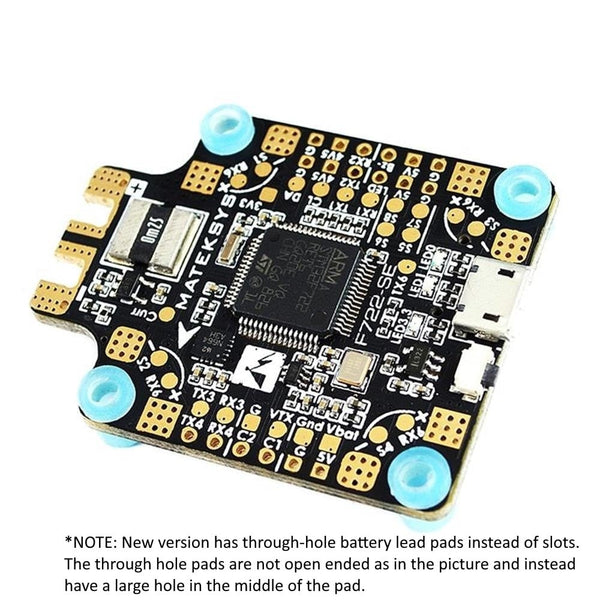

• F722-SE DPS310 ver. and previous BMP280 version have same layout and components except for barometer & battery pads style.
• INAV2.5.x and Betaflight 2.4.x downloaded from configurator don't support new barometer DPS310.
• DPS310 will be supported officially by INAV2.6/ BetaFlight 4.3 and new configurator.
• For now, pls download customized INAV2.5.x and BetaFlight 4.2.x from here.

inav_2.5.1_MATEKF722SE_DPS310.hex

If Baro can't be detected automatically. In INAV CLI mode, type command

• set baro_hardware = DPS310
• save

betaflight_4.2.3_MATEKF722SE_DPS310.hex

If Baro can't be detected automatically. In BF CLI mode, type command

• set baro_bustype = I2C
• set baro_i2c_device = 1
• set baro_i2c_address = 118
• set baro_hardware = DPS310
• save

PDB Specifications

• Input: 6~36V (3~8S LiPo) w/TVS protection
• PDB: 4x35A (Max.4x46A)
• BEC: 5V 2A cont. (Max.3A)
• LDO 3.3V: Max.200mA
• Current Sensor 184A (Scale 179)
• Battery Voltage Sensor: 1:10 (Scale 110)

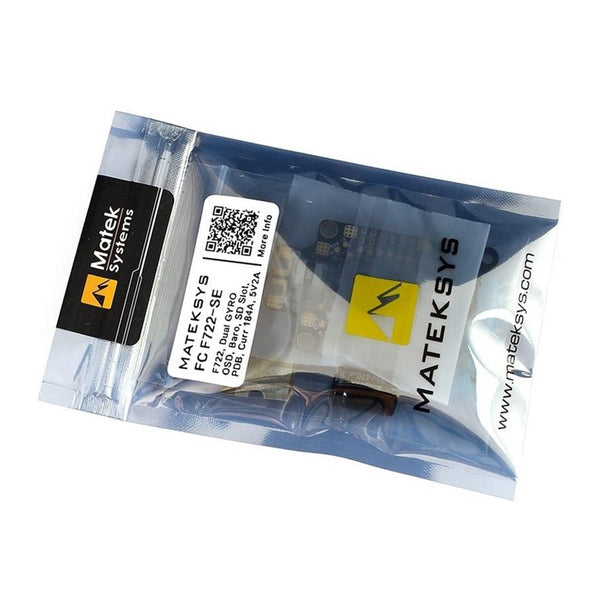

Kit Contents

• 1x F722-SE F7 Flight Controller
• 1x FR4 PCB Plate 36*36*1mm
• 1x Rubycon ZLH 35V/470uF (Low ESR)
