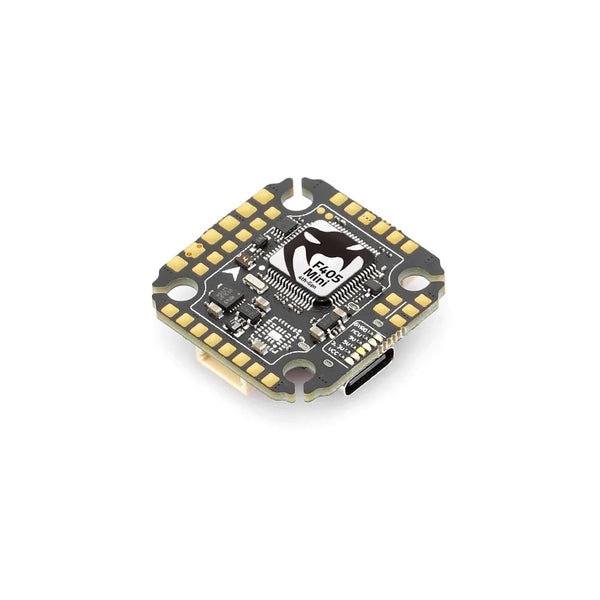

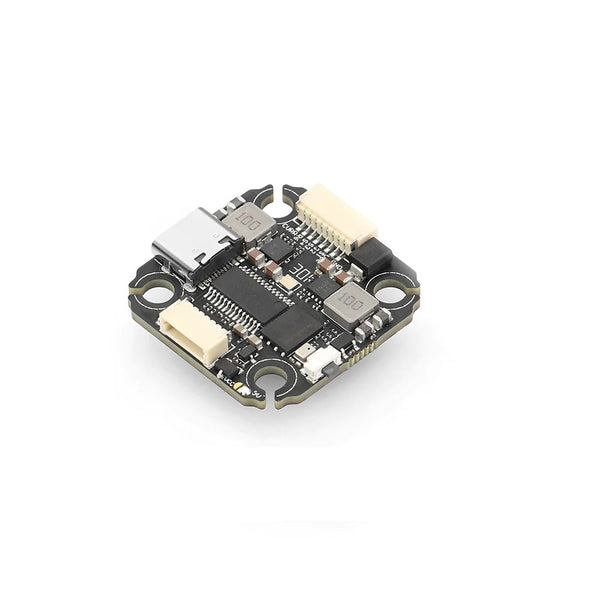

Mamba MK4 F405 Mini Flight Controller

This is the Mamba F405 mini flight controller runs the STM32F405 MCU and has the ability to run off a 6S battery which is incredible for this size of quadcopter. It has a 6-axis, 8Khz MPU6000 vibration tolerant gyro as well as an in-built OSD.

Specifications

• MCU: 168MHz STM32F405
• IMU: BMI270 or ICM42688P
• OSD: BF OSD AT7456E
• Blacbox: 16M Flash Memory
• Barometer: Yes
• Uarts: 6Set
• Receiver compatibility: TBS/SBUS/IBUS/DSM
• I2C: Yes
• F.Port: Yes
• Buzzer Pad: Yes
• CURR Pad: Yes
• ESC Outputs: 6x
• BEC 3.3V: 0.5A
• BEC 5V: 2.5A
• BEC 9V: 2A
• MB LED: Yes
• BF LED: Yes
• Air Unit Port: Yes
• VTX Switch: Yes
• BEC Protection: Yes
• Receiver Protection: Yes
• TVS Protection: Yes
• Input: 6S Lipo
• Firmware: Betaflight
• Mounting: 20×20mm / M2 or M3
• Size 29×29.5×6.5mm
• Weight: 6g

Includes

• 1x Mamba Basic F405 Mini MK4 Flight Controller
• Accessories Kit (contents may vary with stock)
