Application
For Ford Focus Mk2 2.5 ST FWD Hatchback 2004-2011
Specification
Top mounts: Front and rear OE top mounts required
Damping adjustable: Not available
Camber adjustable: Not available
Height adjustable: Yes, lowering 0-25mm depending on the vehicle models
Spring Rate Front: 8.5 kg/mm (476 lbs/in)
Spring Rate Rear: 4 kg/mm (224 lbs/in)
Front spring inner diameter: 62-73 mm
Rear spring inner diameter: 88mm
Spring length Front: 147 mm
Spring length Rear: 230 mm
Help spring rate Front: 1 kg/mm (56 lbs/in)
Help spring length Front: 102 mm
Spring Preload advised: 7-10 mm
Color: Black body with black spring
Feature
1. 0-25mm(depends on vehicle models) lower height adjustable
2. Dust boot, solid rubber bump stops

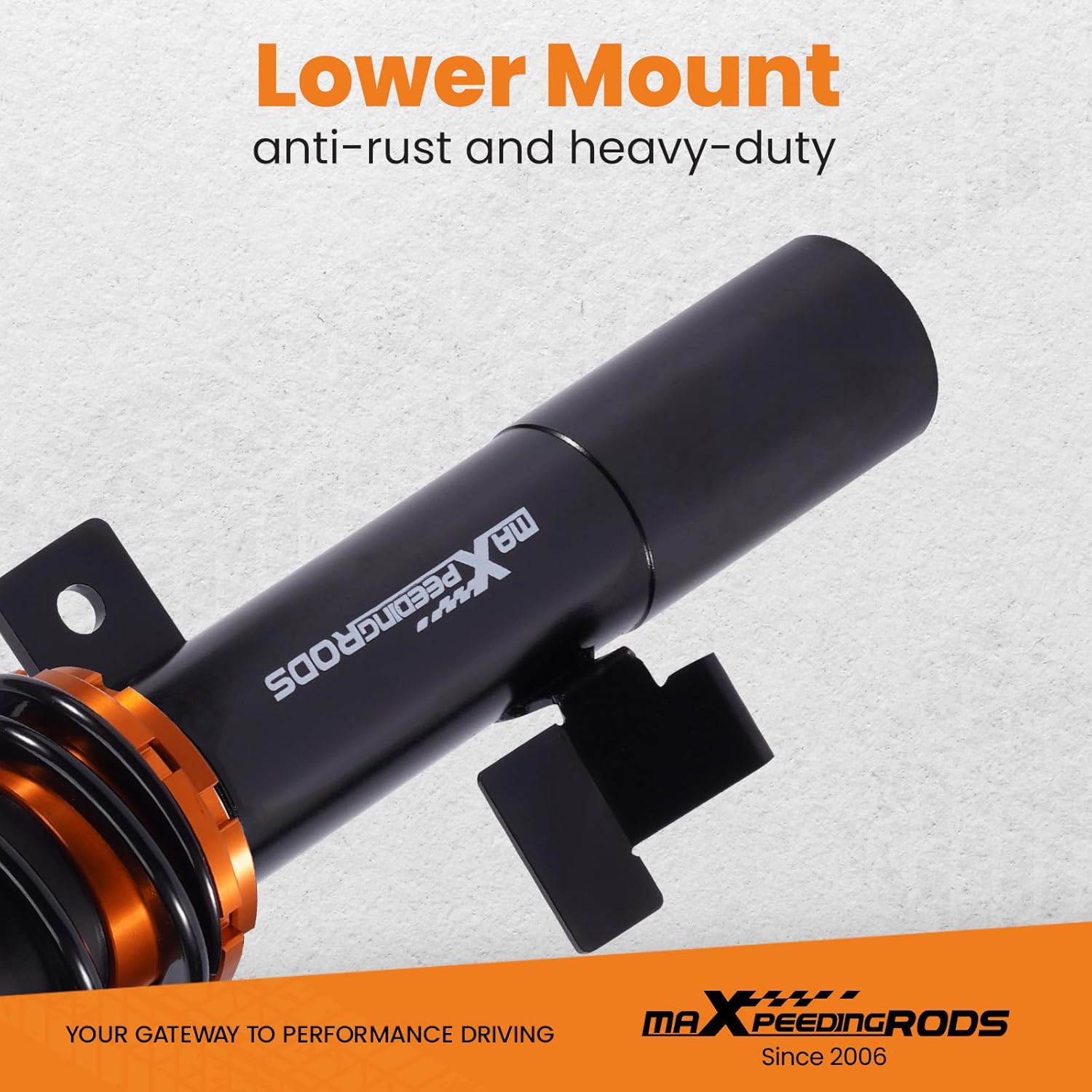

3. Weight Saving Aluminum Components And heavy duty Steel Lower Mount Brackets
4. Simple install, Easy to adjust.
5. Use the vehicle's original upper mounts (not included in our product kit).
Note
1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
- Introduction: maXpeedingrods' MXR-B1 series is ideal for those who want to change the old worn-out strut but improve handling at the same time. It features height adjustable and maintains the OE ride quality to the greatest extent.
- Application: For Ford Focus Mk2 2.5 ST FWD Hatchback 2004-2011
- Specification: Spring Rate Front: 8.5 kg/mm (476 lbs/in); Spring Rate Rear: 4 kg/mm (224 lbs/in); Front spring inner diameter: 62-73 mm; Rear spring inner diameter: 88mm; Spring length Front: 147 mm; Spring length Rear: 230 mm
- Package included: 2x Front coil-overs; 2x Rear coil-overs; 2x C spanners
- Note: Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers.) We suggest regular spray with some WD40 every 3-4 months will keep it smooth and clean.
