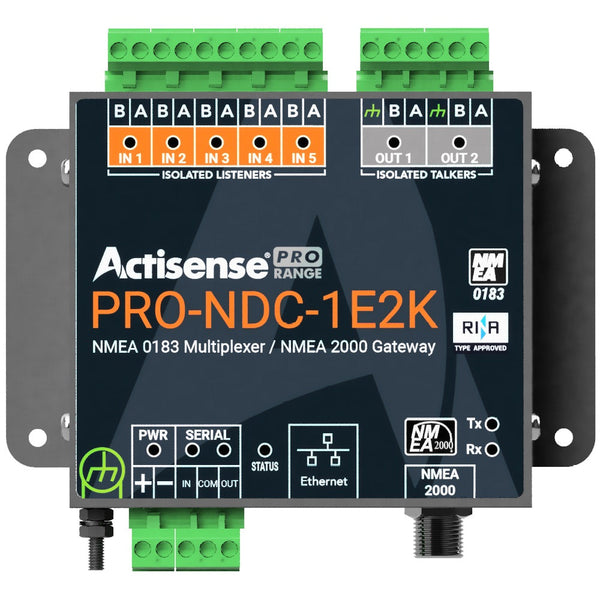

Actisense NMEA 0183 Intelligent Multiplexer NMEA 2000 Gateway

• Type-approved (RINA).
• NMEA 0183 & NMEA 2000 Ethernet streaming
• 5x Configurable Opto-isolated NMEA 0183 inputs.
• 2x Configurable ISO-Drive isolated NMEA 0183 outputs.
• 1x Bi-directional configurable isolated serial port.
• 1 x Ethernet Port with auto crossover detection
• 1 x NMEA 2000 Port M12 Male
• Automatic baud rate matching on inputs.
• Advanced data filtering / routing.
• Free firmware updates making the device future-proof.
• Diagnostic LEDs on all inputs and outputs.
• Bi-colour status LED.
• Panel or DIN Rail mountable
• Stainless Steel housing for added durability.

Introducing the Actisense PRO-NDC-1E2K the new intelligent type approved PRO range multiplexer with NMEA 2000 Gateway capability.

The PRO-NDC-1E2K is reliable robust and provides industry leading isolation on all inputs and outputs as standard so that connected devices safely avoid hazardous ground loops the number one cause of product failure in NMEA 0183 networks. All five NMEA 0183 inputs can be routed to any of the NMEA 0183 NMEA 2000 or Ethernet outputs providing a highly customisable and flexible solution.

The NMEA 2000 data can be converted bidirectionally into different formats including NMEA 0183 N2K ASCII and N2K Actisense (proprietary formats) and NGT Actisense (compatible with Actisense's NGT/NGX products). The Ethernet Port enables all NMEA data to be sent and received at high speed to connected networks. A bi-directional serial port allows for communication between the PRO-NDC-1E2K and a PC using the Actisense USB-serial converter: USBKIT-PRO

The configuration tool is accessible via any popular web browser (using the Ethernet port) so there are no PC operating system compatibility issues to contend with. Using the web based configuration tool will allow the user to set up the routing table finely tune the exact data available on each output see detailed statistics (providing feedback on data loading) and configure alarms. Actisense-i network health checker provides valuable feedback on the status of the NMEA 2000 network.

2-part pluggable connectors on the PRO-NDC-1E2K means that new devices can be easily connected without the need to remove the unit from its mounted location. The PRO-NDC-1E2K has the option to either mount directly to the bulkhead (with screws provided) or be DIN rail mountable with the addition of professional DIN rail brackets (sold seperately). Helpful LEDs indicate power status data in & data out to aid diagnostics
