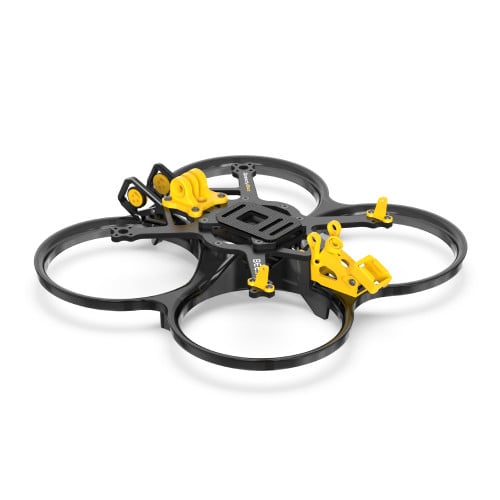

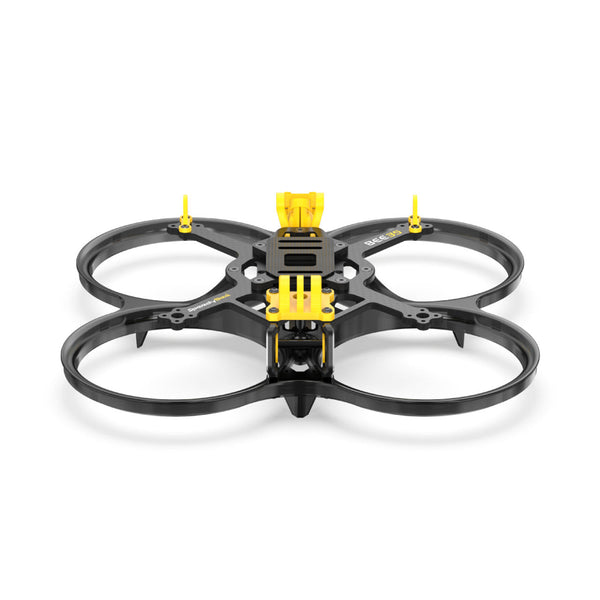

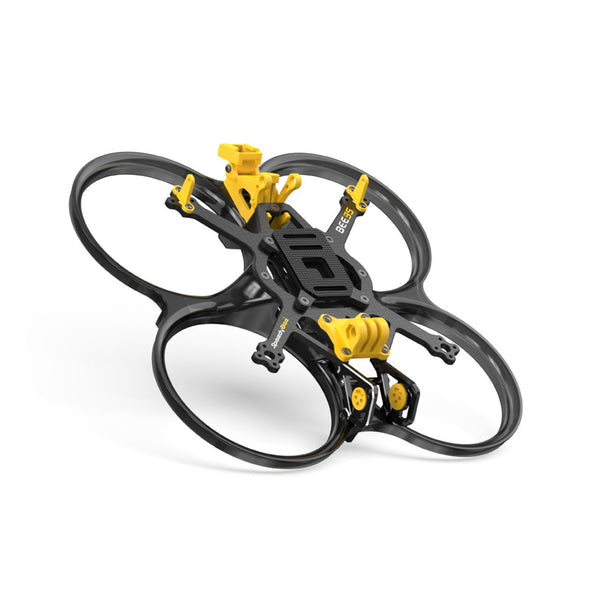

SpeedyBee Bee35 3.5 inch CineWhoop Frame

Hey, FPV pilots! We get it—finding a frame that's rugged, versatile, and uber-responsive is like hunting for that last clean sock: almost impossible. You need a frame that keeps your O3 lens protected, has multiple flight tower compatibility, and is shock-absorbent enough to survive your "intentional crash tests." Say goodbye to your dull, clunky frames!

SpeedyBee Bee35—The Unbeatable, Aerospace-Grade, All-in-One Frame!

Stop settling for less and put your propellers on something that deserves them! Enter SpeedyBee Bee35: the frame that combines the strength of aerospace-grade aluminum with the elegance of seamless engineering. It's the Rolls Royce for your flight controller, the Swiss Army knife for your FPV setup. You'd be buzzing with joy after using it!

🌟 Key Features :

• Aerospace-Grade Aluminum Front : For lens protection that's out of this world. Literally.
• Custom Shock Absorption : Say adios to the jelly effect.

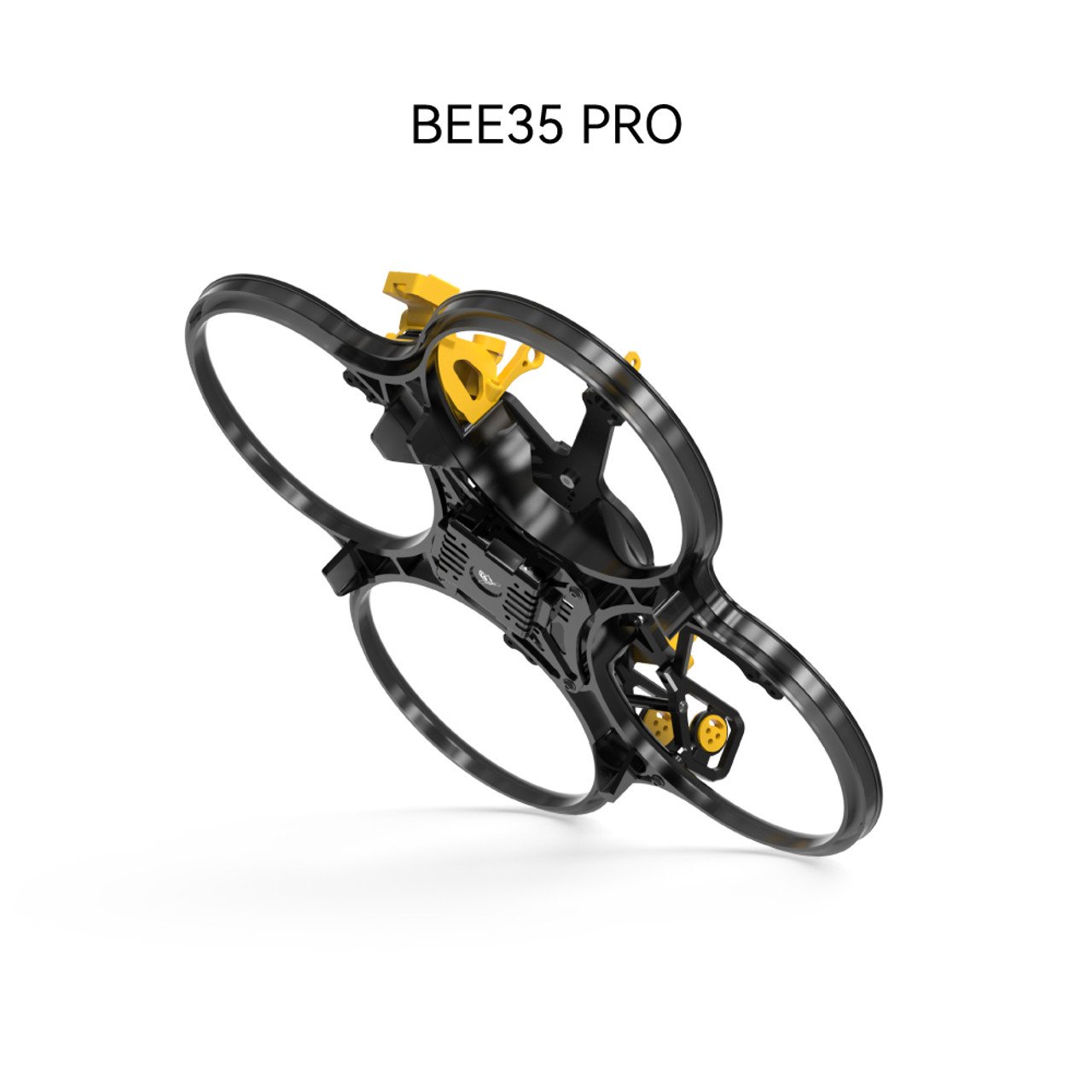

• Heat Dissipation Mastery (only included in Pro version) : Overheating? Never heard of her.
• Universal Flight Tower & Battery Mounting : Mount 20x20, 25x25, or 30x30 flight stack (although 30x30 is a squeeze so proceed with caution)
• Quick & Easy Type-C and TF Card Accessibility : 'Cause nobody got time for disassembly.

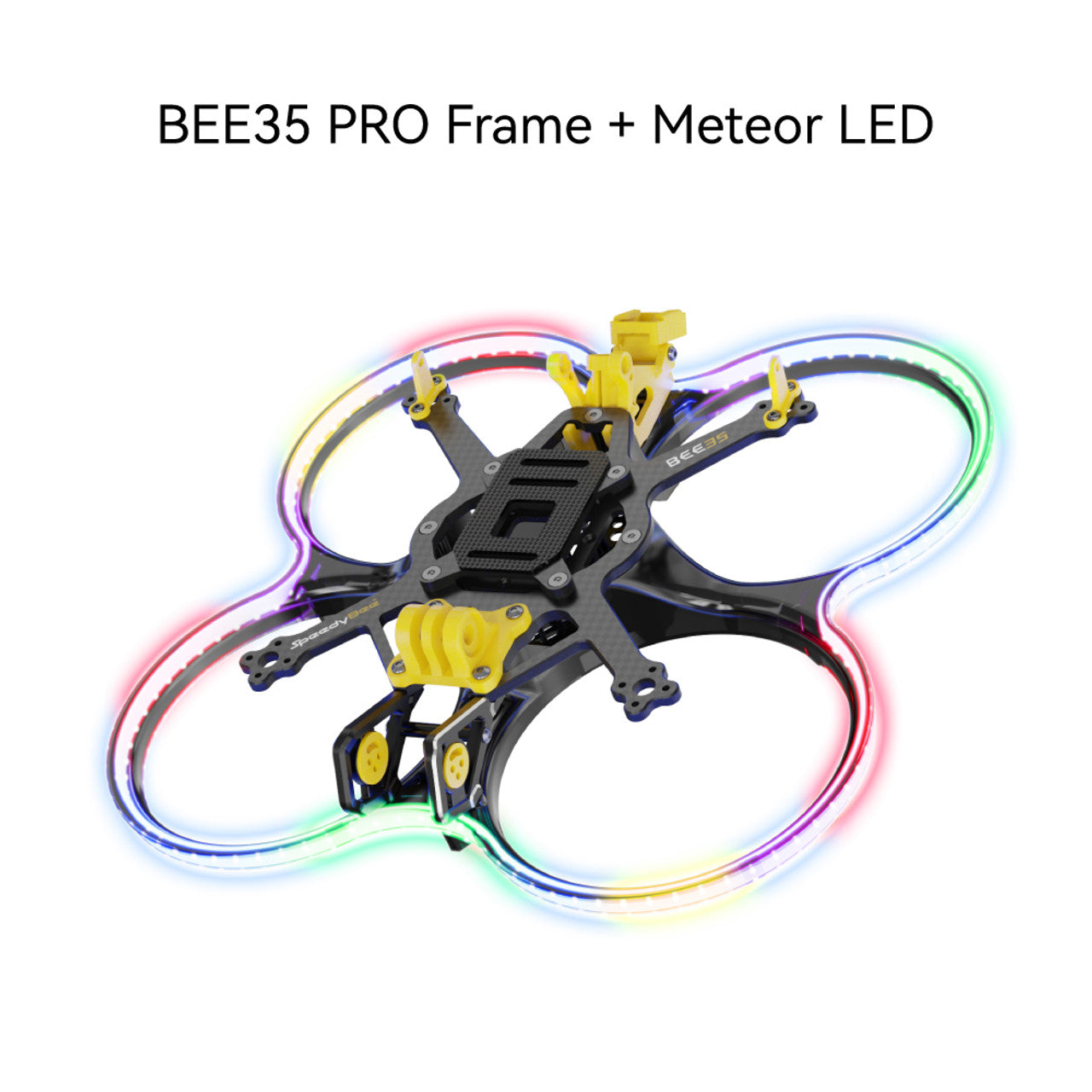

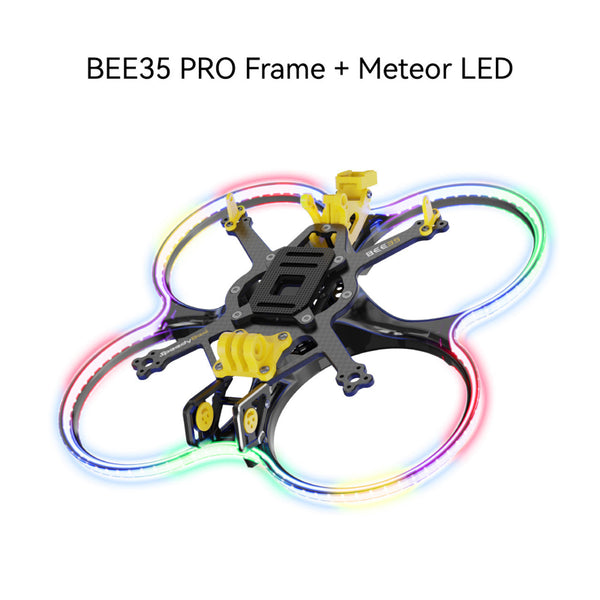

• Injection-Molded Protective Ring & Built-In LED Strip Groove : Light it up!
• Detachable Damping Gimbal (sold separately) : Customise your view with shock-absorbing magic.

✨Extra Details for the Gearheads✨

• Open-Source 3D Printing Schematics
  • Print them with varying thickness to accommodate your lens setup like a pro!
• Heat Dissipation
  • Our aerospace-grade aluminum component makes your O3 video transmitter twice as cool—literally!
• H-FOV 135°
  • We offer you a 135° field of vew with no frame in view—no dark corners, just endless skies!
• Multi-function Antenna Mount & Quick Release
  • Cable directly plugs into the flight controller. No hassle, just high-flying action.

Assembly Guide

• SpeedyBee-Bee35-Manual-EN

Specifications

• Product Name : SpeedyBee Bee35 Frame

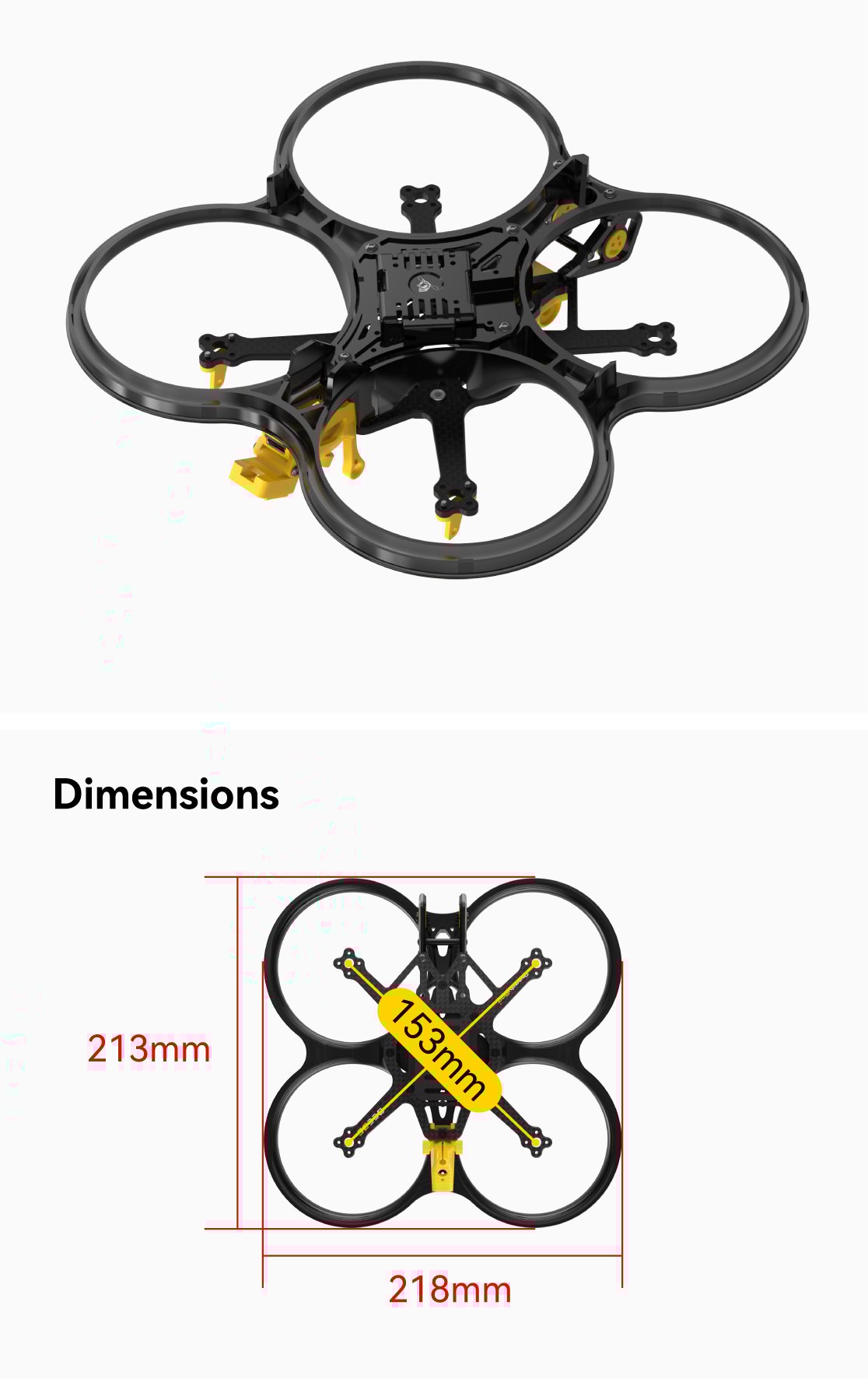

• Wheelbase : 153mm
• Top Plate Thickness : 3.5mm
• Bottom Plate Thickness : 2mm
• Camera Mounting Distance : 19/20mm
• ESC/Motor Mounting Height : 24mm
• Flight Stack Mounting Holes : 20x20, 25.5x25.5, 30.5x30.5mm
• Video Transmitter Mounting Holes : 20x20, 25.5x25.5
• Propeller Size : 90mm
• Motor Mounting Holes : 12x12mm
• Weight : 138g (that's less than a can of soda!)
• CNC Heat Sink Weight : 15g
• Camera Gimbal Weight : 28g
• Recommended Motor : 1806/2004/2006
• Recommended KV : 4S/2500-3500KV, 6S/1800-2300KV
• Recommended Battery : 900-1500mAh 4S/6S

Included

• 1x Bee35 Frame
• 1x Accesories Kit (contents may vary based on supply)
