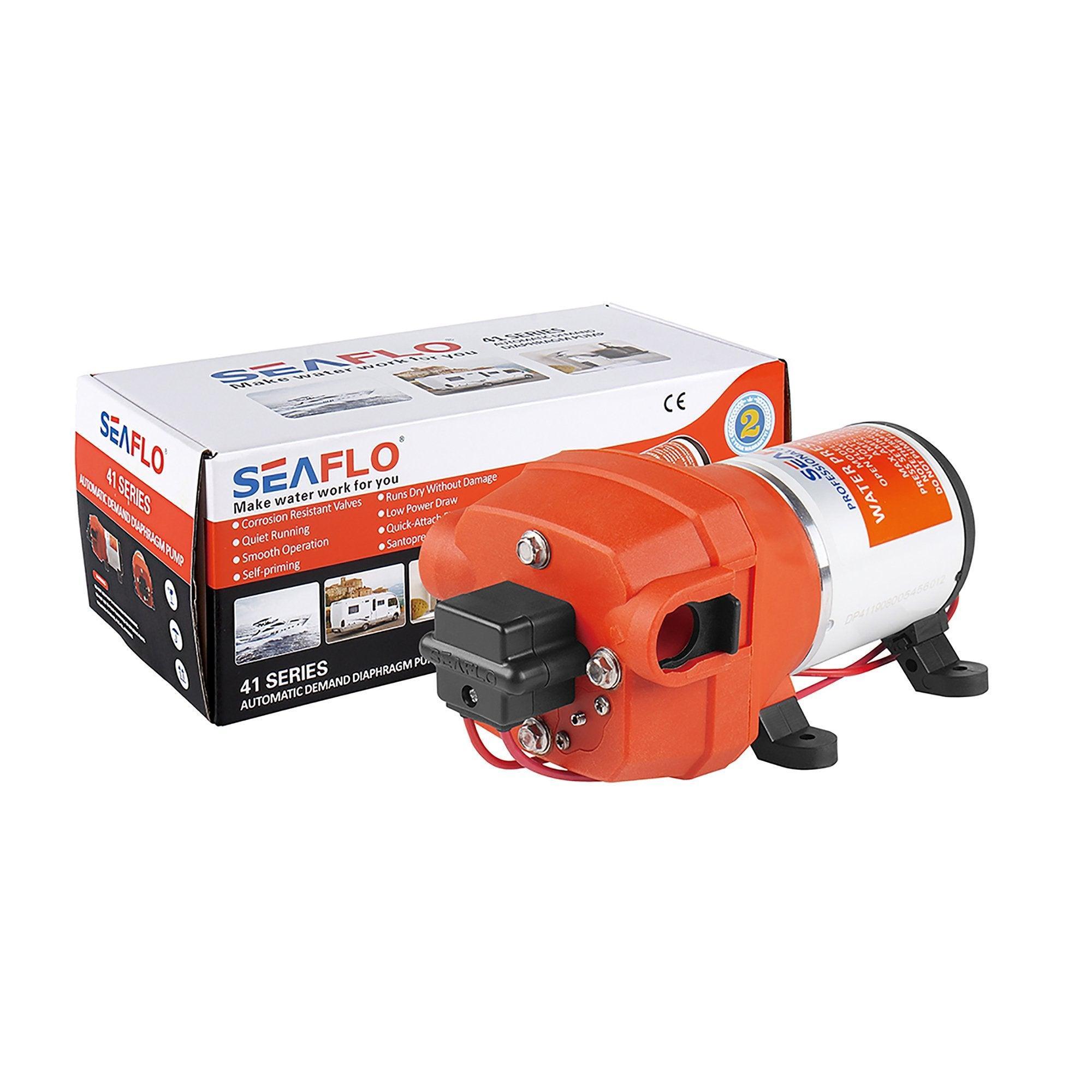

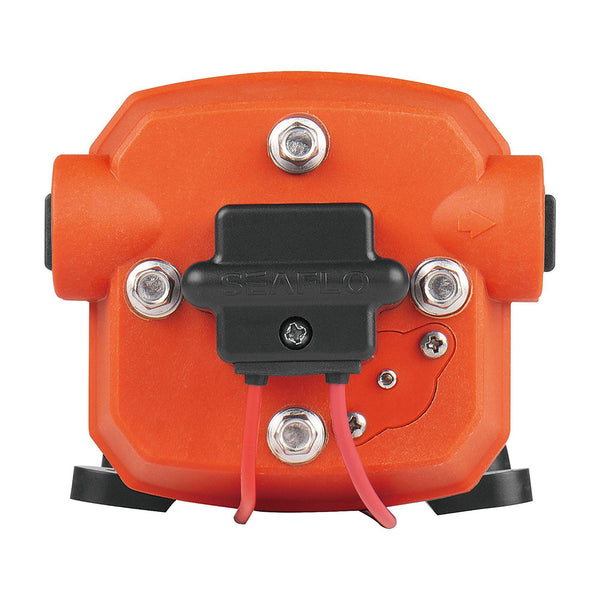

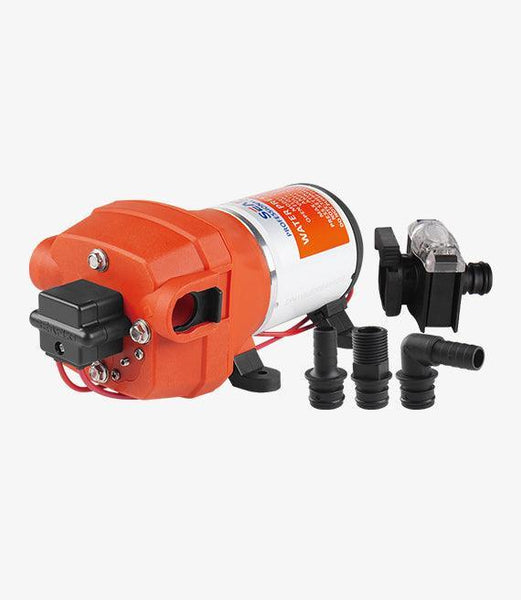

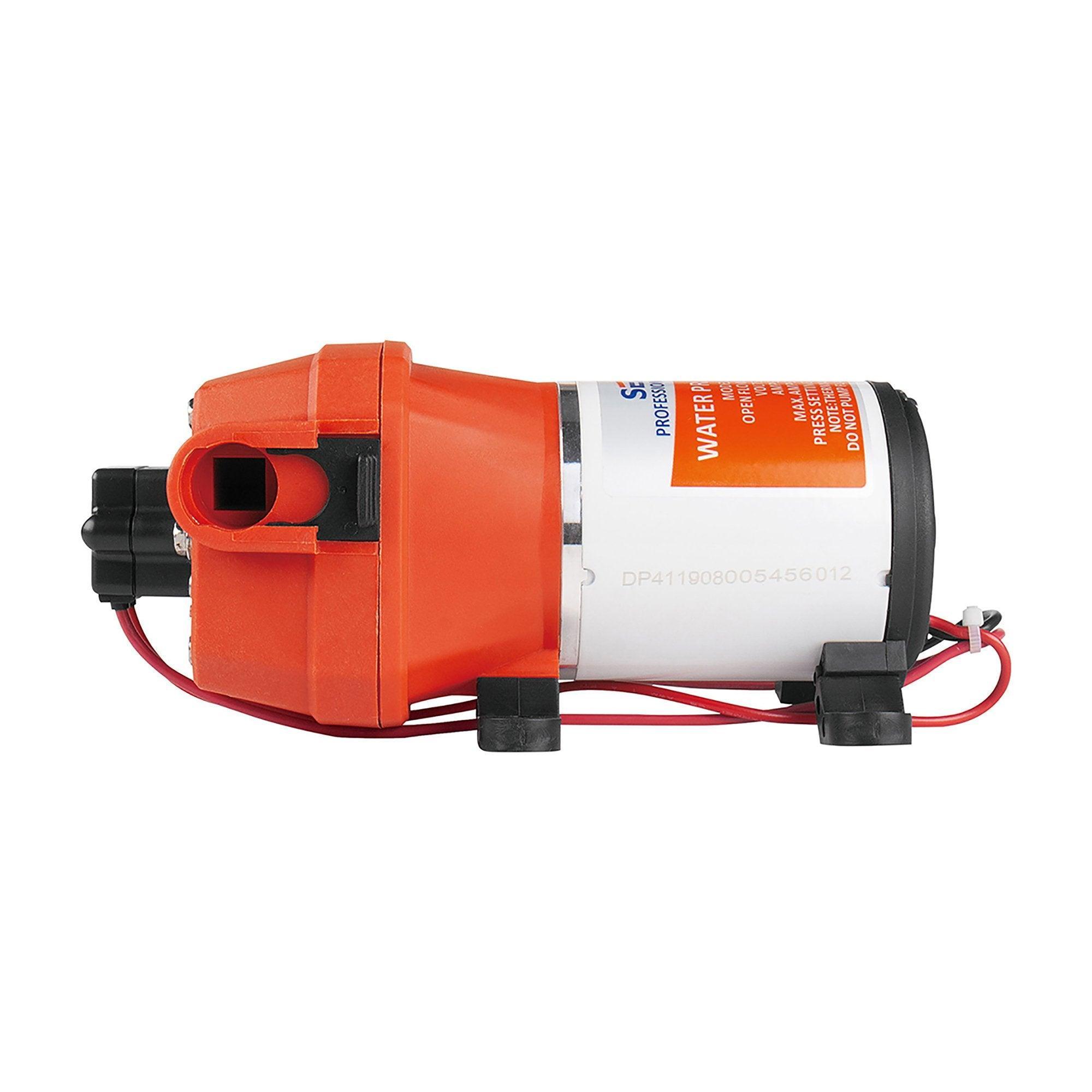

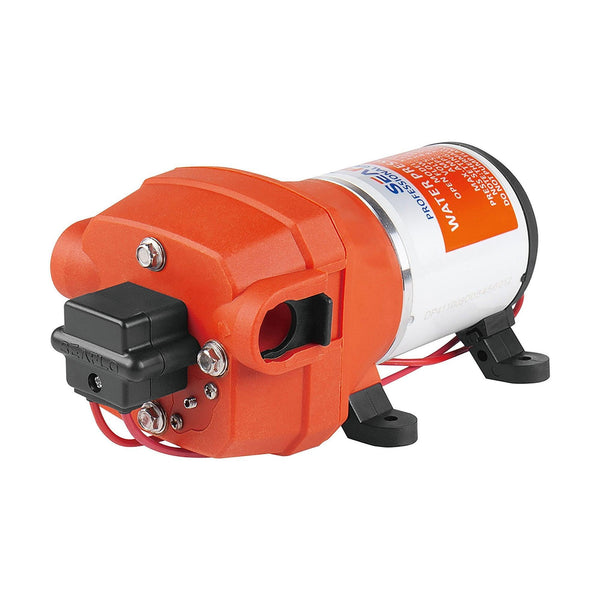

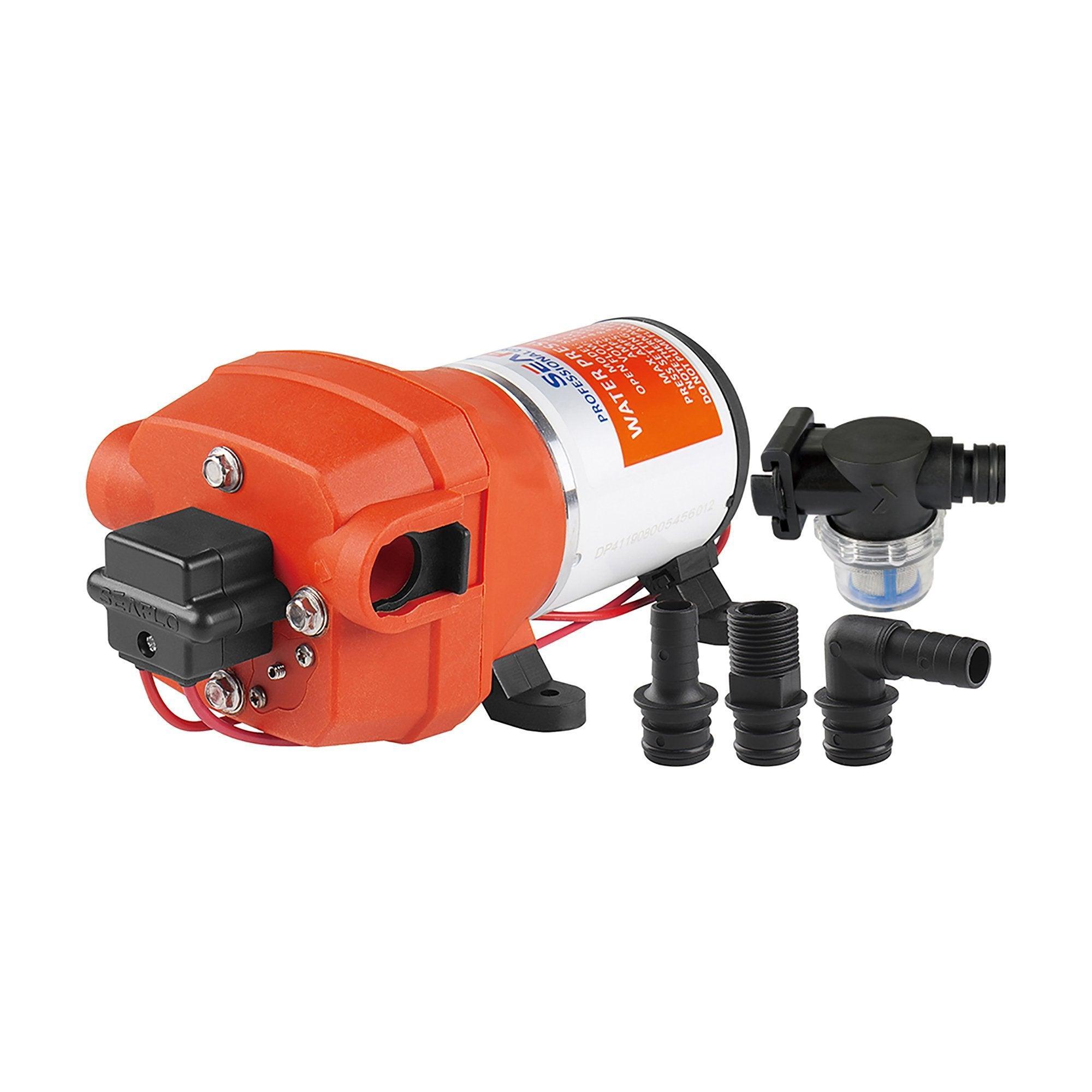

Seaflo Water Pressure Pump - 41 Series 24V 3.3 GPH / 2.5 LPH
The water pressure pump - 41 series has: A 4-chamber diaphragm pump, on-demand long life pressure switch, adjustable pressure switch. Is self-priming and capable of being run dry. Is thermal overload protected and has Marine grade blocked wiring. Quiet operation with rubber feet for vibration and noise reduction.
The water pressure pump - 41 series has: A 4-chamber diaphragm pump, on-demand long life pressure switch, adjustable pressure switch. Is self-priming and capable of being run dry. Is thermal overload protected and has Marine grade blocked wiring. Quiet operation with rubber feet for vibration and noise reduction.
MORE FEATURES & BENEFITS
• Up to 3.3 GPM
• Can supply up to 3 fixtures
• Quick-Connect fittings
• Self priming
• Run dry safe
• On-demand use
• Industry Standard mounting pattern
• Rubber mounting-feet
• Can be used for Fresh & Salt Water
• 16 AWG, 4.5"(11.4 cm) long Leads
• 2 Year Warranty
• Meets or exceeds RoHS, SGS, and ISO standards
STANDARD PUMP CONFIGURATIONS
Model Voltage
Open Flow?GPM/LPM?
Max Draw
Shut-off Pressure?PSI/BAR)
SFDP1-027-017-41 12V 2.7 / 10.0 4.43 A 17 / 1.2 SFDP2-027-017-41 24V 2.7 / 10.0 2.34 A 17 / 1.2 SFDP1-033-035-41 12V 3.3 / 12.5 8.50 A 35 / 2.4 SFDP2-033-035-41 24V 3.3 / 12.5 4.48 A 35 / 2.4 SFDPA1-033-035-41 115V 3.3 / 12.5 1.25 A 35 / 2.4 SFDPA2-033-035-41 220V 3.3 / 12.5 0.55 A 35 / 2.4
2.7GPM /17PSI
PRESSURE
12V
24V
FLOW
CURRENT
FLOW
CURRENT
PSI
BAR
GPM
LPM
AMPS
GPM
LPM
AMPS
0 0 2.75 10.4 2.58 2.91 11.0 1.35 8 0.55 2.27 8.60 3.74 2.38 9.00 1.98 12 0.83 2.17 8.20 4.00 2.32 8.80 2.13 16 1.10 2.01 7.60 4.37 2.22 8.40 2.3 17 1.17 0 0 4.43 0 0 2.34
3.3GPM / 35PSI
