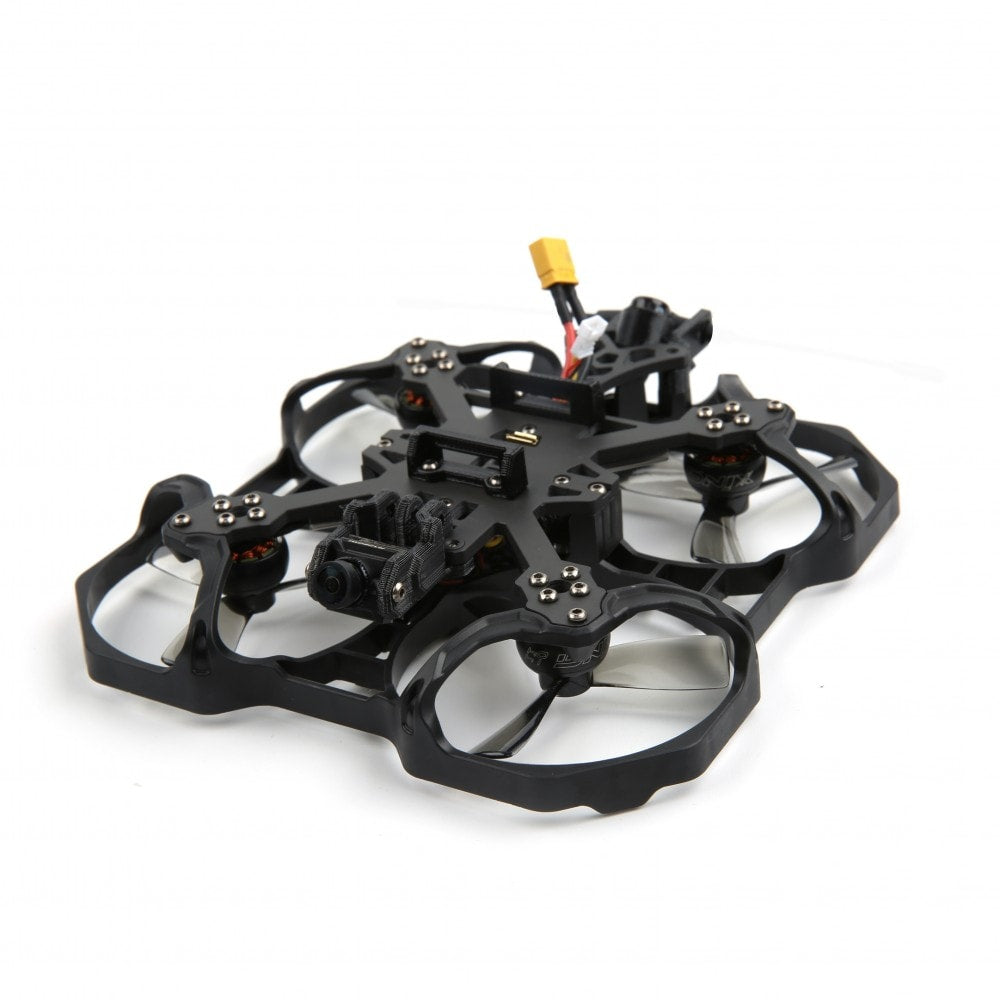

iFlight Protek25 Pusher 2.5" Analog CineWhoop (RaceCam R1)

Aiming for pilots looking for less weight but great durability, maximum performance but long distance and flight time.

A lot of thought was put into creating the best light pusher style 2.5inch quad on the market.

Cinematic as well as light freestyle is where this rig feels home. Cruising through the smallest gaps, chasing skateboards or just for fun in your backyard

Features

• No Props or frame in view!
• High performance SucceX-D 20A F4 Whoop AIO Flight Controller

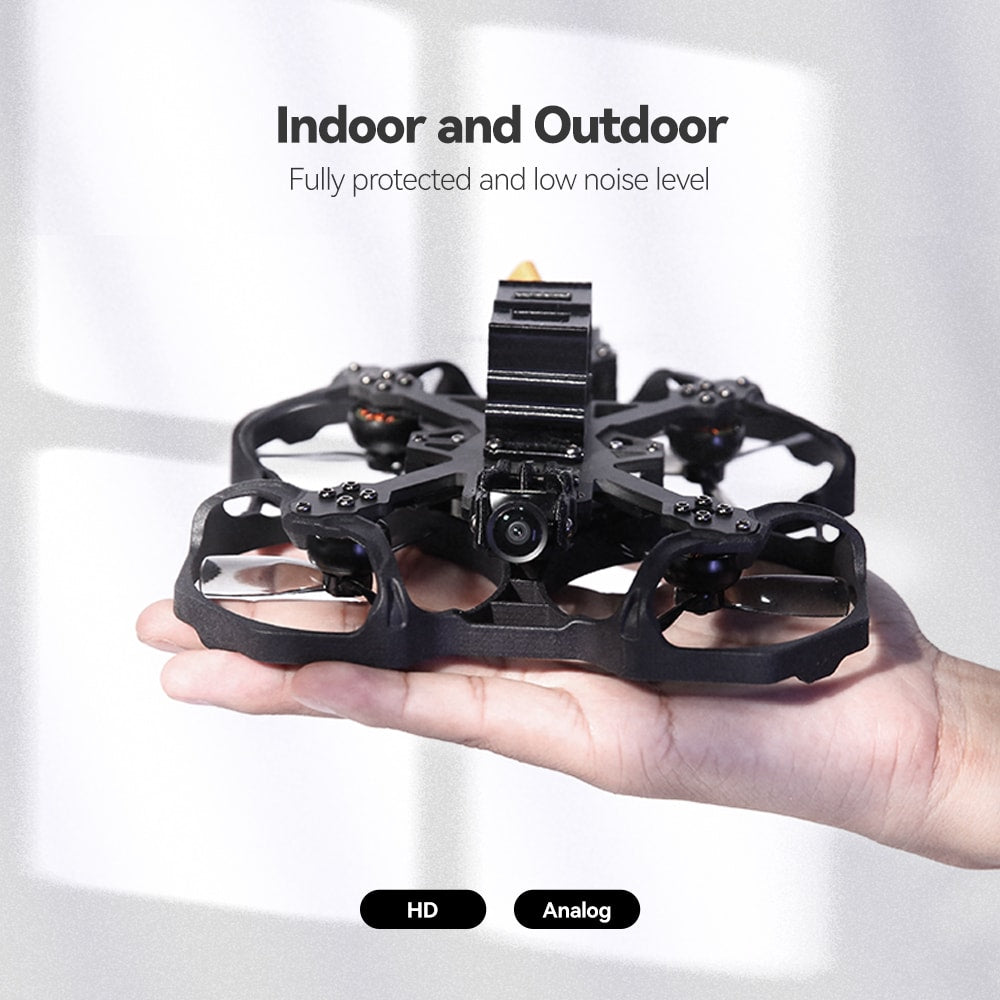

• Integrated prop guards ideal for indoor filming
• Durable aerodynamic PP body and carbon two-piece frame construction
• Lower Noise and Vibrations

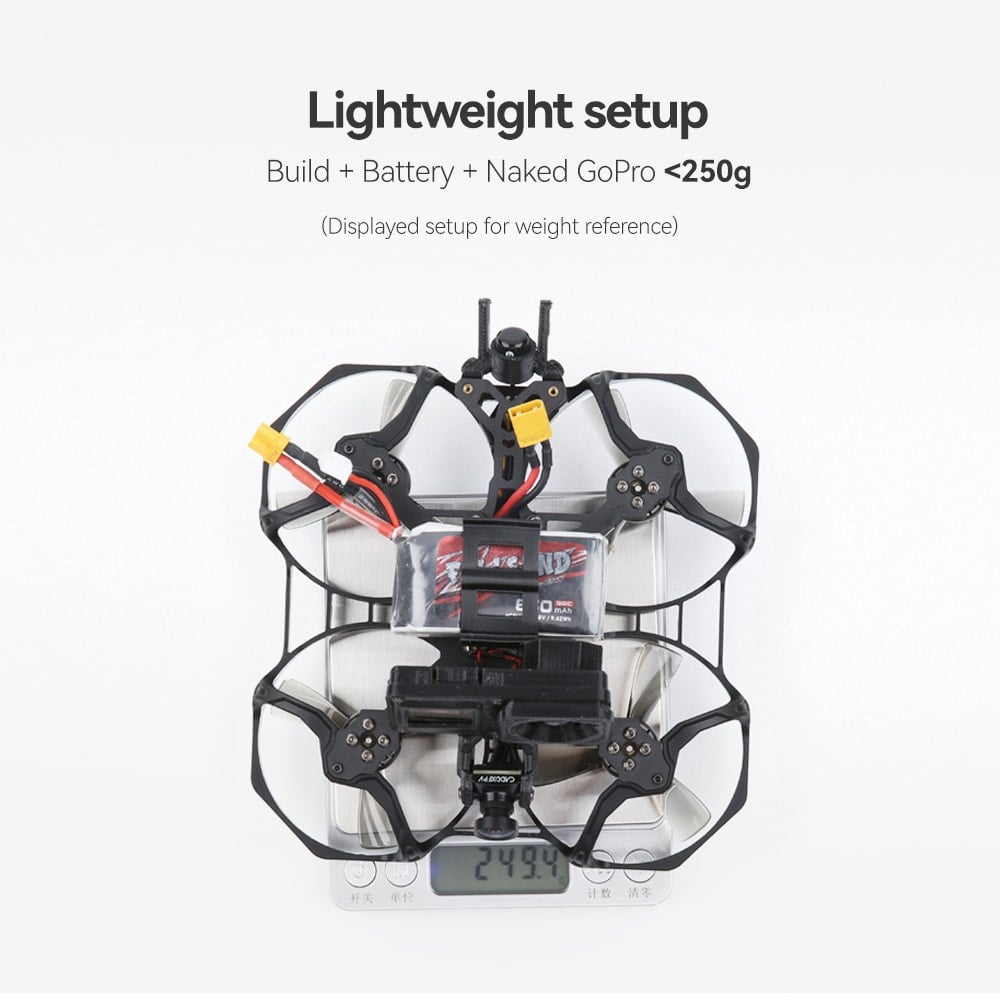

• Sub 250g flying weight
• Able to carry a naked gopro for 4K footage recording

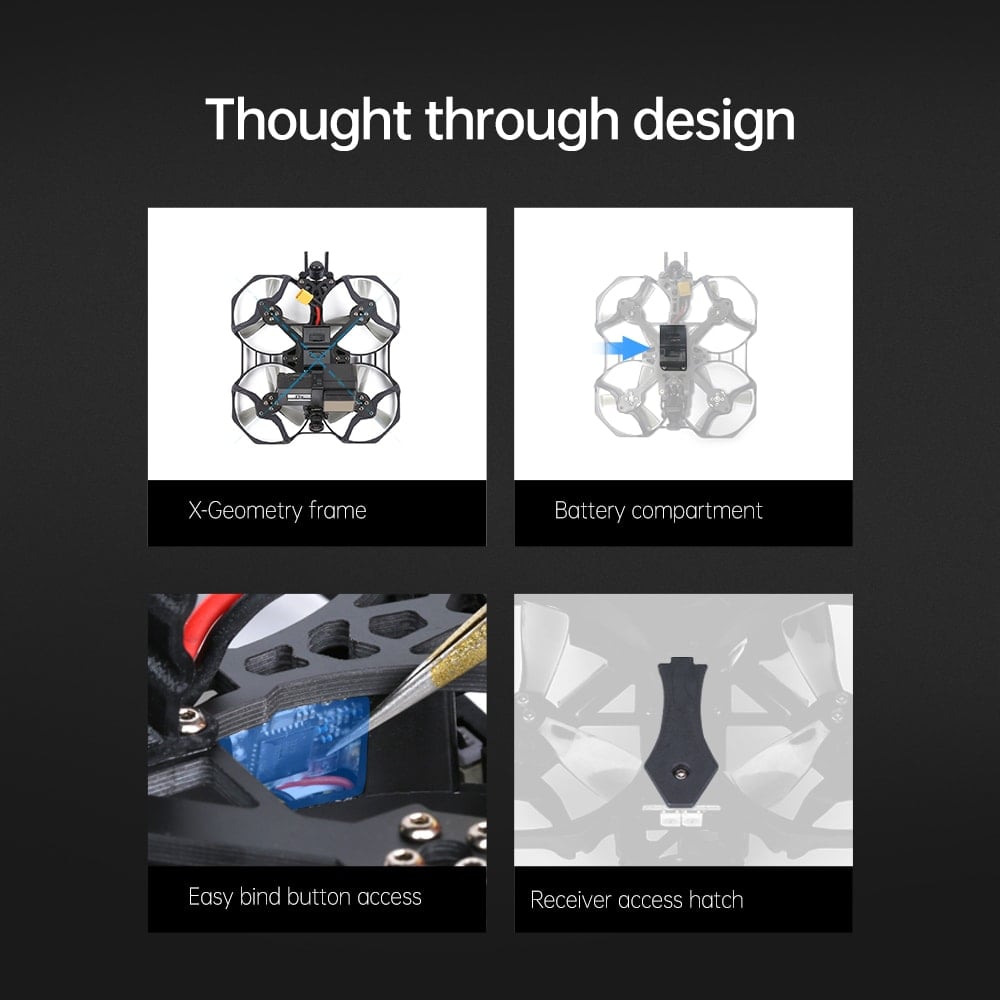

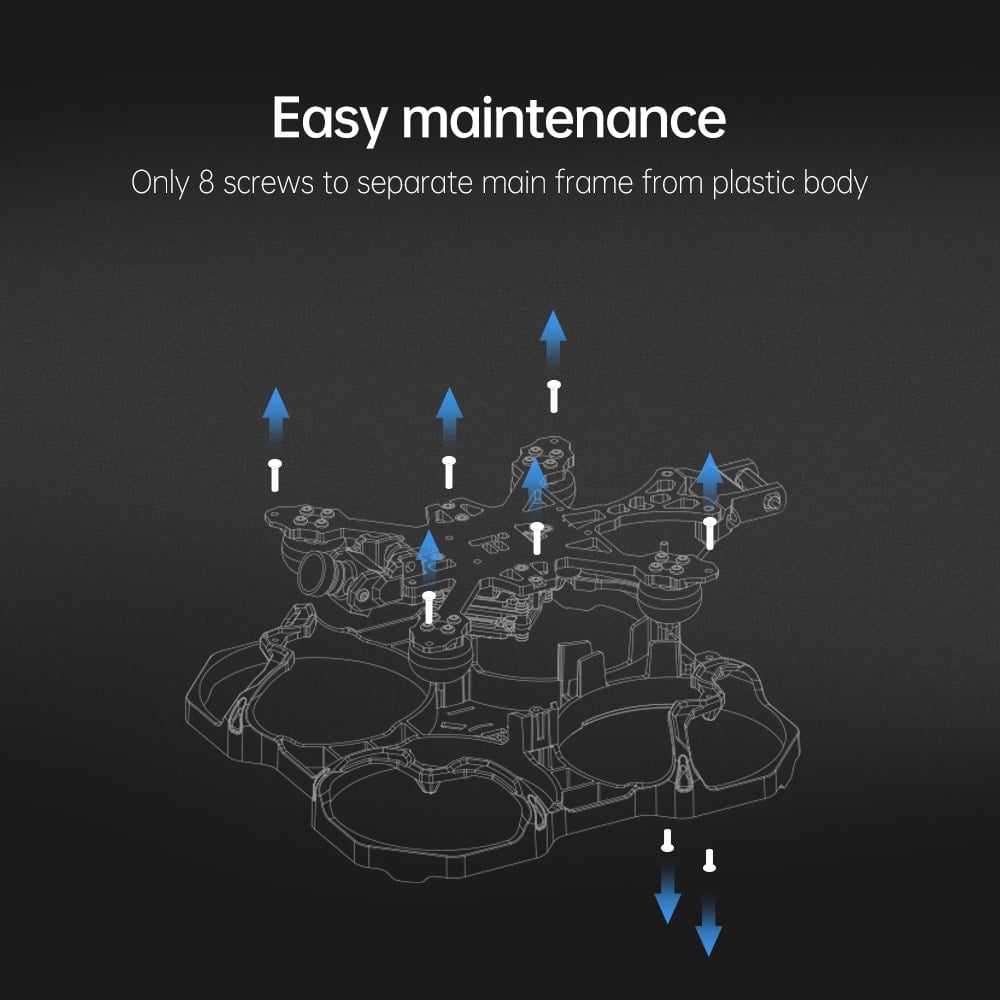

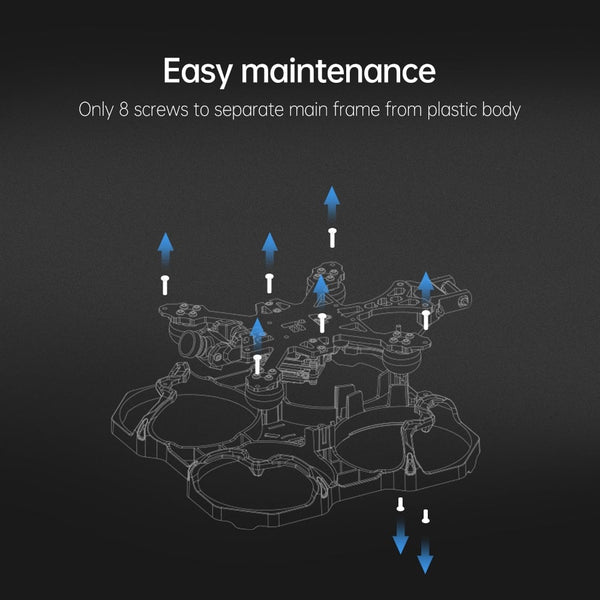

• Easy to repair and maintan
• T700 Quality Carbon (40% more tensile strength compared to common 3K carbon)

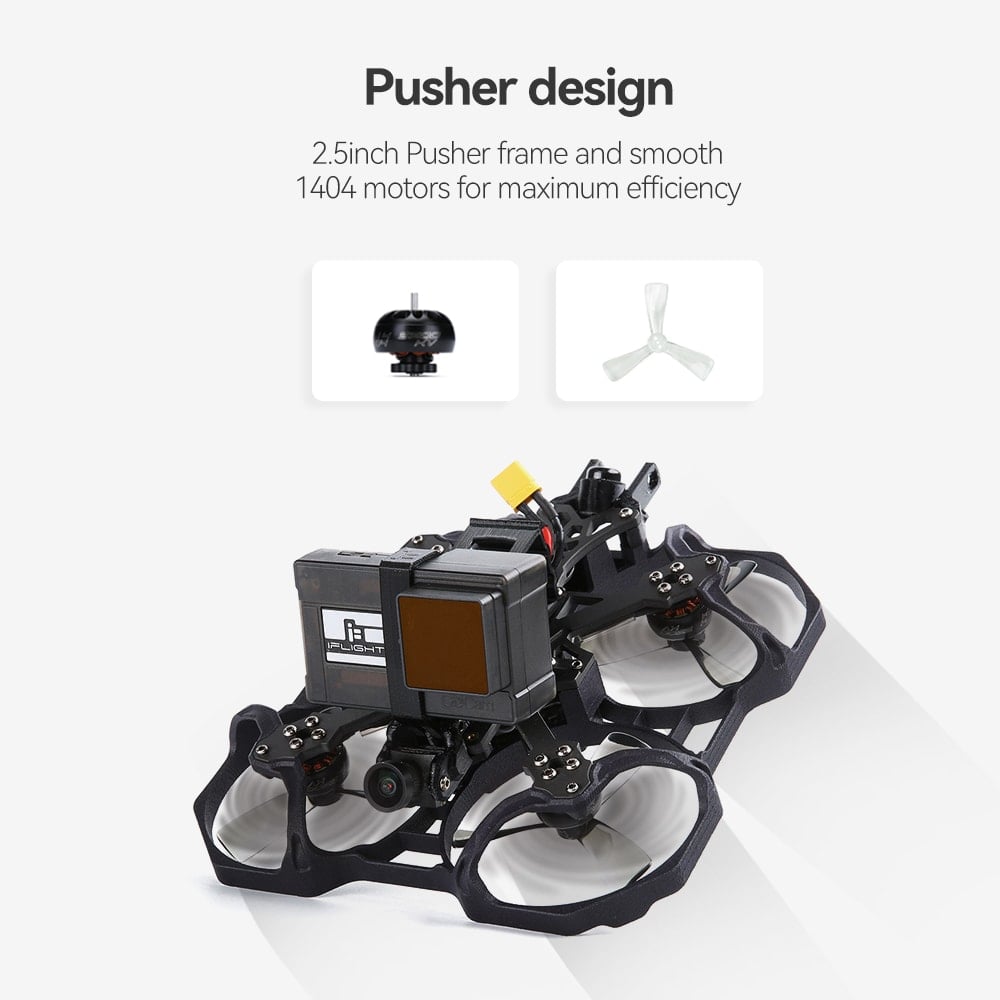

• Butter smooth XING 1404 motors
• Pre-tuned with smooth freestyle settings

Factory Setup Files, Pinouts and Wiring Guides

Iflight have provided all of their factory dumps, along with frame assembly, and electronics wiring guides on their google drive folder

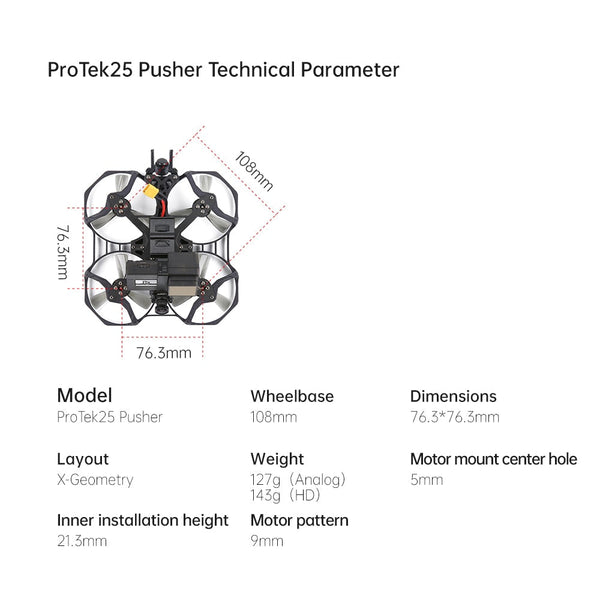

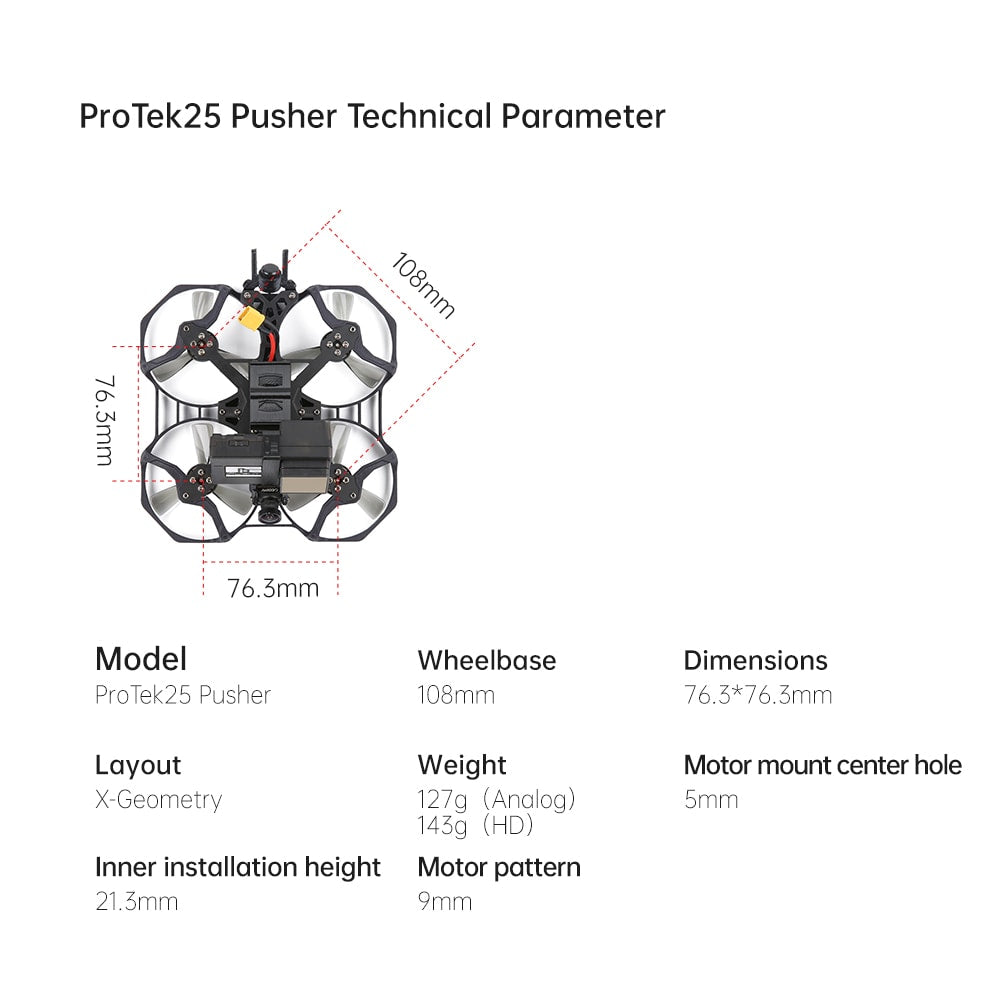

ProTek25 Pusher HD Specifications

• Electronics: SucceX-D Whoop AIO V3.2 (SKU:S010673)
• Motor: XING 1404 4600KV
• Wheelbase: 108mm
• Body Size: 76.3*76.3mm
• Top plate thickness: 3mm
• Top and bottom plate spacing: 21mm (aluminum standoff height)
• Propeller size: 2.5 inch
• FC pattern: 25.5*25.5mm / 20*20mm
• FPV cam spacing: 20mm
• Weight: 143.8g (without battery)

FC+ESC // SucceX-D 20A F4 Whoop AIO

• Size：41*41mm
• Mounting pattern：25.5*25.5mm/φ3mm
• Connector：Micro-USB
• MCU：STM32F411
• Gyro：MPU6000
• OSD: IFLIGHT OSD (AT7456E）
• Blackbox：16Mb Onboard Flash
• BEC output：5V 2.5A
• Barometer：DPS310
• Constant current：20A，30A（Burst）
• Input：2-6S
• Current sensor：yes
• BLHeli：BLHeli-S
• ESC Telemetry：no
• Target：IFLIGHT_F411_AIO
• ESC Firmware：G-H-30 BLS

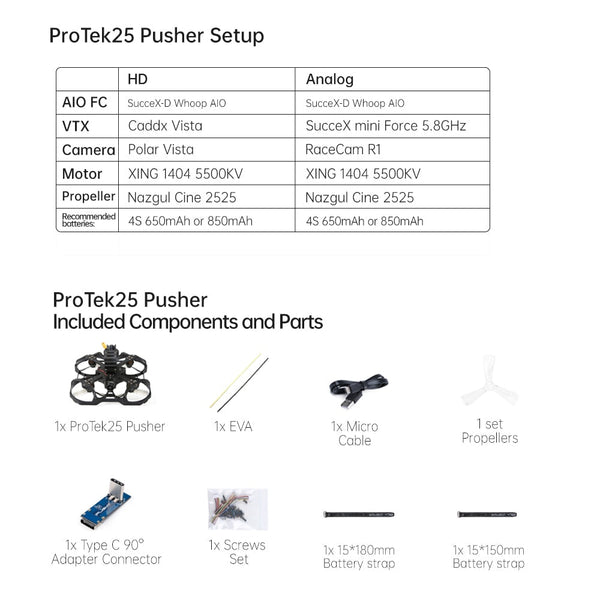

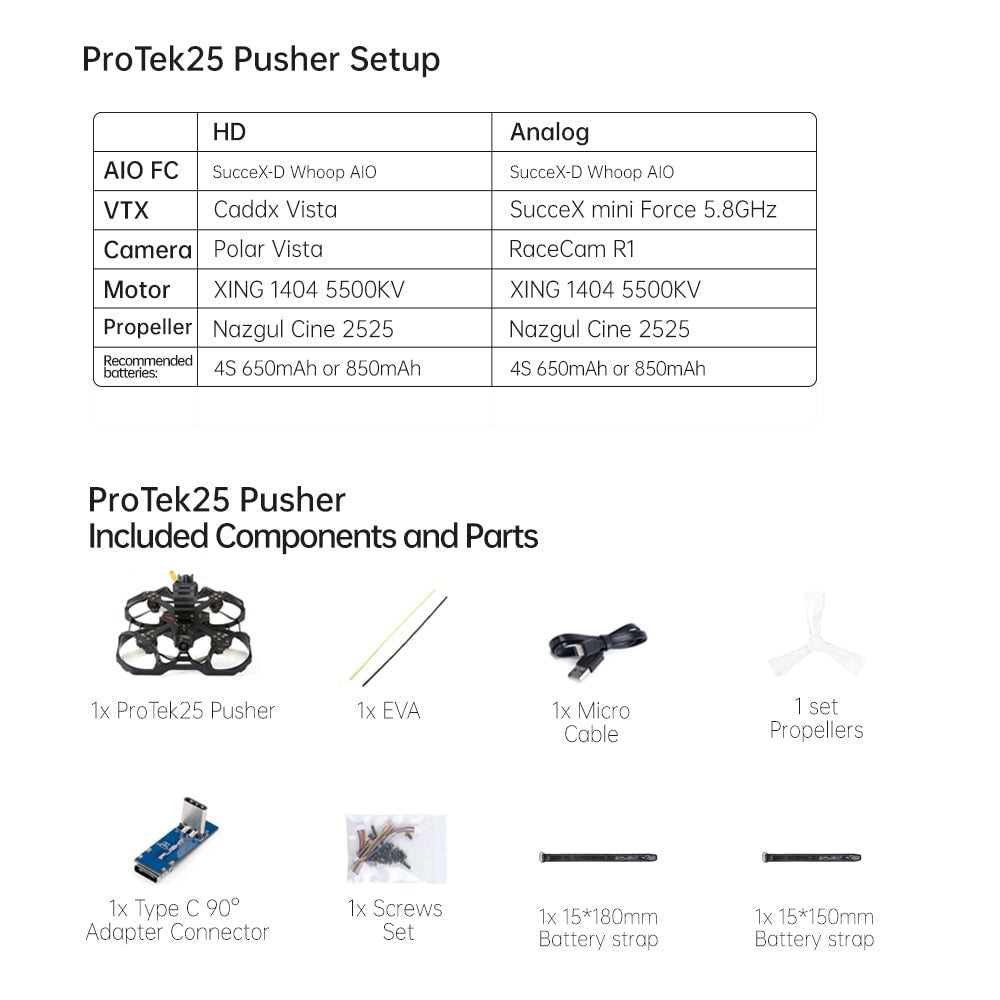

Included

• 1x iFlight ProTek25 Analog Pusher Drone
• 2x iFlight Nazgul 2525 propeller (Set of 4 - Color May Vary)
• 2x Battery Strap

Additional Suggested Parts

• DJI HD FPV Goggles
• Radio Controller
• Battery 4S 650mAh/850mAh

Important

The R/C receiver is not included with this quadcopter, you will need to solder your own to the flight controller. Damage caused by incorrect installation is not covered under warranty. If you are not comfortable doing this please get in touch prior to ordering and we can do this for you for a fee of £29.99 + the receiver cost.
