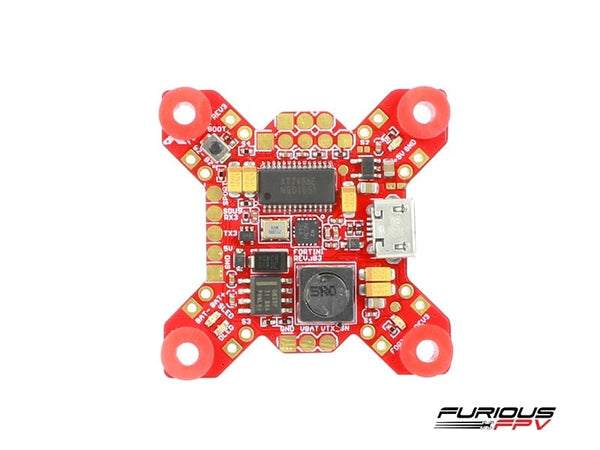

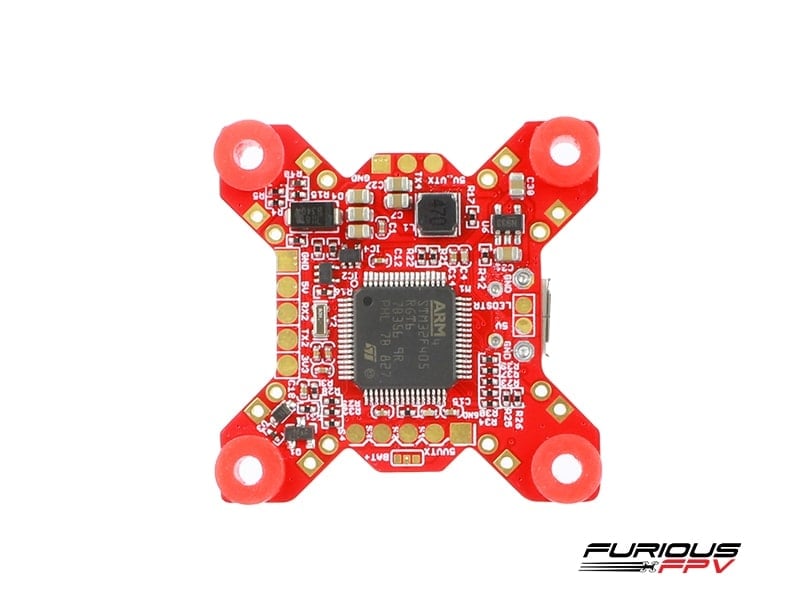

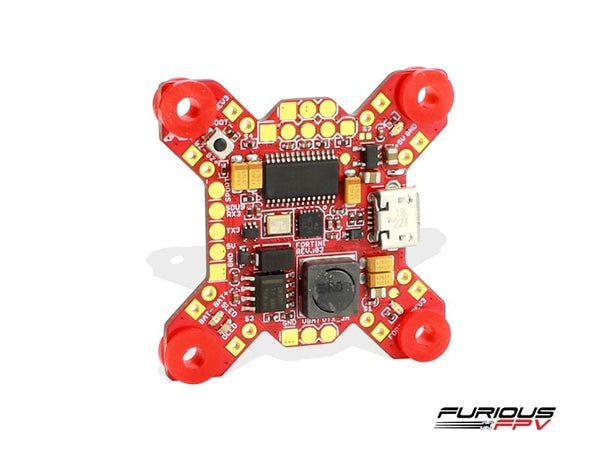

Fortini F4 OSD v3 Flight Controller (32Khz 16MB Black Box)

Building upon the powerful Fortini F4, Furious FPV introduces the all new Fortini F4 OSD, introducing new capability & functionality to simplify setup & redefine your next FPV experience. Hold on - it's about to get really good if you use this board.

Features:

• Built-in OSD
• Built-in Camera OSD Control for FPV camera
• Built-in capacitor 100nF for FOXEER camera
• Add TX3 for F.Port protocol
• Dual camera control and LED Strip port
• Silicone damper for better anti-vibration
• Fortini F4 OSD modifies camera settings by transmitter
• 6 UARTs for USB, SBUS, SPORT, TBS Receiver or GPS,Bluetooth,Telemetry VTX
• Separate power supply for gyro with LDO low noise and high accuracy
• Built-in driver inverter for S-Bus and Smart-Port connection directly to FC
• Inrush voltage protection input and output by transient voltage suppressor
• Invensense 20602 gyro for high speed 32khz, lowest noise floor and highest
  sensitivity.

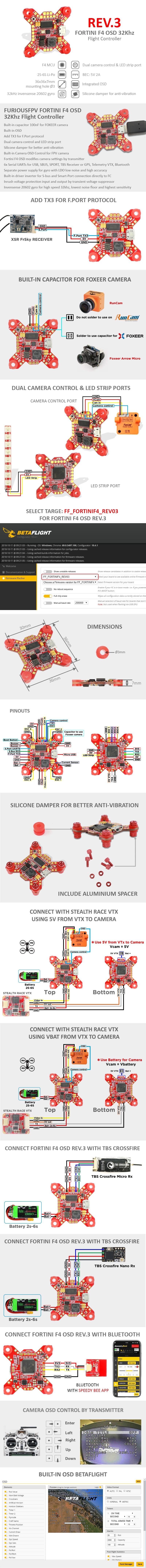

User Manual

• User_manual_Fortini_F4_OSD_Rev3.0

BetaFlight OSD - Setup Simplified.

Ditch the PC and enter the world of simplicity & ease. Setup brilliance awaits you with built in BetaFlight OSD, offering full parameter adjustment when it comes to all your flight settings. From camera, PID's VTx power and beyond, you are seconds away from perfection - no strings attached.

Invensense 32kHZ Gyro - Nothing but the Best.

Fly it like it's on rails. With cutting edge gyro functionality, the 32kHz Invensense 20602 gyro is the best of the best, offering epic flight characteristics every time you take to the skies. Utilizing low noise & high sensitivity, this gyro makes every flight simply unforgettable.

Simultaneous Connection Functionality - Keep It Social.

With the ability to integrate so many systems into (1) flight controller, the Fortini OSD pushes the realms of connectivity with (5) UARTS, allowing SBUS, S.PORT, MSP Receiver, USB and either TBS Smart Audio or Immersion RC Tramp functionality. Simply put, this bad boy is feature packed in every possible way.

Bad to the Bone BEC - Function Meets Demand.

Massively flexible with high power output, the 2A 5V BEC offers a wide 2S to 6S input range, with the ability to select 3.3V to 5V receiver power & the ability to power the Rx via USB. With this level of flexibility, it's simply plug & play - Furious FPV has taken the hard work out of the loop.

Input & Output Inrush Voltage Protection - Safety is Key.

Protecting against extreme voltage spikes, the Inrush Input & Output Voltage protection keeps everything safe, making sure transient voltage spikes do no damage.

Camera OSD control/LED Strip functions

BetaFlight OSD and beyond, the FORTINI F4 OSD can control the camera OSD settings as well as LED strip functions. This unleash full customization for your build both performance and appearance.

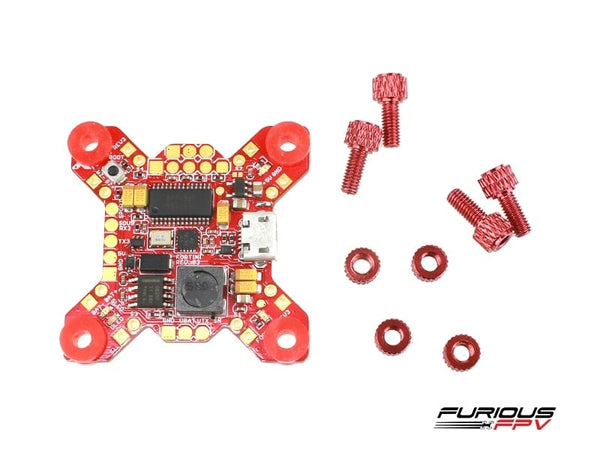

* The CNC Aluminium Spacers and Silicone Dampers come in random colors: red, blue, purple and black and they are also available for purchase separately.
