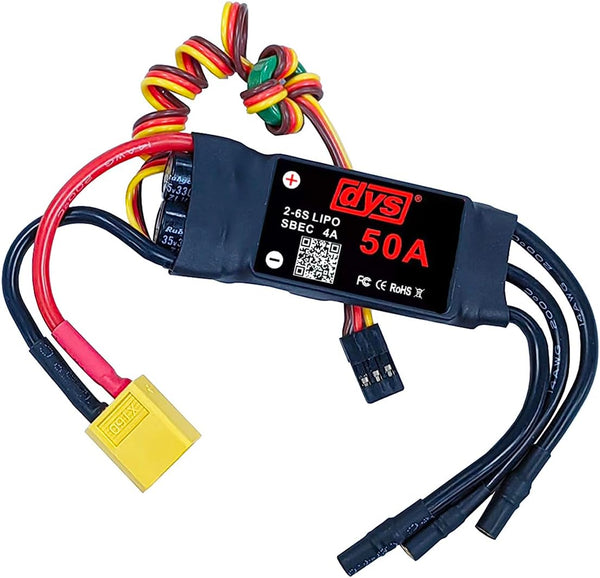

DYS 50A 2-6S Brushless ESC With 5V/4A BEC For RC fixed-wing Aircraft

DYS 50A ESC: Power Meets Precision

The DYS 50A Electronic Speed Controller is a robust powerhouse that comes ready for action with pre-soldered XT60 connectors and 3.5mm bullet plugs. This high-performance ESC delivers exceptional power management for your RC aircraft while maintaining remarkable efficiency.

Technical Specifications

Power Specifications

• Continuous Current: 50A
• Peak Current: 60A
• SBEC Output: 5V/4A
• Battery Compatibility: 2-6S LiPo or 5-18 NiMH cells

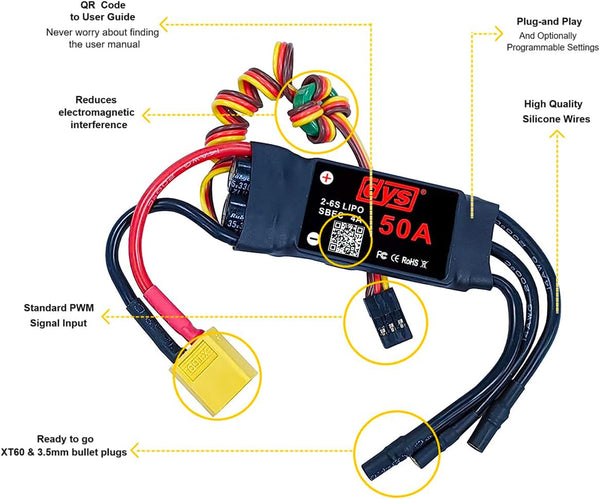

Key Features

• Pre-soldered XT60 connector
• 3.5mm bullet plugs installed
• Compact size with minimal heat generation
• Automatic throttle range calibration
• Built-in short circuit protection
• Premium N-CHANNEL MOS tubes
• Fixed LiPo cutoff at 3.2V per cell
• Compatible with most mainstream brushless motors

Safety Features

The ESC includes sophisticated protection systems, including a fixed termination threshold of 3.2V for LiPo batteries (50% for NiMH), ensuring safe operation and preventing dangerous over-discharge scenarios. The built-in SBEC features short-circuit protection with automatic recovery.

What's in the Box

• 1x DYS 50A Brushless ESC with pre-soldered connectors

Note: Actual accessories may vary based on current supply and package configuration.

Important Safety Notes

The ESC should be operated following proper safety protocols, especially when handling high-power systems. Always maintain safe distance from the propeller and operate in designated flying areas.
