Frank II 7 inch Long Range Cinematic Quadcopter Frame

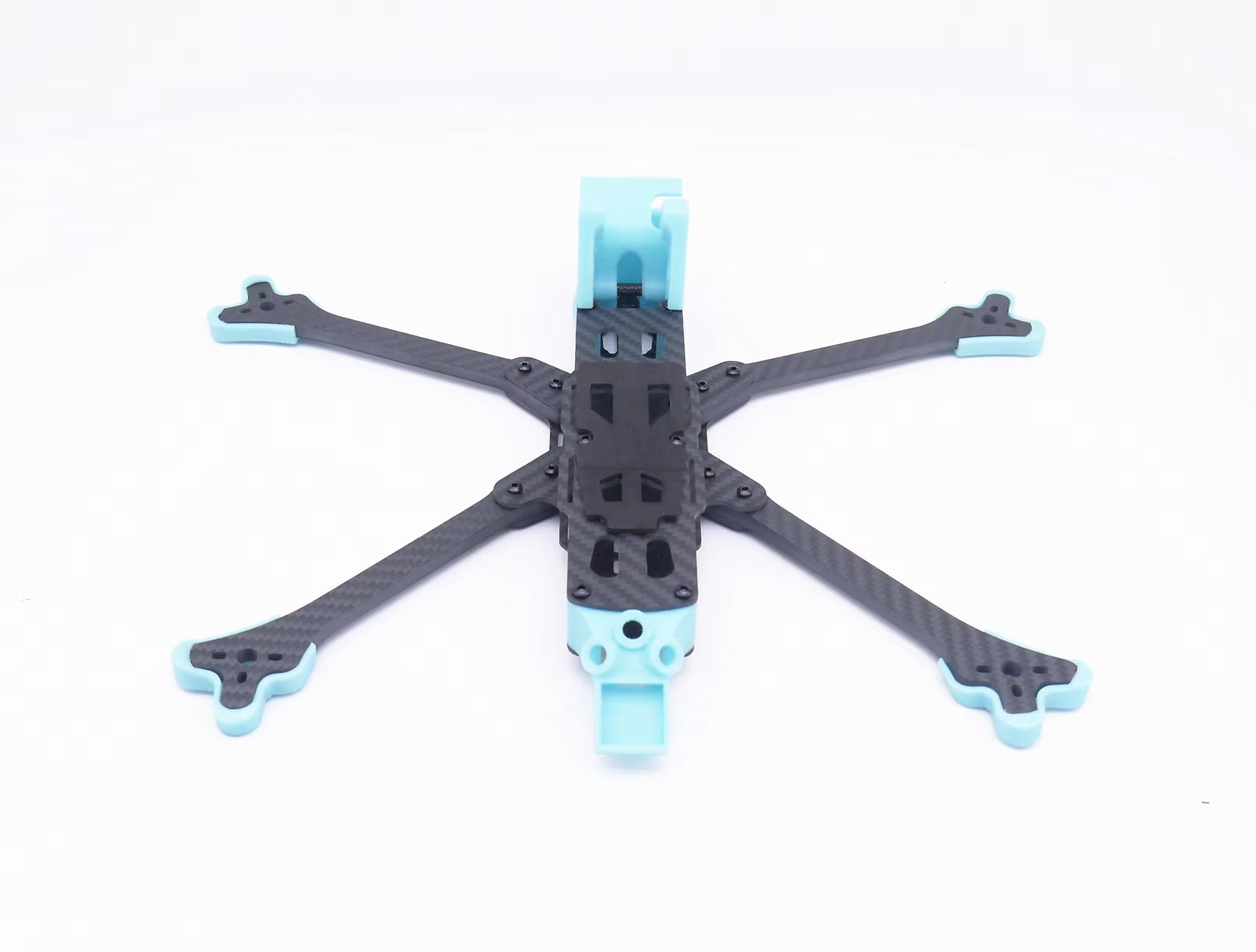

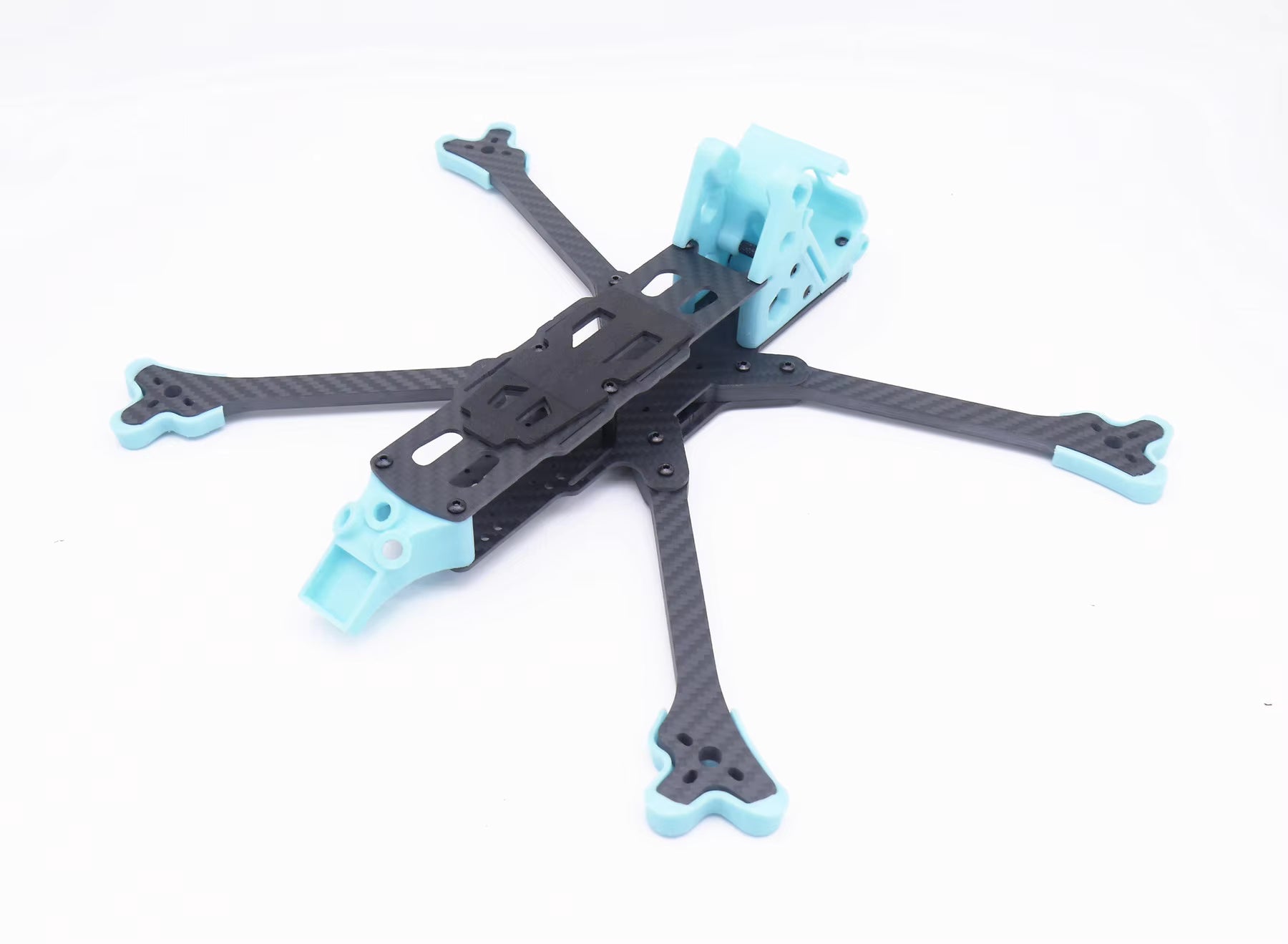

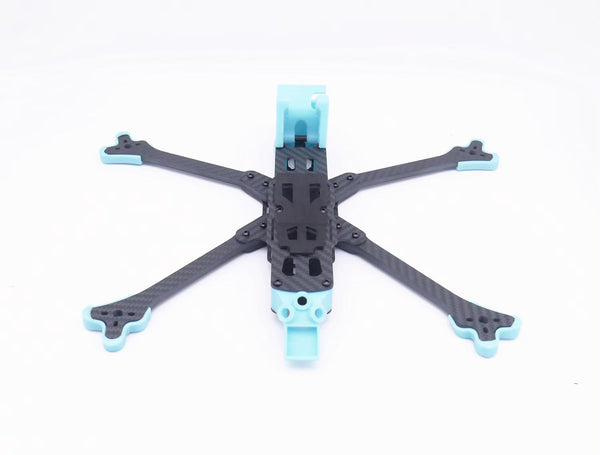

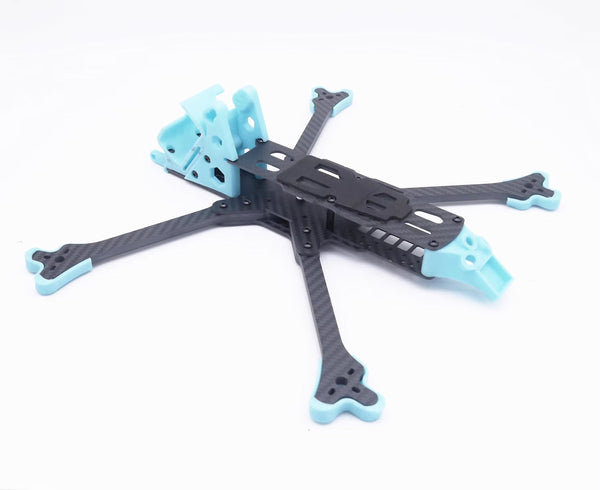

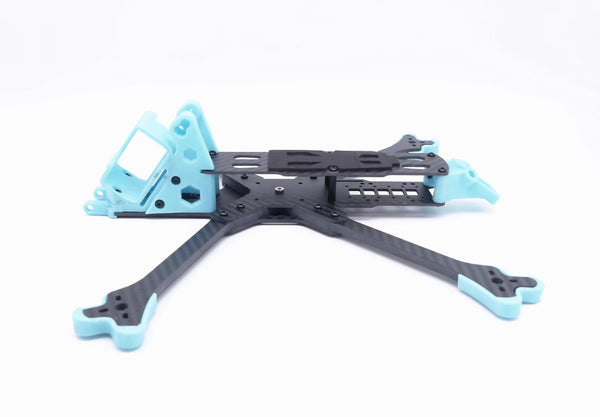

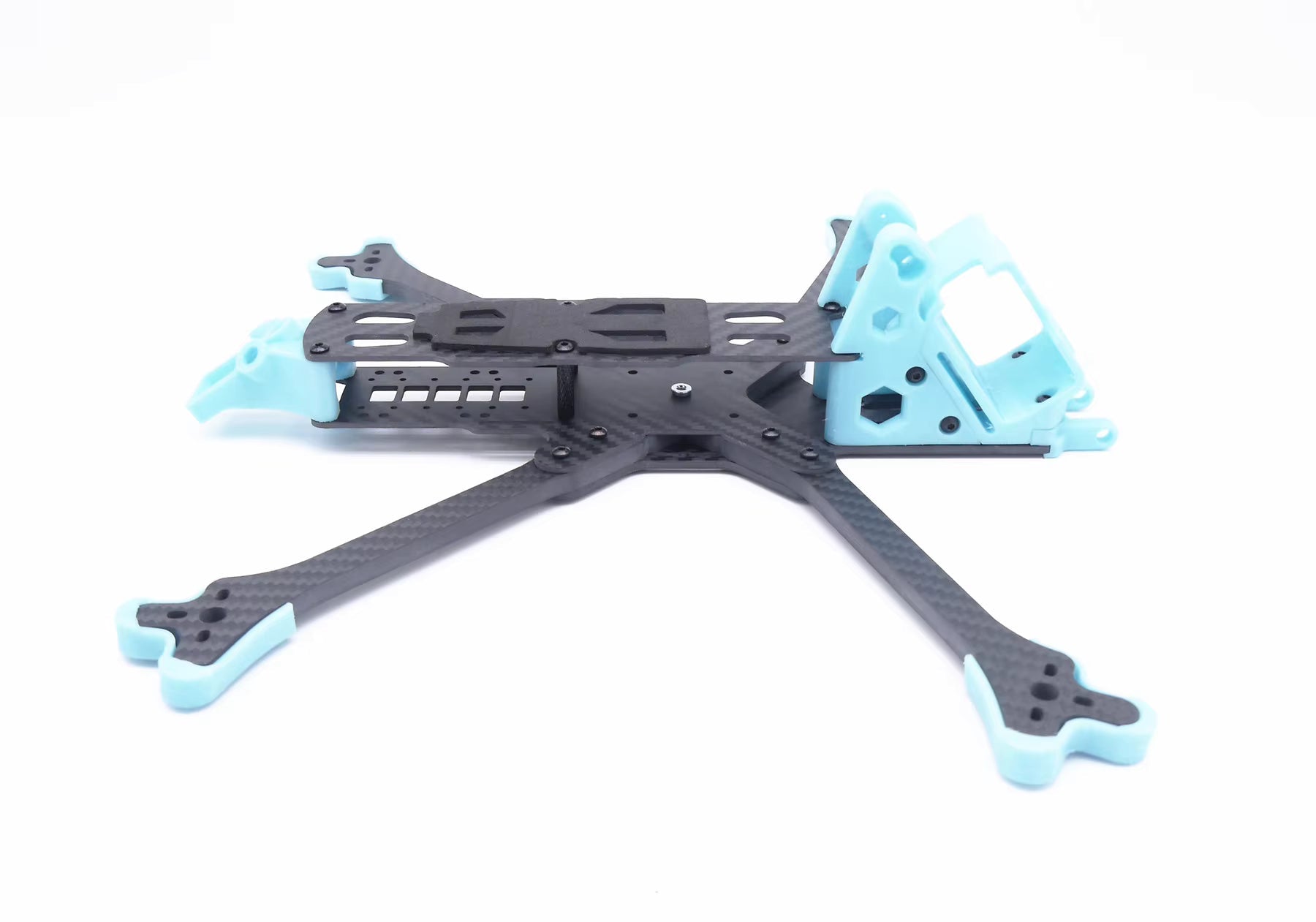

Frank II 7-Inch 328mm Drone Frame Kit

Meet the Frank II 7-inch drone frame kit—a robust, feature-packed frame designed to support powerful builds for high-performance flight. With a 328mm wheelbase and a sturdy construction, this frame offers ample space for 7-inch propellers, allowing for balanced, smooth, and efficient flights. The Frank II frame is built from high-quality carbon fiber, with a 2.5mm bottom plate, a 2mm upper plate, and ultra-durable 6mm arms, making it capable of handling the rigors of demanding drone flights.

This frame kit is versatile, with mounting options that support a variety of flight controllers (20x20mm and 30.5x30.5mm hole distances) and motors with 16mm or 19mm mounting hole pitches. It's also designed with FPV enthusiasts in mind, as it accommodates popular FPV gear, including a GoPro7, DJI VISTA, and BN-180 GPS. The frame's 3D-printed TPU components come in a striking blue, adding both style and resilience to protect your gear.

Key Features:

• Large Wheelbase : 328mm wheelbase for stable 7-inch propeller compatibility.
• High-Strength Build : Carbon fiber frame with 6mm thick arms, 2.5mm bottom plate, and 2mm top plate for increased durability.
• Versatile Mounting Options : Supports 20x20mm and 30.5x30.5mm flight controller and tail video transmission hole distances.
• Camera & Motor Compatibility : Camera mount options of 19mm, 20mm, and 21mm; motor mounting holes for 16mm and 19mm M3 pitches.
• FPV & GPS Ready : Compatible with DJI Sky Terminal/VISTA, GoPro7, and BN-180 GPS for seamless FPV and navigation integration.
• Enhanced with TPU Prints : 3D-printed TPU components in blue for added resilience and a sleek look.

Specifications:

• Wheelbase : 328mm
• Weight : Approx. 235g (with TPU prints)
• Material : Carbon fiber frame with 3D-printed blue TPU parts
• Plate Thickness : Bottom plate 2.5mm, top plate 2mm, splint 2.0mm, arms 6.0mm
• Propeller Size : Supports 7-inch propellers
• Flight Controller Mounting : 20x20mm and 30.5x30.5mm hole distances
• Tail Video Transmitter Mounting : 20x20mm and 30.5x30.5mm hole distances
• Camera Mount Widths : 19mm, 20mm, 21mm
• Motor Mounting Holes : Supports 16mm (M3) and 19mm (M3) motors
• Compatible Accessories : BN-180 GPS, DJI VISTA/Sky Terminal, GoPro7

What's in the Box:

• 1 x Frank II 7-Inch 328mm Frame Kit
• 1 x Battery Belt

Note: Additional components and electronics required to complete the build are sold separately.
