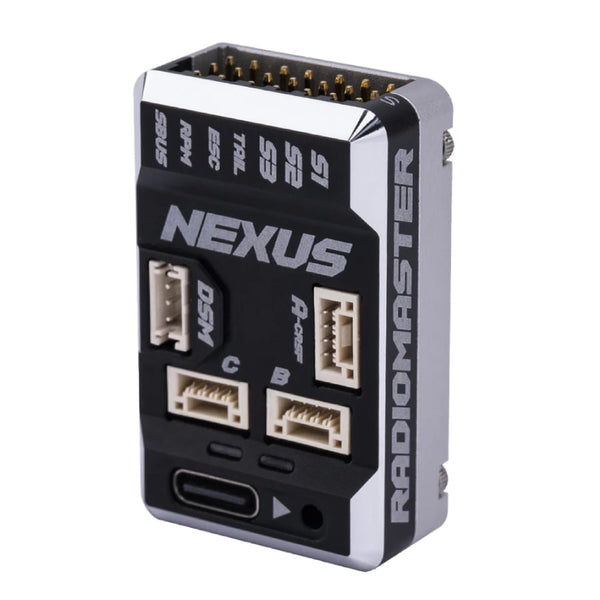

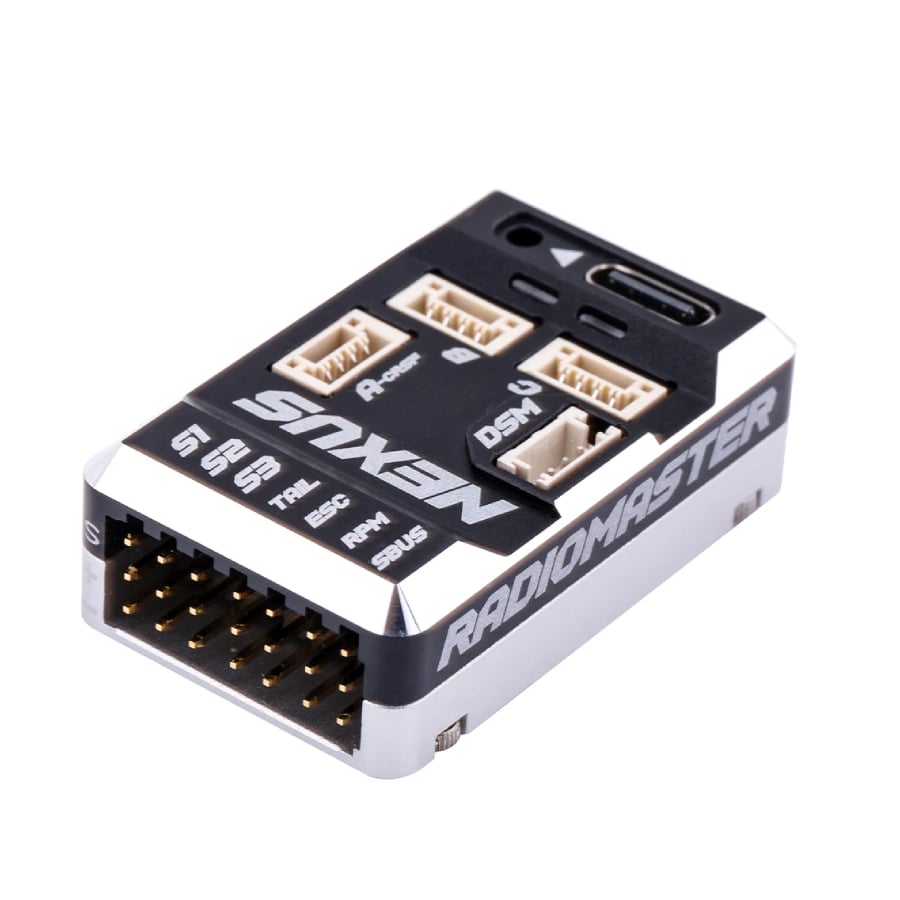

Radiomaster NEXUS Helicopter FBL Flight Controller

Meet the Radiomaster NEXUS Flybarless (FBL) control unit, a marvel of engineering based on the Rotorflight 2.0 reference design. Crafted for peak performance and seamless compatibility, the NEXUS promises an unparalleled Rotorflight experience straight out of the box.

Powered by the advanced STM32F722 MCU and the TDK ICM-42688-P 6-axis MEMS motion tracking device, this flight controller ensures precision with its integrated 3-axis gyroscope and 3-axis accelerometer. With a hefty 128Mb of onboard flash memory, you can log every flight for meticulous fine-tuning and adjustments.

Our Plug'n'Play solder-free RP3-H ExpressLRS receivers come with a locking connector system, guaranteeing a stable connection. Additionally, DSM and S.BUS ports are available for your preferred receiver type, and the multi-function ports are ready for future expansions.

Encased in CNC-machined aluminum, the NEXUS is not just visually stunning but also highly functional, offering protection and heat dissipation for the F722 processor. After extensive R&D and rigorous testing by both developers and experienced helicopter pilots, the NEXUS stands ready to elevate your helicopter flying experience.

Features

• Optimized for Rotorflight 2.0 : Designed specifically to work with Rotorflight 2.0 for the best performance.
• Advanced Motion Tracking : Equipped with STM32F722 MCU and TDK 6-axis MEMS device, combining a 3-axis gyroscope and 3-axis accelerometer.
• Comprehensive Flight Logging : 128Mb onboard flash memory for detailed flight logs.
• Stable Connection : Plug'n'Play solder-free RP3-H ExpressLRS receivers with a locking connector system (receiver not included).
• Future-Proof Ports : Multi-function ports (UART) for future expansions.
• Rugged Design : CNC-machined aluminum case for protection and heat dissipation.
• Compact Size : Measures 41mm x 25mm x 13mm, perfect for various helicopter sizes (250/450/500/550/600/700).
• Wide Receiver Compatibility : Supports CRSF, ELRS, GHOST, S.BUS, SUMD, IBUS, XBUS, EXBUS, PPM, MSP, DSM2, DSMX, and F PORT.
• Independent Power Supplies : Multiple power supplies minimizing noise, with 1.8V for Gyro, 3.3V for MCU, and 5.0V for external interface.
• USB-C Extender Included : Ultra-lightweight, flexible USB-C extender cable to prevent vibration transfer.
• Rotorflight Rescue : Standard feature for added safety.

Specifications

• Firmware : Rotorflight 2.0
• MCU : STM32F722RET6
• Gyro (IMU) : ICM-42688-P
• Flash Memory : 128Mb (W25N01GVZEIG)
• Barometer : SPL06-001
• UART Ports : 6 (DSM[UART1], S.BUS[UART2], A-CRSF[UART4], PORT-B[UART6], PORT-C[UART3])
• Servo Ports : 4 (S1, S2, S3, TAIL)
• RPM Sensor : 1 (FROM ESC FREQUENCY SENSOR)
• Receiver Support : CRSF, ELRS, GHOST, S.BUS, SUMD, IBUS, XBUS, EXBUS, PPM, MSP, DSM2, DSMX
• Voltage Supply : 5 - 12.6V
• Serial Port Power Output : A-B-C (5V - 2.0A), DSM (3.3V - 0.5A)
• Telemetry : S.BUSH, HoTT, S.Port, MSP, EDGETX, ELRS
• ESC Support : PWM, Oneshot, Multishot, Dshot
• Tail ESC Support : 760μs/1520μs Servo
• Tail Motor Support : Yes

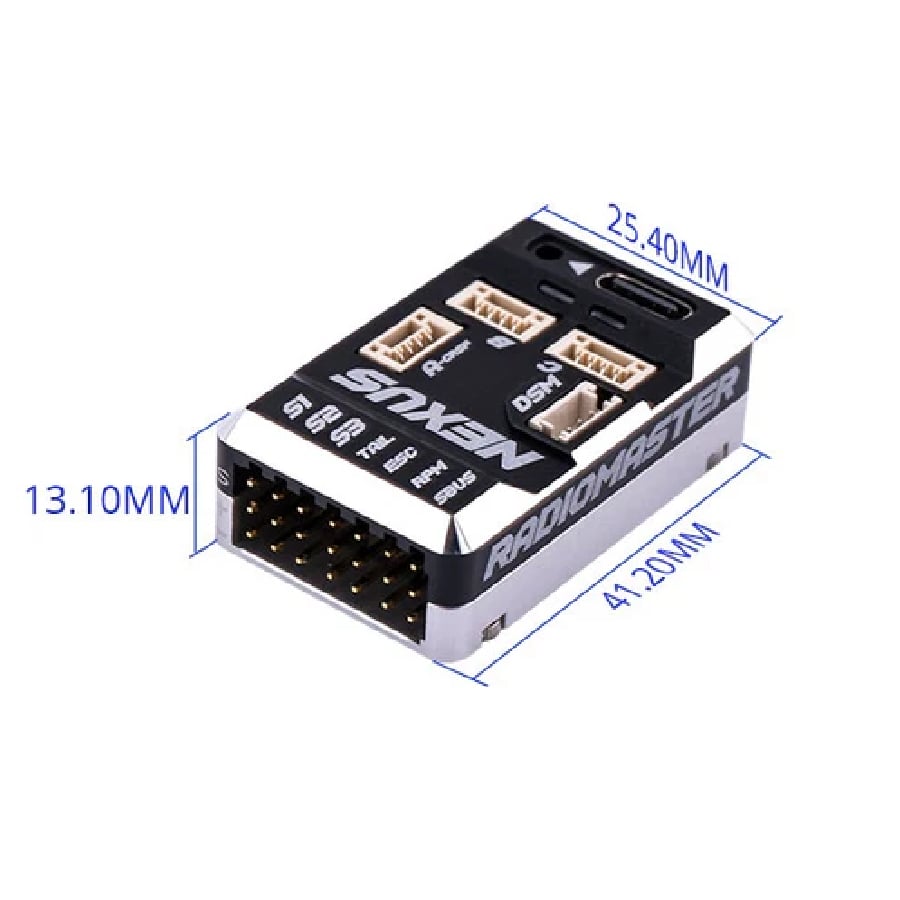

• Dimensions : 41.3 x 25.4 x 13.1mm
• Weight : 16.8g

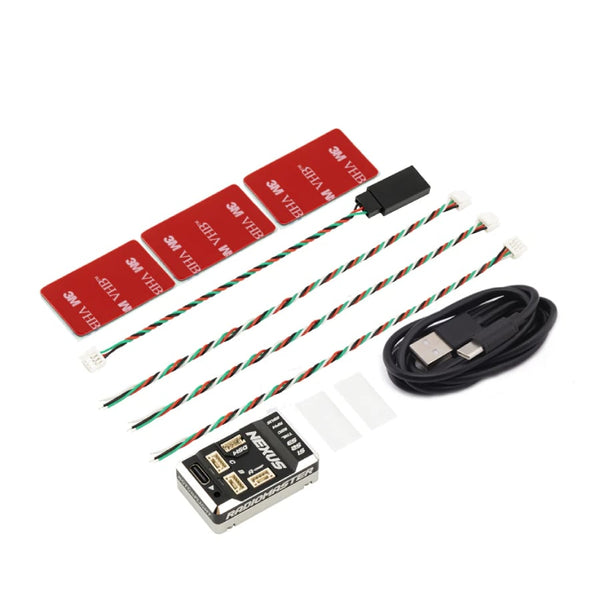

In the Box

• Radiomaster NEXUS Helicopter Flight Controller

Note: Accessories may vary based on supply.
