Sub250 Redfox A1 F4 5A 4in1 AIO FC

Redfox A1 F4 5A 1S AIO Flight Controller w/ 200mW VTX | Ultra-Light Micro Drone Board

Simplify your next 1S micro drone build with the highly integrated Redfox A1 All-In-One (AIO) Flight Controller. This compact board combines a powerful F4 flight controller, a capable 4-in-1 5A ESC, and an onboard 200mW analog video transmitter (VTX), making it the perfect brain for your Whoop, Toothpick, or custom lightweight FPV drone.

Designed specifically for 1S LiPo operation, the Redfox A1 dramatically reduces wiring complexity, saves precious weight, and streamlines the building process. Get smooth and responsive flight performance thanks to the F4 processor running your favorite firmware (like Betaflight or Emuflight - check compatibility). The 5A ESCs provide ample power for typical 1S motors (e.g., 07xx, 08xx, 1002 sizes), while the integrated 200mW VTX delivers clear analog FPV video transmission with decent range for park flying and indoor adventures.

If you're searching for a reliable, feature-packed, and easy-to-install AIO FC for your 1S FPV build, the Redfox A1 offers an excellent balance of performance, integration, and value. Build smaller, fly lighter!

Key Features:

• All-In-One Integration: Combines FC, 4-in-1 ESC, and VTX on a single board.
• Powerful F4 Processor: Ensures smooth flight calculations and supports modern firmware features.
• 1S LiPo Compatibility: Specifically designed for lightweight micro drone builds.
• 5A ESC Rating: Suitable for common 1S brushless motors.
• Built-in 200mW Analog VTX: Provides reliable video transmission without needing a separate module.
• Lightweight & Compact: Ideal for weight-sensitive Whoop and Toothpick frames.
• Simplified Building: Reduces soldering points and wiring clutter.

Specifications:

• Brand: Redfox
• Model: A1 F4 5A 1S AIO
• MCU: STM32F4xx (Typically F411)
• Gyro: (Specify Gyro if known, e.g., MPU6000, BMI270 - Needs confirmation )
• ESC: 4-in-1 BLHeli_S / Bluejay compatible
• ESC Continuous Current: 5A per channel
• ESC Peak Current: (Typically 6A or higher - Needs confirmation )
• Input Voltage: 1S LiPo / LiHV (DC 2.9V - 4.35V)
• Built-in VTX: Analog FPV Transmitter
• VTX Output Power: Pit Mode / 25mW / 100mW / 200mW (Switchable - Confirm specific levels )
• VTX Control Protocol: SmartAudio / IRC Tramp ( Confirm which is supported )
• Firmware Target: (Specify Betaflight/Emuflight target name - Crucial for setup, Needs confirmation )
• Mounting Pattern: Whoop standard 25.5x25.5mm (or similar - Confirm exact pattern )
• Board Size: (Approximate dimensions - Needs confirmation )
• Weight: (Approximate, likely under 5g - Needs confirmation )
• Receiver Support: Requires external serial receiver (e.g., ELRS, Crossfire, Ghost, SBUS) via UART connection.

(Note: Some specifications like the exact Gyro, VTX power levels, Firmware Target, and Mounting Pattern are critical and should be confirmed from the manufacturer or retailer's detailed listing.)

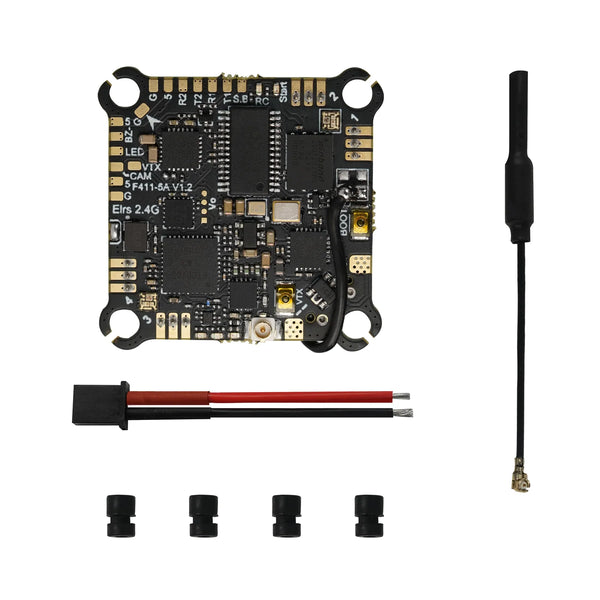

What's in the Box:

• 1 x Redfox A1 F4 5A 1S AIO FC with VTX
• Mounting Hardware (Grommets and Screws)
• Power Lead Pigtail (Connector type like PH2.0 or BT2.0 may vary)
• VTX Antenna (Typically a linear dipole or u.FL connector for one)

Disclaimer: Please note that the included accessories (such as the specific power connector type, antenna style, or color of grommets/wires) may vary depending on the production batch, regional supply, or specific bundle offered by the retailer. Always check the contents upon arrival.
