GEPRC GEP-TC18 O4 HD Frame

GEPRC GEP-TC 18 O4 Micro Frame Kit - Optimized for DJI O4 & HD Whoop Builds

Build the ultimate HD Tiny Whoop or micro FPV drone with the GEPRC GEP-TC 18 O4 Frame Kit ! Specifically engineered around the DJI O4 Air Unit , this frame incorporates specialized dampening silicone to ensure incredibly steady, shake-free HD footage, even on such a small platform. Say goodbye to jello and hello to crisp digital video!

This 1.8-inch class frame (87mm wheelbase) features a robust 7075 aluminum camera mount for superior durability and protection for your expensive FPV camera and VTX. The thoughtful integrated rear design neatly accommodates a buzzer and dual antennas, keeping your build clean and components secure. With sturdy 2mm thick carbon fiber bottom plate/arms and a Wide X geometry, this frame is built tough for both indoor acrobatics and outdoor cruising.

If you're searching for the best DJI O4 Whoop frame , a micro frame for DJI O4 , or a durable 1.8-inch FPV frame , the GEP-TC 18 O4 provides the perfect foundation. Its lightweight design (only 15g) and optimized layout make it ideal for creating powerful yet agile HD micro drones .

Key Features:

• Optimized for DJI O4: Features special dampening silicone for stable, jello-free HD recording.

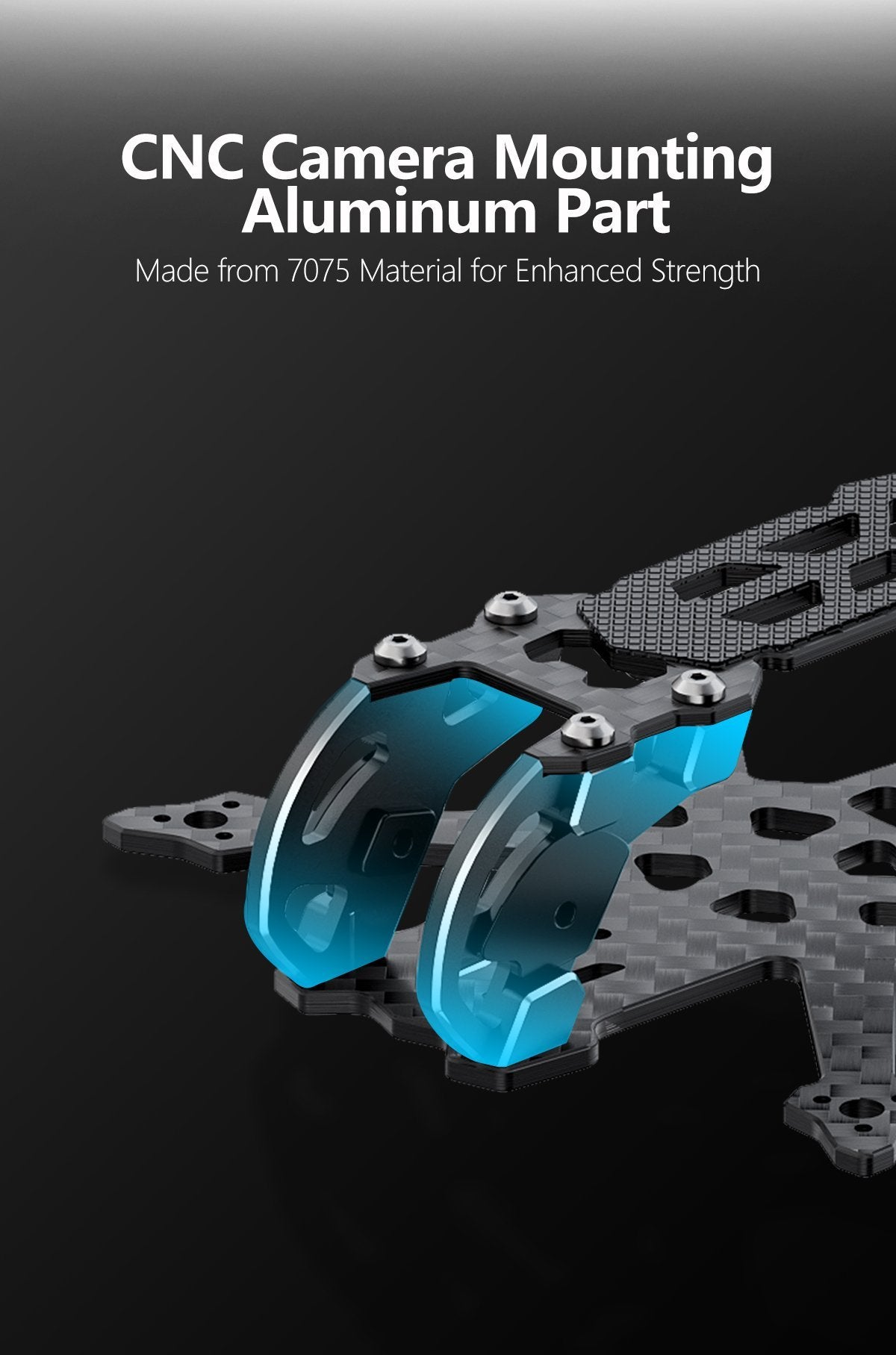

• Durable Construction: Robust 7075 aluminum camera mount and 2mm thick carbon fiber arms/bottom plate.
• Integrated Rear Design: Dedicated space for buzzer and dual VTX antennas for a clean build.
• Wide X Geometry: Provides balanced flight characteristics suitable for micro freestyle and cruising.
• Micro Class: 87mm wheelbase perfect for 45mm propellers (1.8-inch).
• Lightweight: Weighs only 15g, ideal for performance-oriented micro builds.
• Standard Mounting: 25.5x25.5 M2 mounting for FC/VTX stacks.

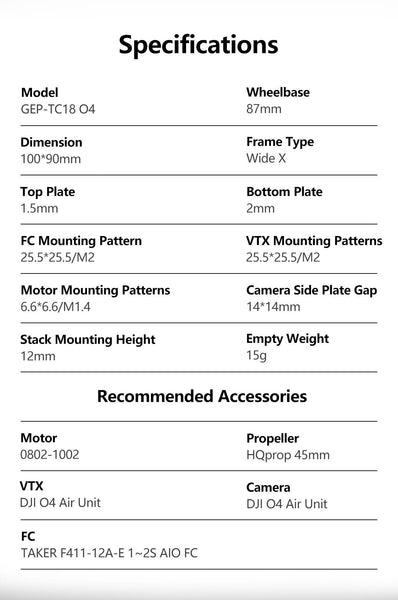

Specifications:

• Model: GEP-TC 18 O4 Frame
• Wheelbase: 87mm
• Dimensions: 100mm x 90mm (Approx.)
• Frame Type: Wide X
• Top Plate Thickness: 1.5mm
• Bottom Plate/Arm Thickness: 2mm
• FC Mounting Hole: 25.5mm x 25.5mm (M2)
• VTX Mounting Hole: 25.5mm x 25.5mm (M2)
• Motor Mounting Hole: 6.6mm x 6.6mm triangle (M1.4 screws, suitable for 0802-1002 motors)
• Camera Side Plate Gap: 14mm x 14mm (Micro camera size)
• Stack Mounting Height: 12mm
• Weight: 15g

Recommended Accessories (Not Included):

• Motors: 0802 - 1002 size brushless motors
• Flight Controller/ESC: TAKER F411-12A-E 1~2S AIO or similar 25.5x25.5 AIO
• VTX: DJI O4 Air Unit digital VTX
• Propellers: HQprop 45mm or similar 1.8-inch props

What's in the Box:

• 1 x GEP-TC 18 O4 Frame Kit (Top Plate, Bottom Plate/Arms, Aluminum Camera Mounts)
• 1 x Pack of Screws and Hardware
• 1 x Dampening Silicone Set for DJI O4
• (Likely includes TPU antenna mounts or similar small parts)

Disclaimer: Please note: Included accessories such as screw types, TPU part colors, or specific hardware may vary slightly based on manufacturer supply and batch.
