GEPRC GEP F722 45A AIO V2 Flight Controller

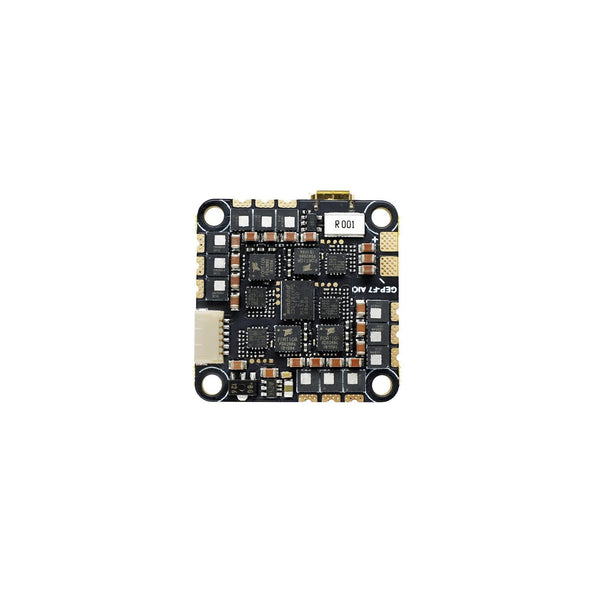

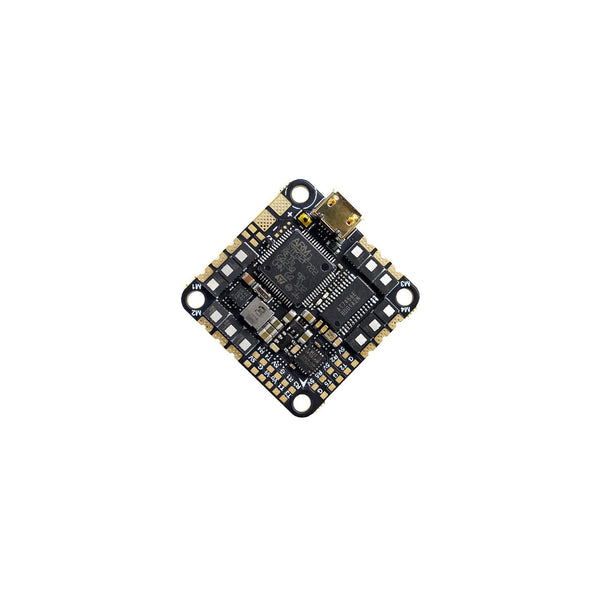

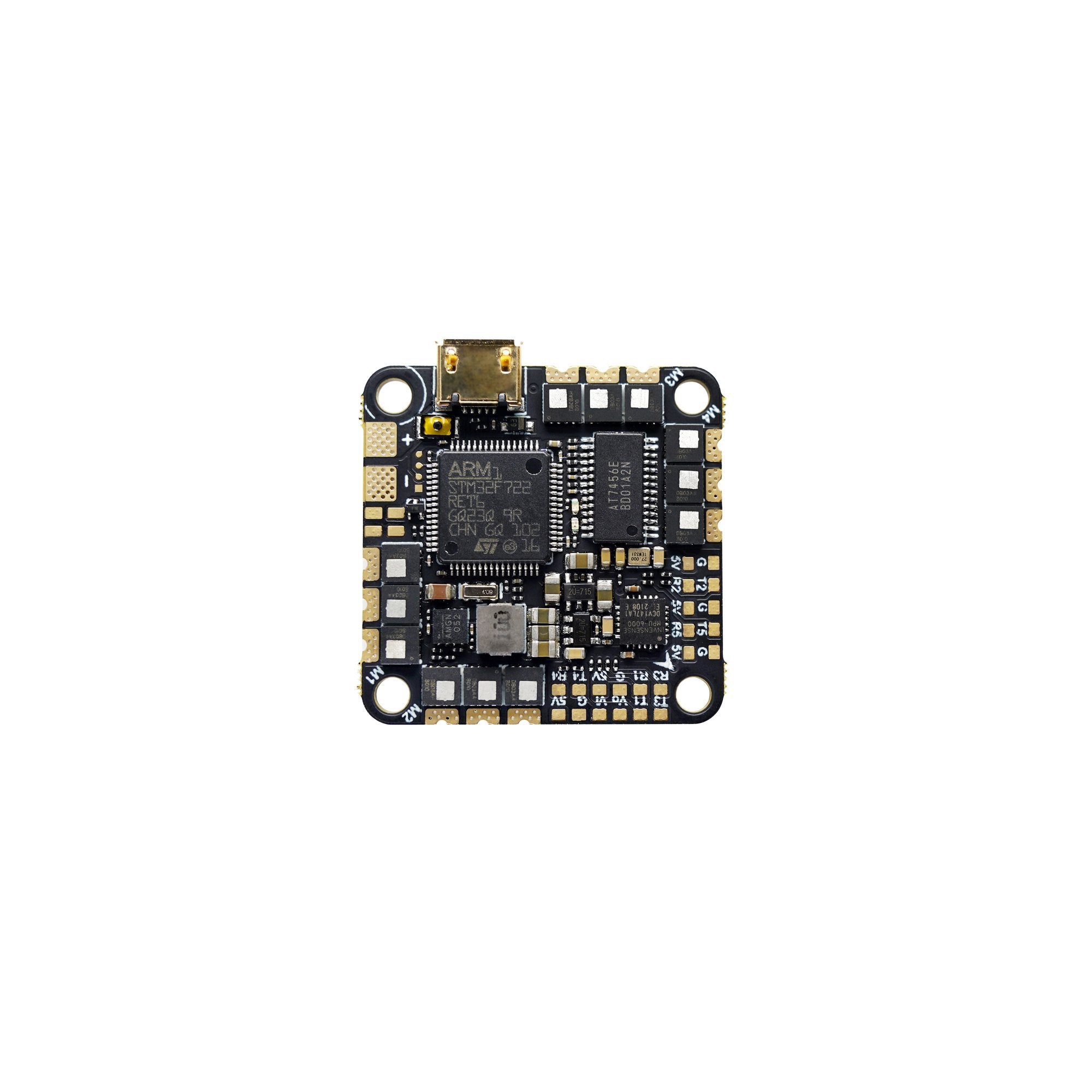

GEPRC GEP-F722-45A AIO V2 Flight Controller & ESC

The GEPRC GEP-F722-45A AIO V2 is an advanced, all-in-one flight controller and ESC combo designed for high-performance FPV drones. With an STM32F722 MCU at its core and a powerful 45A ESC, this board delivers exceptional processing speed and control, perfect for handling demanding maneuvers and high-thrust applications. Equipped with an integrated LC filter for cleaner power output, it ensures stable and interference-free performance for smoother flights and sharper video feeds.

This board includes a 42688 gyro/accelerometer for precise motion tracking, and a Betaflight OSD with the AT7456E chip for real-time flight data display. With support for multiple protocols (Dshot600, Oneshot, and Multishot) and compatibility with 2-6S batteries, it offers versatility and robust power management across different builds. The compact 32x32mm form factor and 25.5×25.5mm mounting pattern make it suitable for a wide range of frame sizes, and at only 8.8g, it adds minimal weight to your build.

Key Features:

• Powerful Flight Controller : STM32F722 MCU for fast processing and precise flight control.
• Integrated 45A ESC : Handles continuous 45A current, ideal for high-performance drones.
• Versatile Protocol Support : Compatible with Dshot600, Oneshot, and Multishot.
• Betaflight OSD : Real-time data with AT7456E OSD chip for customized flight feedback.
• Integrated LC Filter : Provides cleaner power, reducing electrical noise for better video clarity.
• Lightweight & Compact : Only 8.8g and measures 32x32mm, making it suitable for tight builds.
• Flexible Power Input : Supports 2-6S LiPo batteries, offering adaptability for various power setups.

Specifications:

• Model : GEP-F722-45A AIO V2
• MCU : STM32F722
• IMU : 42688 gyro/accelerometer (SPI)
• OSD : Betaflight OSD with AT7456E
• BEC Output : 5V @ 1A
• ESC MCU : 8BB21F16G
• Continuous Current : 45A
• Input Voltage : 2S - 6S LiPo
• UART Ports : R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5
• Board Dimensions : 32 x 32mm
• Mounting Hole Pattern : 25.5 x 25.5mm
• Weight : 8.8g

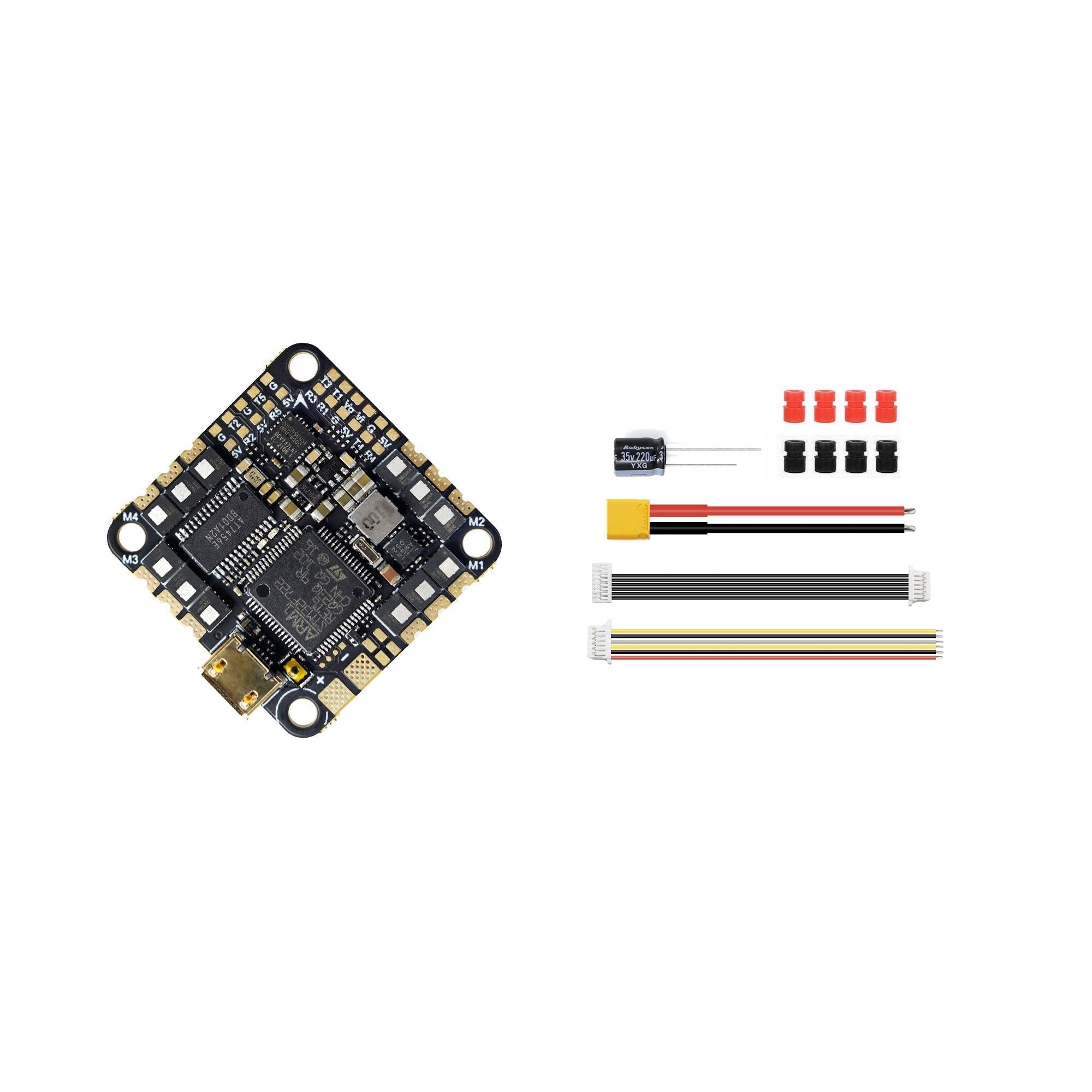

What's in the Box:

• 1 x GEPRC GEP-F722-45A AIO V2 Flight Controller & ESC
