Vibration Damping Mounting Set

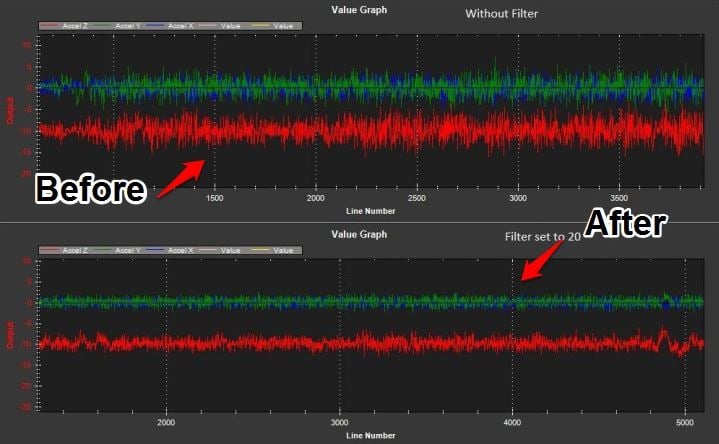

This is a set that allows for the vibration of the motors to be dampened for the flight controller of the copter/plane. All you need to do is to mount your flight controller ontop of this anti-vibration mount and it will isolate the vibrations on your autopilot sensors. This is very important as this dampening effect can improve the performance significantly. The picture below demonstrates the difference in vibrations before using a vibration damping mount, and after one is applied. Here you have a choice of sizes; a smaller mounting set for flight controller such as the Flip 32+/CC3D, or a bigger set for controller such as Pixhawks and APM boards.

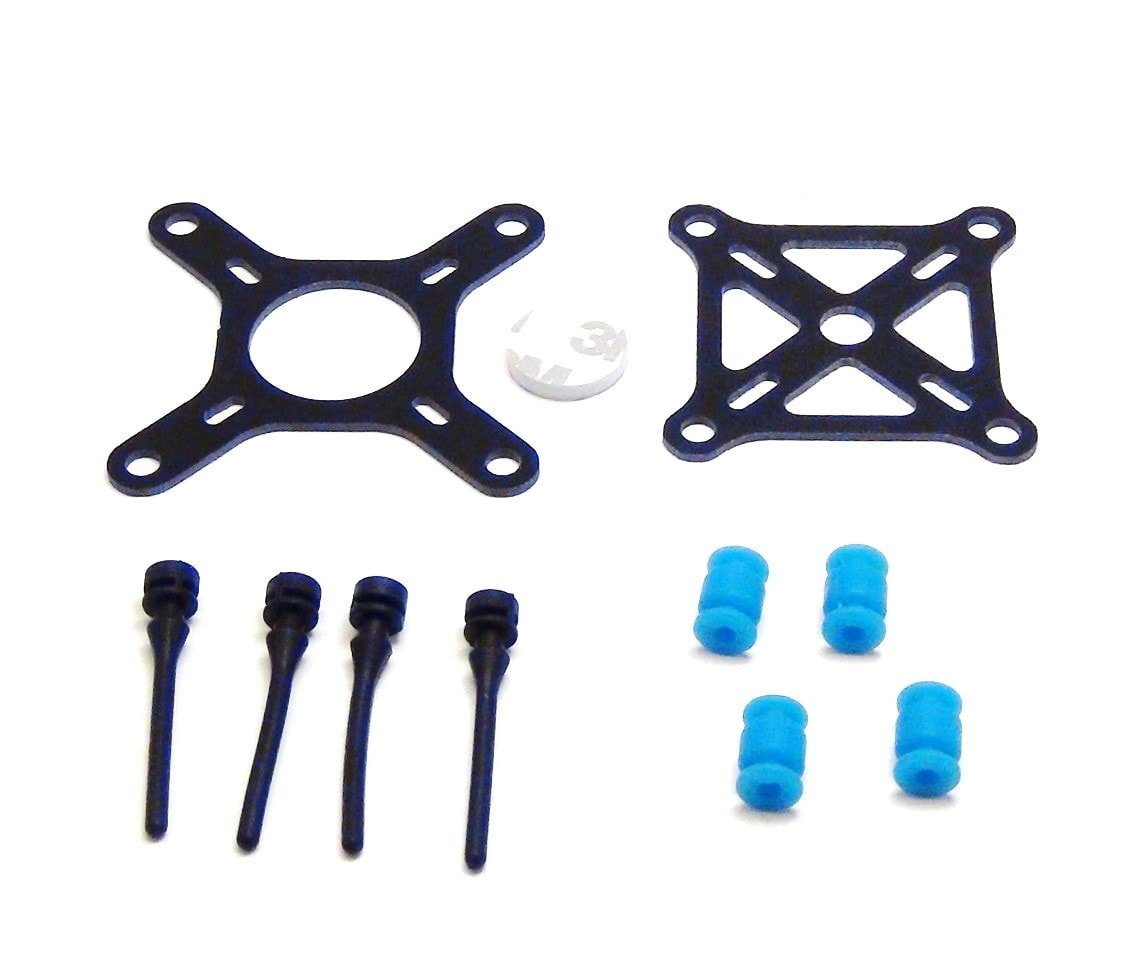

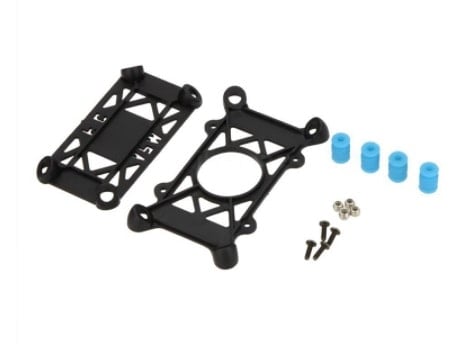

The large mounting set measures 72mm x 45mm which is ideal for Pixhawk/ APM2.6/ DJI NAZA size flight controllers, and the smaller one measures 45mm x 45mm and is suitable for CC3D, Flip32, and MiniAPM size flight controllers.

Note: why not check out the 5-in-1 Vibration Damping Plate with PDB that we sell? This is the vibration damping mounting set for the Pixhawk/APM with an integrated PDB!

Contents:

This pack includes:

• 2 x anti-vibration boards
• 4 x anti-vibration balls
• Double-sided adhesive pads.

Resources:

• Guide for building your large vibration damping mounting set for Pixhawk etc . (same principle can be applied to the small vibration damping mounting set).
