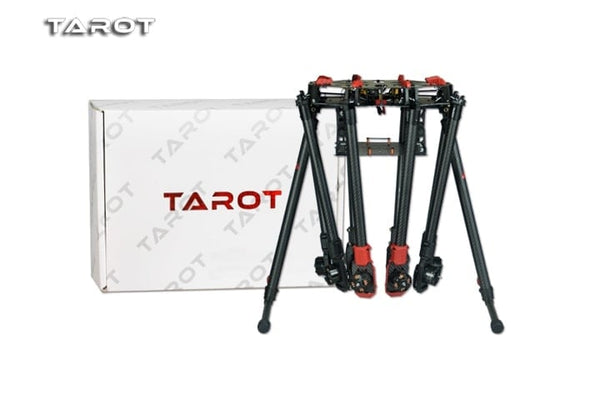

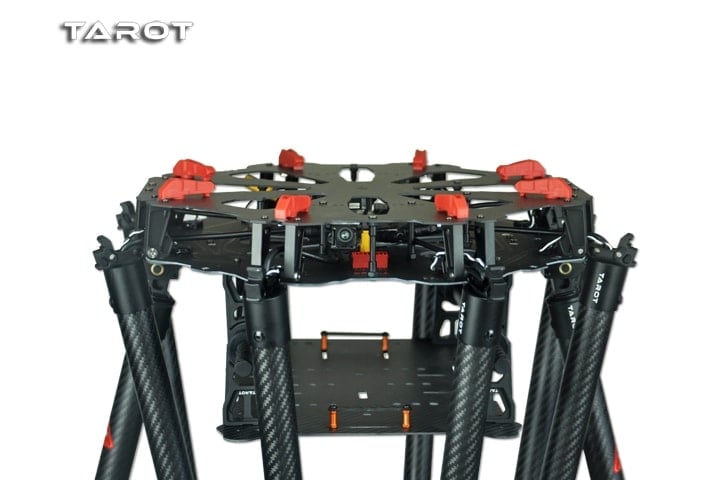

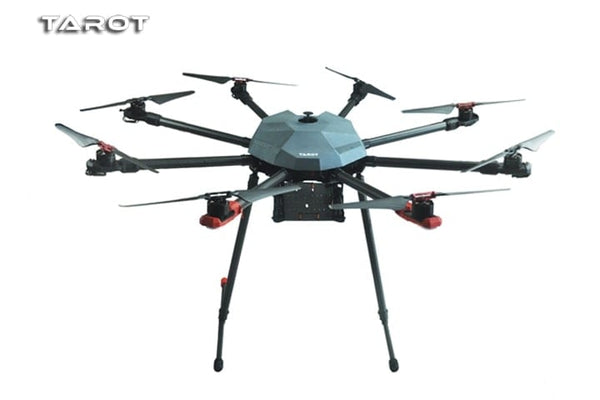

Tarot X8 II Heavy Lift Professional UAV Quadcopter Frame

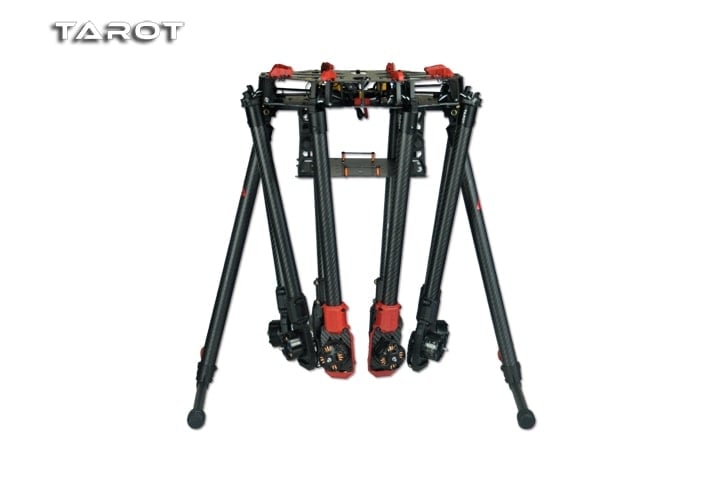

TAROT X8-II multi-axis aircraft is a new generation version of the fuselage optimisation based on the first-generation X8. It is also a multi-axis flight carrier designed for professional aerial photography users. The new electric shrink-folding tripod and the umbrella-folding arm, the integrated PCB board make the connection of power supply and ESC faster and safer and provide sufficient installation space for various flight control systems.
The 8 rotors provide sufficient power to ensure that the aircraft is in a steady-state even if one of the shafts stops working unexpectedly. The overall weight is light and easy to carry. Empty carrier hovering valid date since 31minutes.

Specifications

• Symmetrical motor wheelbase: 1125MM

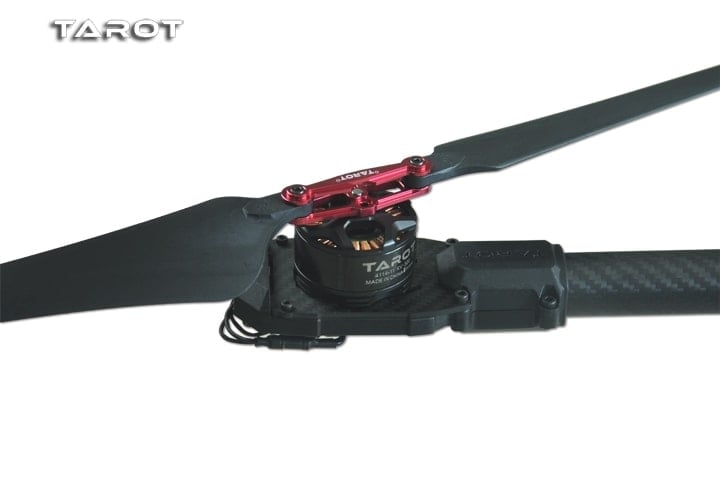

• folding paddle Specifications: 16 inch
• arm length (arm to motor center): 395MM
• arm weight (arm and motor base): 122G

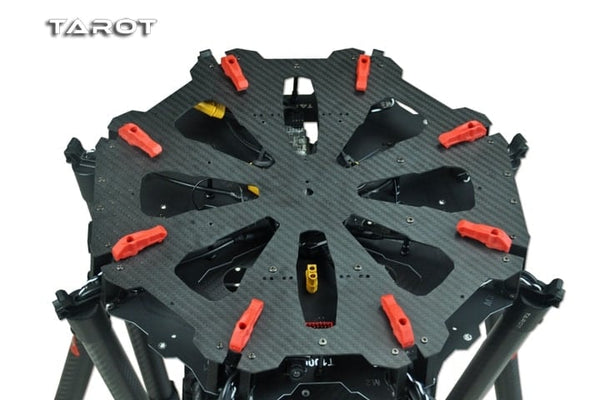

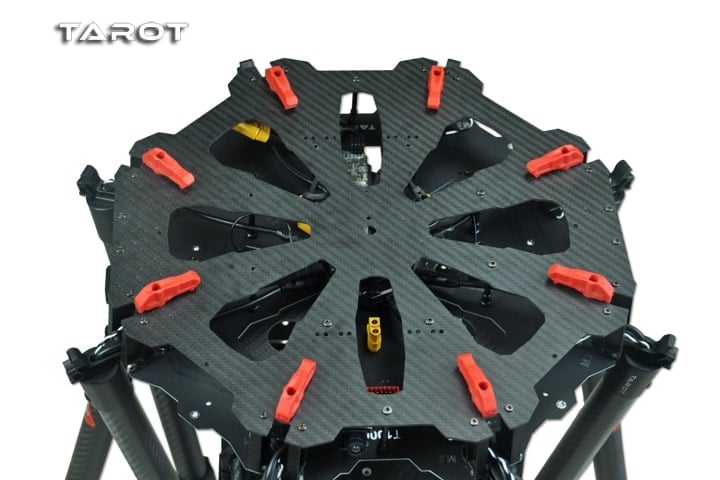

• center plate diameter: 335MM
• landing gear clearance height : 490MM
• battery specifications: 25C, 22.2V, 22000MHA
• 6S brushless ESC: 40A
• no-load hover time: 31MIN (battery power remaining 21.0V)
• Working environment temperature: -10 °C ~ 40 °C
• Net weight: 3.42KG

Included

• Center Integrated disk × 1
• single arm (Φ25 × 355MM) × 8
• motor seat TL96027 × 8
• electric retractable tripod (Φ25 × 425MM) × 2
• tripod driver TL8X002-02 × 1
• battery board (275 × 190 × 1.6MM) × 1

Suggested Parts (not inlcuded)

• Pixhawk based autopilot system
• 1655 Carbon Propeller
• 8x 4414 320Kv Motor
• 40A ESC (one for each motor)
• 25c 22.2V 2.2Ah Lipo Battery

Please note that the X series carbon fiber hood TL8X008 is sold separately
