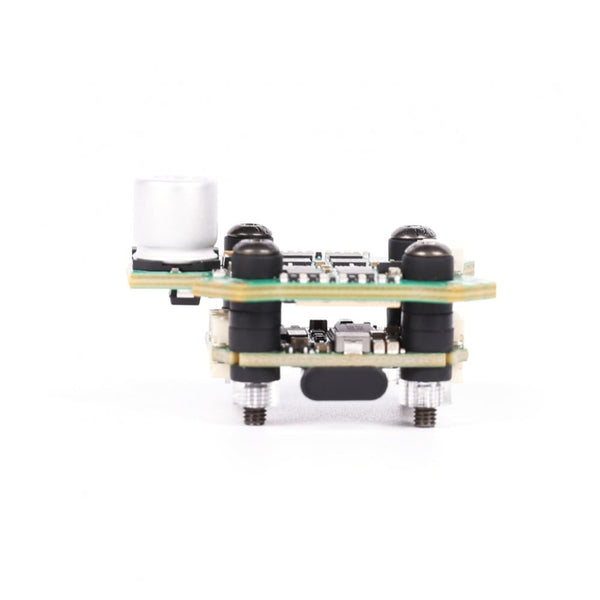

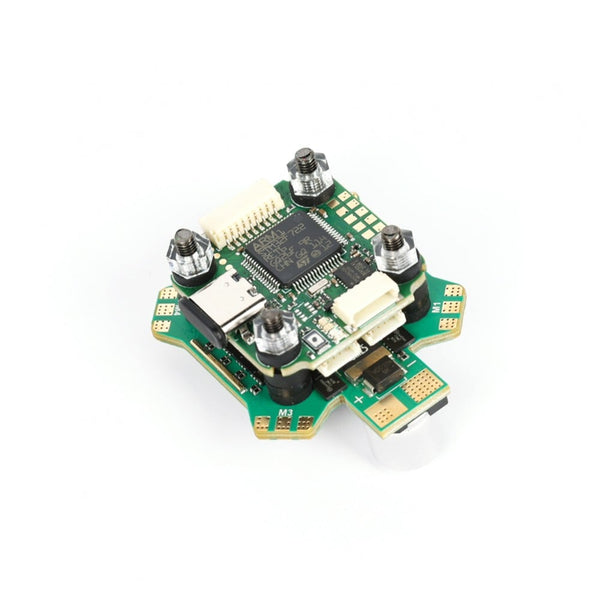

iFlight Blitz Mini F7 Flight Stack (20x20 F7 + 55A 4in1 ESC)

FC Features

• Improved circuit design, better components, and lower electrical noise!

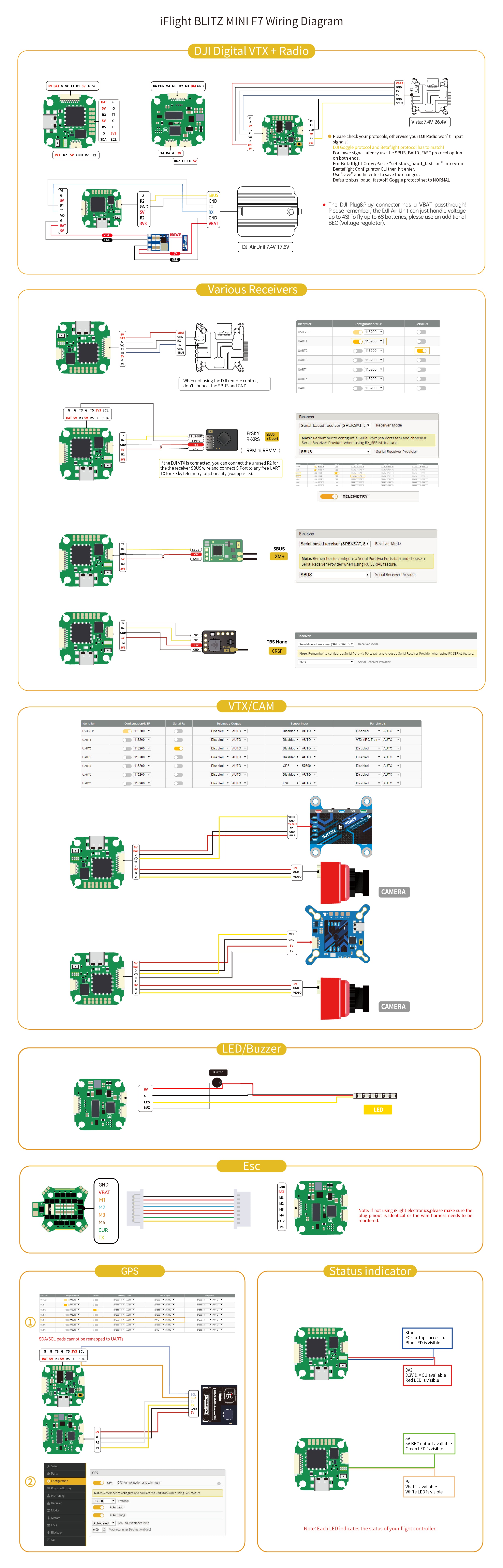

• DJI HD VTX Connector (Plug-and-Play / No soldering required)
• FC indicator LEDs for visual debugging
• With LC filter

FC Specifications

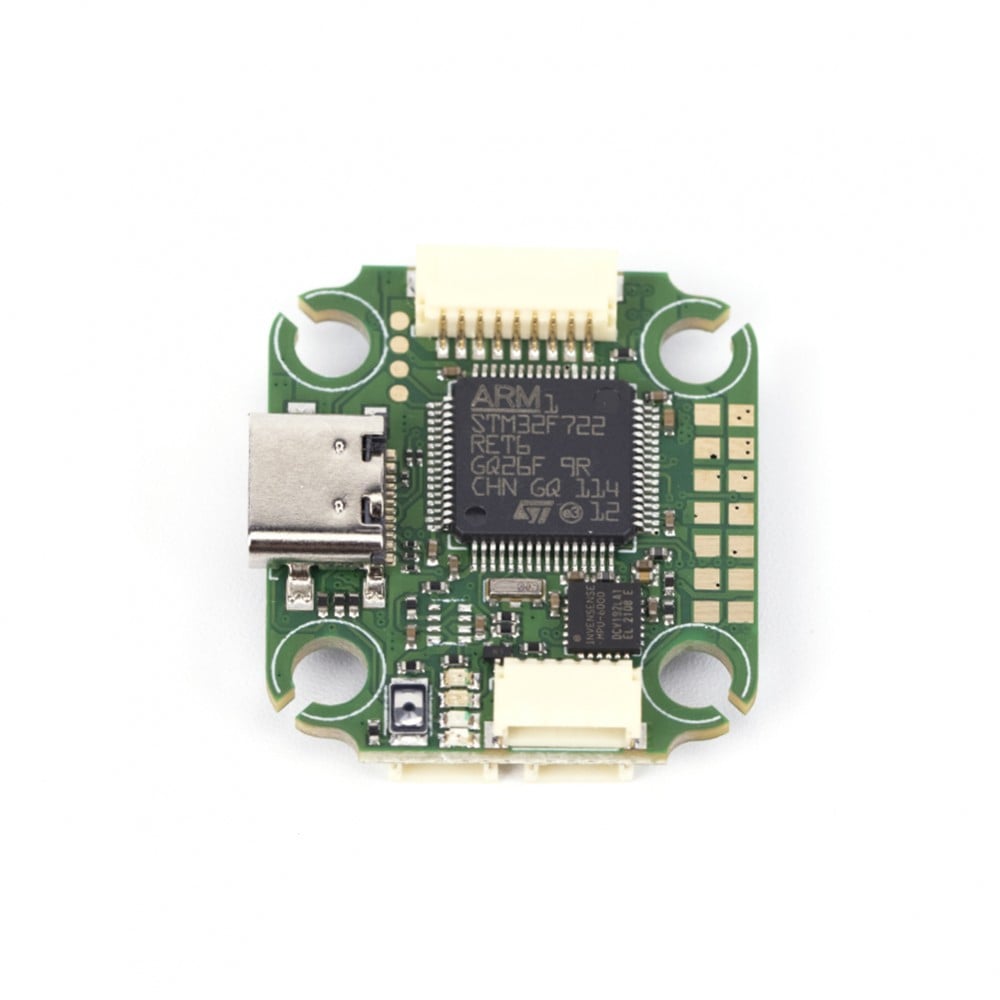

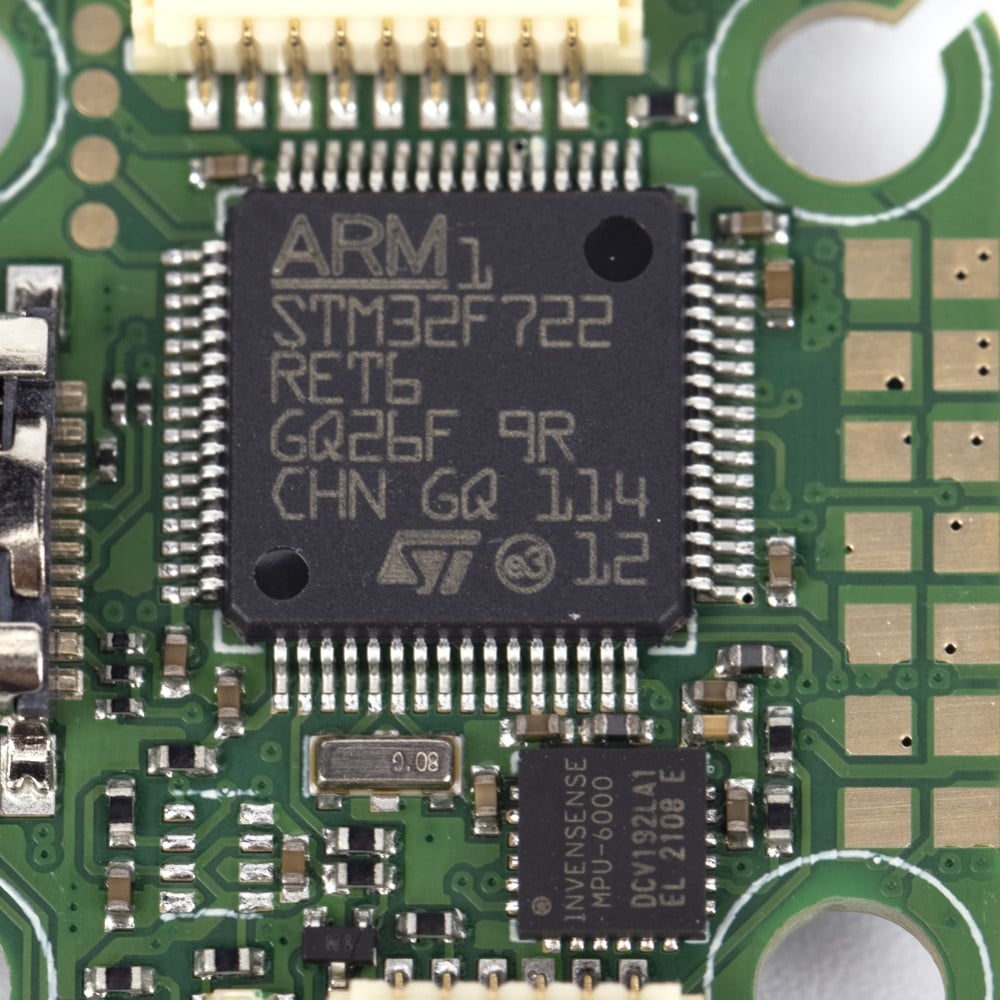

• MCU: STM32 F722
• Gyro: MPU6000 / BMI270 (please note this IMU may change from batch to batch due to supply and pricing issues due to current chip shortages with MPU6000)
• Barometer: DPS310

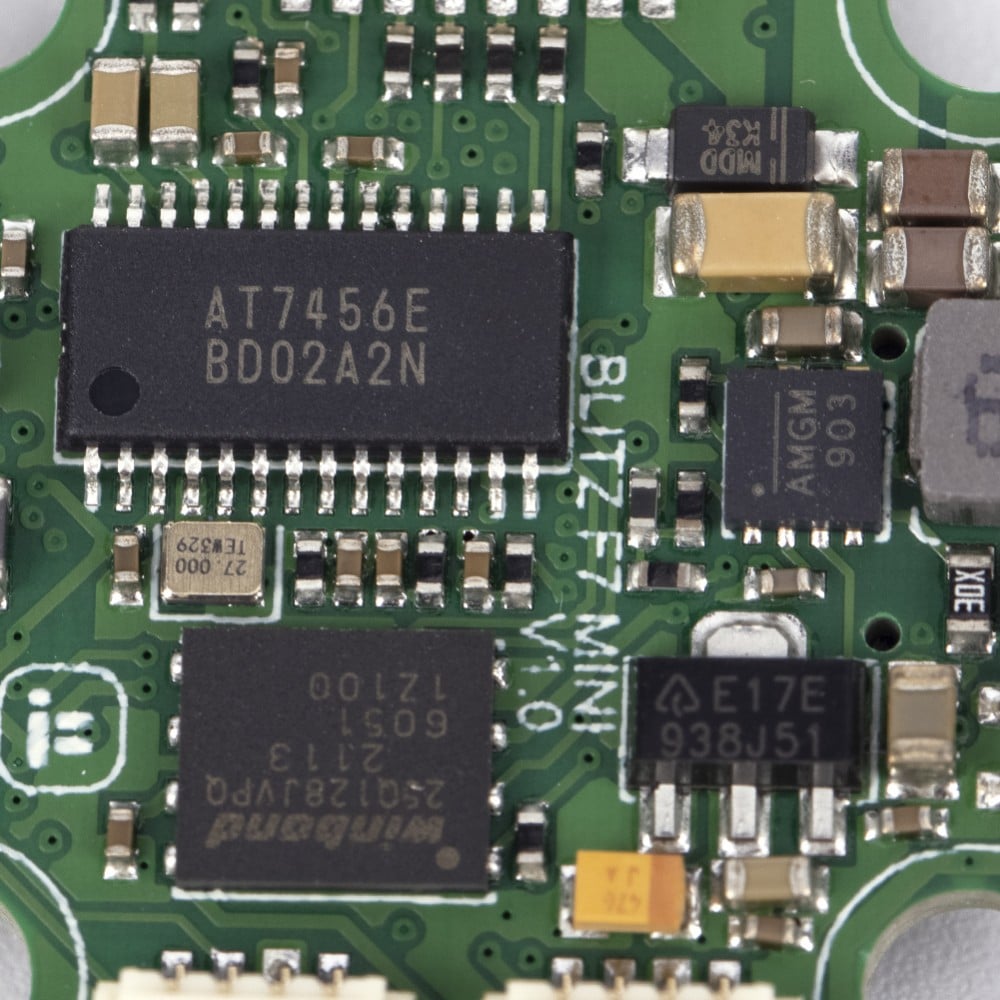

• OSD Chip: AT7456E
• Flash: 16MB (Blackbox flash)
• UARTS: 6
• Motor outputs: 4x (SH1.0 connector)
• I2C serial: SDA / SLA pads
• Smartaudio / IRC Tramp VTX protocol supported
• LED controller: Yes
• Beeper pad: Yes
• Firmware target: IFRC-IFLIGHT_BLITZ_F722
• Mount pattern: 20×20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws

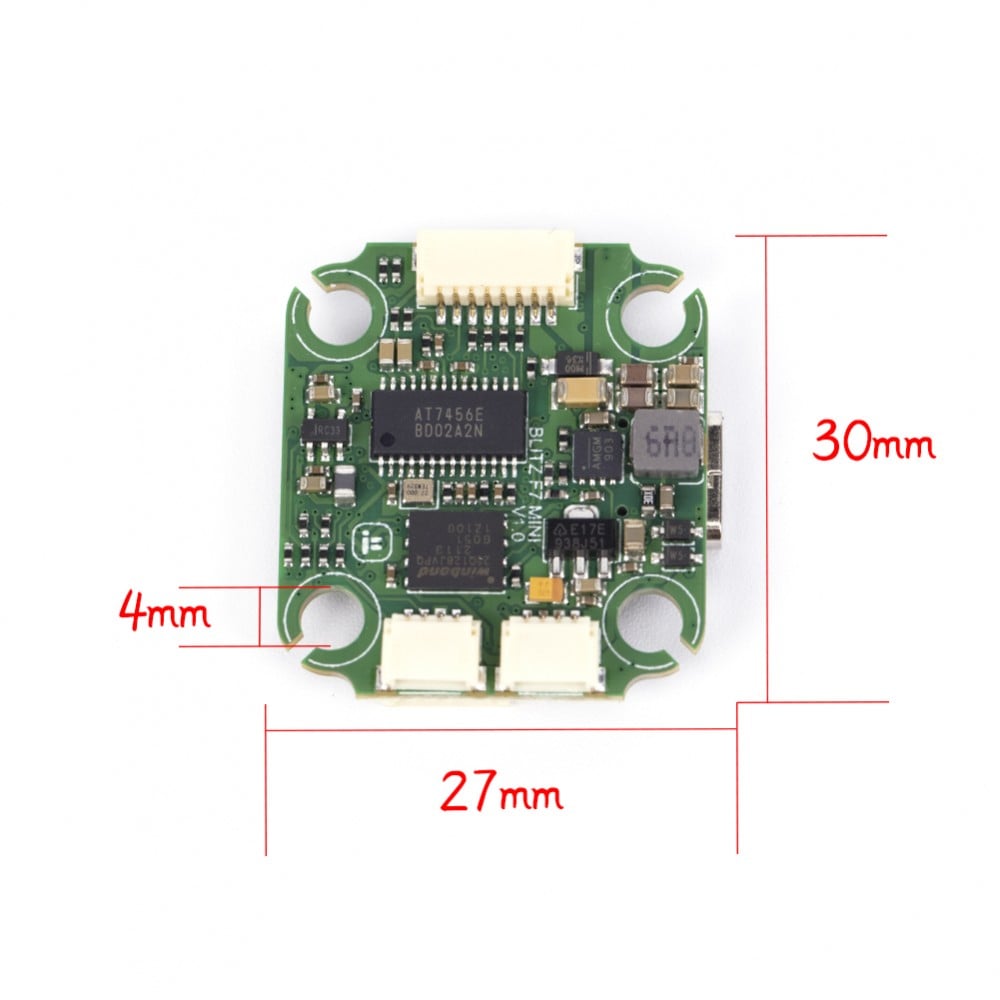

• Dimensions: 30.5×27 mm

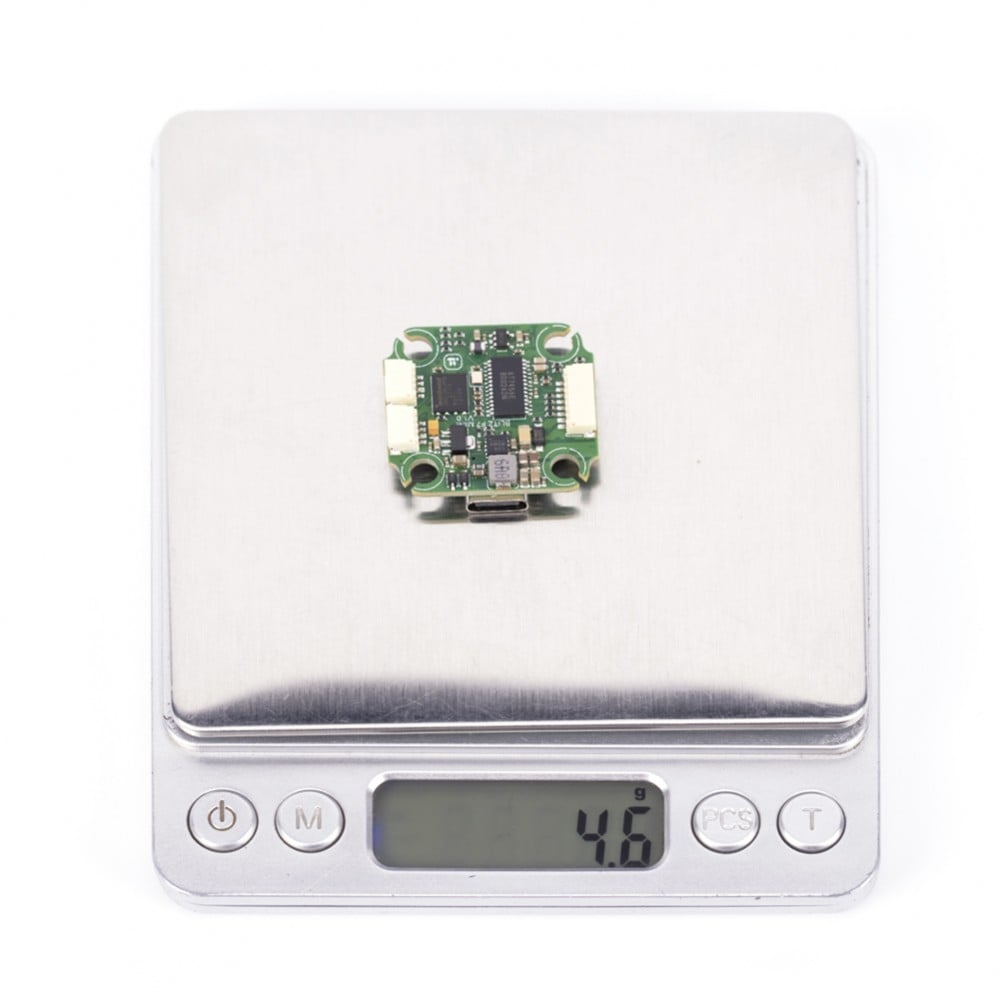

• Weight: 5g

ESC Specification

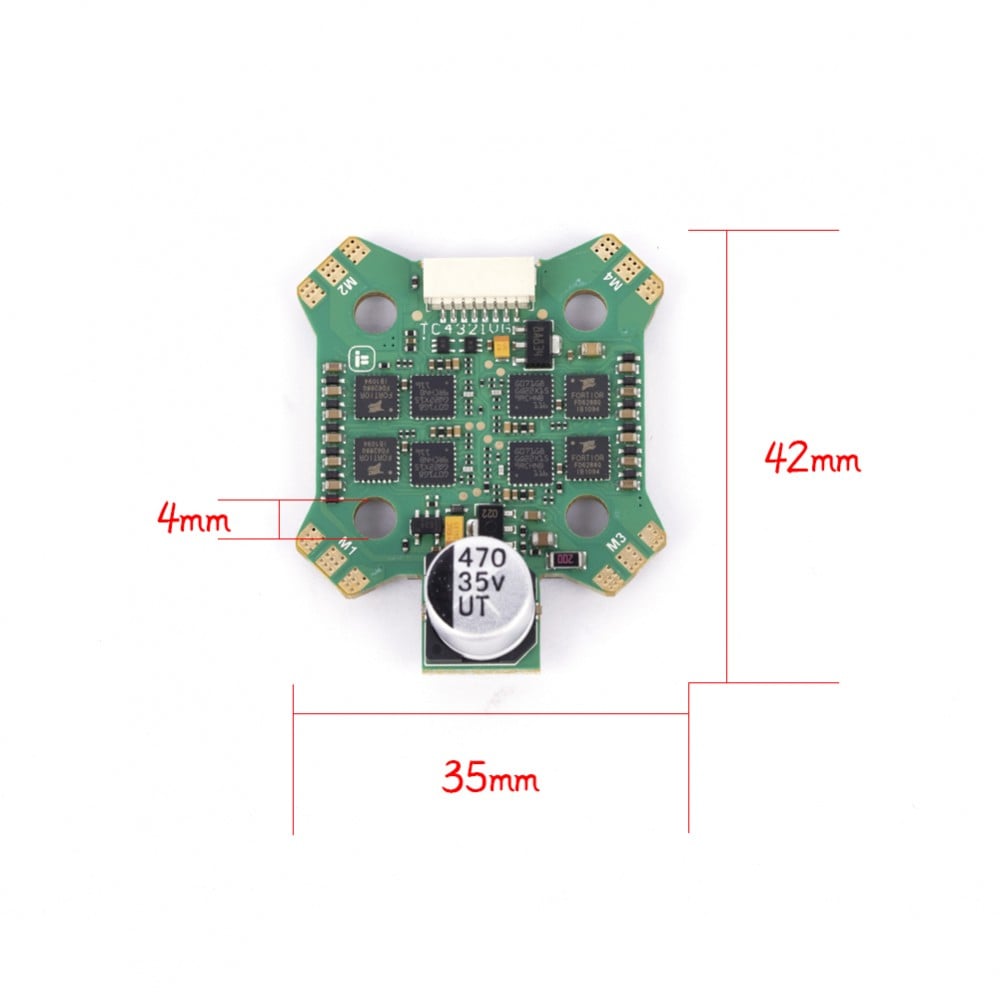

• Dimension: 35*42mm
• Mounting Holes: 20*20mm/Φ4mm

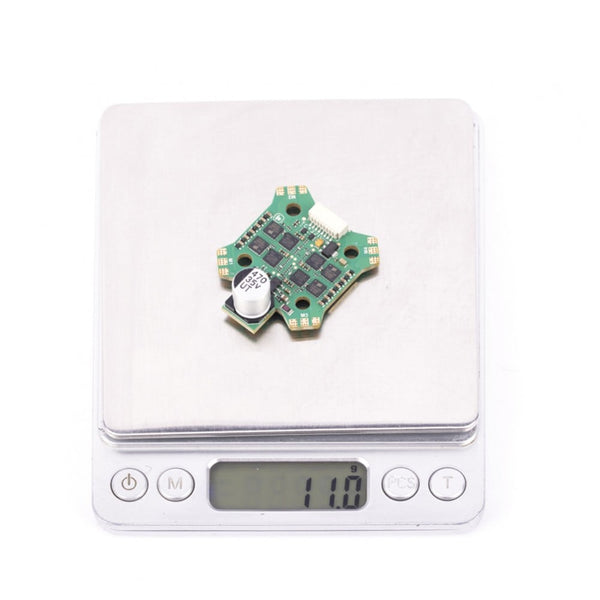

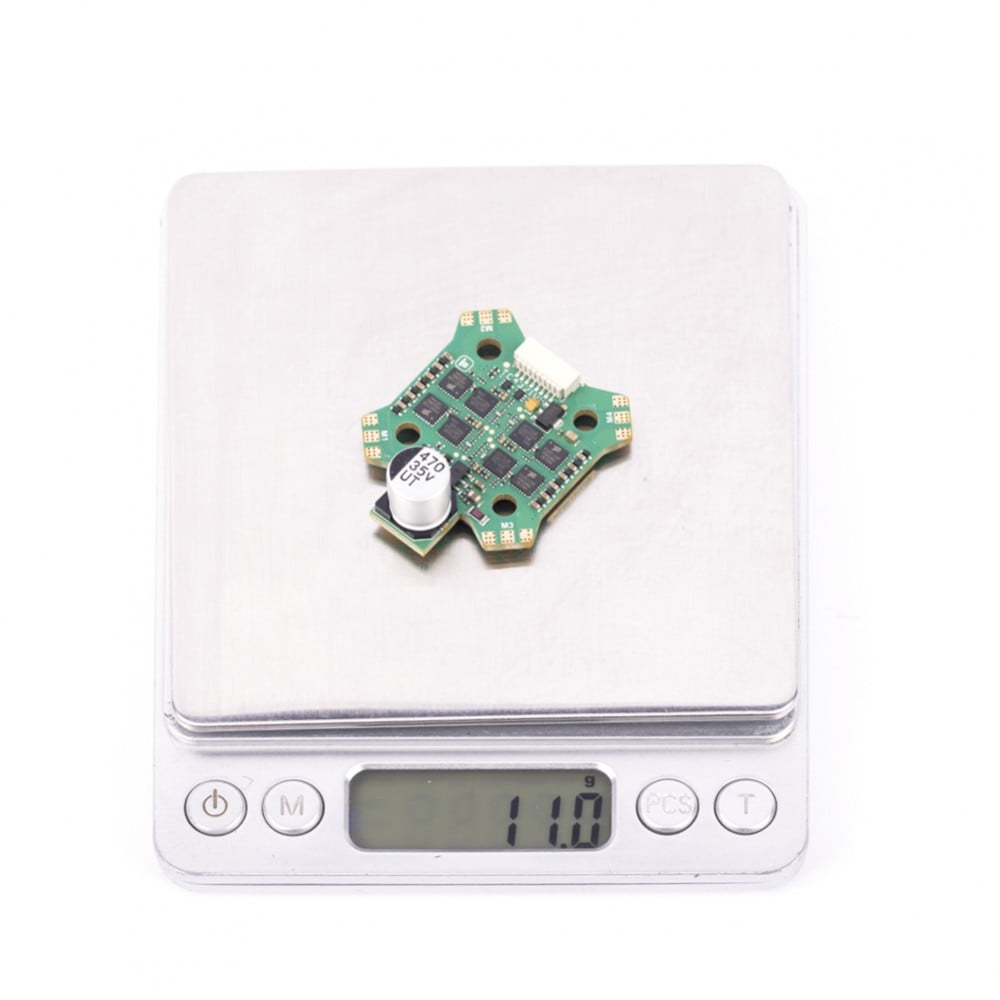

• Weight: 11.3g
• Supports 2-6S lipo input

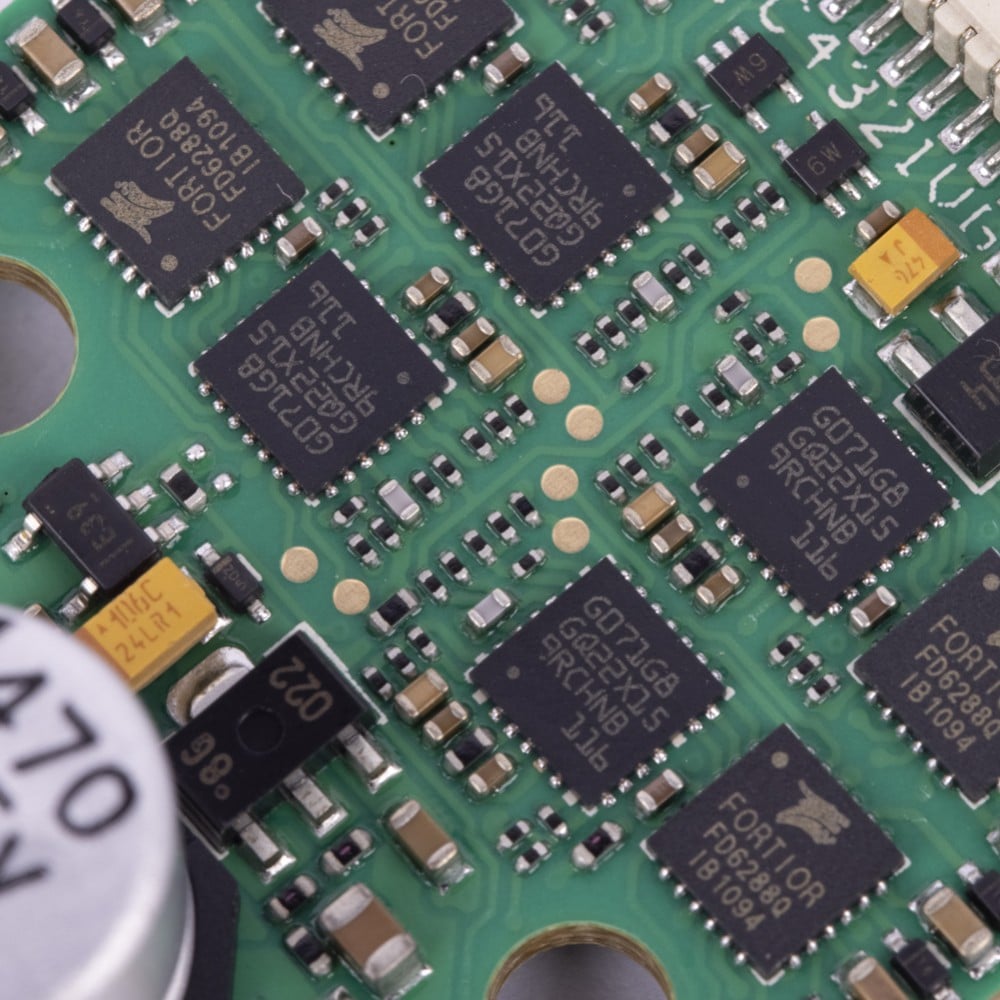

• MCU：G071
• Constant: 55 Amps
• Burst: 60 Amps
• Current sensor: Yes
• BEC: No
• Current rate: 100
• Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
• Firmware: BLHeli 32
• Target: IFLIGHT_BLITZ_G1

Included

• 1pc BLITZ Mini F7 Flight Controller
• 1pc BLITZ Mini E55 4-IN-1 2-6S ESC
• 1 set SILICON GROMMETS
• 1 set WIRE HARNESS FOR F7 FLIGHT CONTROLLER
