Application

For VW Transporter T5 2003-2015
For VW Transporter T6 2015–present
Including engines 2.0, 3.2V6, 1.9TDi, 2.0TDi, 2.0BiTDi, 2.5TDi.
Maximum load T26/T28/T30, excluding T32.

Specification

Top mounts: Front and rear OE top mounts required
Damping adjustable: Not available
Camber adjustable: Not available

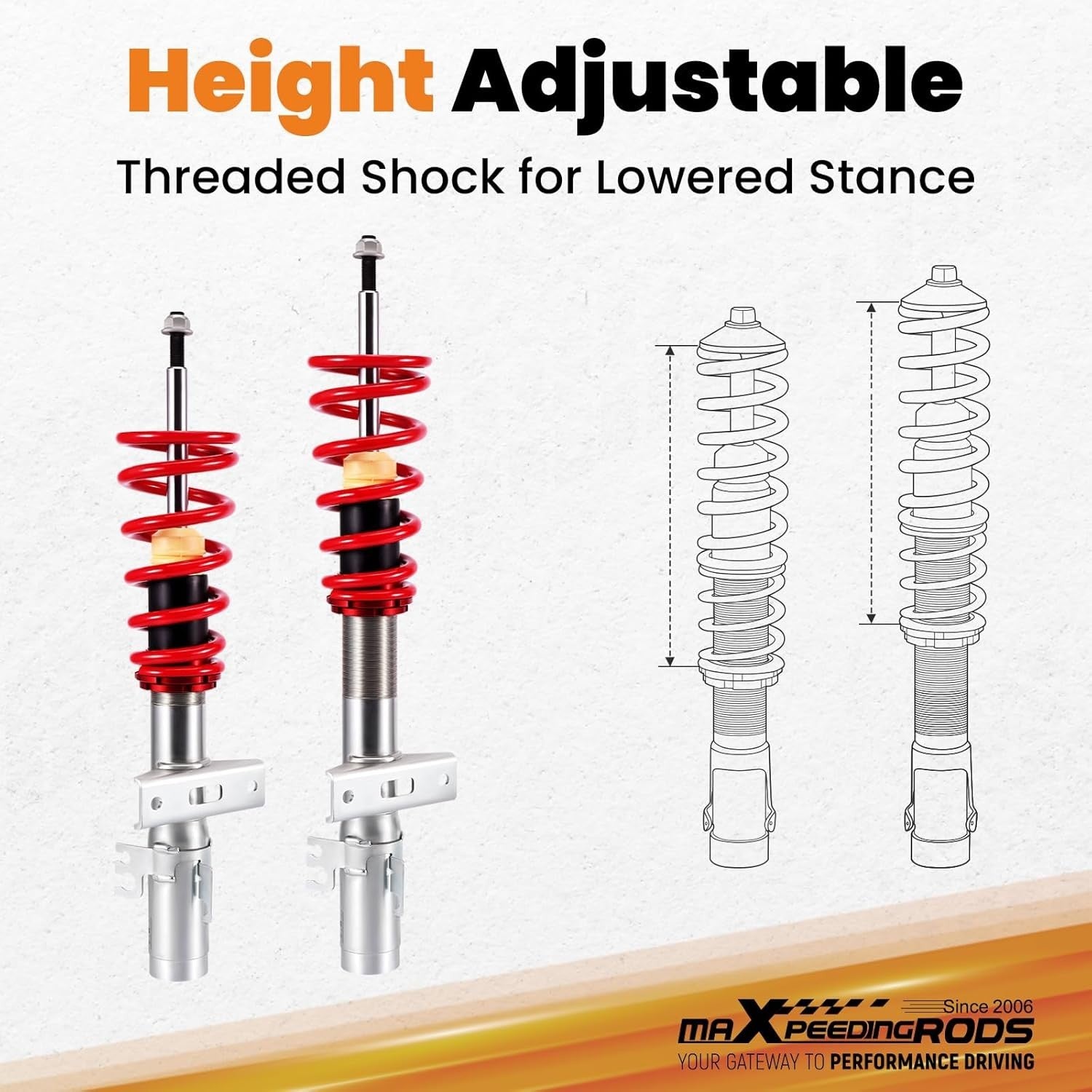

Height adjustable: Yes, lowering 0-25mm depending on the vehicle models

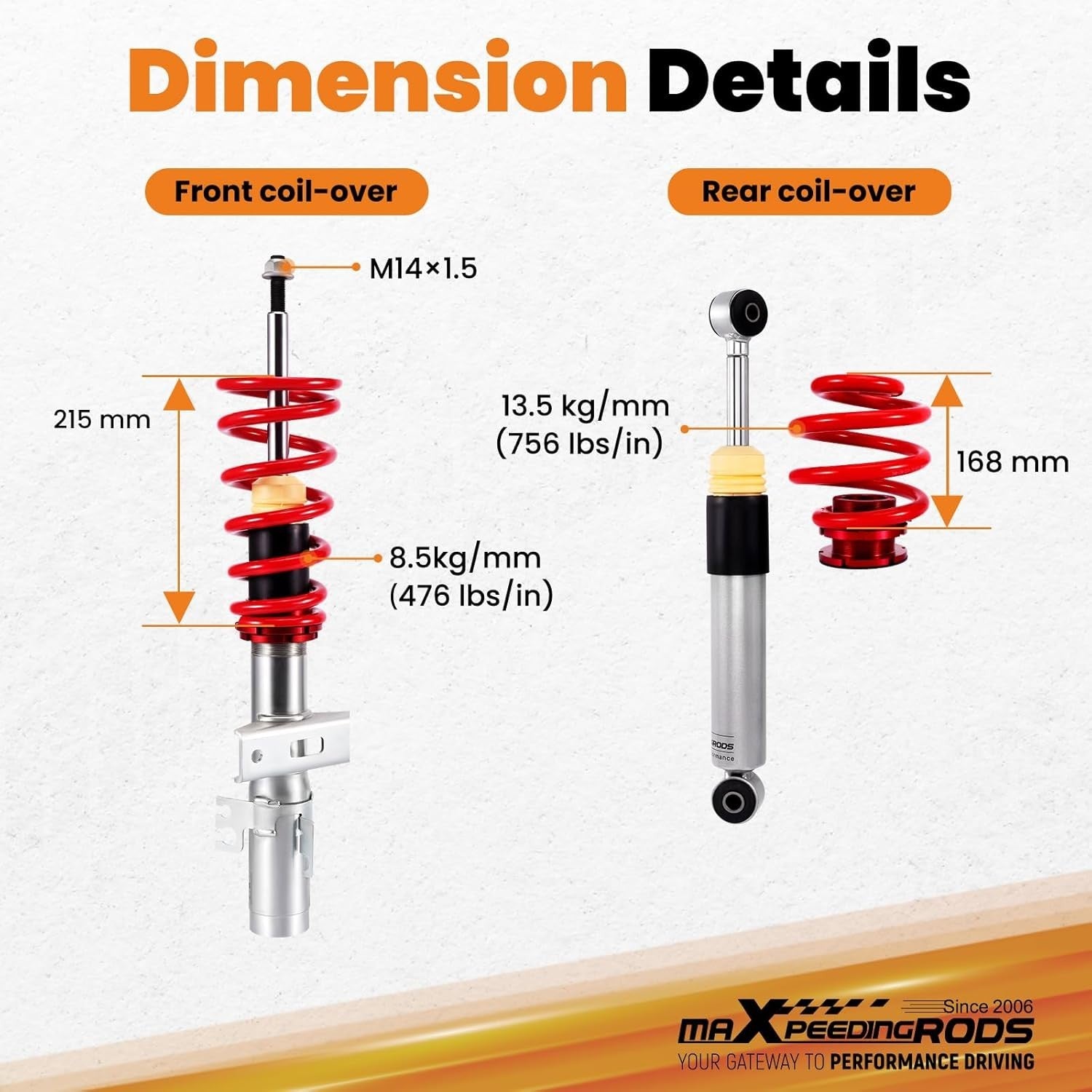

Spring Rate Front: 8.5 kg/mm (476 lbs/in)
Spring Rate Rear: 13.5 kg/mm (756 lbs/in)
Spring length Front: 215 mm
Spring length Rear: 168 mm
Spring Preload advised: 7-10 mm

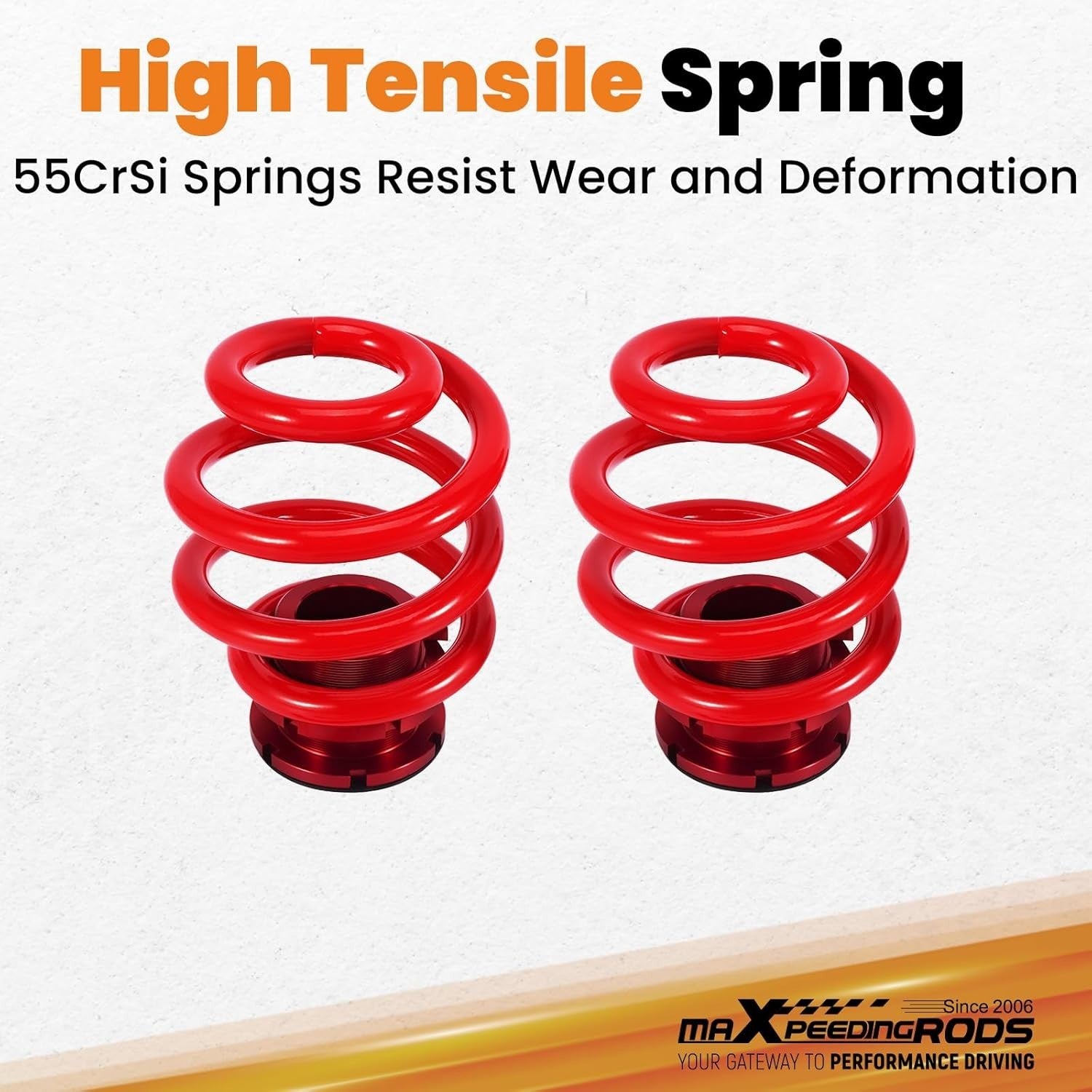

Color: Silver body with red spring

Feature

1. 0-25mm(depends on vehicle models) lower height adjustable
2. Dust boot, solid rubber bump stops

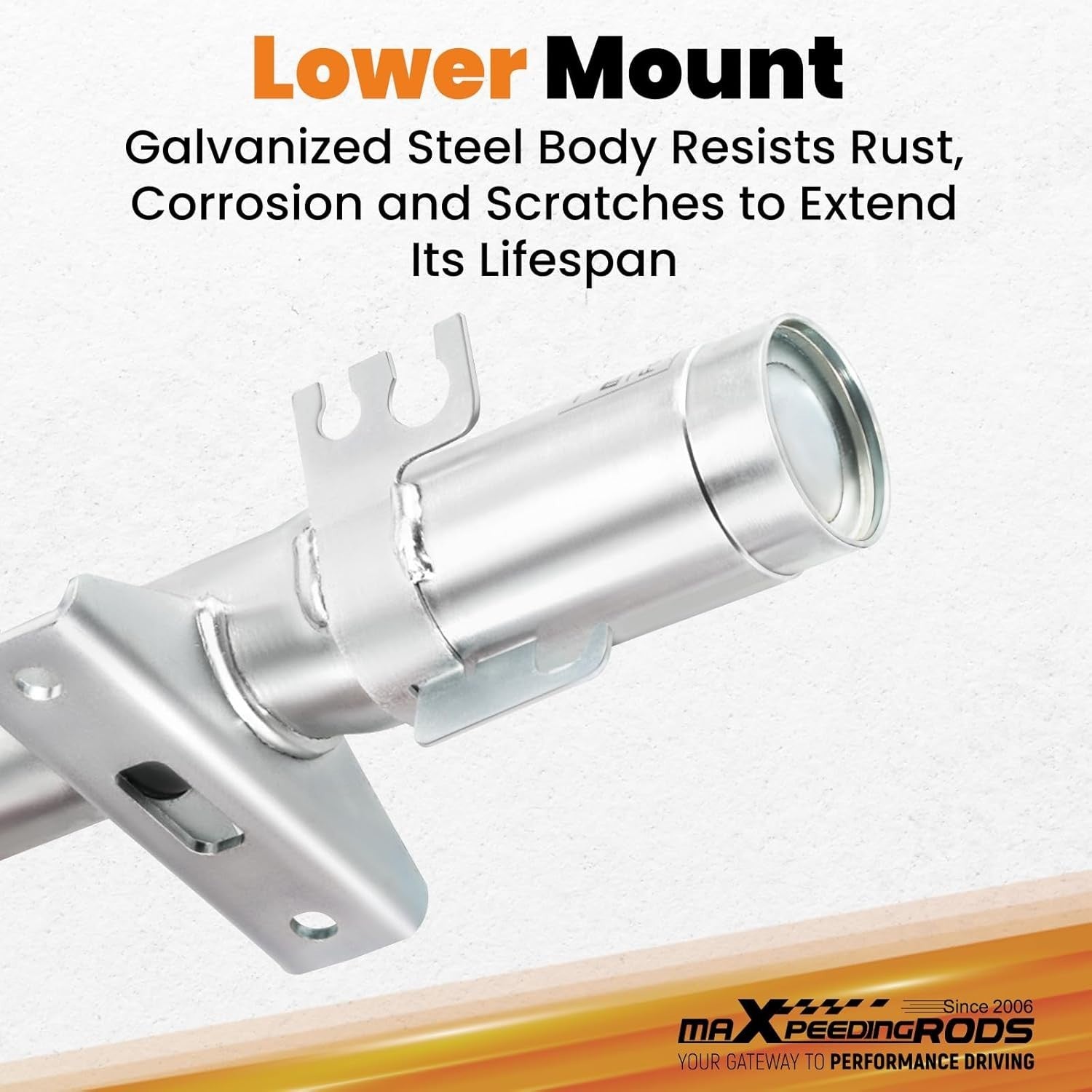

3. Weight Saving Aluminum Components And heavy duty Steel Lower Mount Brackets
4. Simple install, Easy to adjust.
5. Use the vehicle's original upper mounts (not included in our product kit).

Note

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
