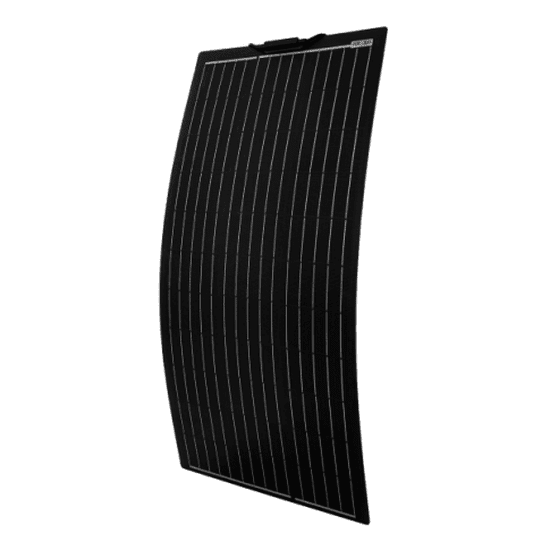

100W Black Reinforced Narrow Semi-Flexible Solar Panel | 4Boats

Durable narrow 100W black reinforced semi-flexible solar panel with an ETFE coating and anodised aluminium reinforcement — ideal for boats, motorhomes, caravans and slightly curved roofs.

• 7-layer construction with an embedded sheet of anodised aluminium fully encapsulated for extra strength and resilience.
• Durable ETFE surface: lightly textured, anti-reflective coating for improved light absorption and long service life.
• High-quality 5-busbar monocrystalline solar cells for greater efficiency and improved performance at high ambient temperatures.
• All-black design with a black backing — ideal for discreet installations on dark roofs and marine decks.
• Semi-flexible, narrow design suited to slightly curved roofs and surfaces where rigid panels cannot be used.
• Electrical specifications: Peak power 100 W; Maximum power voltage (Vmp) 18.2 V; Maximum power current (Imp) 5.49 A; Open-circuit voltage (Voc) 21.4 V; Short-circuit current (Isc) 5.82 A; Power allowance range ± 5%.
• Physical specifications: Dimensions 1060 x 510 x 4 mm; Weight 3.15 kg; Includes 2 x 0.9 m high-quality single-core solar cables.

To charge a 12 V battery this panel requires a solar charge controller/regulator (PWM or MPPT). Technical Drawing and other documents for the 100W Black Reinforced Narrow Semi-flexible Solar Panel ARFL are available from the Documents tab.
