iFlight Blitz Mini F745 + E55A 20x20 Flight Stack

iFlight Blitz Mini F745 + E55A 20x20 Flight Stack

€112,95

FAST DIspatch & Global delivery
Quality Assured Brand Manufacturer

SKU: BF15682 Category: Racing & Flight Sim Hardware - Steering Wheels / Pedals / Shifters / Accessories. Tag: Shopify Collective, Unmanned Tech

Description
Product Reviews

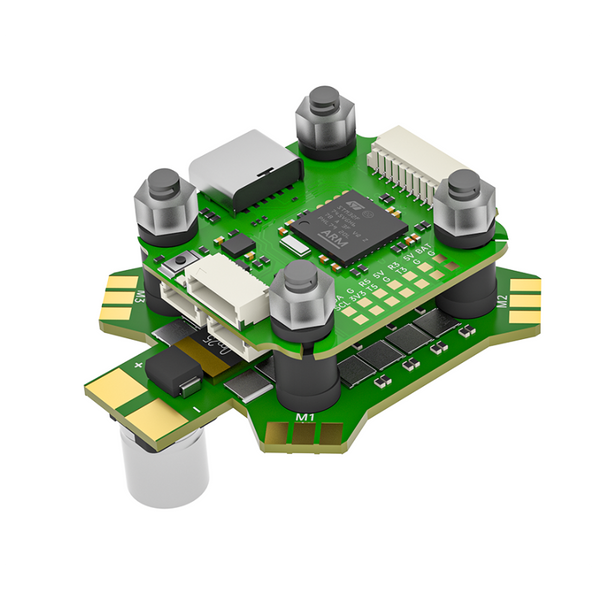

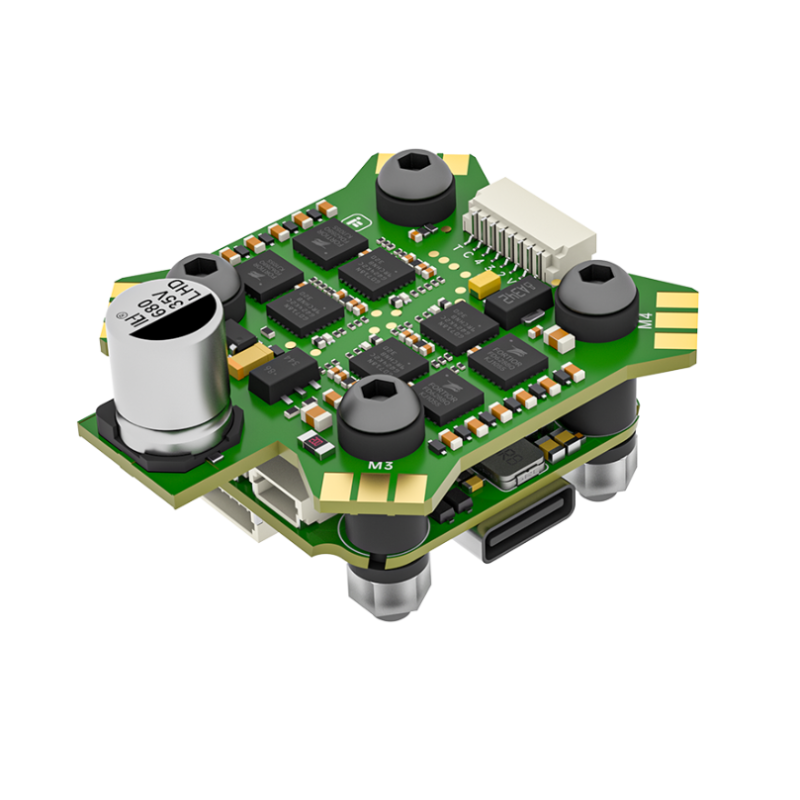

Ditch the mundane and soar to electrifying heights with the iFlight BLITZ Mini F745 E55 Stack! This isn't just any stack; it's your ticket to a symphony in the sky, orchestrated by some of the most innovative tech in the drone world. Let's break down why this powerhouse deserves a spot in your aerial arsenal.

Core Components: A Melody of Tech Marvels

At the heart of this stack lies the Blitz Mini F745 Flight Controller, a maestro conducting your drone's performance with the precision of a seasoned virtuoso. Accompanied by the robust 4in1 Mini E55 ESC, this duo performs a ballet in the clouds, making your drone dance with grace and power.

Plug, Play, and Soar with DJI HD Connectivity

Wave goodbye to the soldering iron blues with the DJI HD plug-and-play connector. This little wonder means you're just a click away from breathtaking views, with crisp, clear, and solder-free connections. Because who has time for soldering when the sky is calling, right?

Silence is Golden: Noise Reduction at Its Finest

Forget about the buzzkill of noise interference. The BLITZ Mini F745 E55 Stack is equipped with top-tier components that whisper sweet nothings, drastically cutting down on noise. It's like having a library in the sky - peaceful, serene, and utterly focused on performance.

Tech Specs: A Geek's Dream

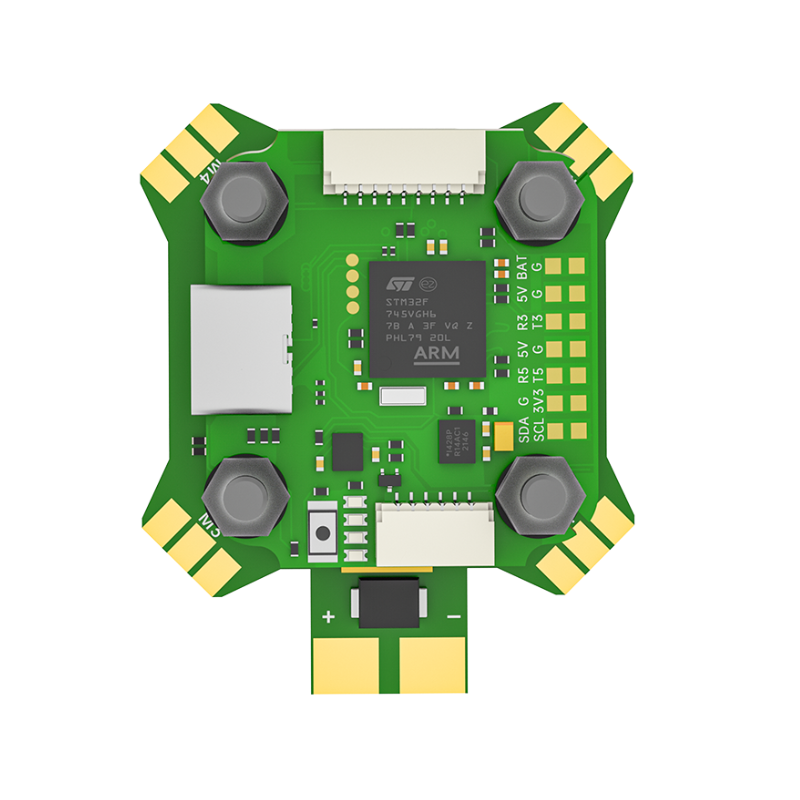

Flight Controller (FC): With a brainy STM32F745 MCU and an ICM42688 gyro, this FC is smarter than your average bear. Add in a DPS310 barometer and a 16MB blackbox, and you've got a command center ready for anything.
Electronic Speed Controller (ESC): Handling a constant 55 Amps with bursts up to 60, the ESC supports a symphony of protocols and is the Hercules of current handling. And it does all this while being a lightweight at just 11.3g.

Specifications

FC

MCU: STM32F745
Gyro: ICM42688
Barometer: DPS310
OSD Chip: AT7456E
Flash: 16MB (Blackbox flash)
UARTS: 6
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFLIGHT_BLITZ_F7_AIO

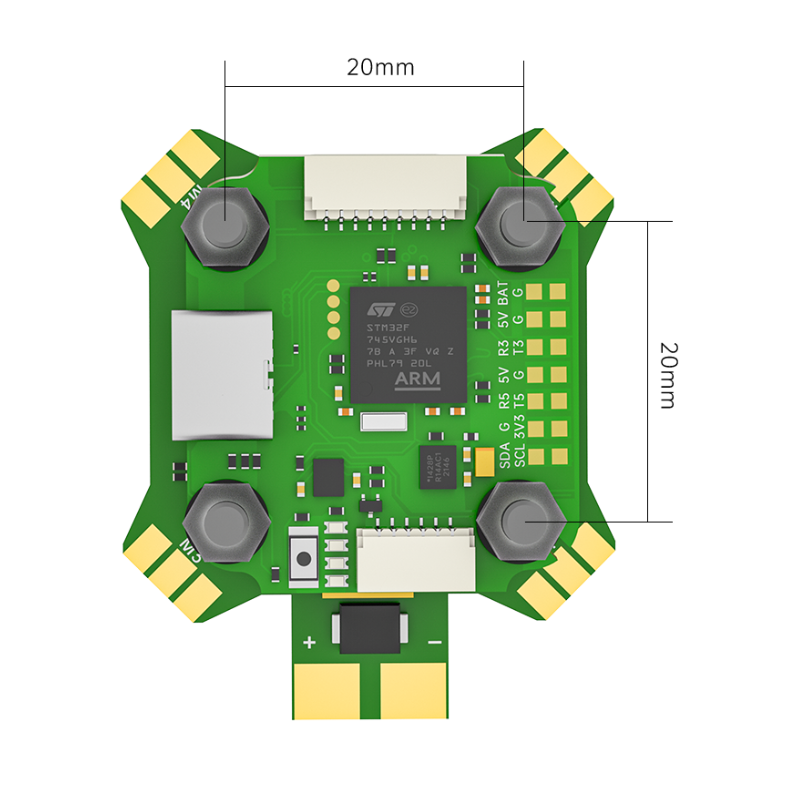

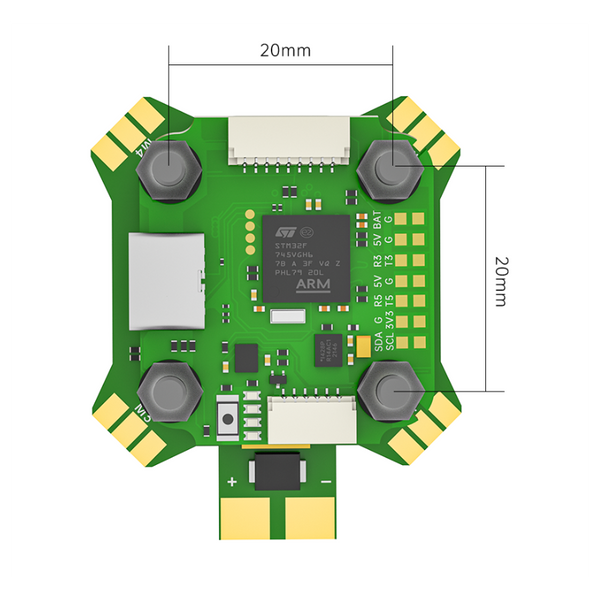

Mount pattern: 20*20mm/φ4
Dimensions: 30.5*27 mm
Weight: 4.8g
BEC: 5V 2.5A / 9V 2A
UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemet

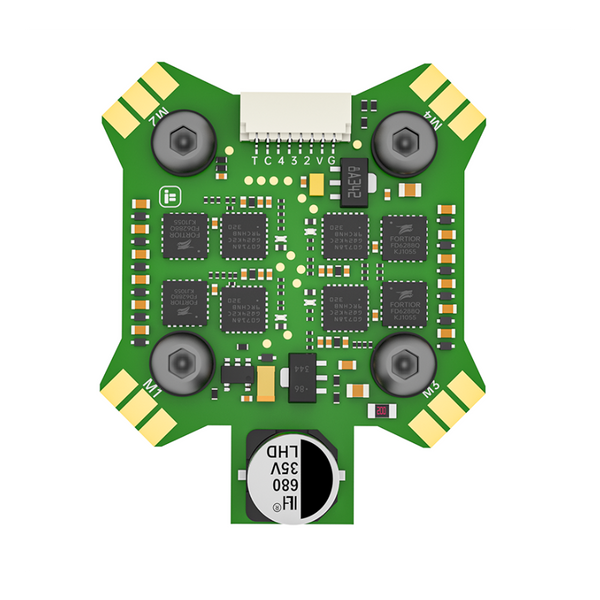

ESC

Mounting Holes: 20*20mm/Φ4mm
Weight: 11.3g
Supports 2-6S Lipo input
MCU： G071
Constant: 55 Amps
Burst: 60 Amps
Current sensor: Yes
BEC: No
Current rate: 200
Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
Firmware: BLHeli 32
Target: IFLIGHT_BLITZ_G071_01 32.9/ IFLIGHT BILTZ G2 32.9

In the Box: Your Treasure Trove

1x BLITZ Mini F745 Flight Controller
1x BLITZ Mini E55 4in1 2-6S ESC

Whether you're a seasoned pilot or just spreading your wings, the iFlight BLITZ Mini F745 E55 Stack is the secret sauce for a performance that soars beyond the ordinary. So, are you ready to elevate your drone game? With this stack, the sky isn't just the limit; it's your playground.
