Application
For BMW 1 series (F20/F21) 2011-2019 hatchback RWD (114d, 114i, 116d, 116i, 118d, 118i, 120d, 120i, 125d, 125i)
For BMW 2 series (F22) 2012-2019 Coupe RWD (218d, 218i, 220d, 220i, 225d, 225i, 228i, 230i)
For BMW 3 series (F30) 2011-2019 Sedan RWD (316d, 316 i, 318d, 318i, 320d, 320i, 325d, 328i, 330i, 335i)
For BMW 4 sereis (F32) 2012-2019 Coupe RWD 2012-2019 (418d, 418i, 420d, 420i, 425d）
Note: Not fit models with Electronic Suspension/with xDrive / 4WD / xi
Specification

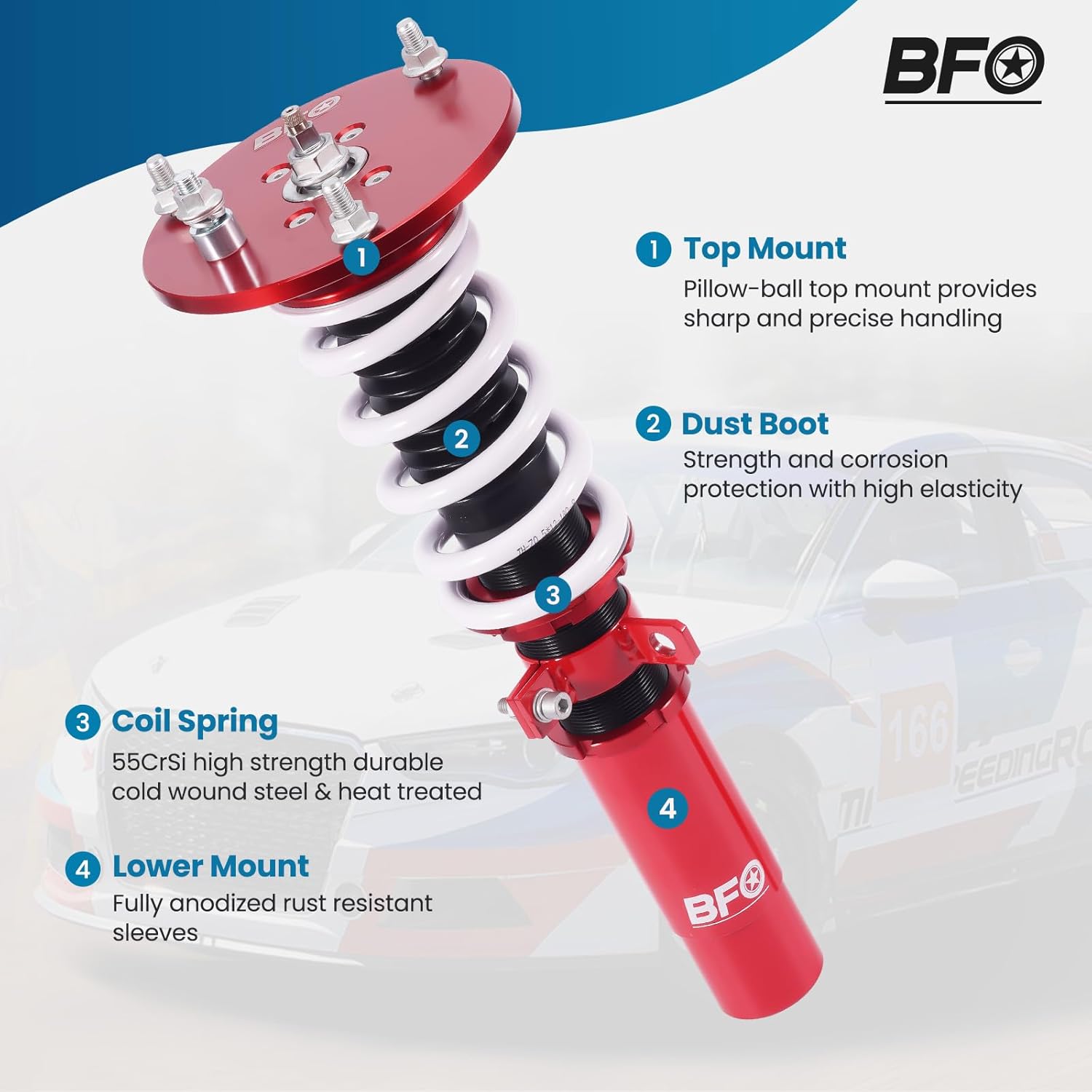

Front top mount: Pillow ball
Rear top mount: Pillow ball
Damping adjustable: Available, 24 levels of rebound damping force
Camber adjustable: Not available
Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

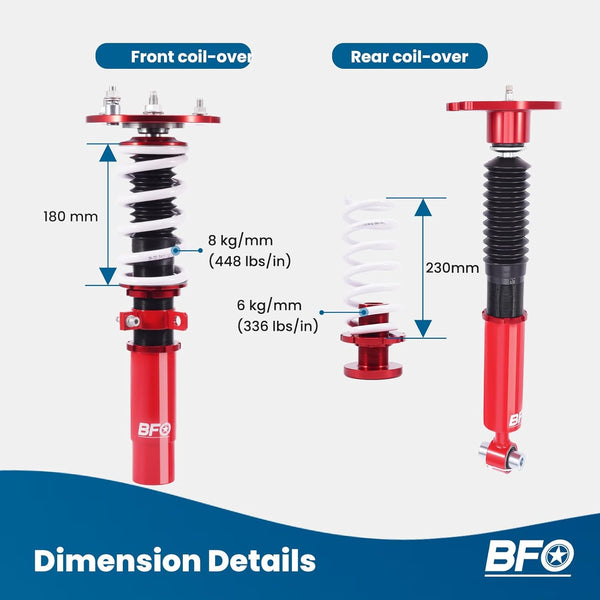

Spring rate Front: 8 kg/mm (448 lbs/in)
Spring rate Rear: 6 kg/mm (336 lbs/in)
Front spring inner diameter: 70.5 mm
Rear spring inner diameter: 60 mm
Spring length Front: 180 mm
Spring length Rear: 230 mm
Spring Preload advised: 7-10 mm
Color: Red body with white spring
Feature
1. 24 levels damping force
2. Lower your car 25-75mm (depending on vehicle models) to get performance ride
3. Adjustable camber ( for some models)

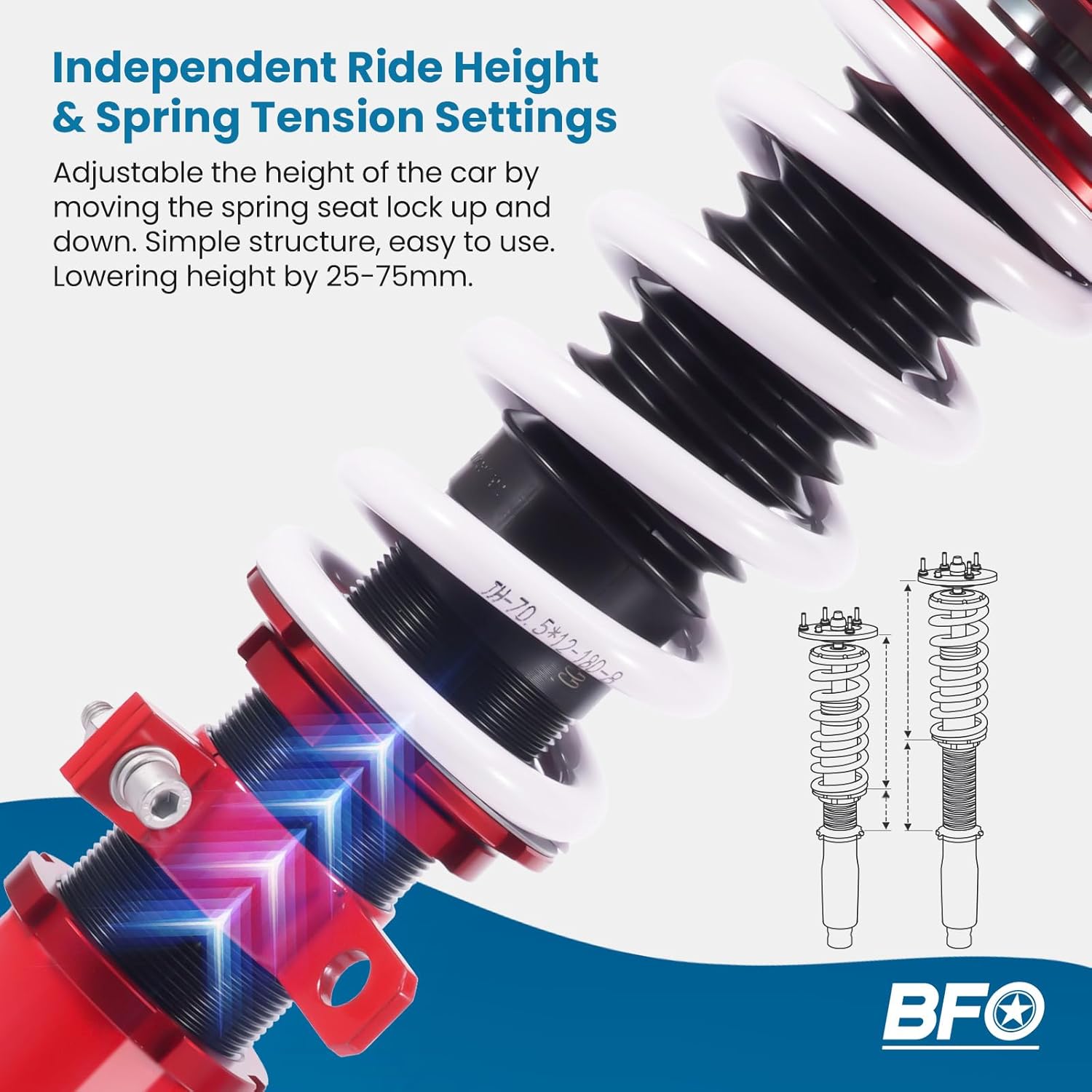

4. Independent Ride Height and Spring Pre-load Adjustments

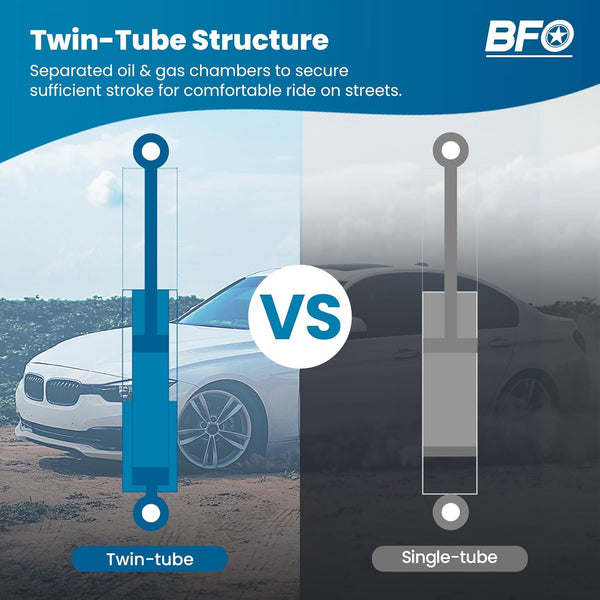

5. Twin-Tube System for Comfortable Ride on Streets
6. Coated finish to avoid rust
7. Weight Saving Aluminum Components And heavy duty Steel Lower Mount Brackets
Note
1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Impact wrench is prohibited during the installation, it will loosen or damage the product.
3. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-5 months will keep it smooth and clean, which helps to extend the lifetime.
- Introduction: BFO coil-overs are designed for those who want to change the old worn-out strut but get better handlin. It features height adjustable, and 24 levels damping adjustable which brings you more performance and comfort on street use.
- Application: For BMW 1 2 3 4 series (F20/F21) (F22) (F30) (F32) RWD 114d, 114i, 218d, 218i, 220d, 220i, 225d, 316d, 316 i, 318d, 318i, 320d, 320i, 325d, 418d, 418i, 420d. Not fit models with Electronic Suspension/with xDrive / 4WD / xi
- Note: Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)

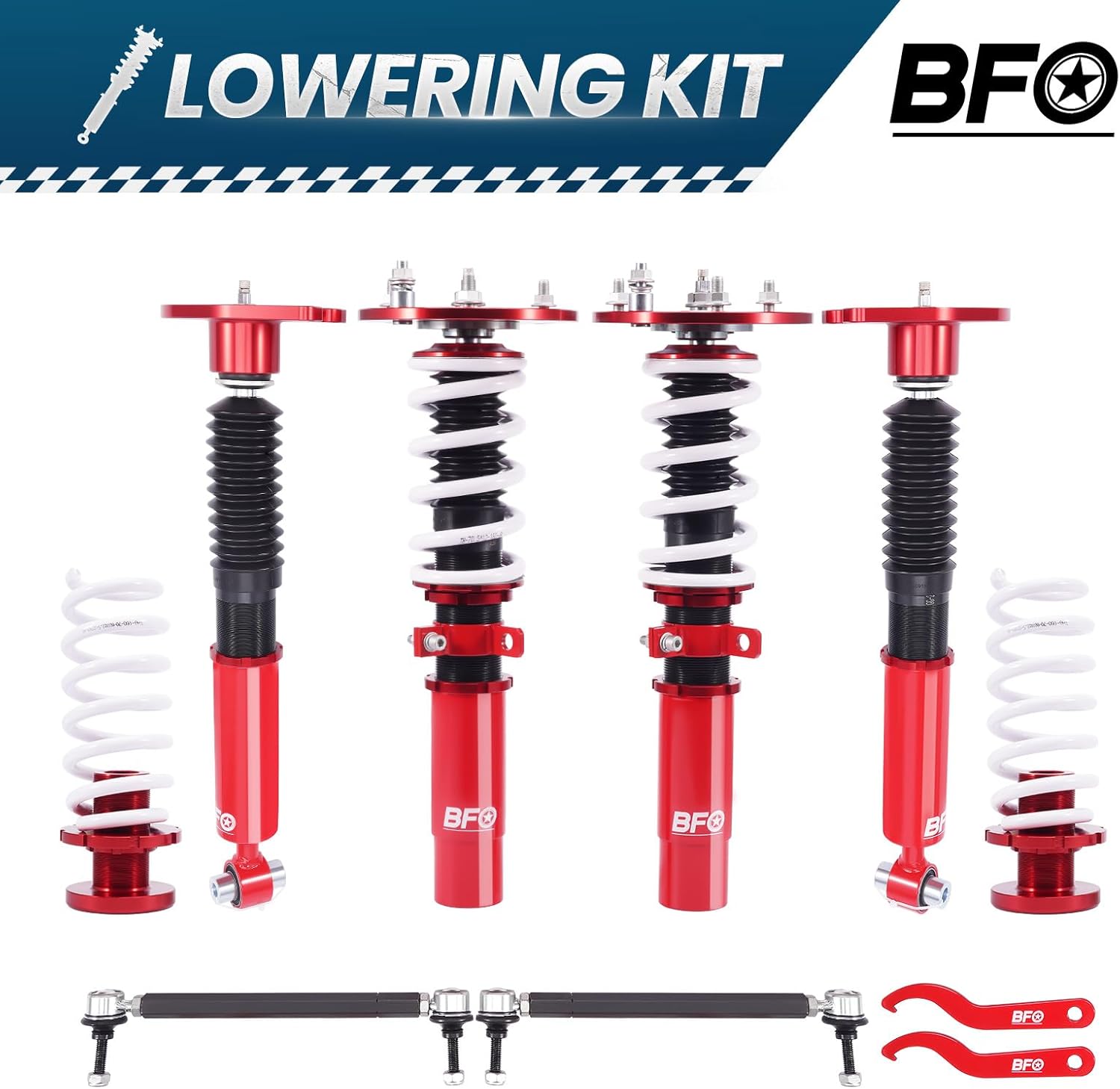

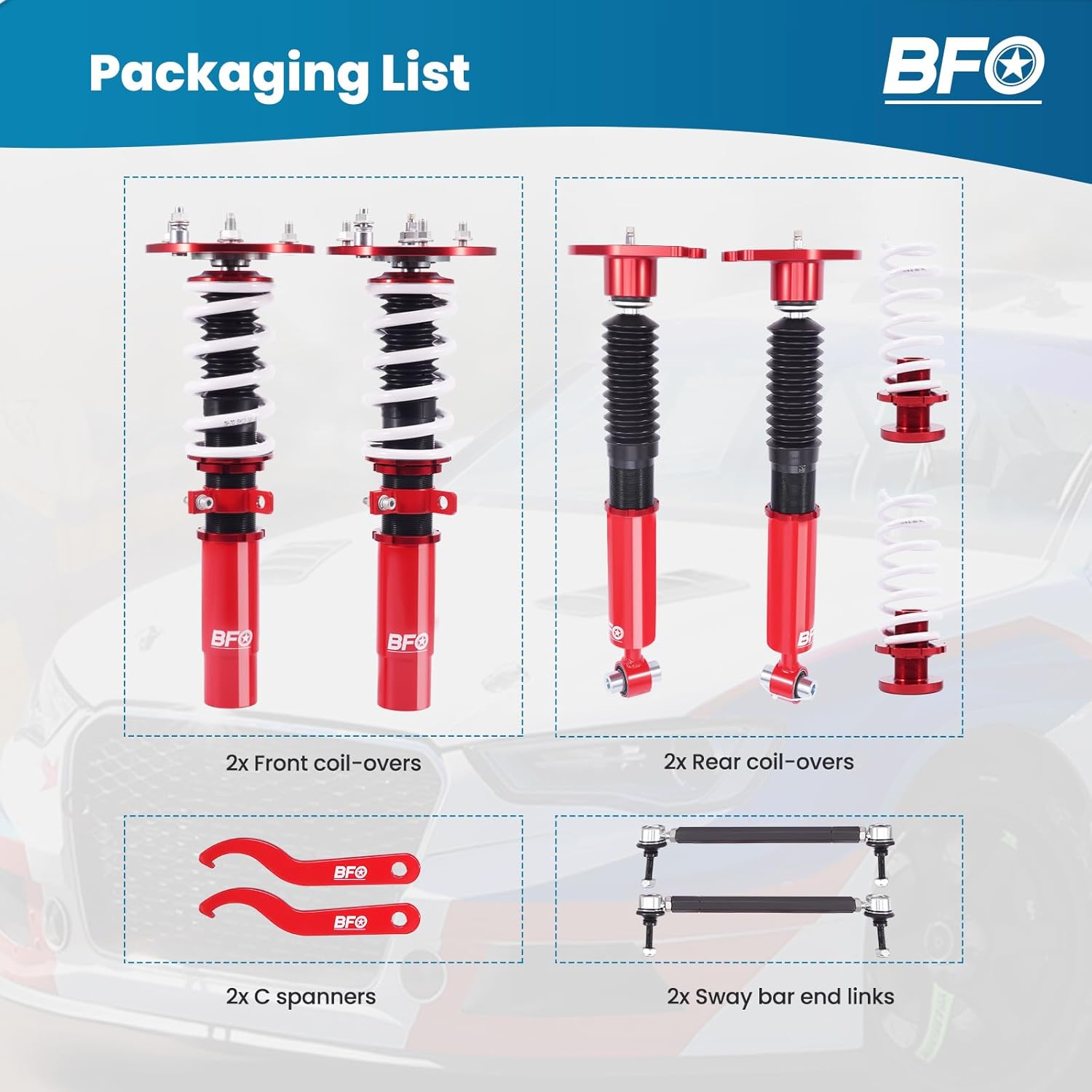

- Package included: 2x Front coil-overs; 2x Rear coil-overs; 2x C spanners; 1x Allen wrench
- Note: Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
