Application
For VW GOLF IV (1J1) FWD 1998-2007
For SEAT LEON (1M1) FWD 1999-2006
For VW NEW BEETLE (9C1, 1C1) FWD 1998-2010
For AUDI A3 (8L1) FWD 1996-2006
For AUDI TT (8N3) FWD 1998-2006
For AUDI TT Roadster (8N9) FWD 1999-2006
(will not fit for 4-MOTION & for VW Golf MK4 for R32 & for Audi quattro models )
Specification
Top mounts: Front and rear OE top mounts required
Damping adjustable: Not available
Camber adjustable: Not available
Height adjustable: Yes, lowering 0-25mm depending on the vehicle models
Spring rate Front: 8 kg/mm (392 lbs/in)
Spring rate Rear: 6 kg/mm (336 lbs/in)
Front spring inner diameter: 62 mm
Rear spring inner diameter: 58-63 mm
Spring length Front: 170 mm
Spring length Rear: 275 mm
Help spring rate Front: 1 kg/mm (56 lbs/in)
Help spring length Front: 102 mm
Spring Preload advised: 7-10 mm

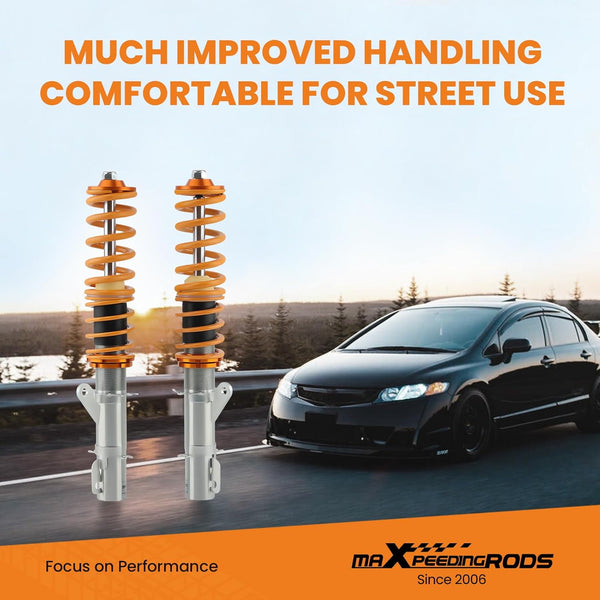

Feature

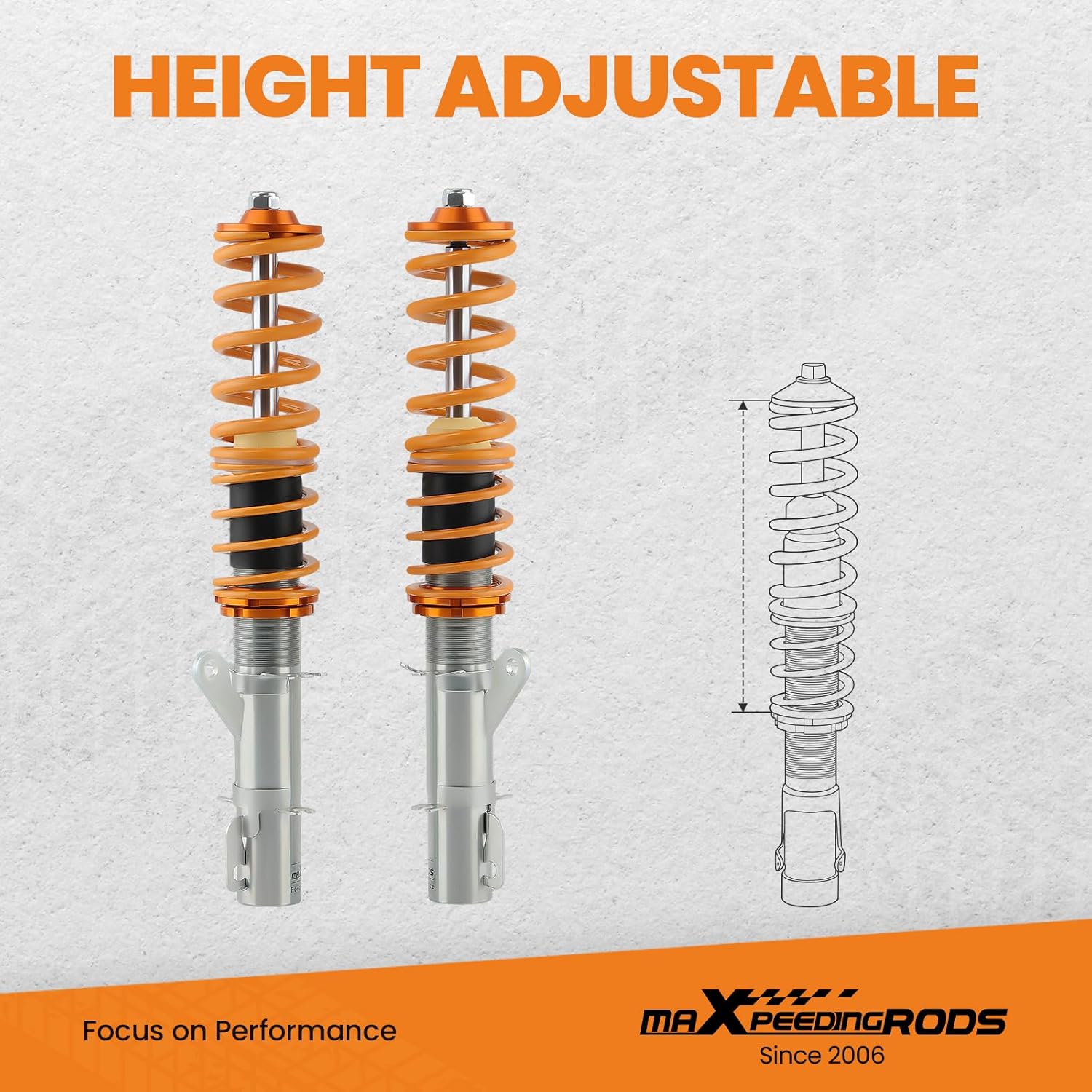

1. 0-25mm(depends on vehicle models) lower height adjustable

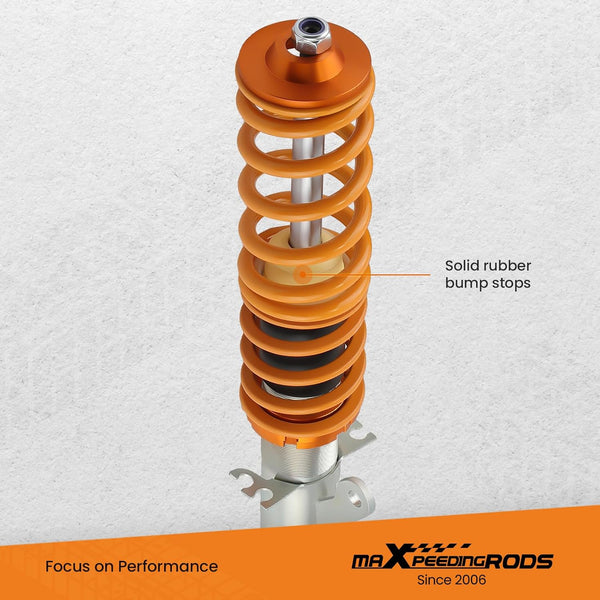

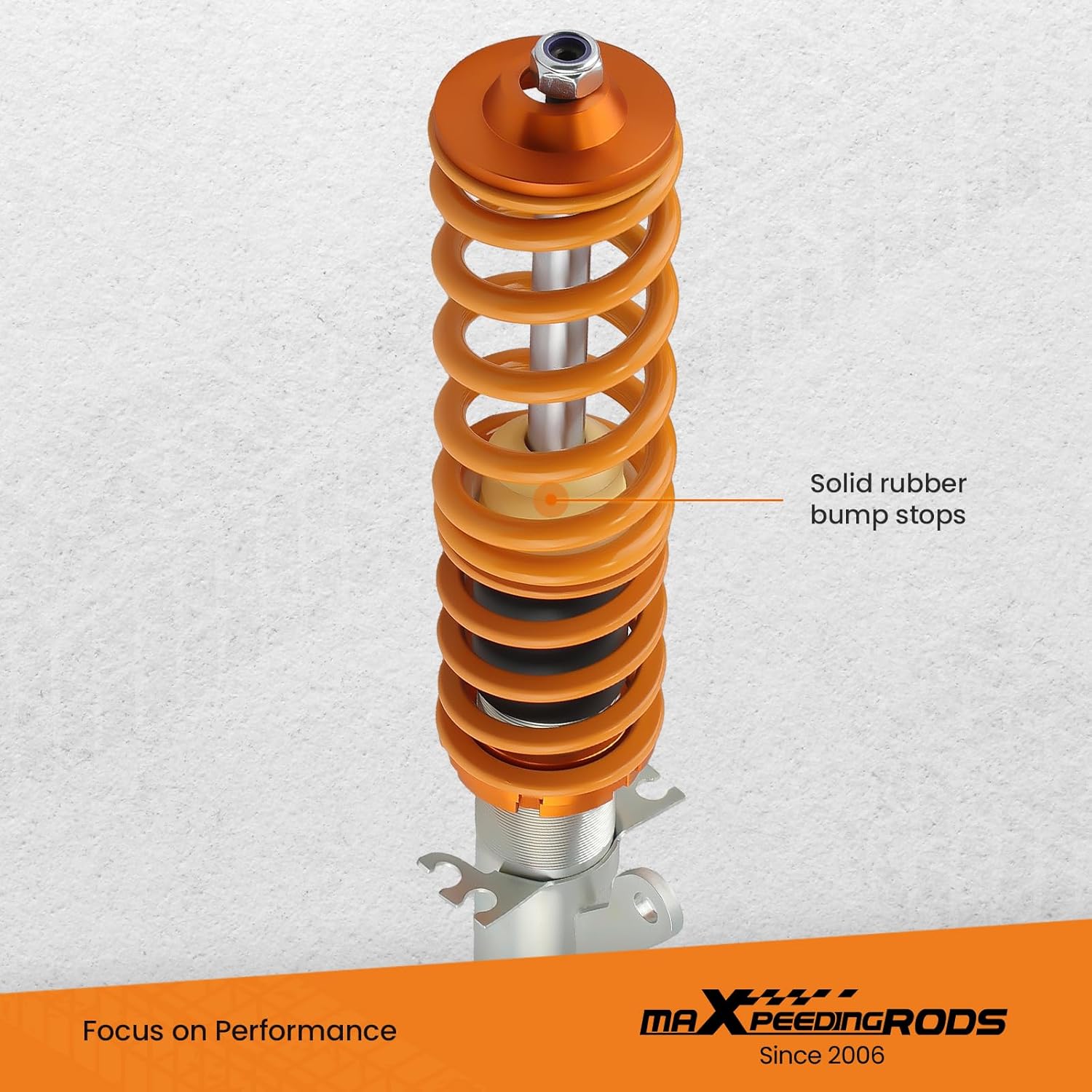

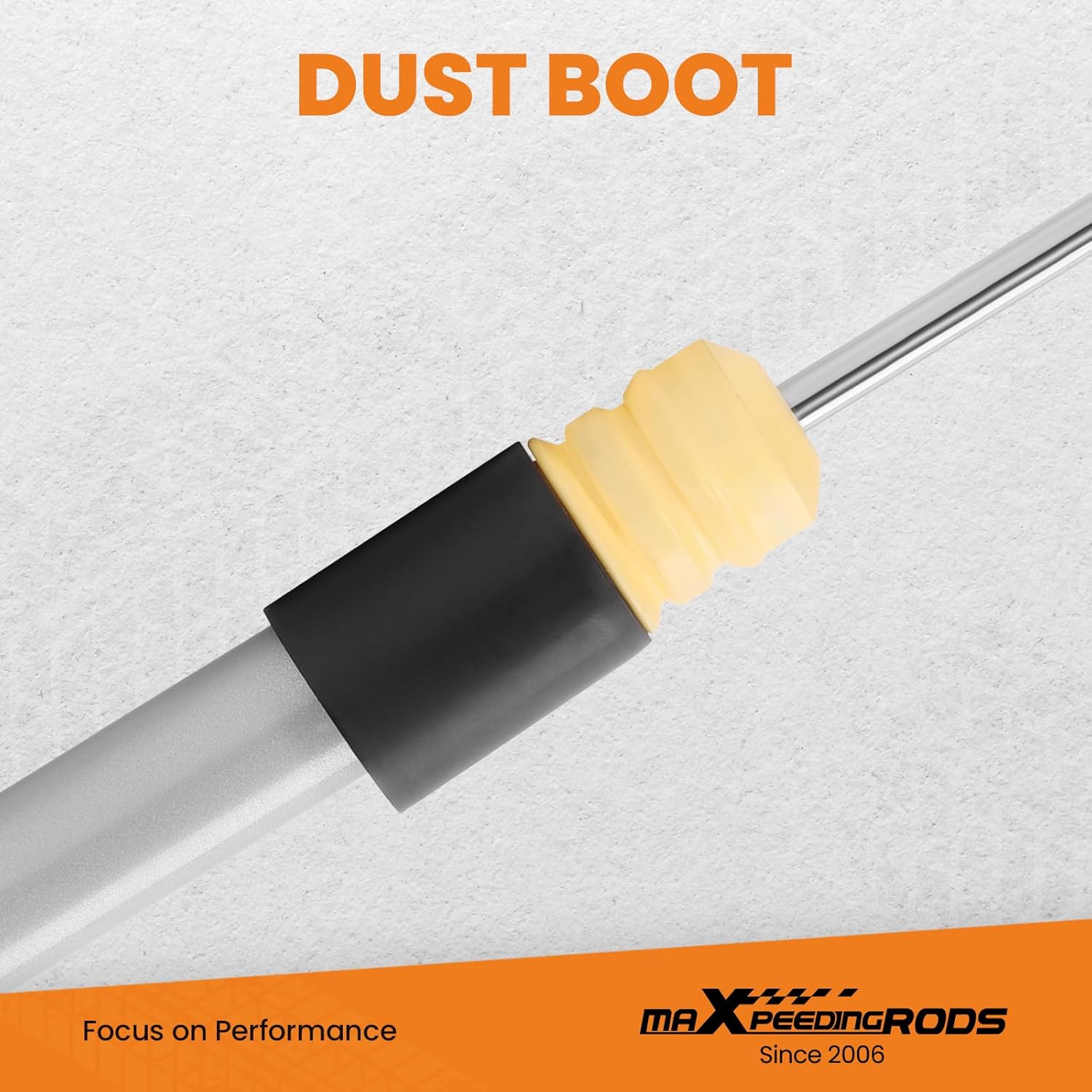

2. Dust boot, solid rubber bump stops

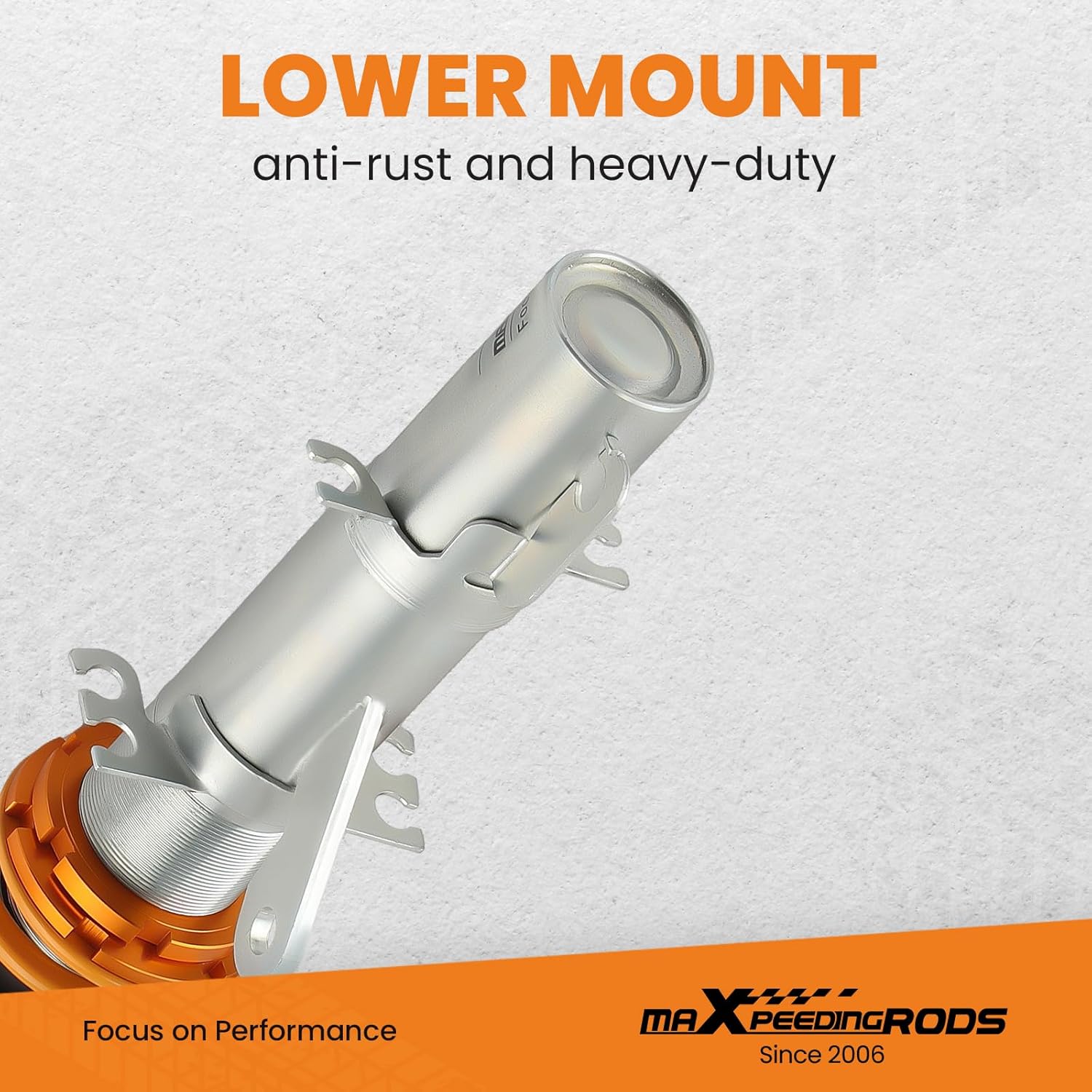

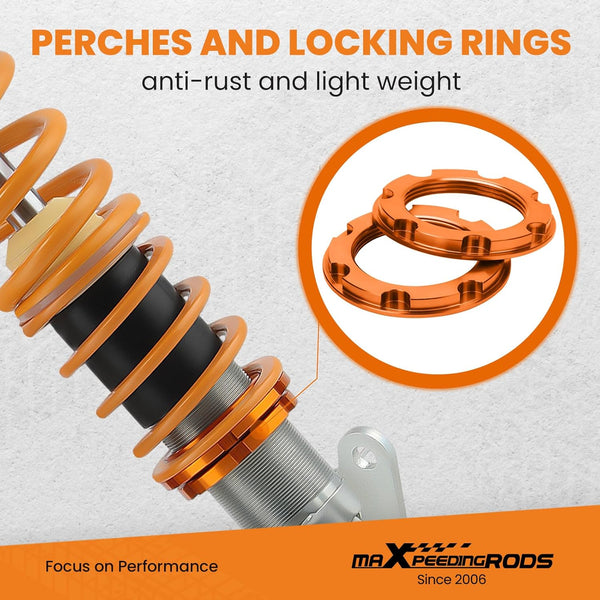

3. Weight Saving Aluminum Components And heavy duty Steel Lower Mount Brackets

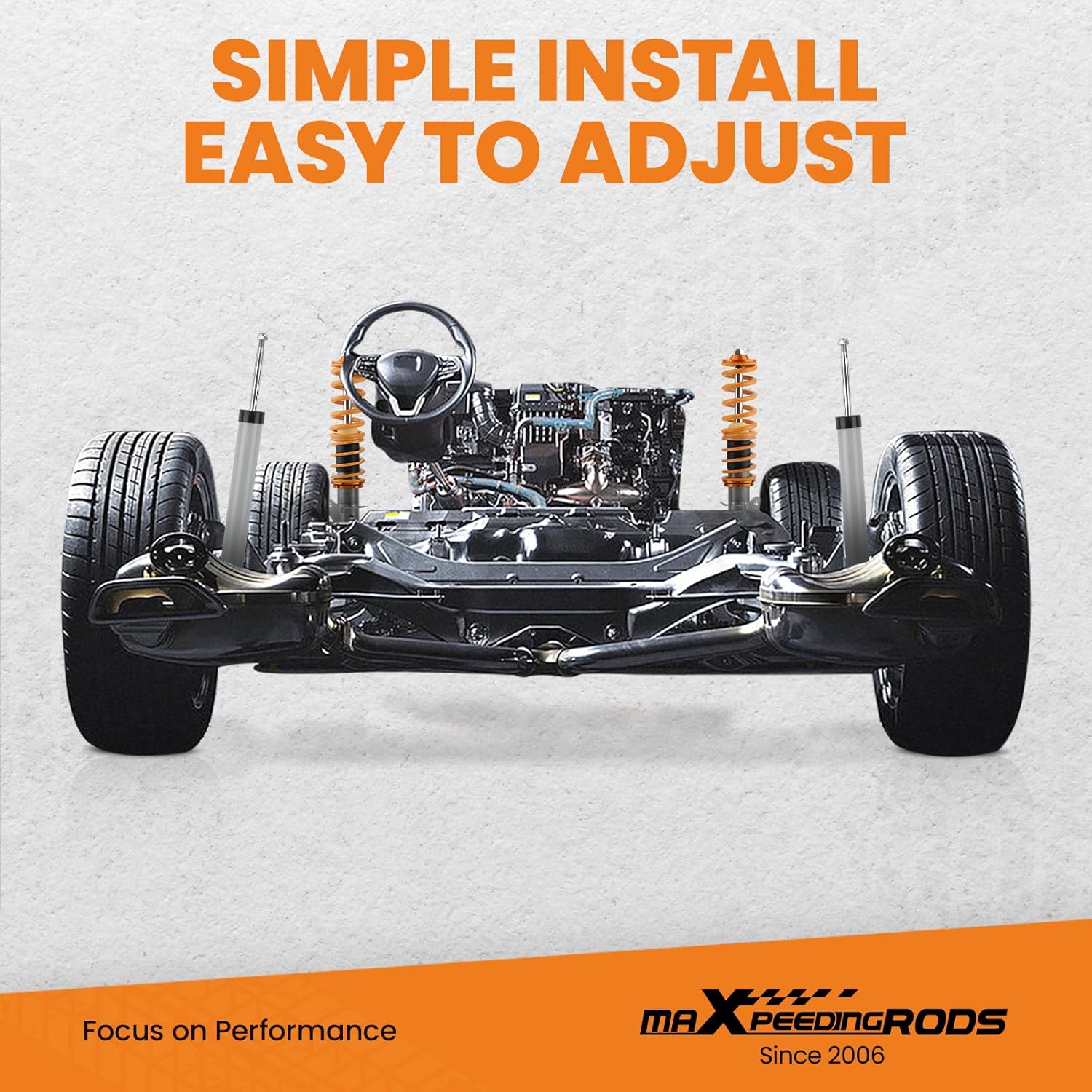

4. Simple install, Easy to adjust.
5. Use the vehicle's original upper mounts (not included in our product kit).
Note
1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Impact wrench is prohibited during the installation, it will loosen or damage the product.
3. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
4. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
