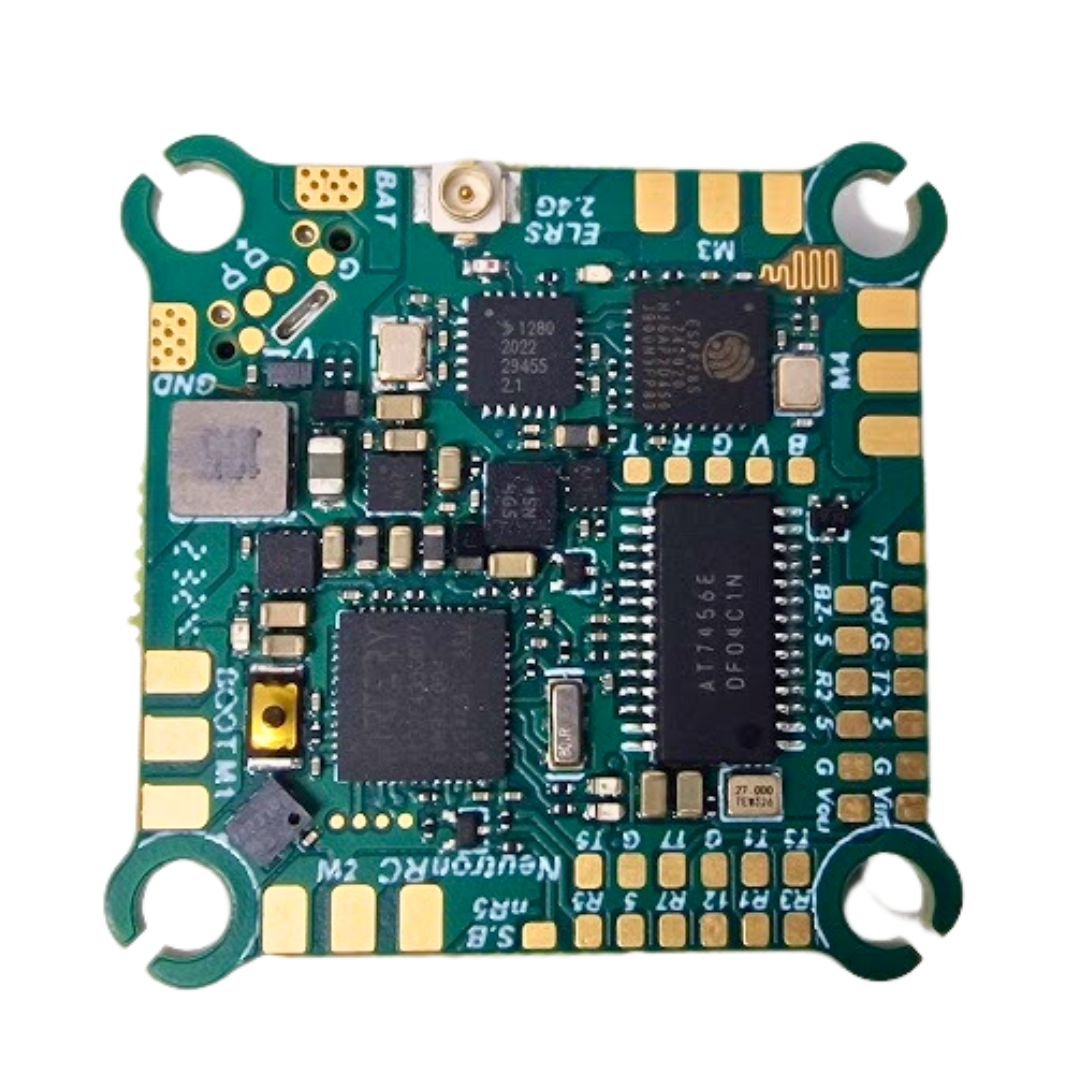

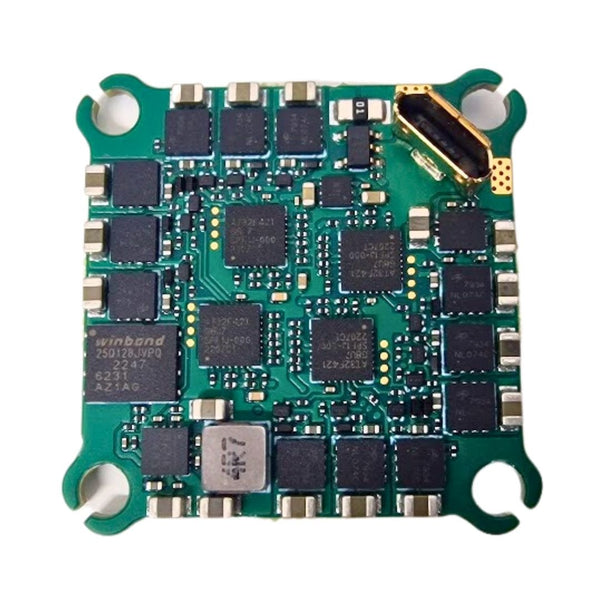

NeutronRC AT32F435 Mini 2S 12A AIO Flight Controller w/ ELRS

NOTE. When flashing ELRS target flash EMAX 2.4GHz/EMAX 2.4GHz RX (this as per instruction from NeutronRC)

FPV pilots, we get it. You're sick of the Frankenstein monster that your quadcopter's become—a jigsaw puzzle of multiple modules, ESCs, and whatnot. You want something simple, effective, and top-performing.

🛠️ Dare to dream of a clutter-free, sky-ripping drone

Imagine, just imagine, being able to break through the clouds, swooping around trees and obstacles, without worrying if your hodgepodge of modules will suddenly revolt against you. No more 'weight watcher' debates on whether one more gram will lead to a crash landing. And no more feeling like you need an engineering degree just to get off the ground.

Your quest for the Holy Grail of FPV gear ends here. Trust us; your drone will thank you. With its built-in ELRS 2.4Ghz and an all-in-one design, your FPV setup just went from complicated to "just fly, buddy!"

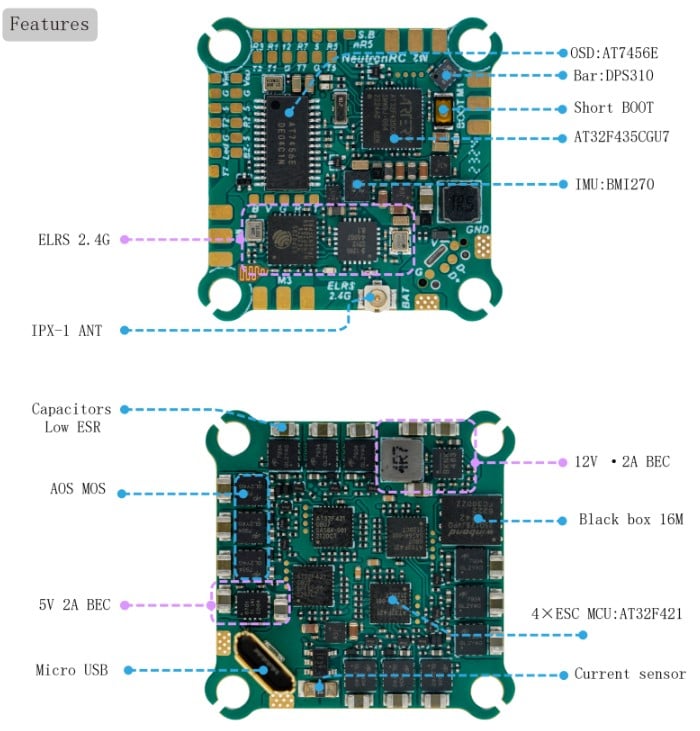

🎯 Key Product Highlights:

• MCU of Your Dreams : The AT32F435CGU7 operates at a blazing 288MHz and comes with 1MB Flash.
• Infallible IMU : Navigate with precision thanks to the BMI270.
• Say Hello to OSD : Get the best OSD experience with AT7456E.
• Blackbox Recording : 16M of SPI=2 Flash for those 'wait, what just happened?' moments.
• Baro Magic : Infineon DPS310 keeps you pressure-savvy, because altitude isn't just a state of mind.
• Ultimate Compatibility : Supports INAV, QUICKSILVER, and Betaflight. So play the field!
• Pimp My Ride : 4x LEDs for FC Status, 3.3V, 5V. Yeah, we went there.
• Integrated ELRS 2.4Ghz: With a wire antenna for better signal reception at longer range
• HD FPV VTX Support
• ESC Excellence : 12Ax4 current, maxing at 13A for those daring 5-second stunts.
• Built to Last : 8-layer 2OZ, 2-order blind via PCB.
• Light as a Feather : Weighs just 6.6g, so your drone won't even know it's there.

Ready to experience FPV flight as it was meant to be? Click 'Add to Cart' now for this must-have NeutronRC AT32F435 Mini AIO 2S Flight Controller. Because your drone deserves the best, and so do you.

The sky isn't the limit; it's just the beginning.

User Manual

• NeutronRC AT32F435 AIO User Manual

📦 What's Included:

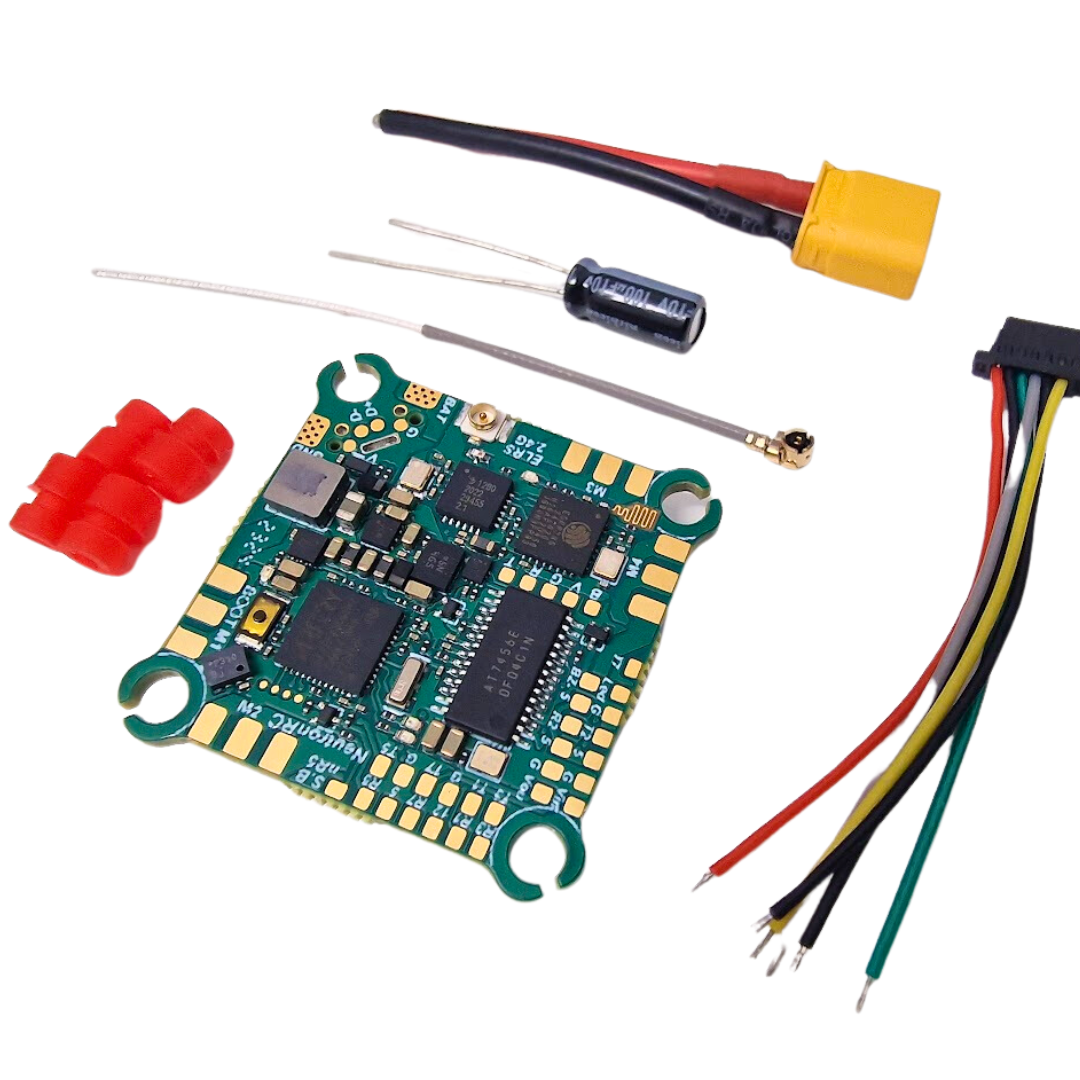

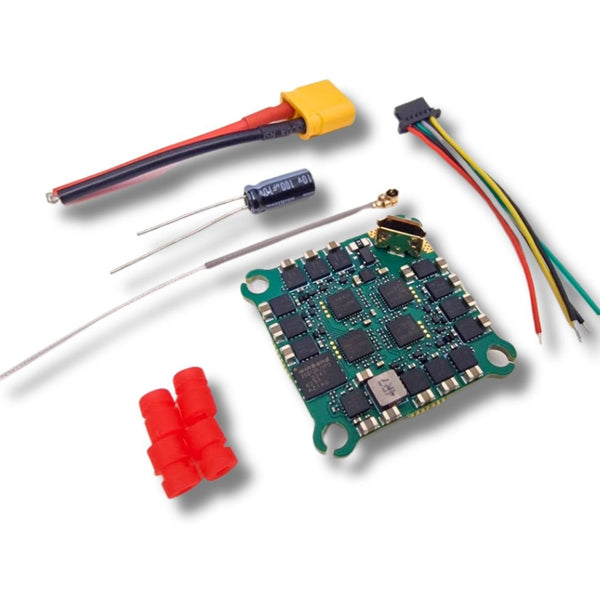

• 1x NeutronRC AT32F435 Mini AIO 2S Flight Controller with Built-in ELRS 2.4Ghz and 4in1 12A ESC
• Hardware accessories kit (contents may vary based on supply)
