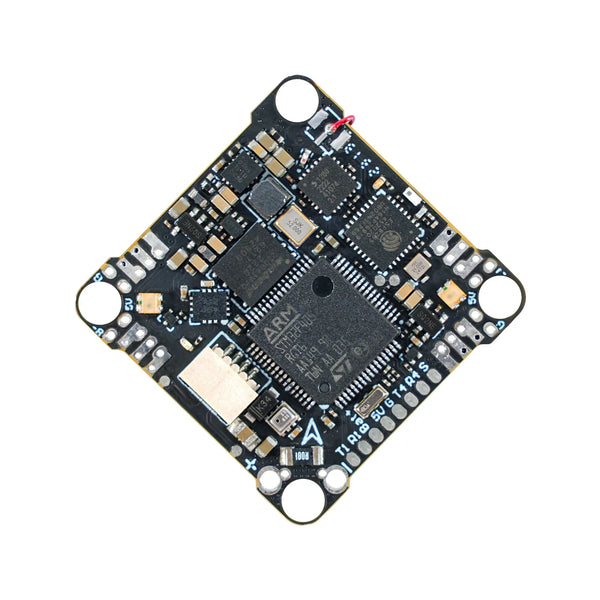

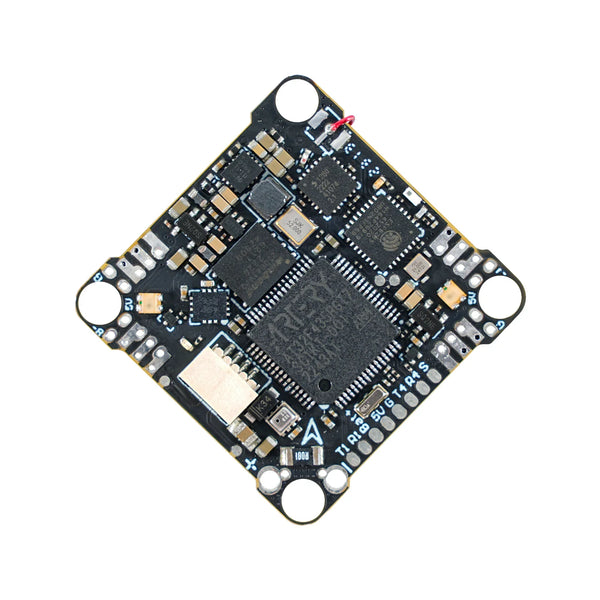

F4 1S 12A AIO Brushless Flight Controller V3

F4 1S 12A AIO Brushless Flight Controller V3

€38,95

FAST DIspatch & Global delivery
Quality Assured Brand Manufacturer

MCU:

STM32F405

AT32F435

SKU: F41SAIOV3-F405 Category: Racing & Flight Sim Hardware - Steering Wheels / Pedals / Shifters / Accessories. Tag: Shopify Collective, Unmanned Tech

Description
Product Reviews

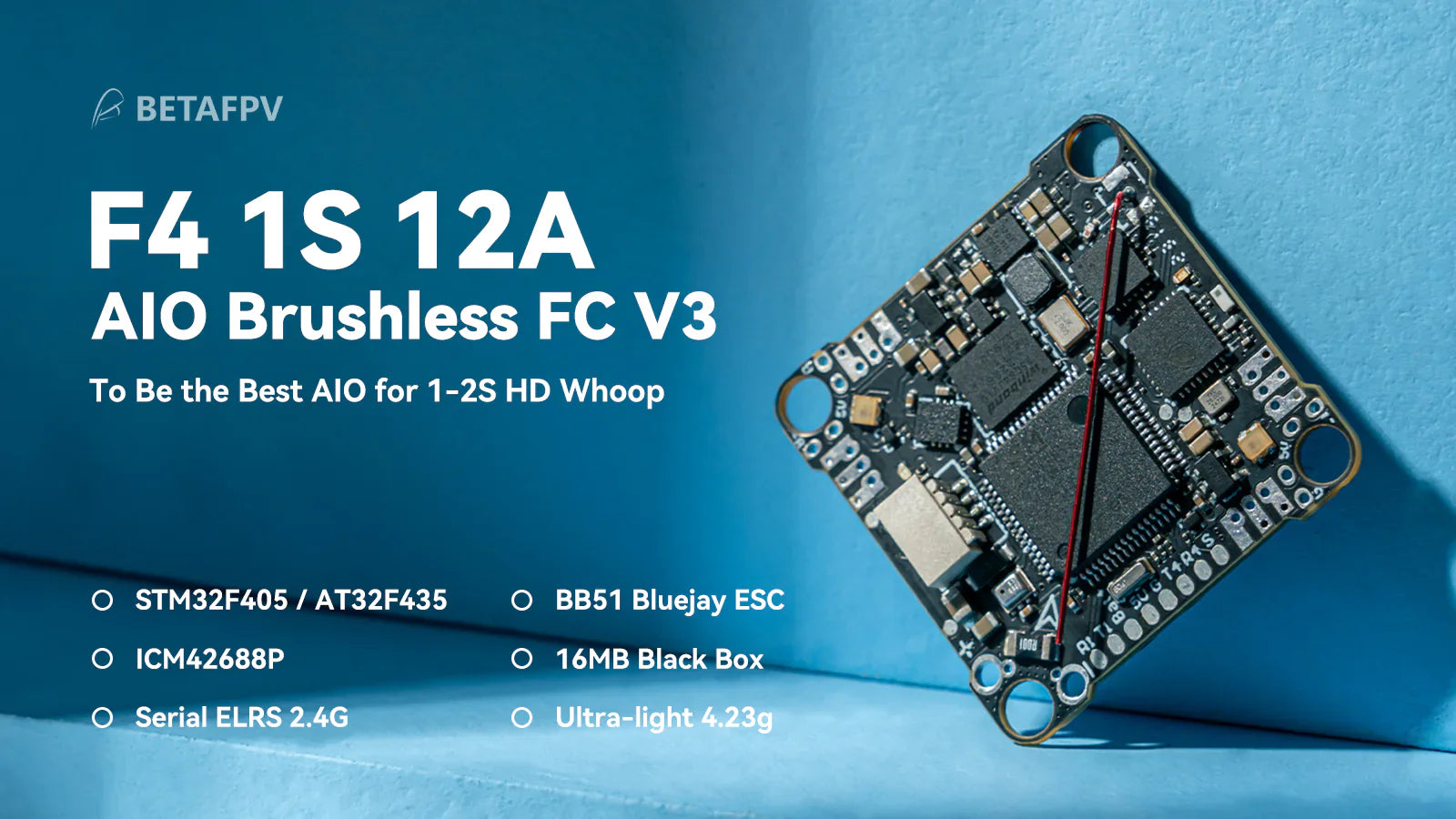

Introducing the Trailblazing F4 1S 12A AIO Brushless FC V3

In the ever-changing drone skies, one controller soars above the rest. Meet the F4 1S 12A AIO Brushless FC V3 - the Captain Kirk of flight controllers and the FIRST designed specifically for HD VTX. And you know what they say about being the first... nothing else compares.

Dazzling Features to Turbocharge Your Flights

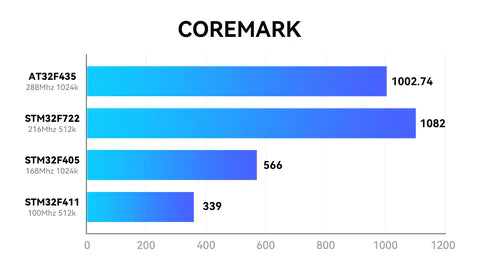

An MCU with Some Serious Muscle : Featuring the STM32F405/AT32F435 chip, this FC takes high-performance calculations and biceps-flexing performance to a stratosphere where only the strongest survive.

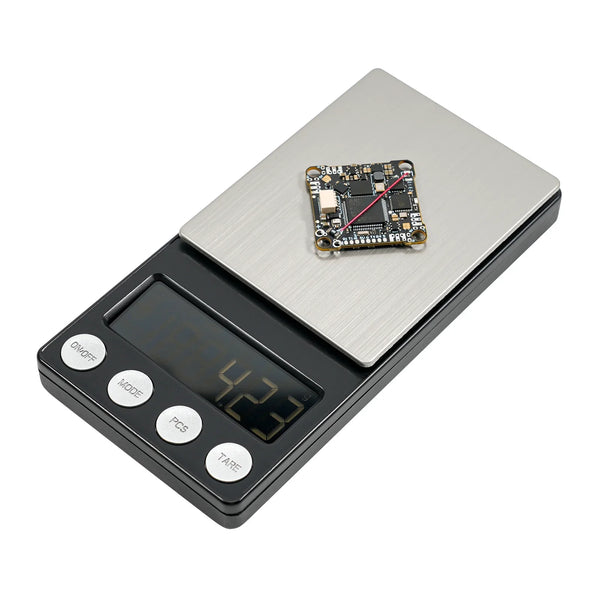

Packed with Tools, Lighter Than a Feather : Weighing just 4.2 grams, our flight controller packs in an ELRS 2.4G receiver, 16MB Black Box, a barometer, and a current meter, without adding the weight of a popcorn kernel to your build.
External GPS Support : Lost in the great blue yonder? Not with our FC! We've added external GPS support through Betaflight 4.4.0 because even seasoned pilots like to know where they're heading.

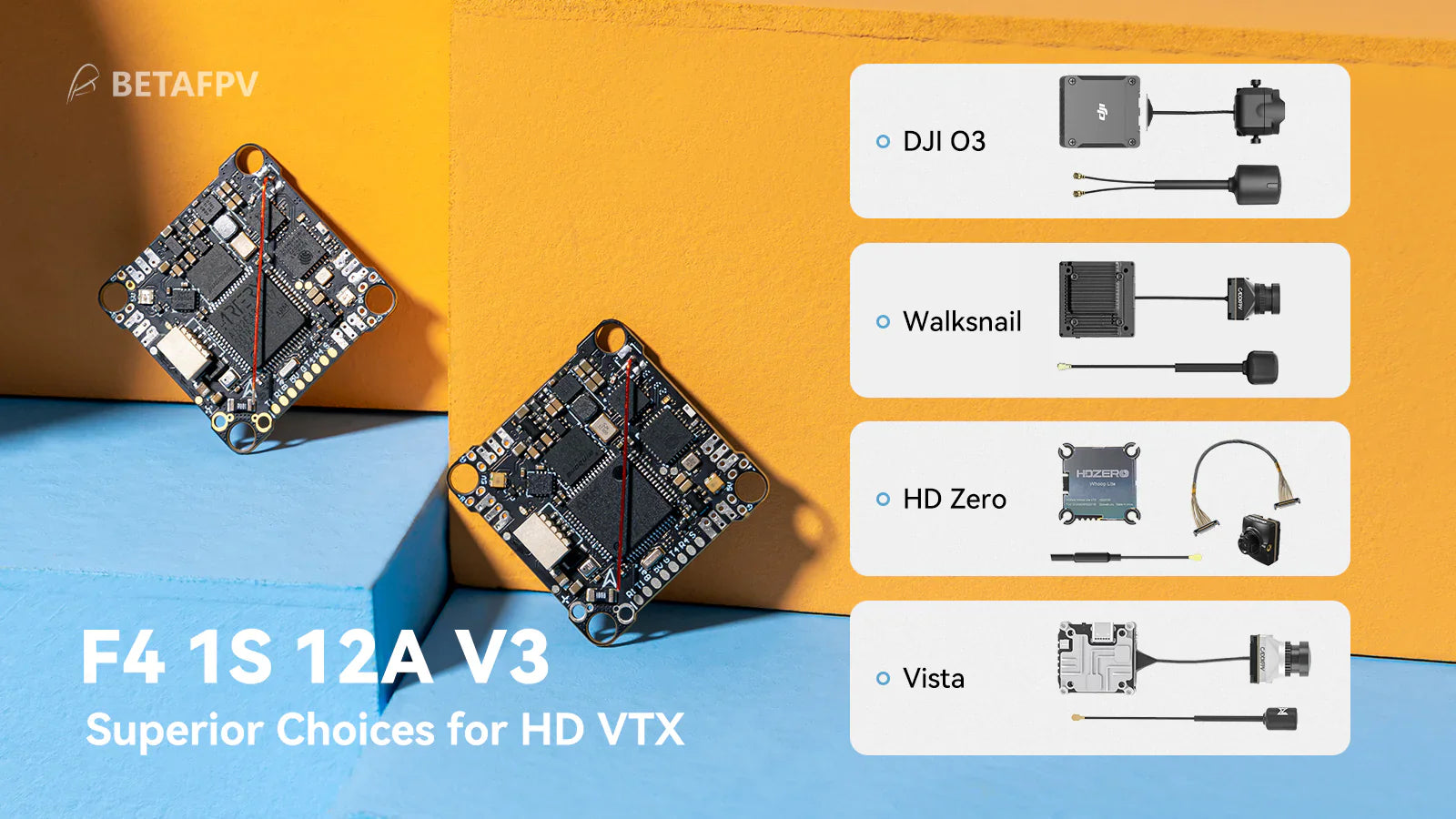

HD VTX Power Supplier : It houses a 5V 3A BEC solution, ensuring your HD VTX never lacks for power, even when your midnight binge-watching sessions do.

Incomparable Specs That'll Make Your Heart Soar

MCU: STM32F405RGT6 (168MHz) / AT32F435RGT7 (288MHz)
Six-Axis: ICM42688P (SPI connection)
Firmware: Betaflight_4.4.1_BETAFPVF405 (STM32F405) / ATBetaflight_4.3.2_BETAFPVF435_RC3 (AT32F435)
Receiver: Serial ELRS 2.4G
Built-in ESC: 12A continuous and peak 25A current

But How Does It Stack Up?

Good question, savvy shopper. The F4 1S 12A AIO Brushless FC V3 is a significant upgrade from its 2022 counterpart, boasting a stronger MCU, built-in black box, and sole support for HD VTX. We've upped the ante on performance without adding to the scales - a flying win-win!

There you have it - a flight controller that lets you rule the skies with precision, power, and HD clarity. So why wait? Give your FPV drone the ultimate upgrade with the F4 1S 12A AIO Brushless FC V3 and pilot like a pro!

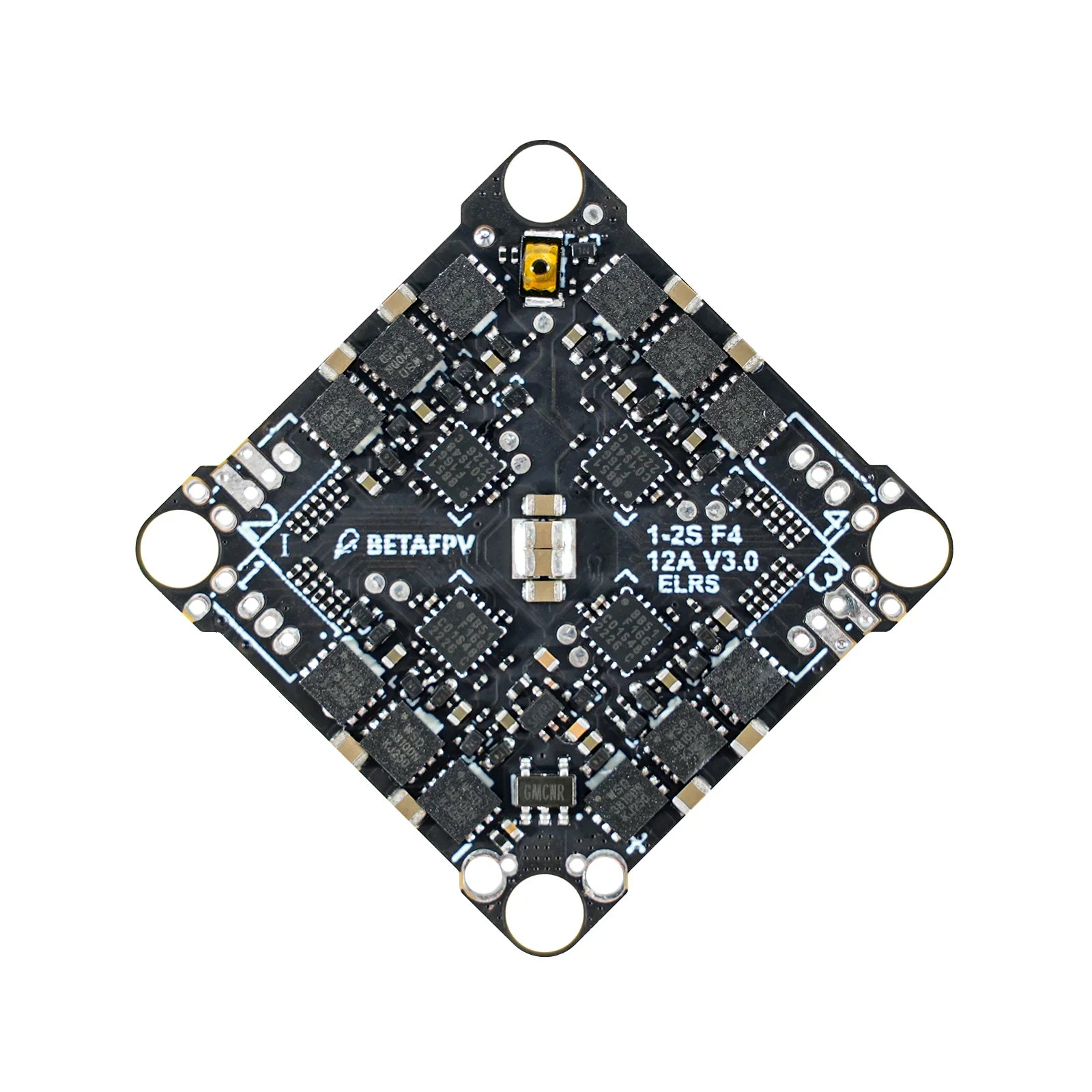

Specification of FC

Weight: 4.2g (without power cable and motor connector)
Six-Axis: ICM42688P (SPI connection)
MCU: STM32F405RGT6 (168MHz) / AT32F435RGT7 (288MHz)
Firmware version: Betaflight_4.4.1_BETAFPVF405 (STM32F405) / ATBetaflight_4.3.2_BETAFPVF435_RC3 (AT32F435)
Receiver: Serial ELRS 2.4G Receiver
Receiver firmware version: BETAFPV AIO 2400 RX ELRS V2.5.2
Antenna: Enameled wire
Blackbox Memory: 16MB
Sensor: Barometer (BMP280), Voltage&Current
Mounting Hole Size: 26mm x 26mm (suitable for whoop pattern mounting hole)
BEC*: 5V 2A@4V supply, 5V 3A@8V supply
USB Port: SH1.0 4-Pin
Built-in ESC with 12A continuous and peak 25A current
ESC input voltage: 1-2S
ESC firmware: C_X_70_48_V0.19.2.hex for BB51 Bluejay hardware
Signal support: D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM

*The output current of BEC will decrease as the temperature increases

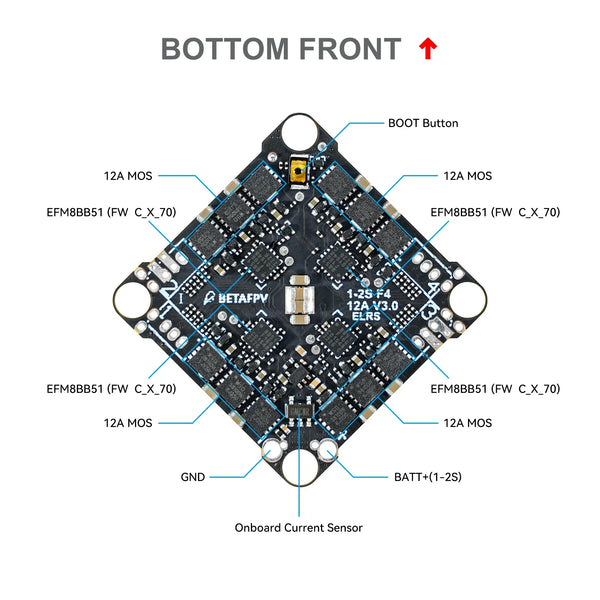

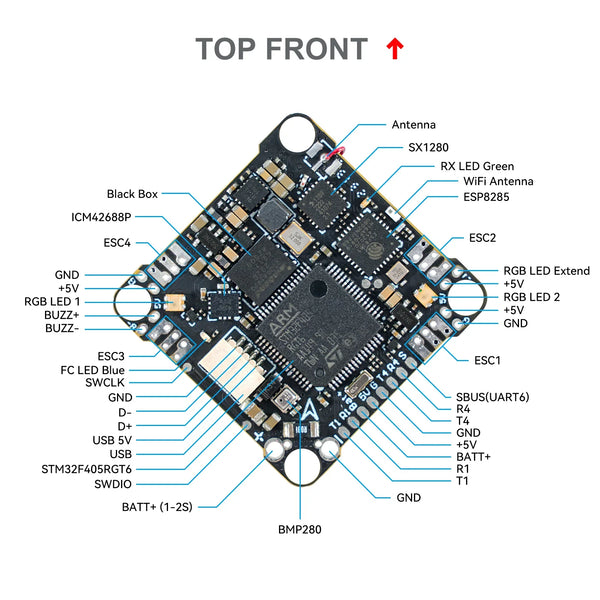

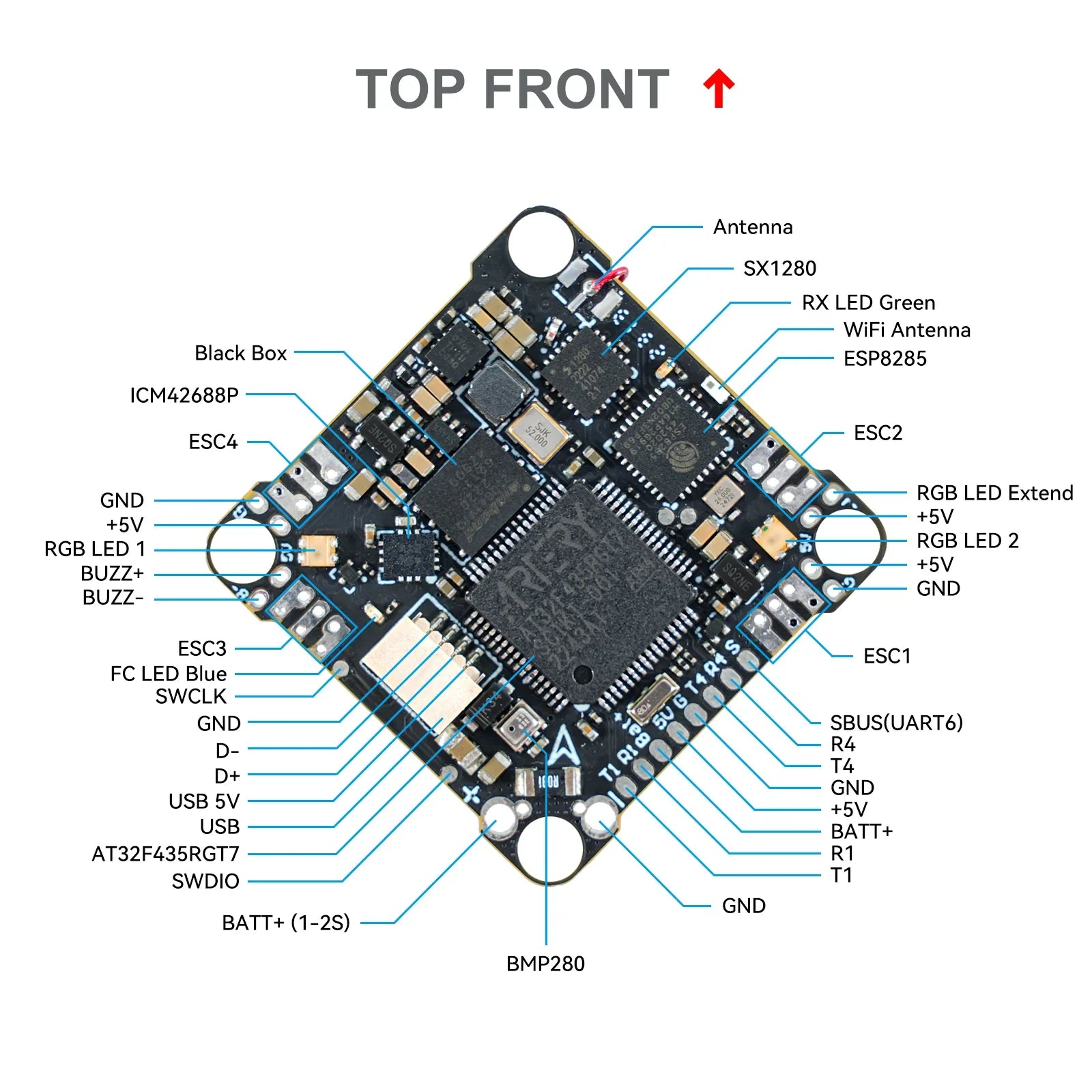

Diagram for F4 1S 12A AIO FC V3

Betaflight Firmware and CLI

For STM32F405 Version

FC firmware: Betaflight_4.4.1_BETAFVF405Reference link: https://github.com/betaflight/betaflight/releases/tag/4.4.1

For AT32F435 Version

FC firmware: ATBetaflight_4.3.2_BETAFPVF435_RC3Reference link: https://github.com/flightng/atbetaflight/releases/tag/v4.3.2-rc3

Pay attention, DO NOT flash the other firmware for AT32F435 version. Betaflight official firmware for the AT32F435 is still in the development process, only the currently released ATBetaflight 4.3.2 RC3 has bidirectional Dshot, PRM, and RGB functions.

If you need to use the Betaflight configurator, please use B etaflight_10.10.0 and follow the steps below to open the "Show all serial devices" in the "Options" first to recognize the port.

ESC Firmware

With BB51 ESC solution, F4 1S 12A FC V3 is based on BLHeliSuite16714903 with Bluejay ESC firmware, it supports bidirectional D-shot and RPM filtering in Betaflight, offers 24KHz, 48KHz, and 96KHz fixed PWM frequency for options, and custom start-up melodies. F4 1S 12A FC V3 default factory setting is 48KHz and it doesn't recommend upgrading the 96KHz, or it might cause an error in the motor idle setting, not spinning when disarmed.
