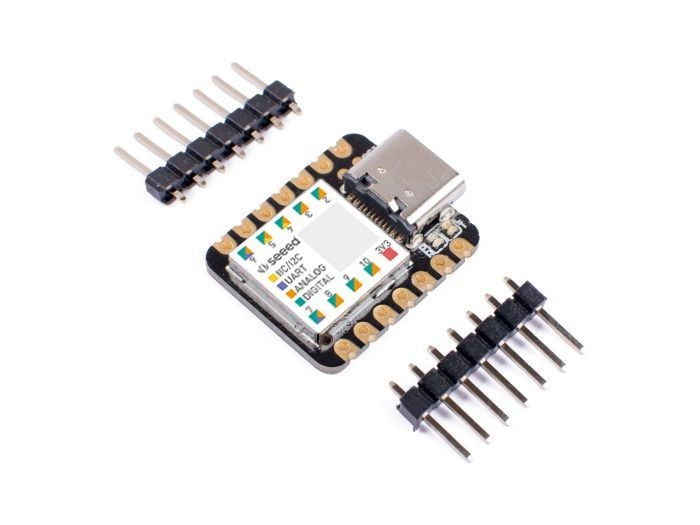

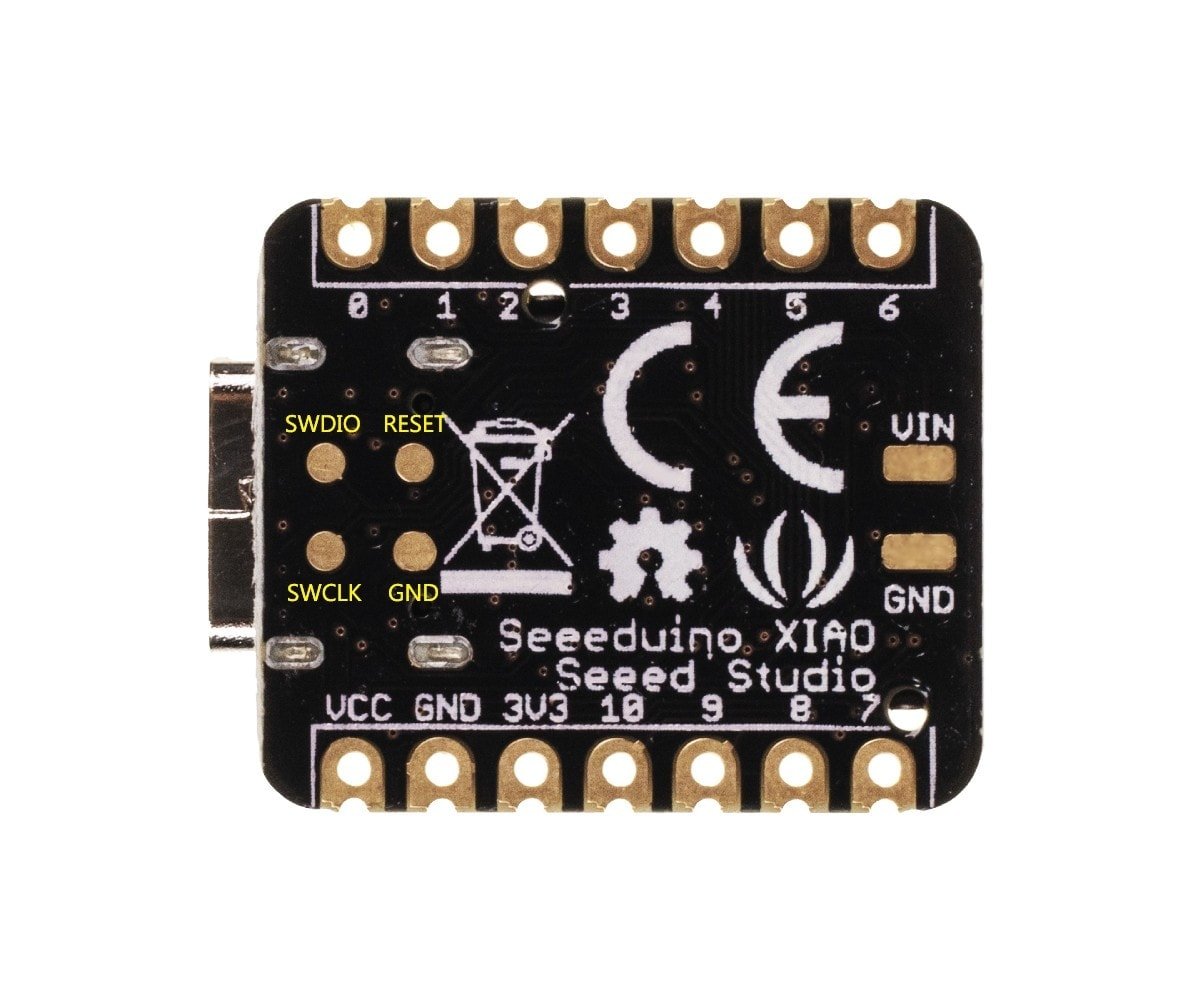

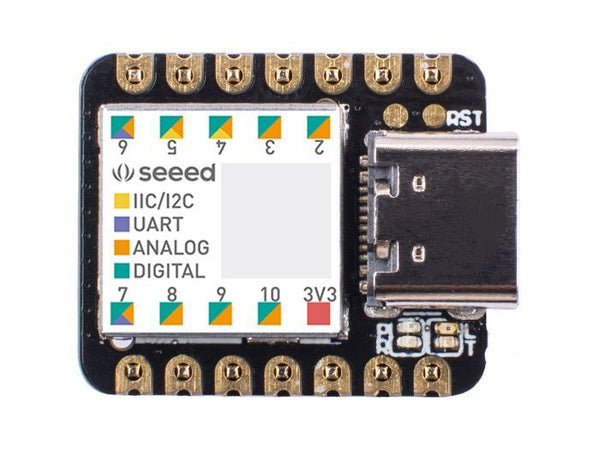

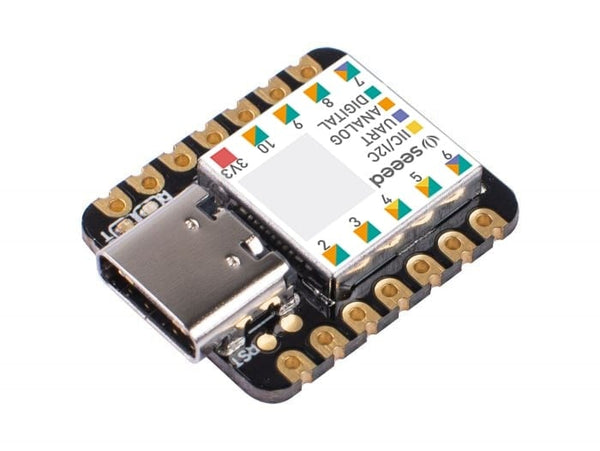

Seeed Studio XIAO SAMD21 Arduino Microcontroller

The Seeeduino XIAO is the smallest member of the Seeeduino family. The XIAO contains the CPU-ARM® Cortex®-M0+(SAMD21G18) Arduino microcontroller. It is perfect to be used for Arduino wearable devices and small projects. Also plug and play conpatible with teh Grove ecosystem via the Xiao grove shield .

Specifications

• CPU: ARM Cortex-M0+ CPU(SAMD21G18) running at up to 48MHz
• Storage: 256KB Flash,32KB SRAM

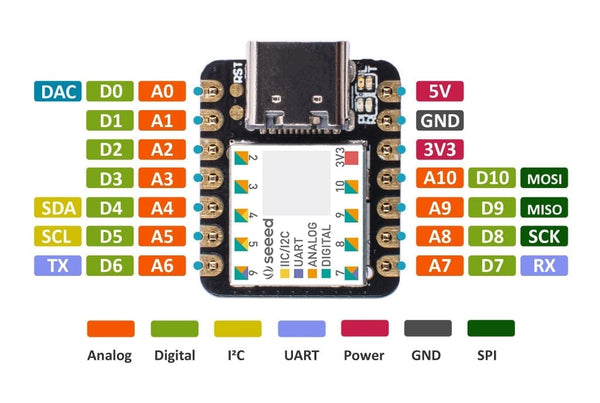

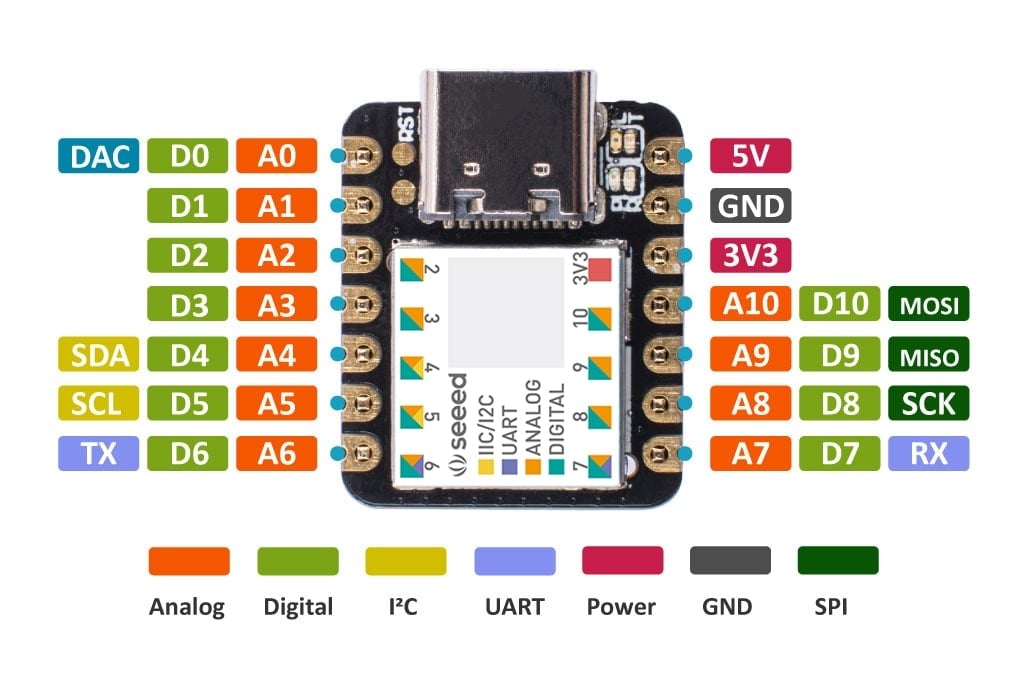

• I/O PINs: 14 GPIO PINs,11 analog PINs, 11 digital PINs, 1 DAC output Pin
• Interface: 1 I2C interface,1 UART interface, 1 SPI interface
• Power supply and downloading interface: USB Type-C interface
• LEDs: 1 user LED, 1 power LED, two LEDs for serial port downloading
• Reset button: two reset button short connect to reset
• Power Pads: For the battery power supply
• Software compatibility: Compatible with Arduino IDE
• Projection cover for protecting the circuit

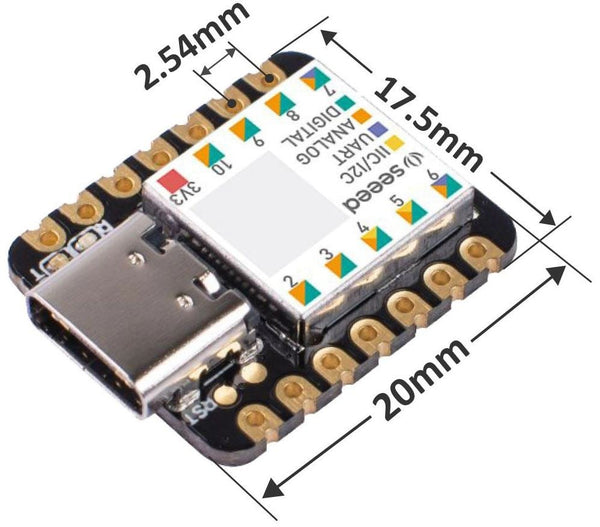

• Dimensions: 20×17.5×3.5 mm

MPN: 102010328
