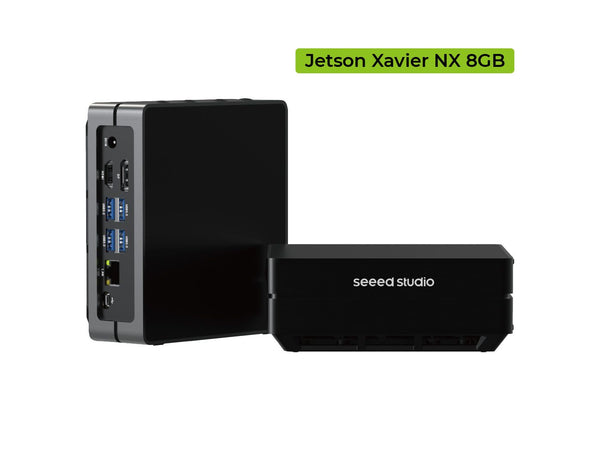

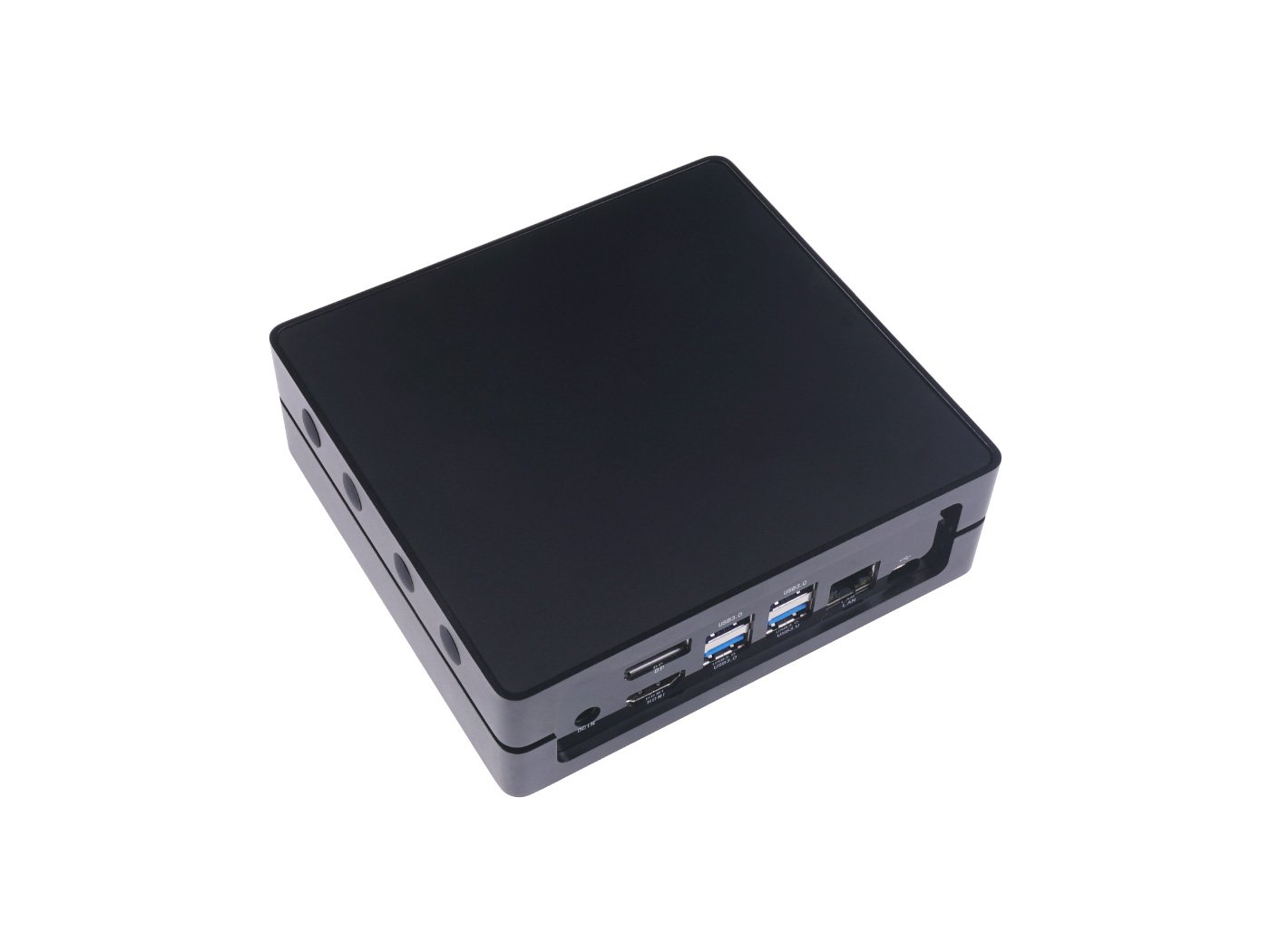

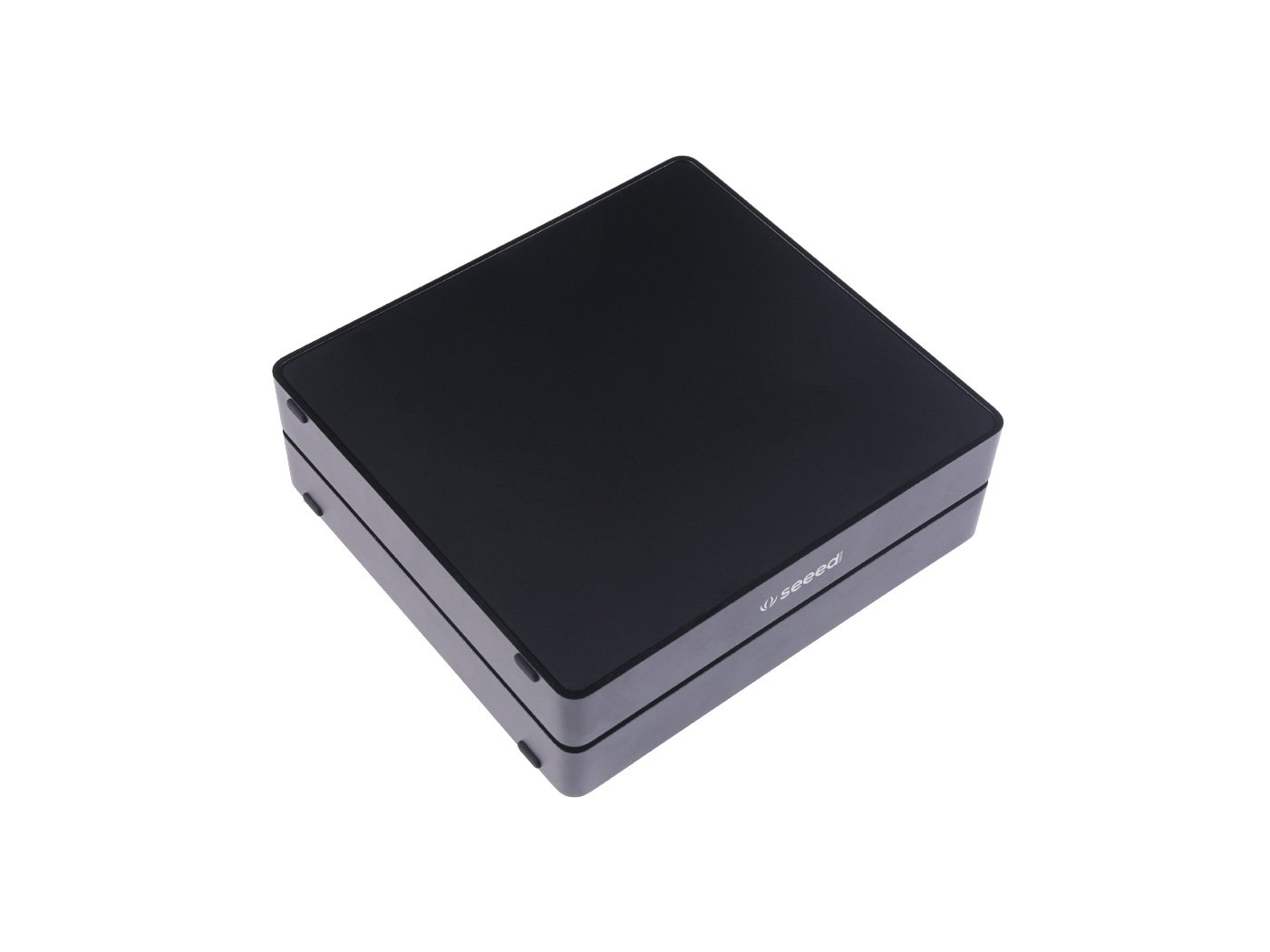

reComputer J2021 - Edge AI Computer with NVIDIA® Jetson Xavier™ NX 8GB

reComputer J2021 is preinstalled with Jetpack 4.6.1, simplifies development, and fit for deployment for edge AI solution providers working in video analytics, object detection, natural language processing, medical imaging, and robotics across industries of smart cities, security, industrial automation, smart factories.

reComputer Jetson is compatible with the entire NVIDIA Jetson software stack, cloud-native workflows, industry-leading AI frameworks, helping deliver seamless AI integration.

Features

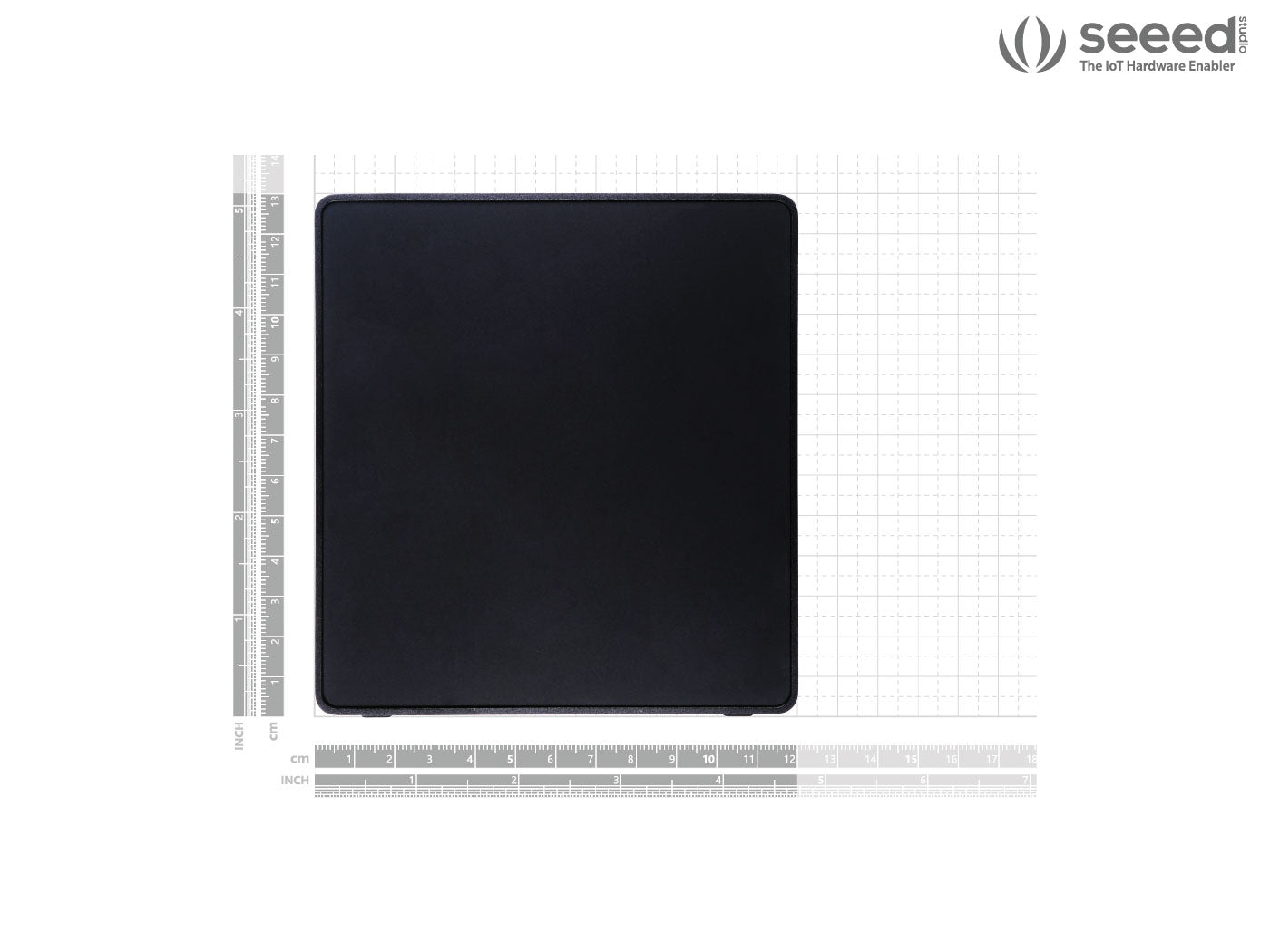

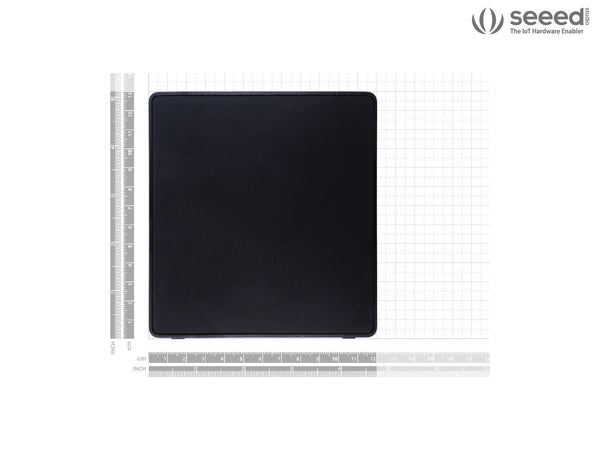

• Hand-size edge AI device : built with Jetson Xavier NX 8GB Production Module, delivering 384 NVIDIA CUDA® cores delivers up to 21 TOPS AI performance with the small form factor of 130mm x120mm x 50mm.

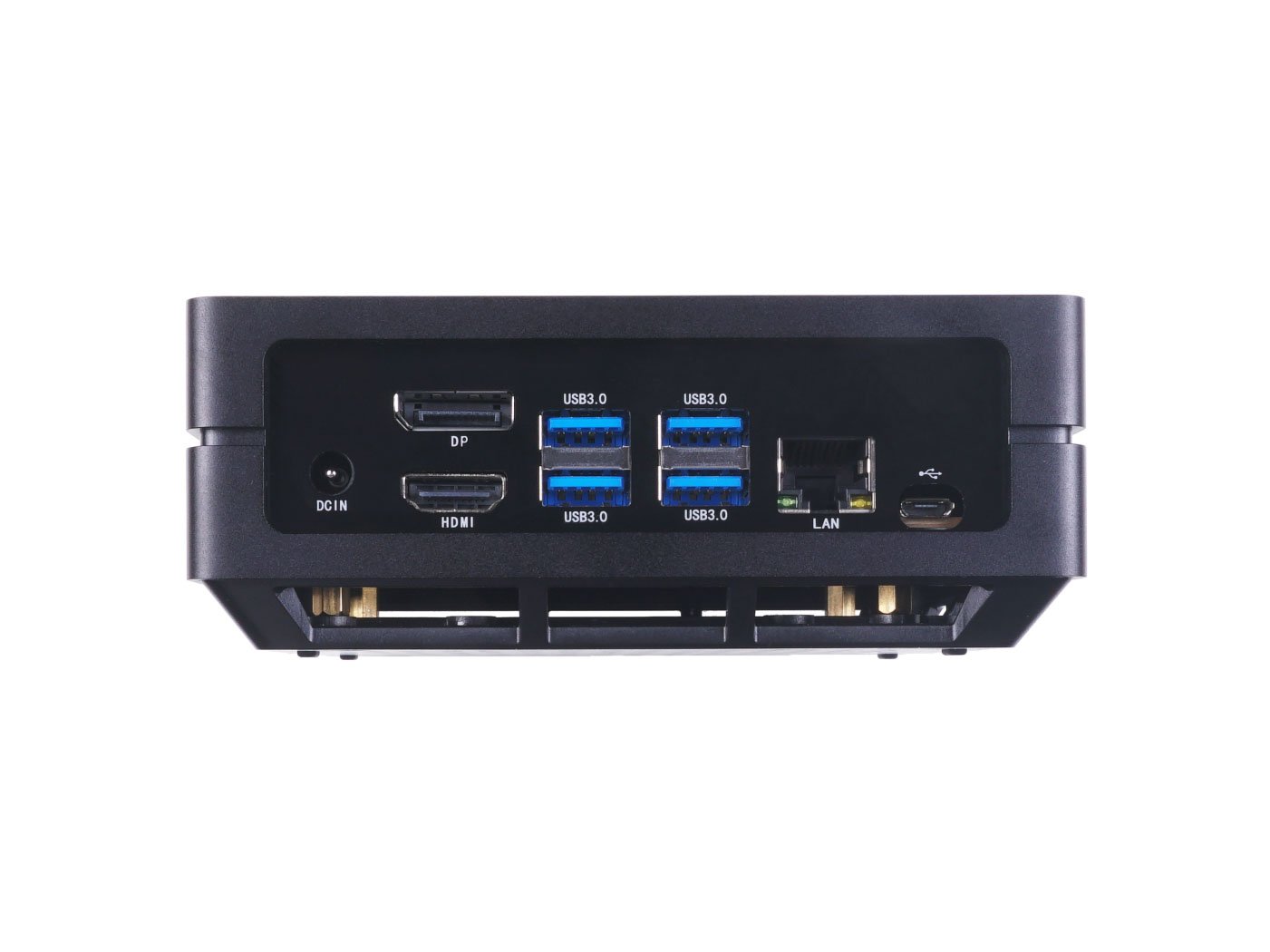

• NVIDIA Jetson Xavier NX Dev Kit alternative : the carrier board brings rich IOs including Gigabit Ethernet port, 4 USB 3.1 Gen2 ports, HDMI port, and DP port
• Pre-installed NVIDIA JetPack : support entire Jetson software stack and various developer tools for building fast and robust AI application provided by Seeed Edge AI partners, helps develop innovative AI solution for manufacturing, logistics, retail, service, agriculture, smart city, healthcare, and life sciences, etc
• Power-efficient : as little as 10 watts, delivering high performance, accurate, multi-modal AI inference at the edge.

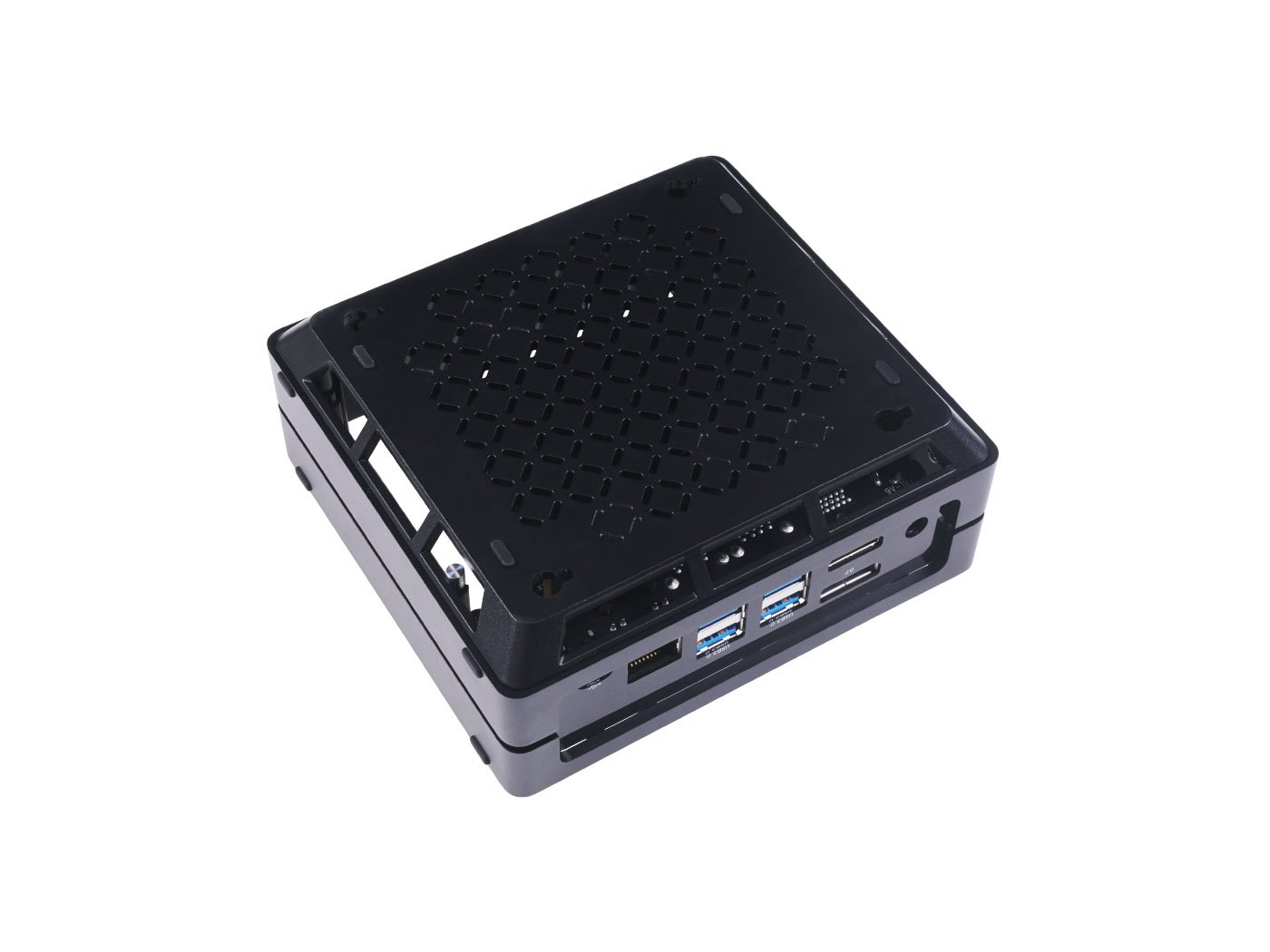

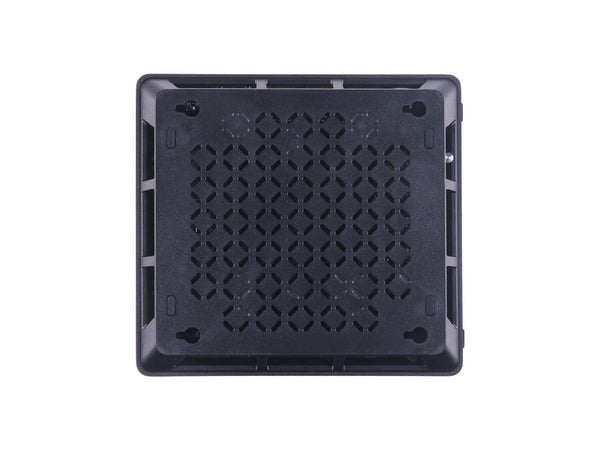

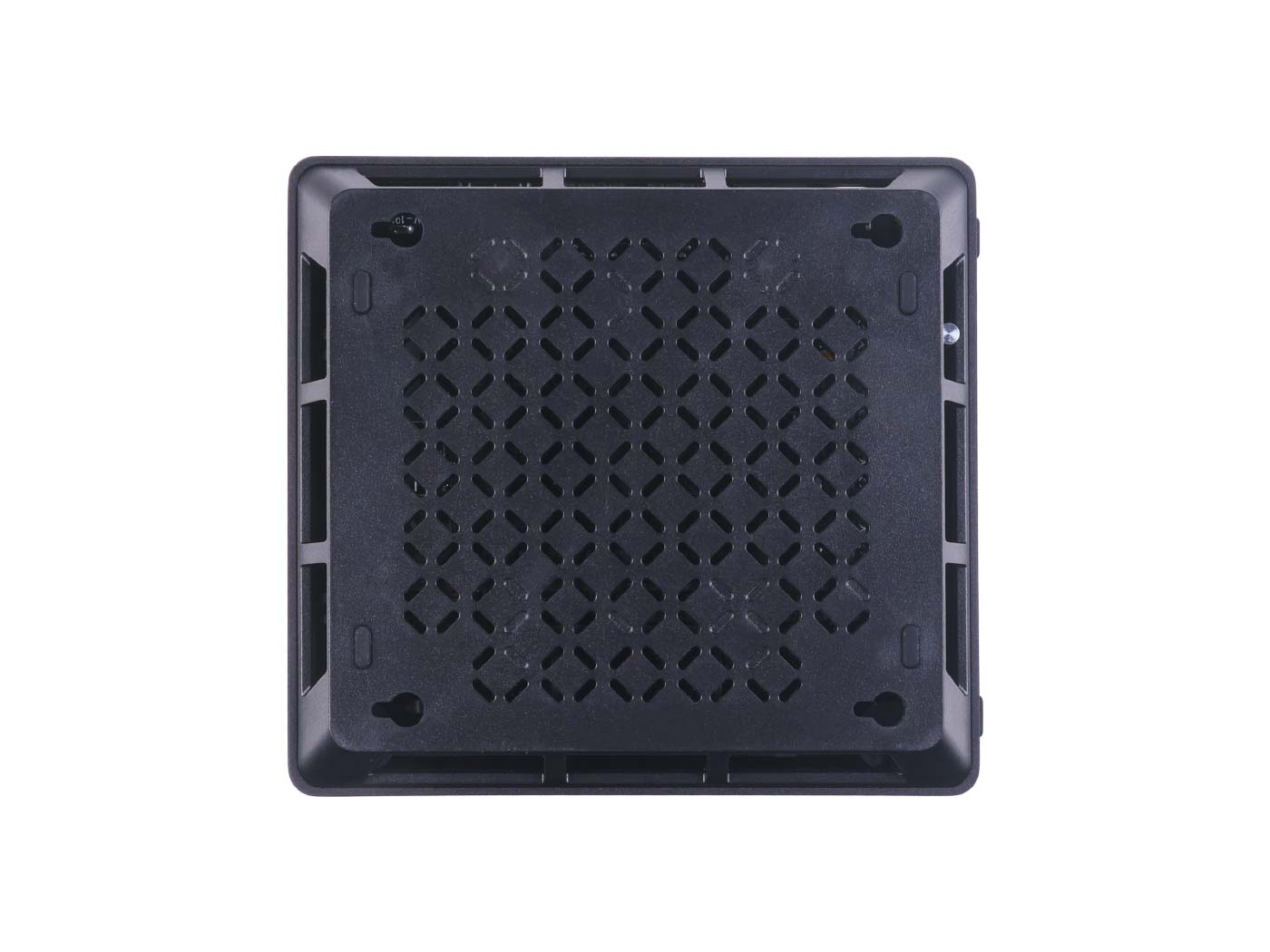

• Expandable with the onboard interfaces and reComputer case, able to mount on the wall with mounting holes on the back.
• Comprehensive certificates

DataSheet

• reComputer Jetson-J20-02x datasheet (seeedstudio.com)
• reComputer Jetson-J202 datasheet (seeedstudio.com)

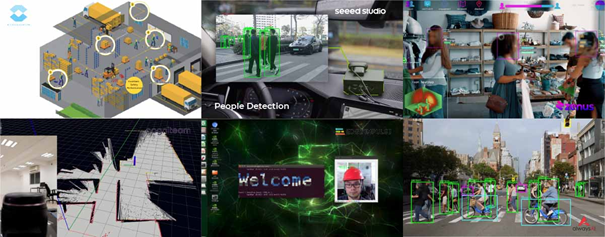

Application: For next-gen autonomous machine

With edge AI developers can deploy machine learning models in solving demanding challenges for advanced robotics and autonomous machines in the fields:

• Edge AI into the Wild: UAV, Drone, Wildlife protection, Agriculture
• Smart City: Traffic, Retail, Healthcare
• Industry 4.0: Manufacturing, Logistics, Deliver, Service

Power-efficient AI computer, compact rich I/Os for Endless AI possibilities:

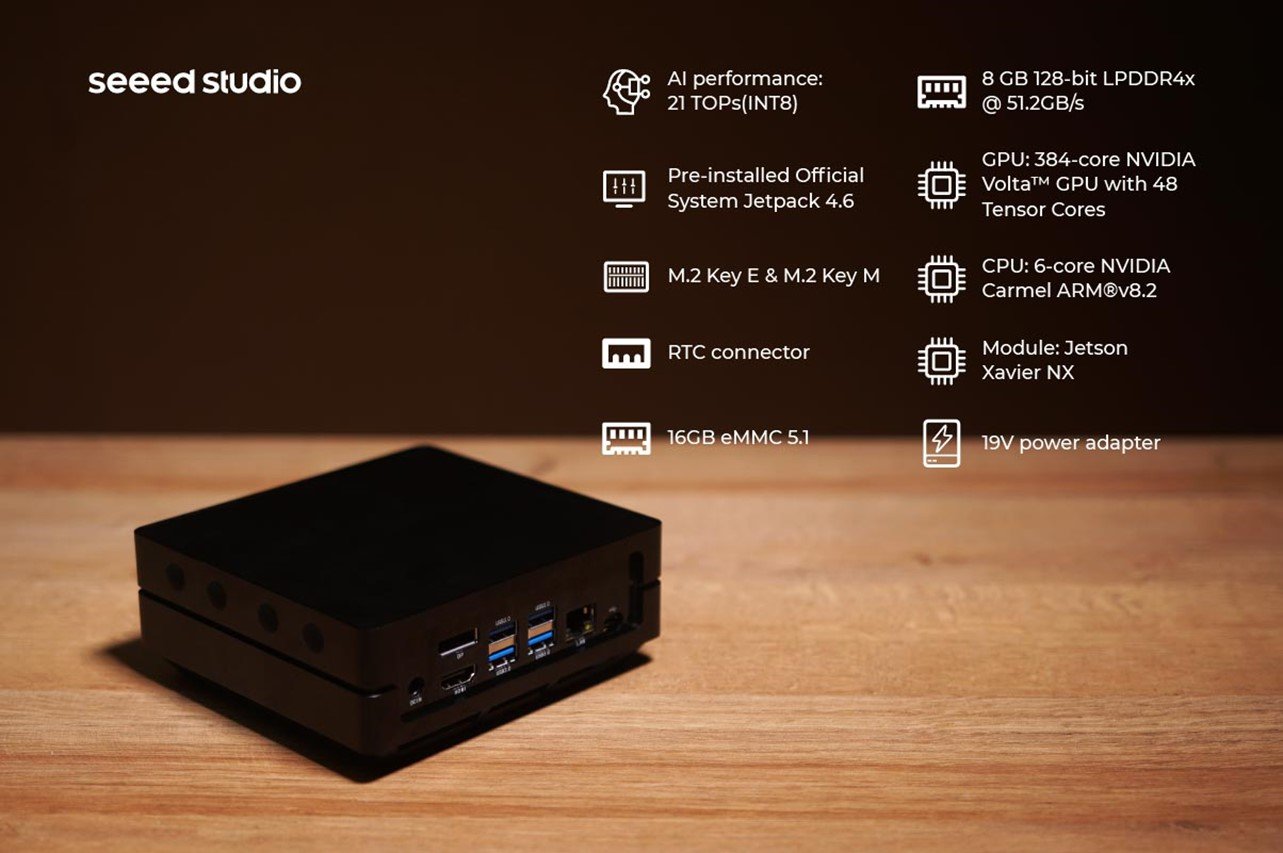

reComputer Jetson - 20 comes with Jetson Xavier NX delivers up to 21 TOPS, making it ideal for high-performance compute and AI in embedded and edge systems. You get the performance of 384 NVIDIA CUDA® Cores, 48 Tensor Cores, 6 Carmel ARM CPUs, and two NVIDIA Deep Learning Accelerators (NVDLA) engines. Combined with over 59.7GB/s of memory bandwidth, video encoded and decoded, these features make Jetson Xavier NX the platform of choice to run multiple modern neural networks in parallel and process high-resolution data from multiple sensors simultaneously.

Jetson Xavier NX supports multiple power modes, including low-power modes for battery-operated systems, and delivers up to 14 TOPs for AI applications in as little as 10 W.

Powerful reference carrier board:

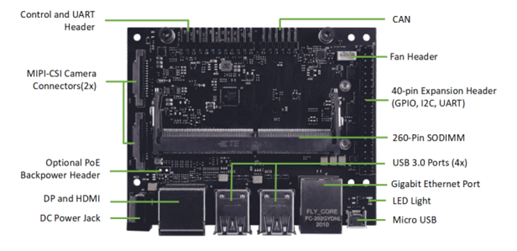

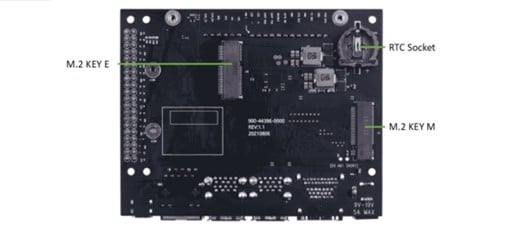

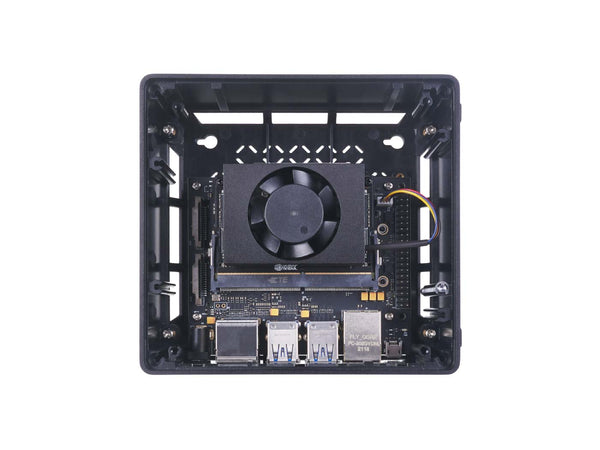

reComputer J2021 is built with J202 carrier board , consisting of USB 3.2 gen 2 ports(4x), M.2 key E for WIFI/BLE, M.2 Key M for SSD, RTC, CAN, Raspberry Pi GPIO 40-pin.

Take advantage of the small form factor, sensor-rich interfaces, and big performance to bring new capability to all your embedded AI and edge systems.

Prebuild system for edge AI integration

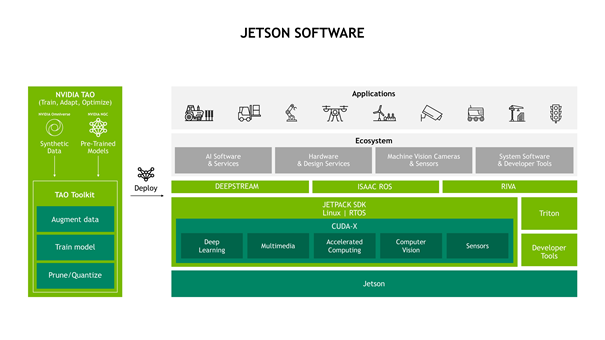

All NVIDIA® Jetson™ modules and developer kits are supported by the same software stack, enabling you to develop once and deploy everywhere. Jetson Software is designed to provide end-to-end acceleration for AI applications and accelerate your time to market. We bring the same powerful NVIDIA technologies that power data center and cloud deployments to the edge.

NVIDIA JetPack includes NVIDIA Container Runtime with Docker integration, enabling GPU accelerated containerized applications on Jetson platform. Jetpack also brings support for NVIDIA Triton™ Inference Server to simplify the deployment of AI models at scale.

Comparison between reComputer J2021 and Xavier NX dev kit

Specifications

Module Technical Specifications

Carrier Board Technical Specifications

Part List

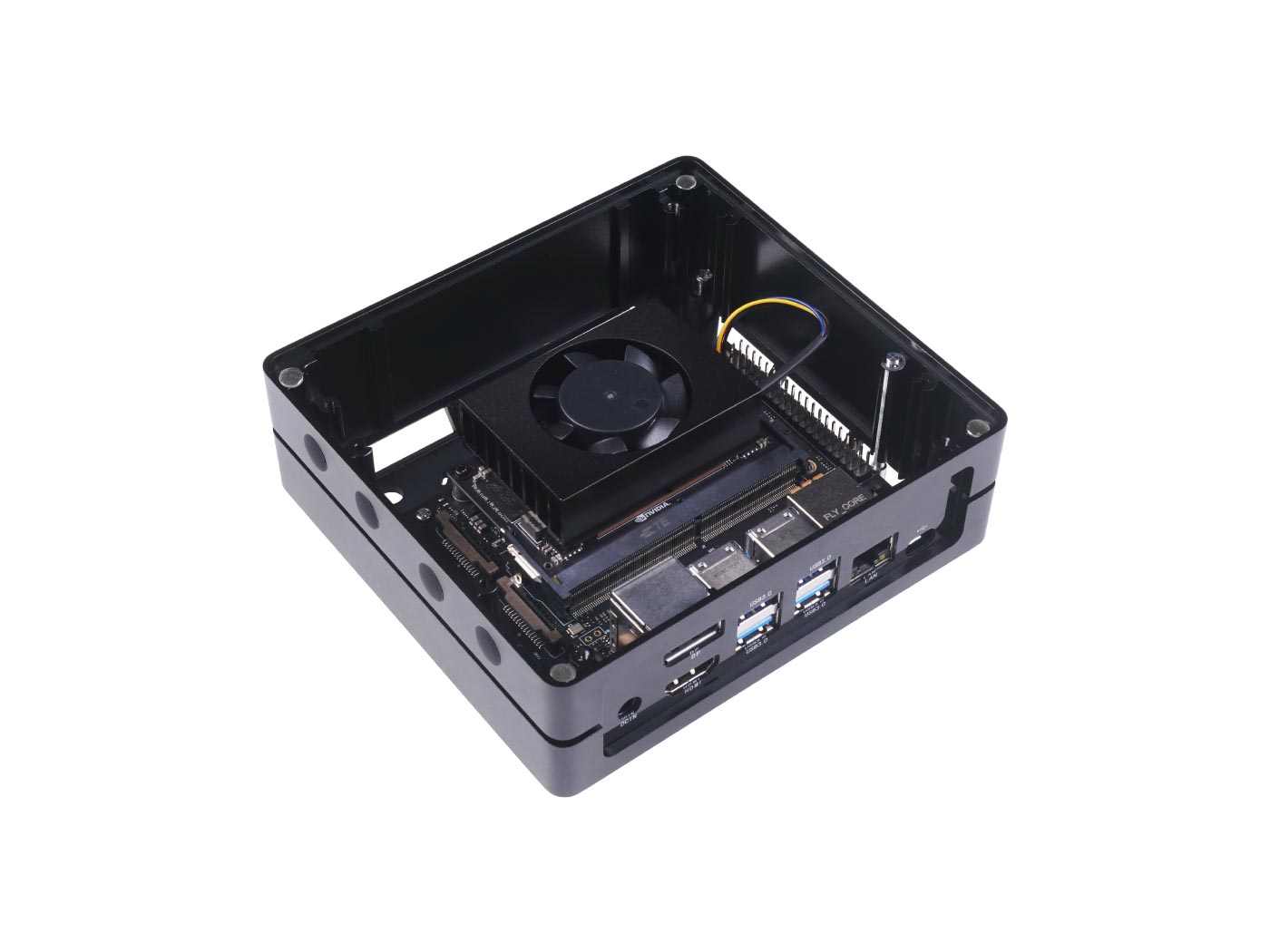

• 1 x Acrylic Cover
• 1 x Aluminium Frame
• 1 x Jetson Xavier NX module
• 1 x Heatsink
• 1 x Carrier board
• 1 x 12V/5A(Barrel Jack 5.5/2.1mm) Power Adapter (Power cable not included)

3V RTC battery (CR1220) is not inlcuded
