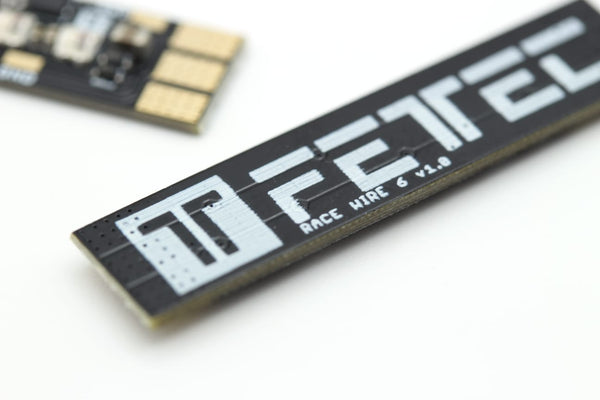

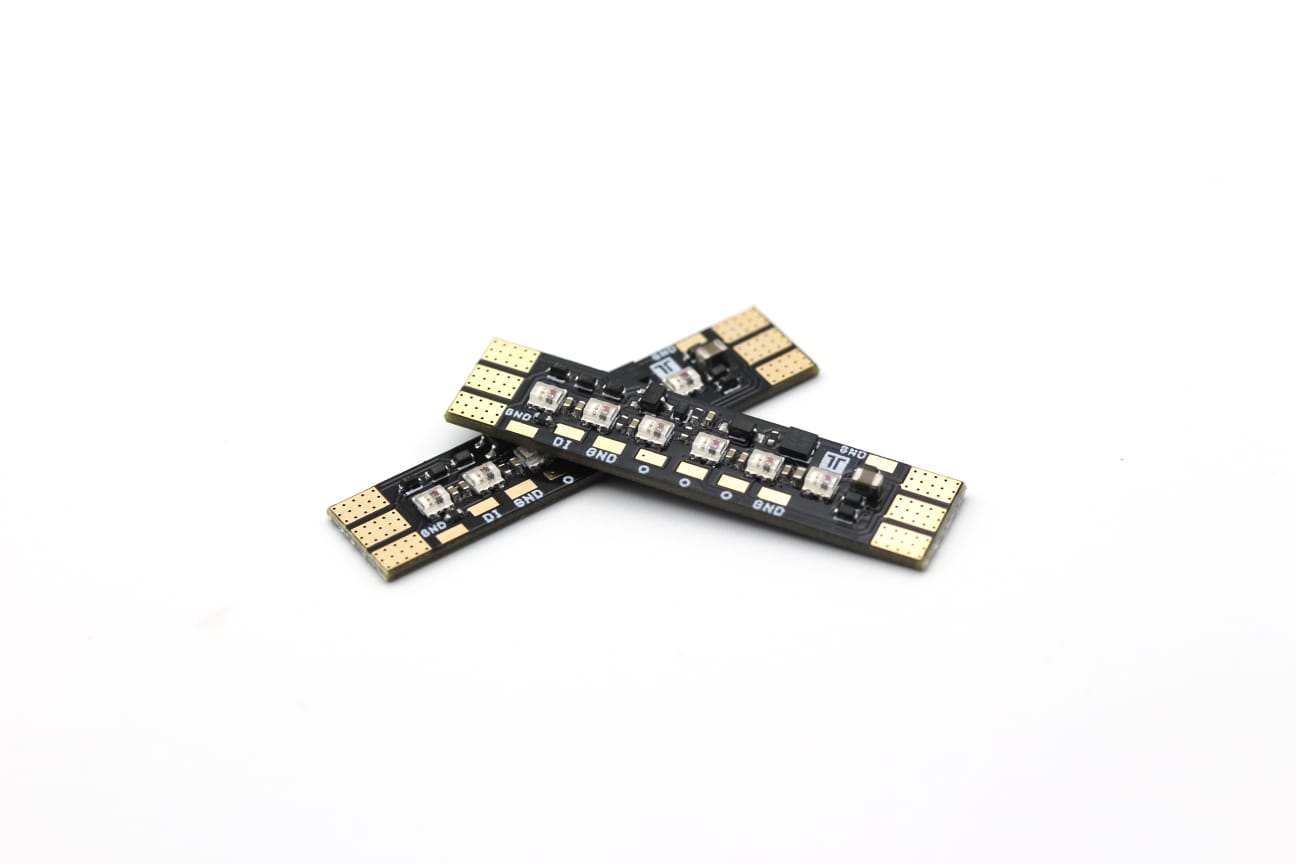

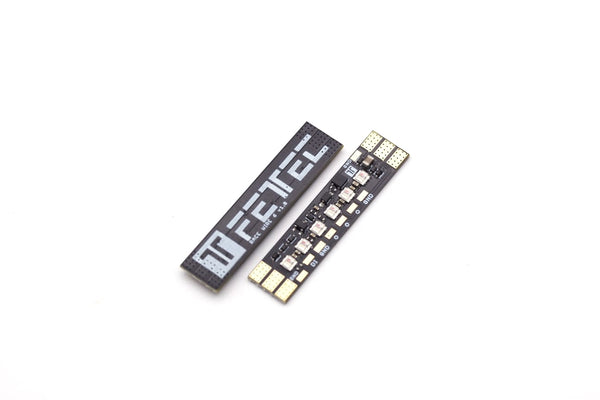

Fettec Race Wire 6

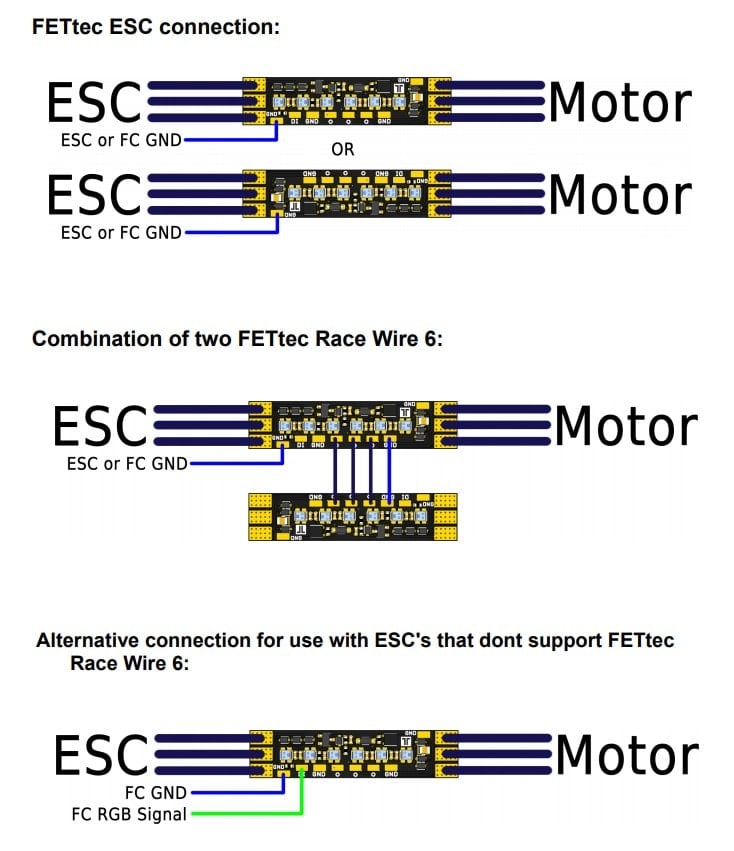

Race Wire lets you simultaneously protect your motor wires while adding some flair to your quadcopter. The Fettec race wire 6 boards are designed for easy handling and include 6x RGB LEDs that can have the colour set from your FC. This board is compatible with 3-6S power and you can use up to 2 boards per arm. The LED's are powered and controlled from the motor wires directly so you only need to solder a single ground wire between your FC and race wire board.

• FETtec-Race-Wire-6-manual

Specifications

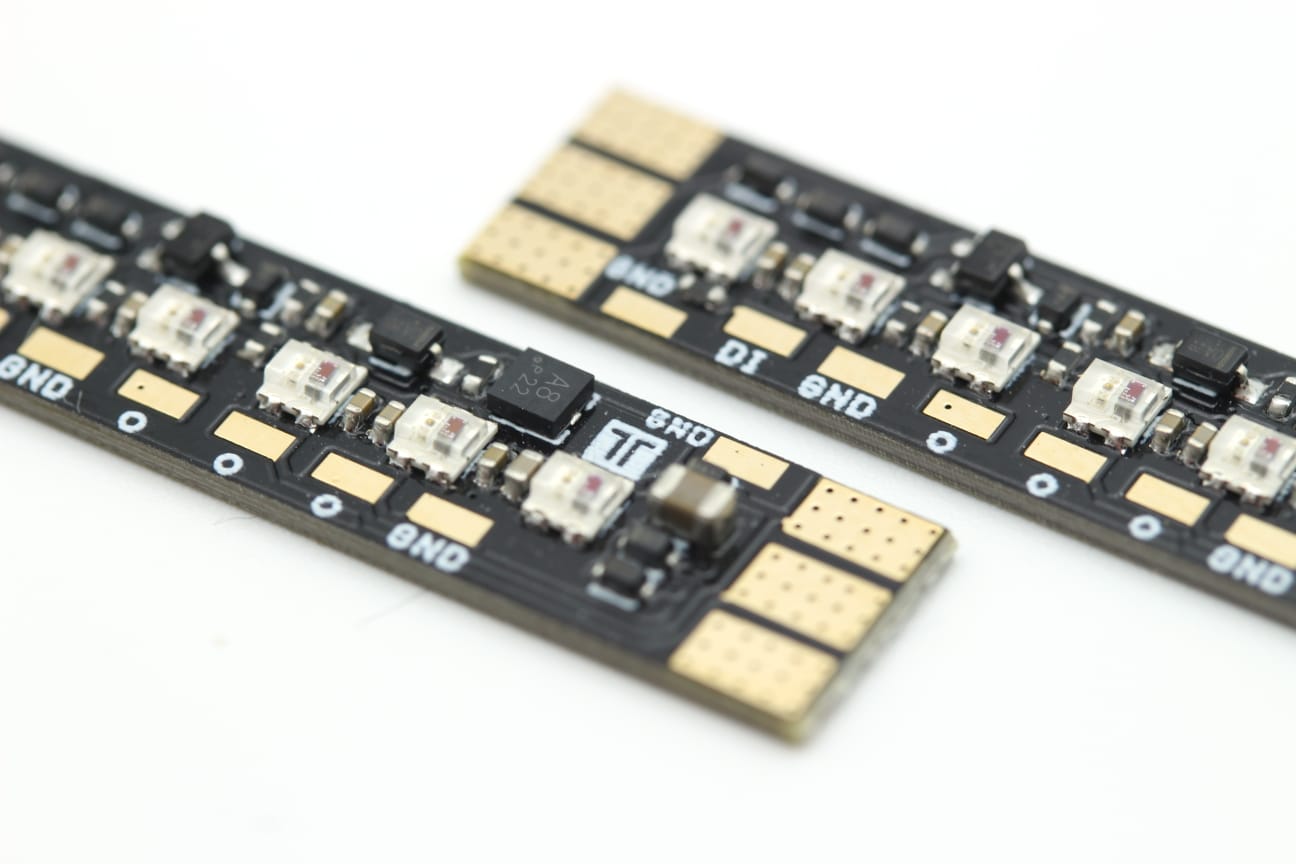

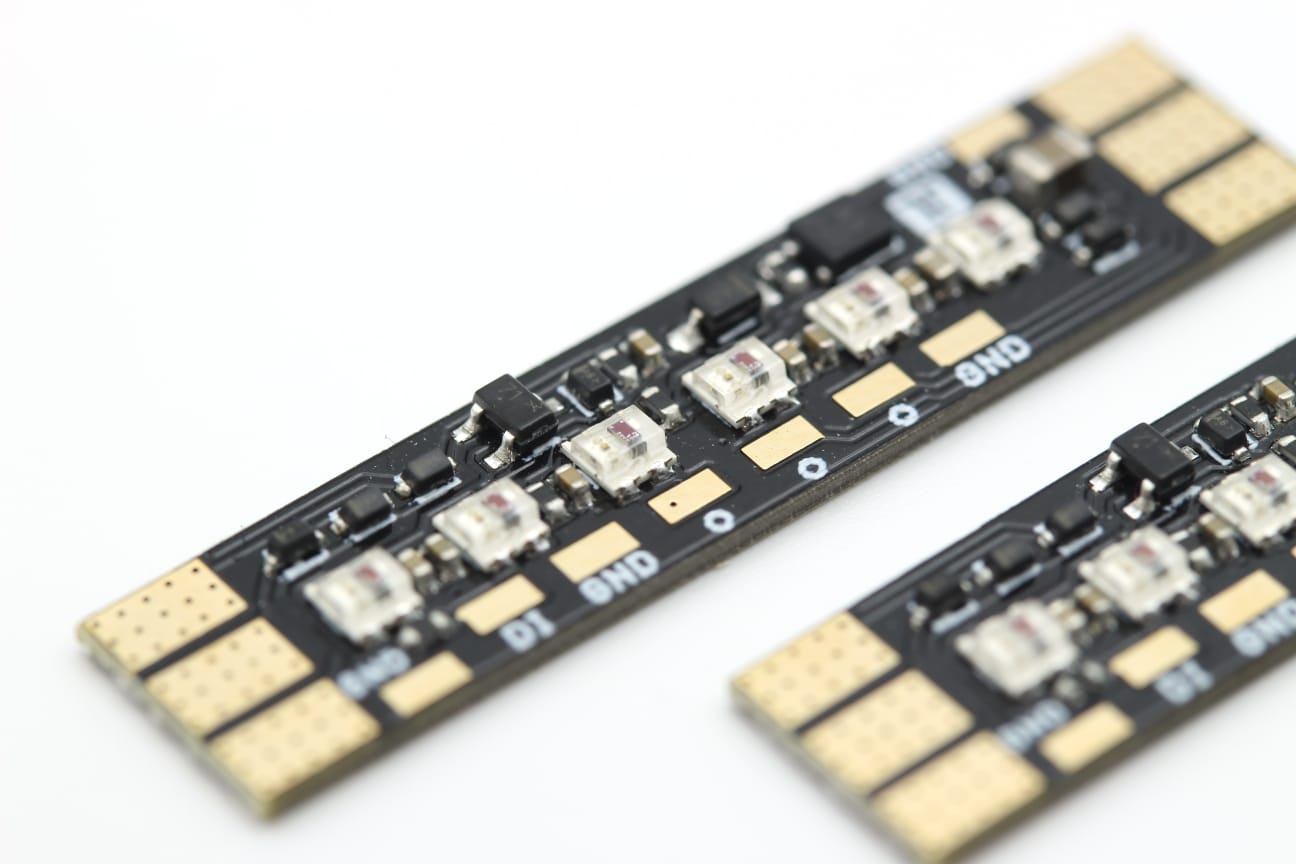

• 6 WS2812 2020 RGB LEDs, bright and any color adjustable
• Easy handling
• only one additional GND cable is required when connecting to FETtec ESC
• low resistance
• designed for use with 3 - 6s
• 2 FETtec Race Wire 6 can be combined on one arm
• Can be set via FETtec Configurator / KISS GUI, remote control and OSD

Dimensions

• 8 mm x 35 mm
• Weight: 1g

Included

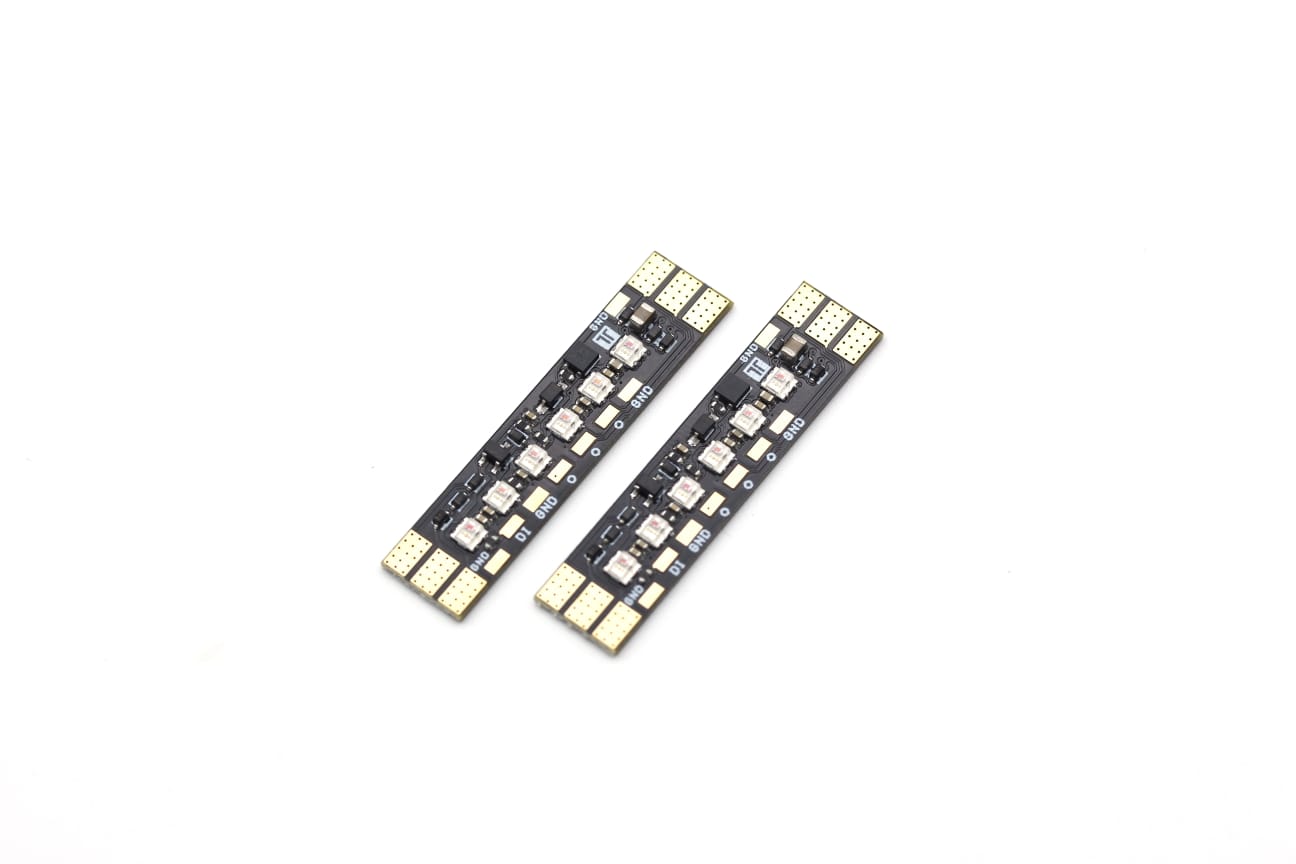

• 2x FETtec Race Wire 6 boards
