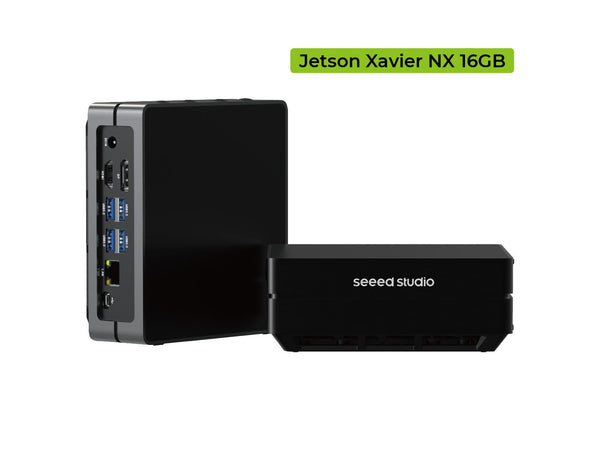

reComputer Jetson-20-1-H2 Xavier 16Gb IoT Edge AI Computer w/ Jetpack [SL4]

reComputer Jetson series are compact edge computers built with NVIDIA advanced AI embedded systems: Jetson-10 (Nano) and Jetson-20 (Xavier NX). With rich extension modules, industrial peripherals, thermal management combined with decades of Seeed's hardware expertise, reComputer Jetson is ready to help you accelerate and scale the next-gen AI product emerging diverse AI scenarios.

reComputer Jetson is compatible with the entire NVIDIA Jetson software stack, cloud-native workflows, industry-leading AI frameworks, helping deliver seamless AI integration.

Features

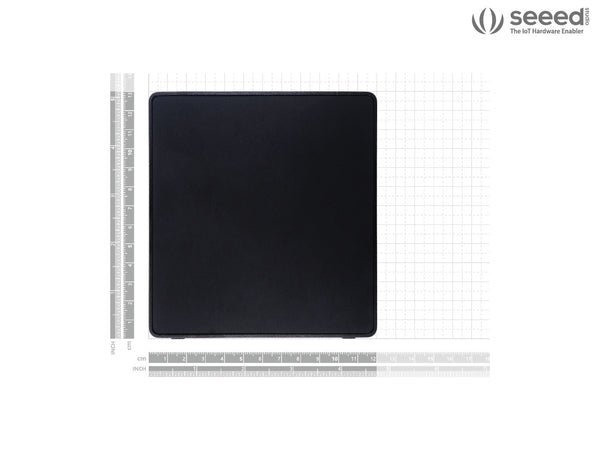

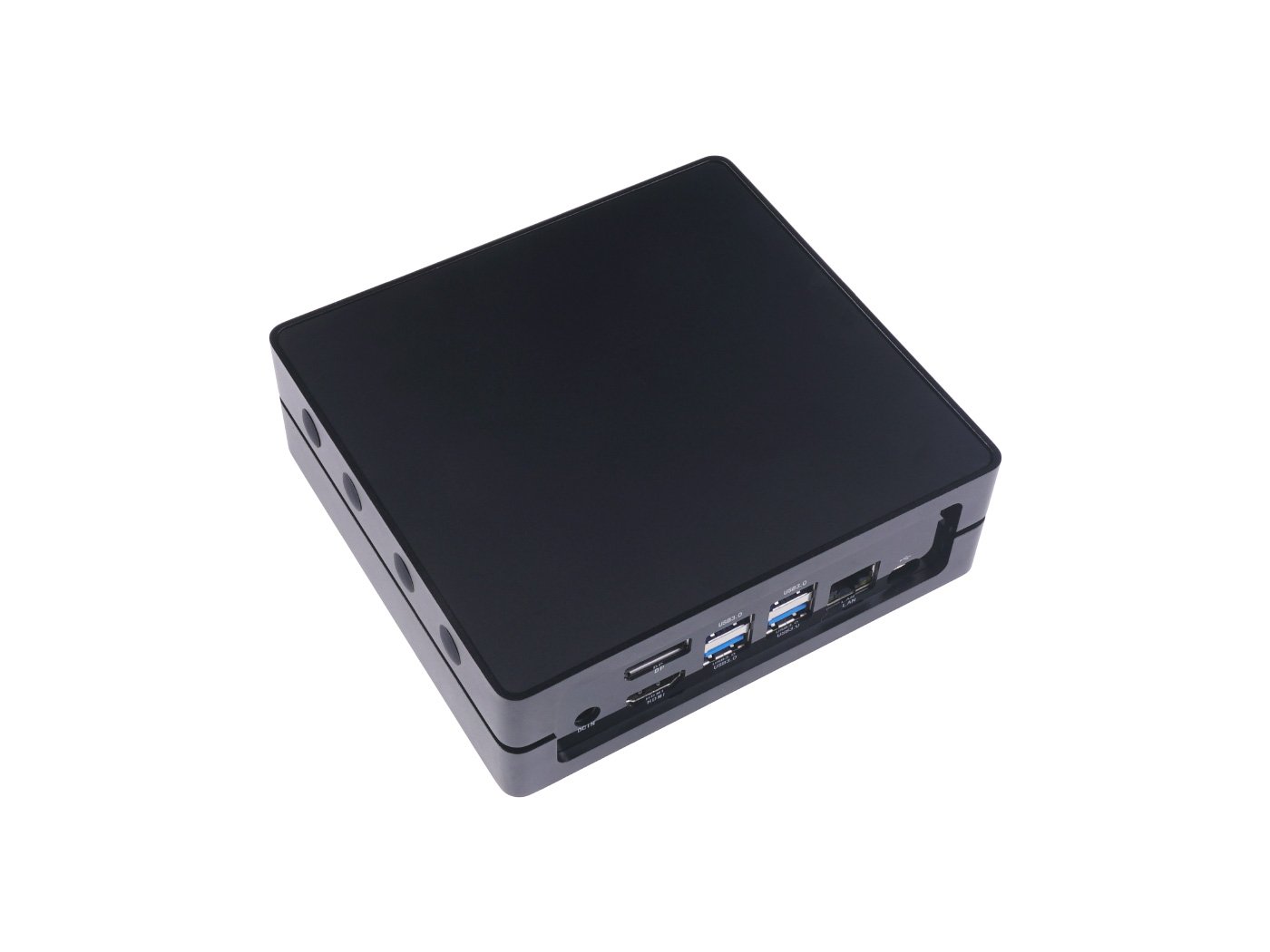

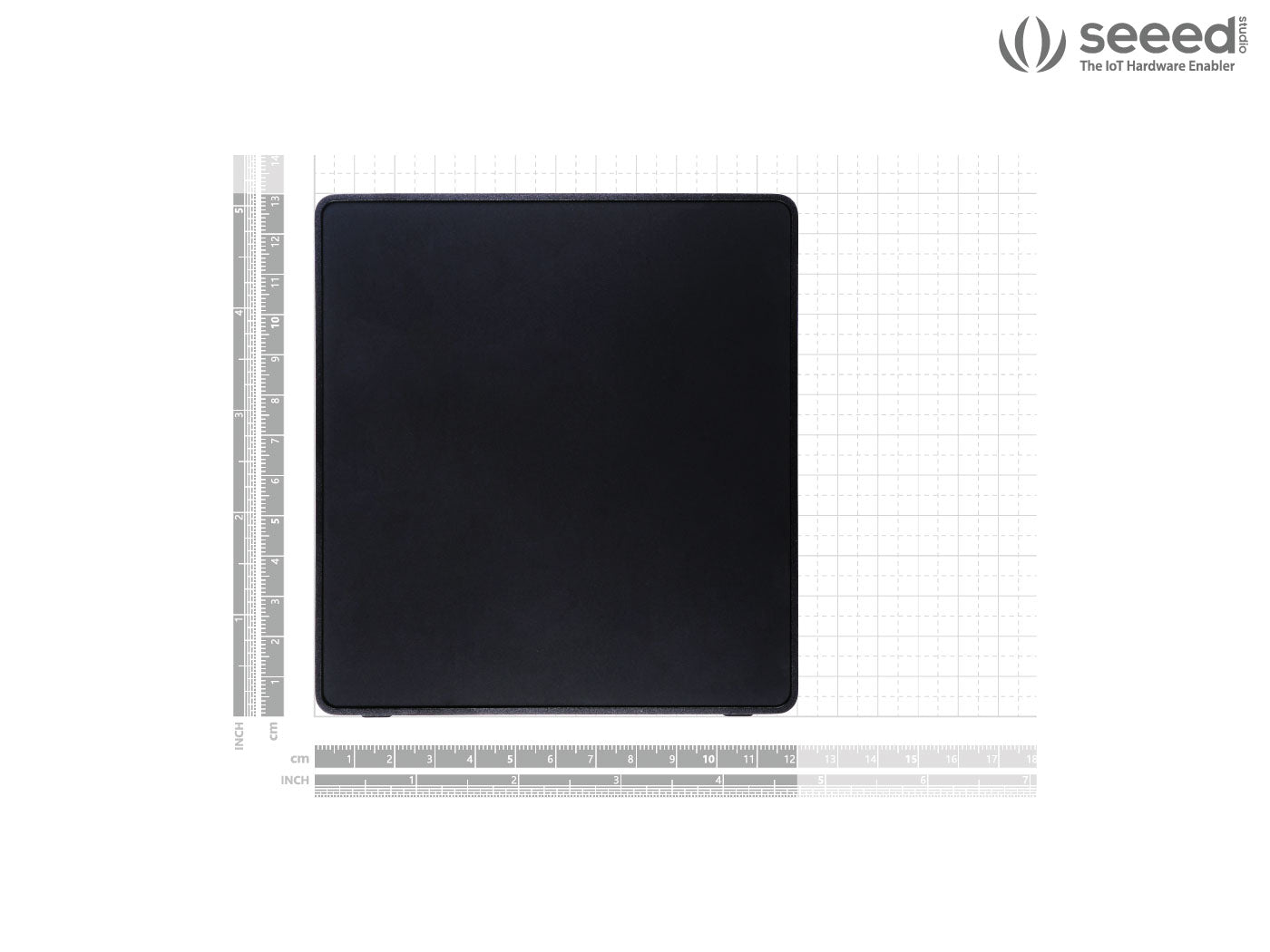

• Hand-size edge AI device with an overall dimension of 130mm*120mm*50mm, fits in everywhere.

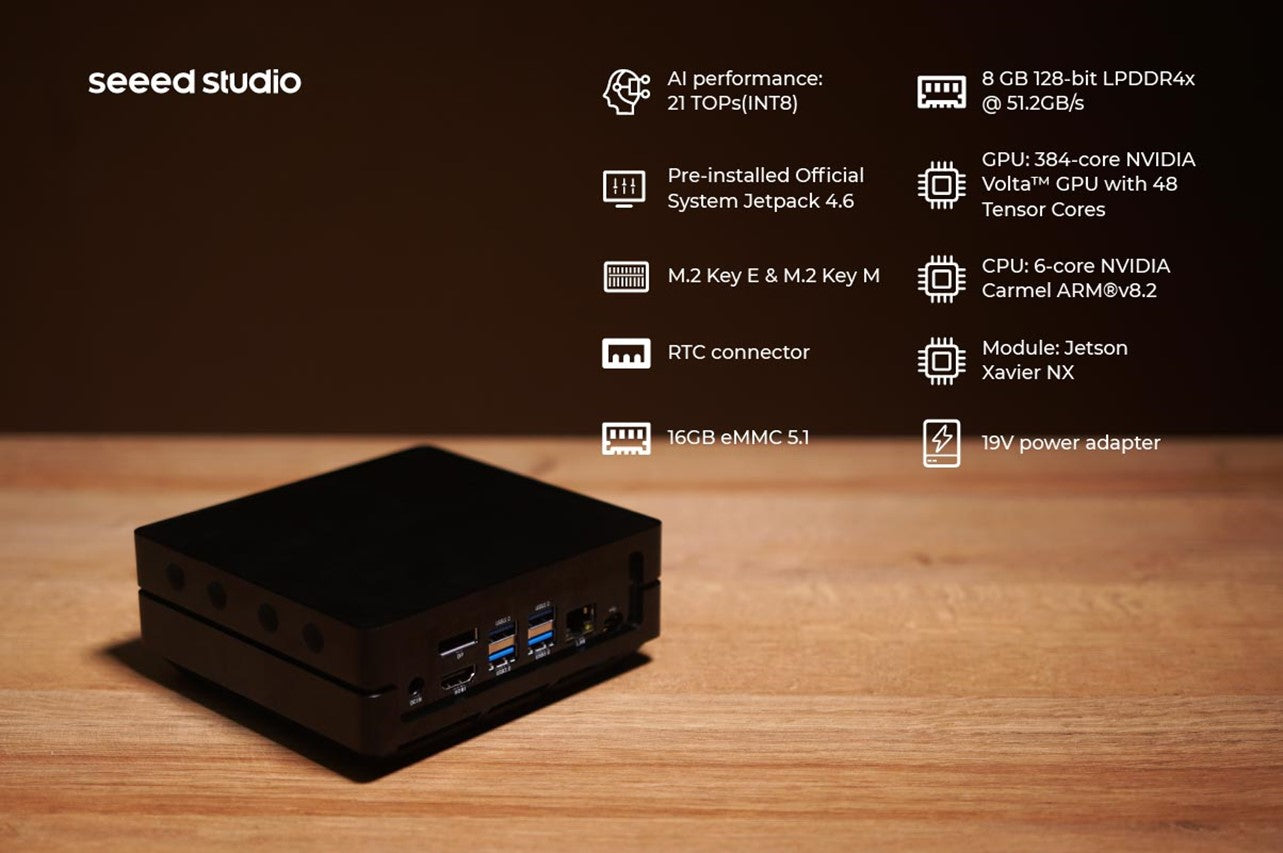

• Powered by the 6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6MB L2 + 4MB L3.
• 384-core NVIDIA Volta™ GPU with 48 Tensor Cores delivers 21 TOPS AI performance.

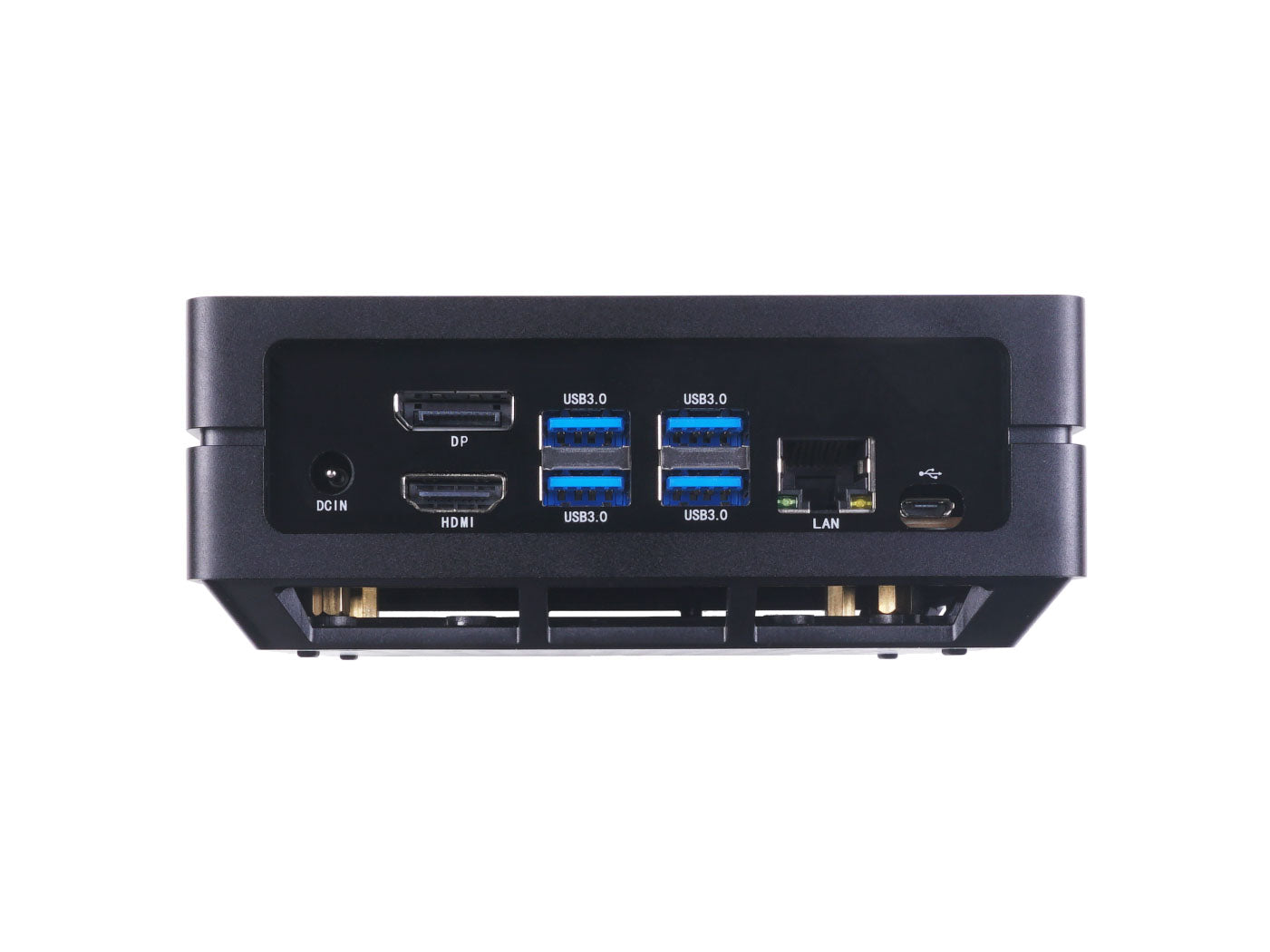

• Rich peripherals including Gigabit Ethernet port, 4 USB 3.0 Type-A ports, HDMI port and DP ports.
• Pre-installed NVIDIA official JetPack software, ready for cloud native application.

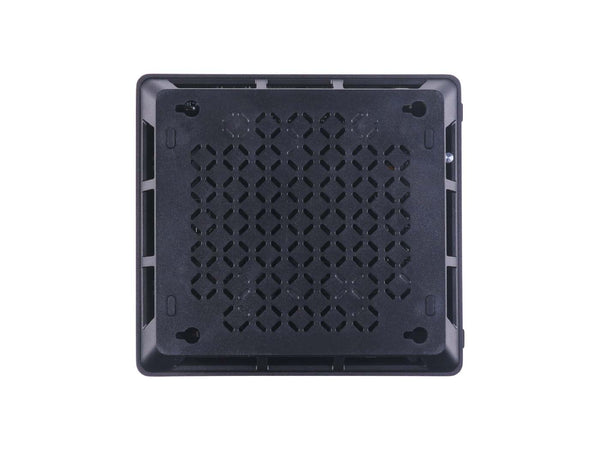

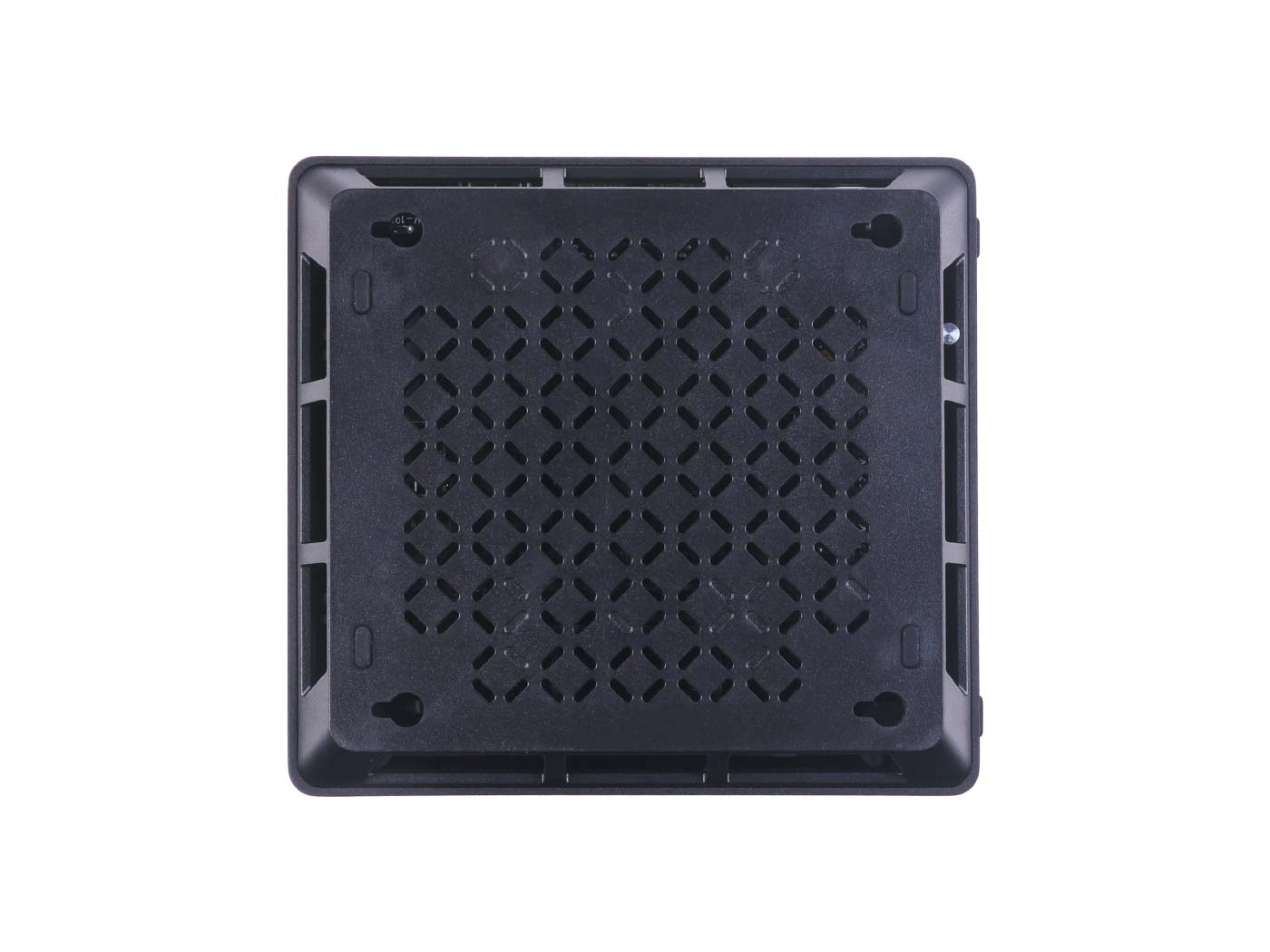

• Able to mount on the wall with mounting holes on the back.
• Support wide range of AI application fast building with our ecosystem partners.
• Support Allxon to enable efficient remote hardware management services

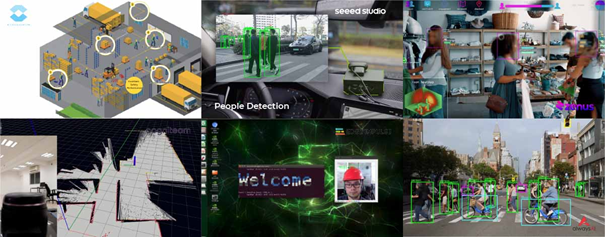

Application: For next-gen autonomous machine

With edge AI developers can deploy machine learning models in solving demanding challenges for advanced robotics and autonomous machines in the fields:

• Edge AI into the Wild: UAV, Drone, Wildlife protection, Agriculture
• Smart City: Traffic, Retail, Healthcare
• Industry 4.0: Manufacturing, Logistics, Deliver, Service

Power-efficient AI computer, compact rich I/Os for Endless AI possibilities:

reComputer Jetson - 20 comes with Jetson Xavier NX delivers up to 21 TOPS, making it ideal for high-performance compute and AI in embedded and edge systems. You get the performance of 384 NVIDIA CUDA® Cores, 48 Tensor Cores, 6 Carmel ARM CPUs, and two NVIDIA Deep Learning Accelerators (NVDLA) engines. Combined with over 59.7GB/s of memory bandwidth, video encoded and decoded, these features make Jetson Xavier NX the platform of choice to run multiple modern neural networks in parallel and process high-resolution data from multiple sensors simultaneously.

Jetson Xavier NX supports multiple power modes, including low-power modes for battery-operated systems, and delivers up to 14 TOPs for AI applications in as little as 10 W.

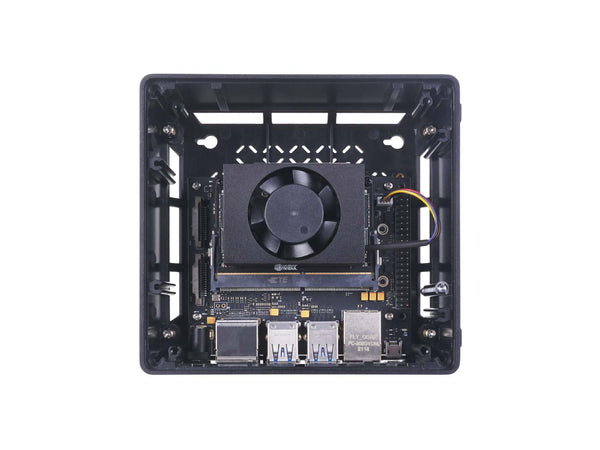

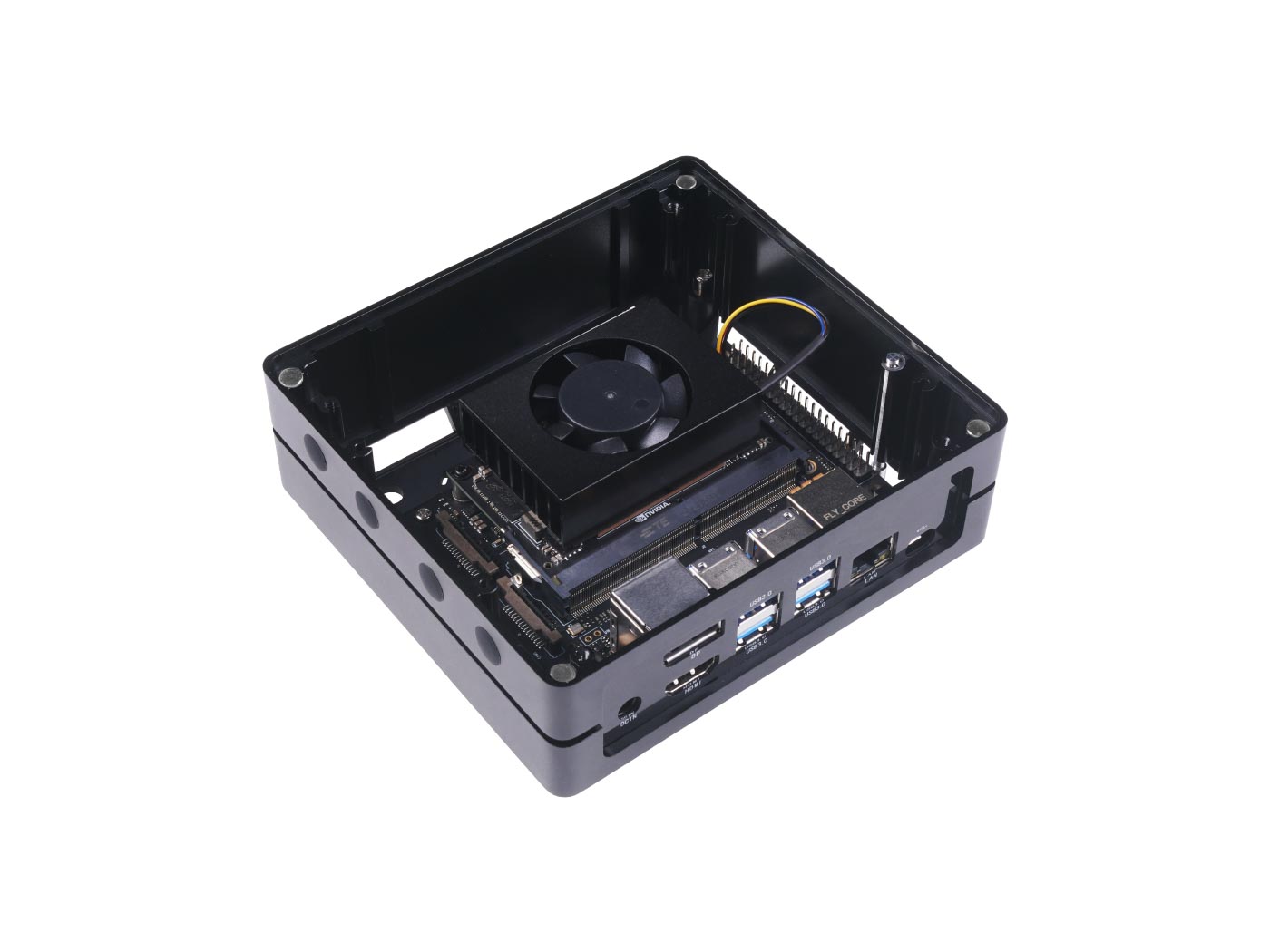

Powerful reference carrier board:

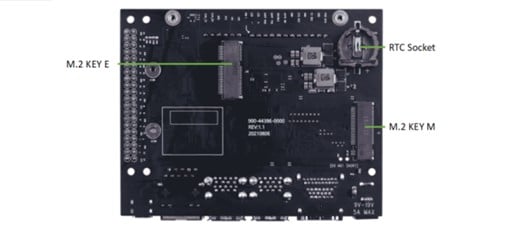

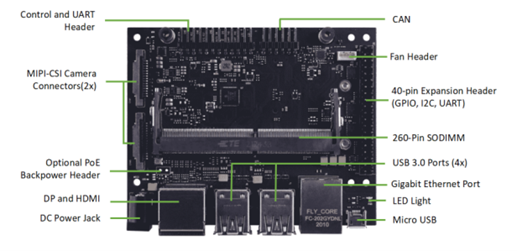

Seeed reference carrier board for Jetson-20-1-H2 is a high-performance, interface rich NVIDIA Jetson Xavier NX compatible carrier board, providing HDMI 2.0, Gigabit Ethernet, USB3.0, USB 2.0, M.2 key E wifi / BT, M.2 key M, CSI camera, CAN, GPIO, I2C, I2S, fans, and other rich peripheral interfaces

Take advantage of the small form factor, sensor-rich interfaces, and big performance to bring new capability to all your embedded AI and edge systems.

Prebuild system for edge AI integration

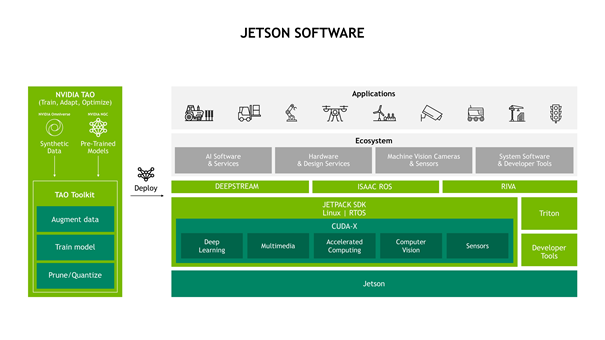

All NVIDIA® Jetson™ modules and developer kits are supported by the same software stack, enabling you to develop once and deploy everywhere. Jetson Software is designed to provide end-to-end acceleration for AI applications and accelerate your time to market. We bring the same powerful NVIDIA technologies that power data center and cloud deployments to the edge.

NVIDIA JetPack includes NVIDIA Container Runtime with Docker integration, enabling GPU accelerated containerized applications on Jetson platform. Jetpack also brings support for NVIDIA Triton™ Inference Server to simplify the deployment of AI models at scale.

Comparison between jetson-20-1-H2 and Xavier NX dev kit

Specifications

Module Technical Specifications

Carrier Board Technical Specifications

Part List

1 x Acrylic Cover

1 x Aluminium Frame

1 x Jetson Xavier NX 16GB module

1 x Heatsink

1 x Carrier board

1 x 19V/4.74A (MAX 90W) Power Adapter (Power cable not included)
