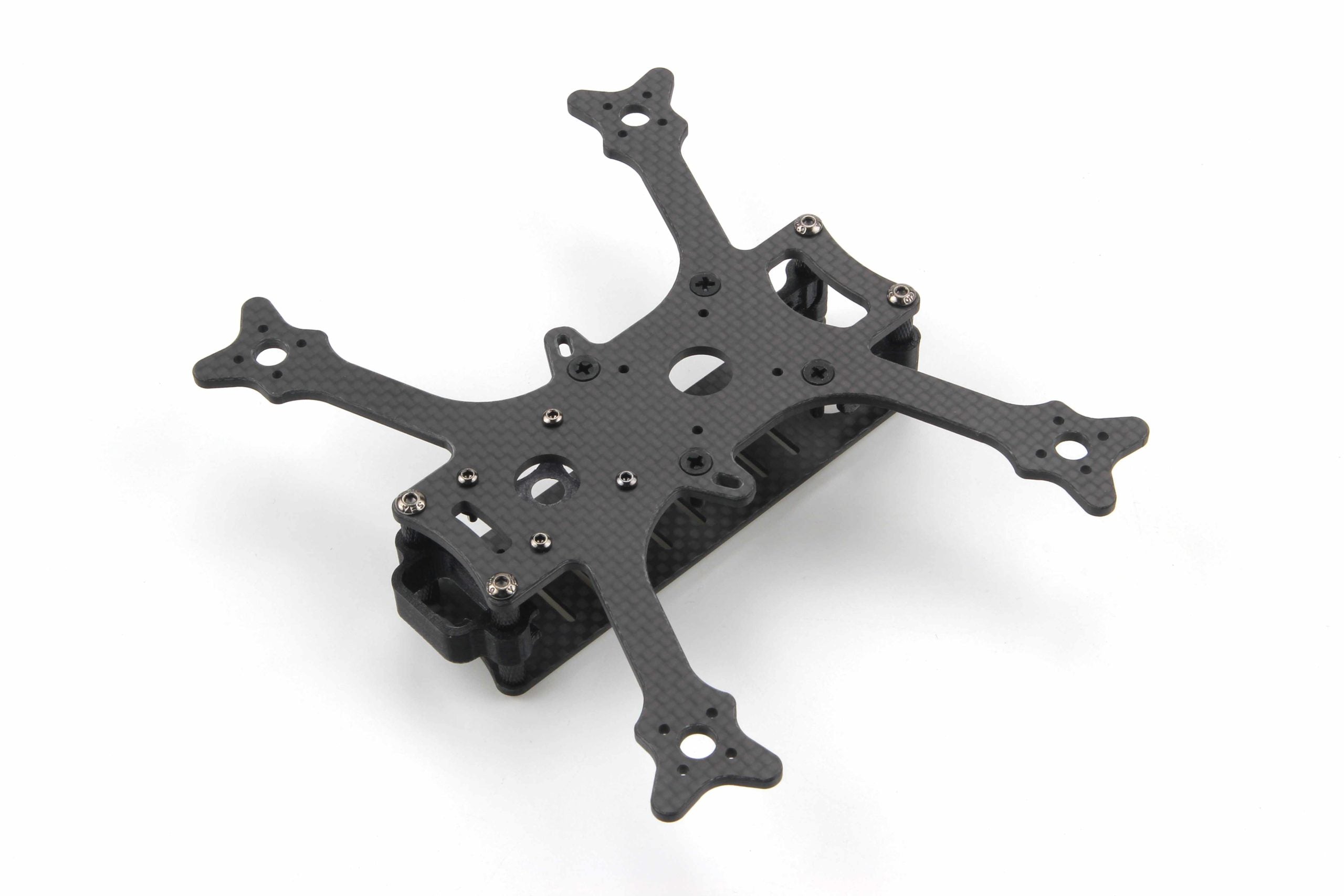

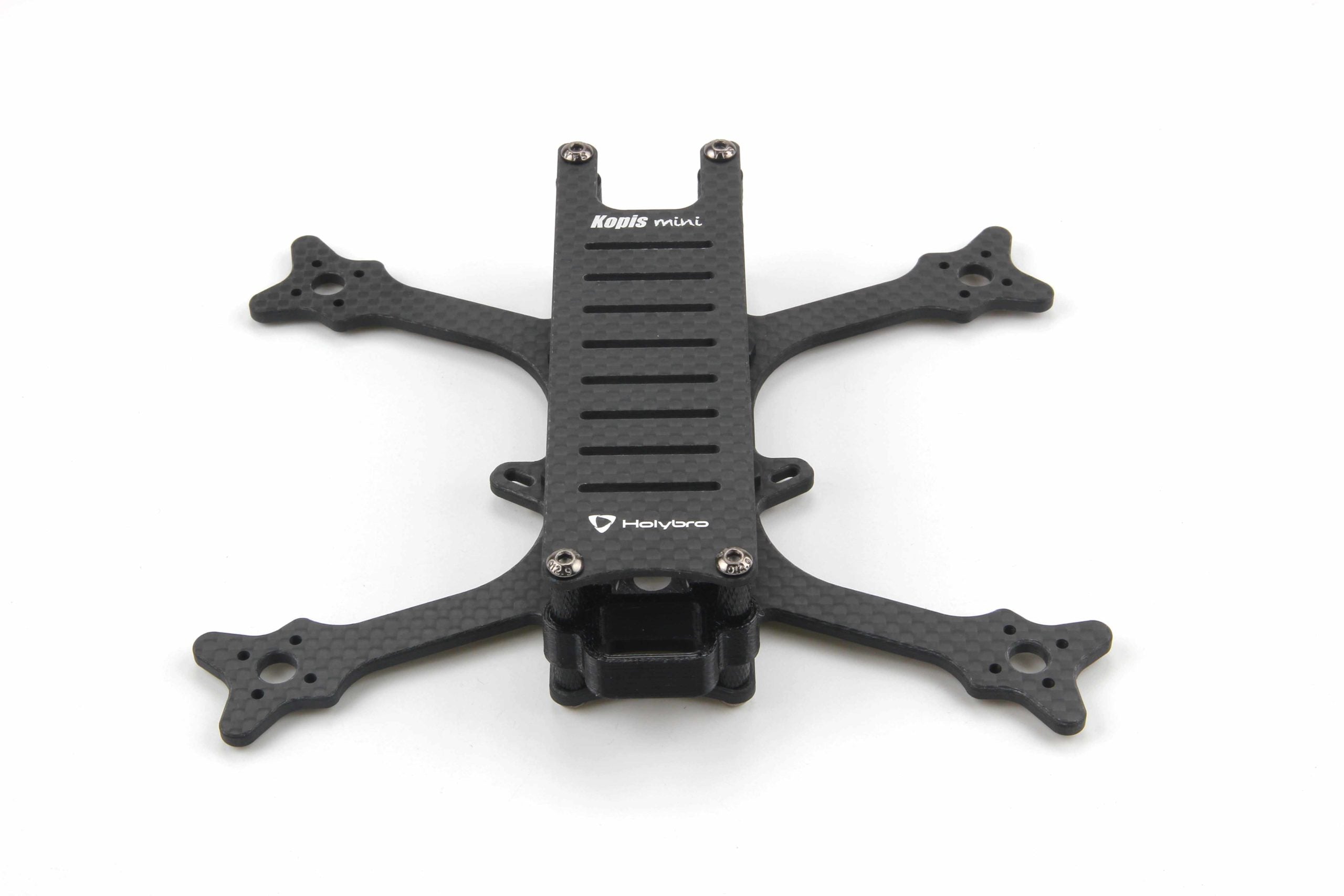

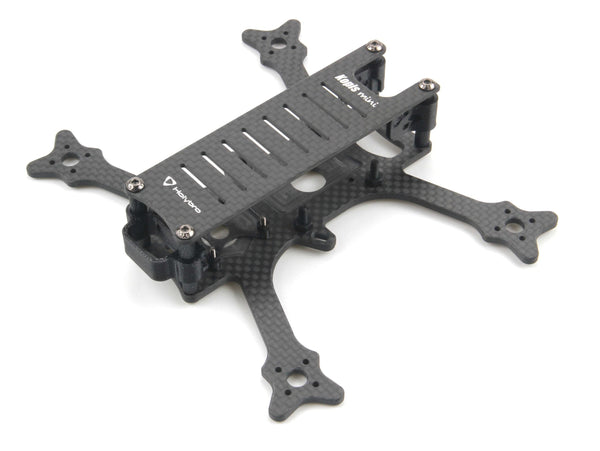

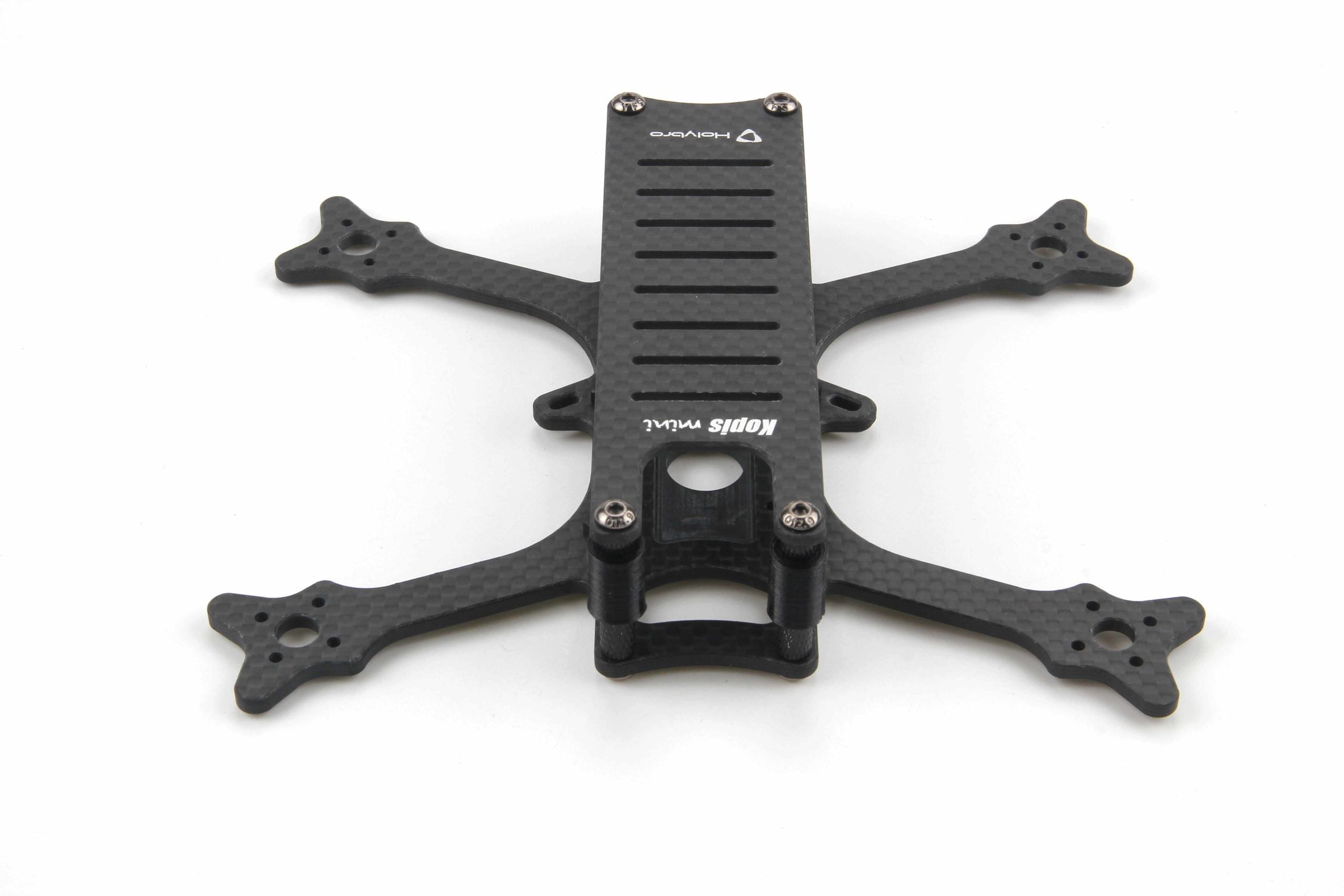

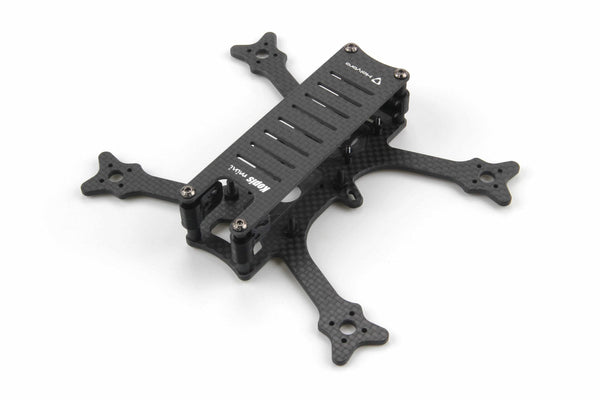

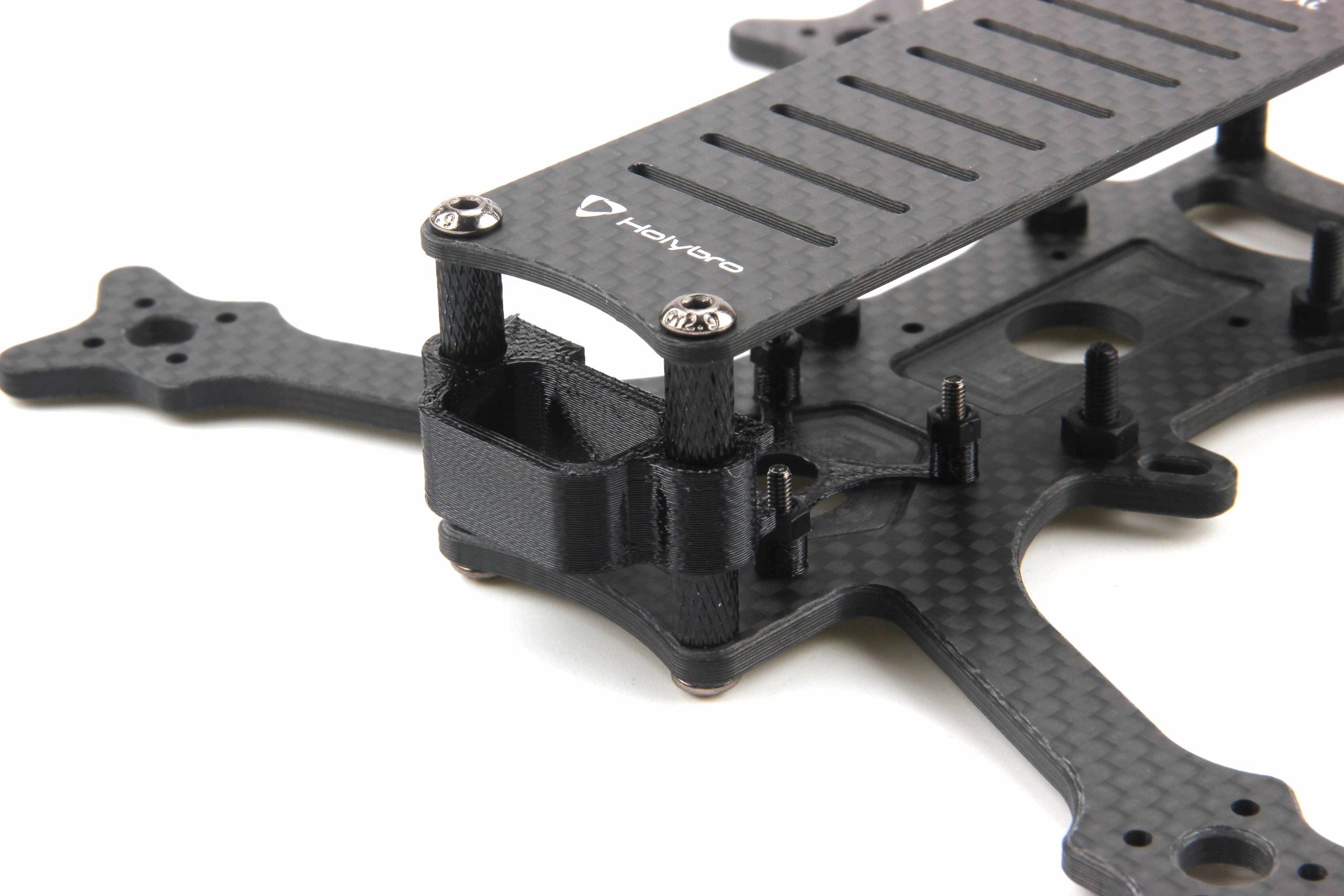

HolyBro Kopis Mini 3" FPV Quadcopter Frame

The Kopis mini is a very versatile 3" FPV frame, capable of carrying analog, or digital FPV gear. The frame itself is made from high quality 3mm carbon fibre ensuring that this frame can handle a beating. The H frame design ensures you have lots of room to mount your gear with a 30x30/20x20 stack mounting holes in the front, and a second 20x20 stack mount at the rear.

If you plan to use this frame for a Digital FPV systm ,it can acomodate both the full DJI FPV Air unit (for onboard HD DVR), or the smaller Caddx Vista unit depending on your preferences.

This kit only inlcudes the printed parts for the Digital FPV system, if you plan to use an analog FPV system, please be sure to print the antenna mounts here - Antenna-Holder-TPU_Kopis-mini(Analog-VTx_version) (We also offer a 3D printing service so be sure to add that to your order)

Specifications

• Brand Name: Holybro
• Model: Kopis Mini
• Item Name: 148.6mm 3K Carbon Fiber 3 Inch Frame Kit
• Material: 3K Carbon Fiber
• Wheelbase: 148.6mm
• Arm Plate Thickness: 3mm
• Upper Plate Thickness: 3mm
• Lipo Battery: 4S 650mAh~1300mAh Lipo ( not included)

3D print files

If you don't have your own 3D printer, we offer an affordable printing service her e

• 20x20mm_M2_Fixed_Base_TPU_3D_Print
• Antenna-Holder-TPU_Kopis-mini(Analog-VTx_version)
• CameraMount(Left)-TPU_Kopis-mini
• CameraMount(Right)-TPU_Kopis-mini
• XT30-Holder-TPU_Kopis-mini(DJI-FPV_version)

Recommend Parts

• Flight Controller: Holybro Kakute F7 V1.5 Flight Controller
• Brushless ESC: Holybro Tekko32 F3 4in1 45A mini 4in1 ESC
• Brushless Motor: T-Motor F1507 1507 3800KV 3-4S Motor
• Propeller: 3" Propeller
• Lipo Battery: 4s 1300Mah Lipo

Included

• Holybro Kopis Mini 148.6mm Empty Frame Kit

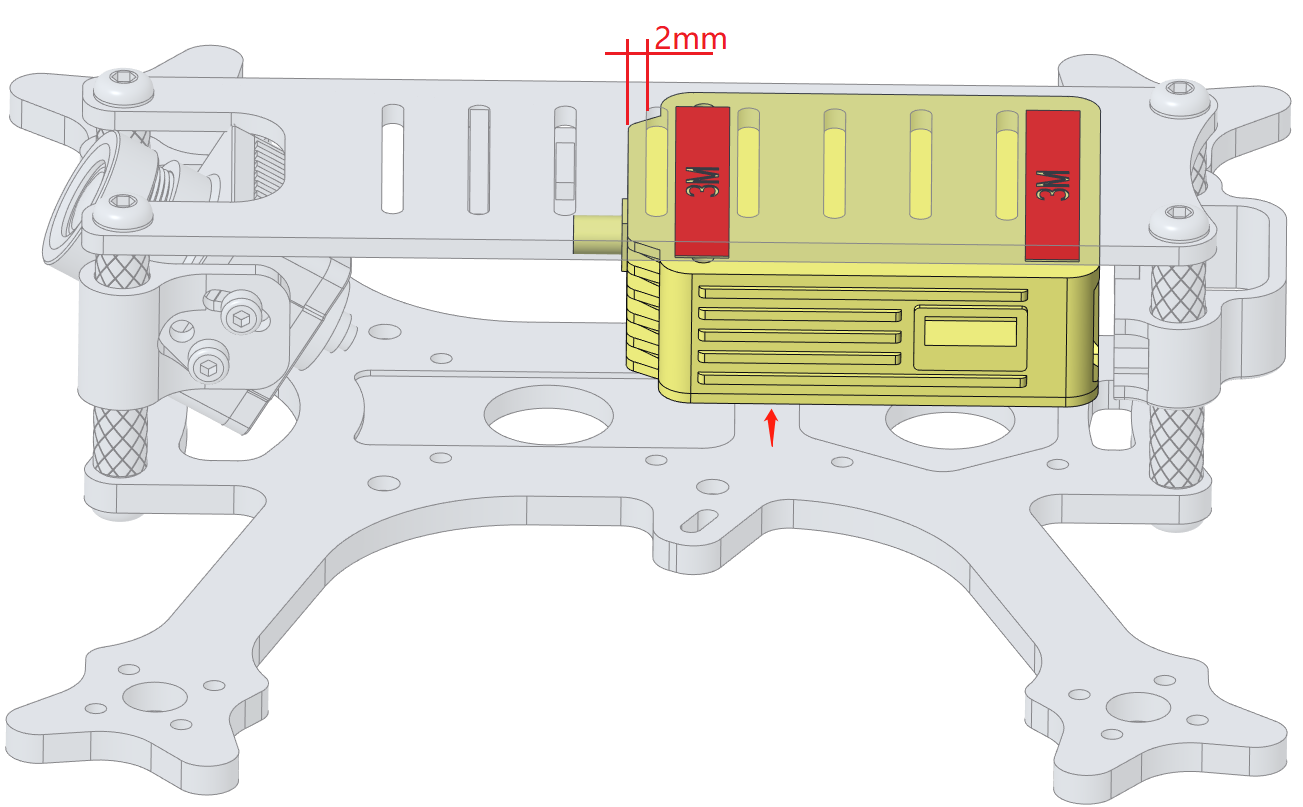

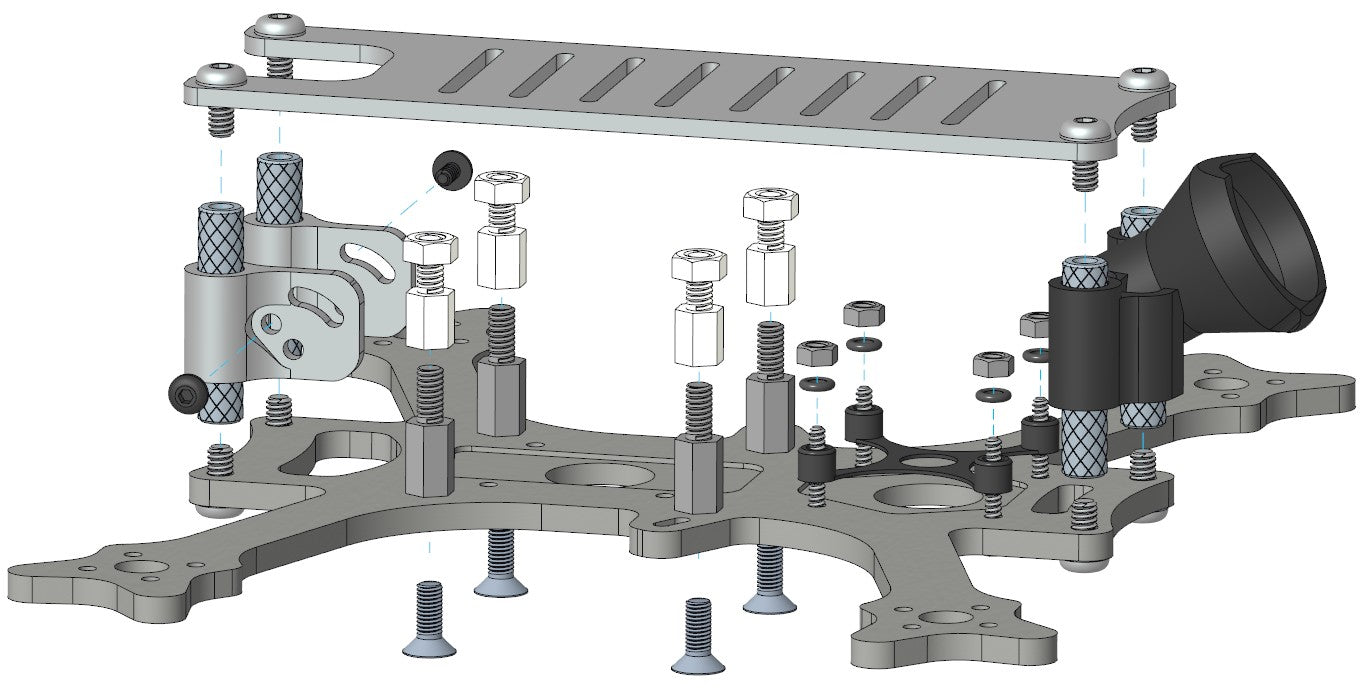

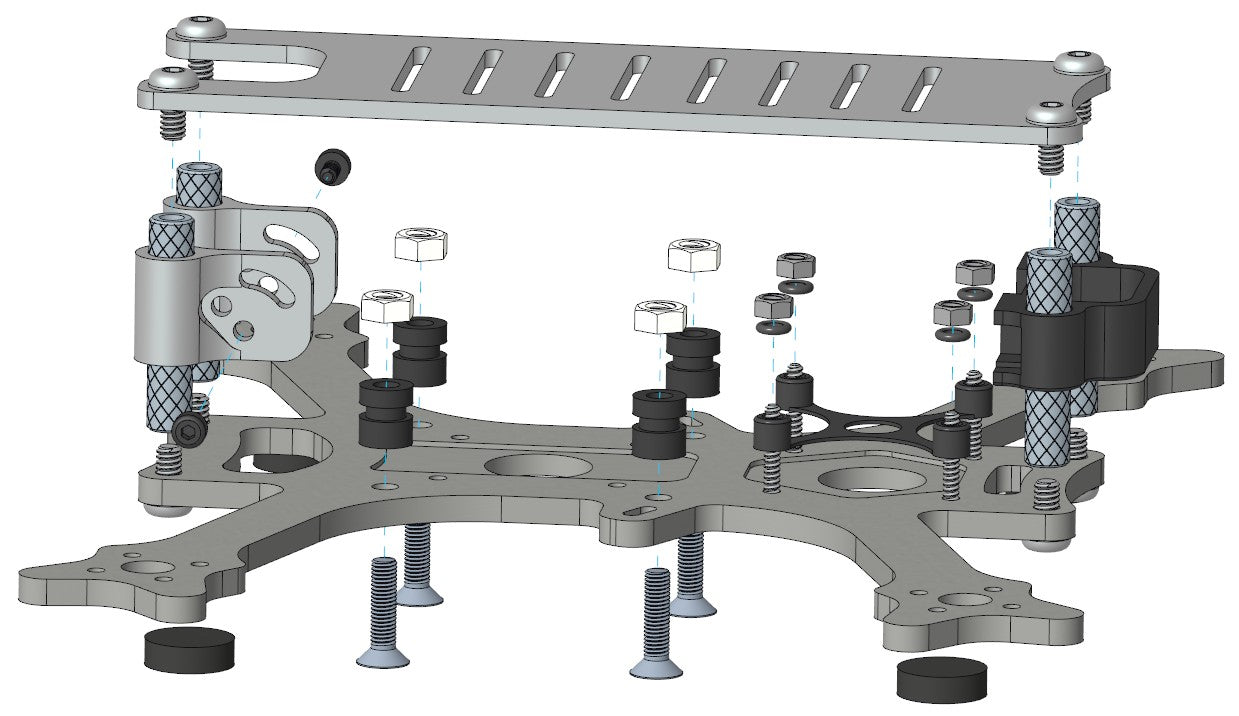

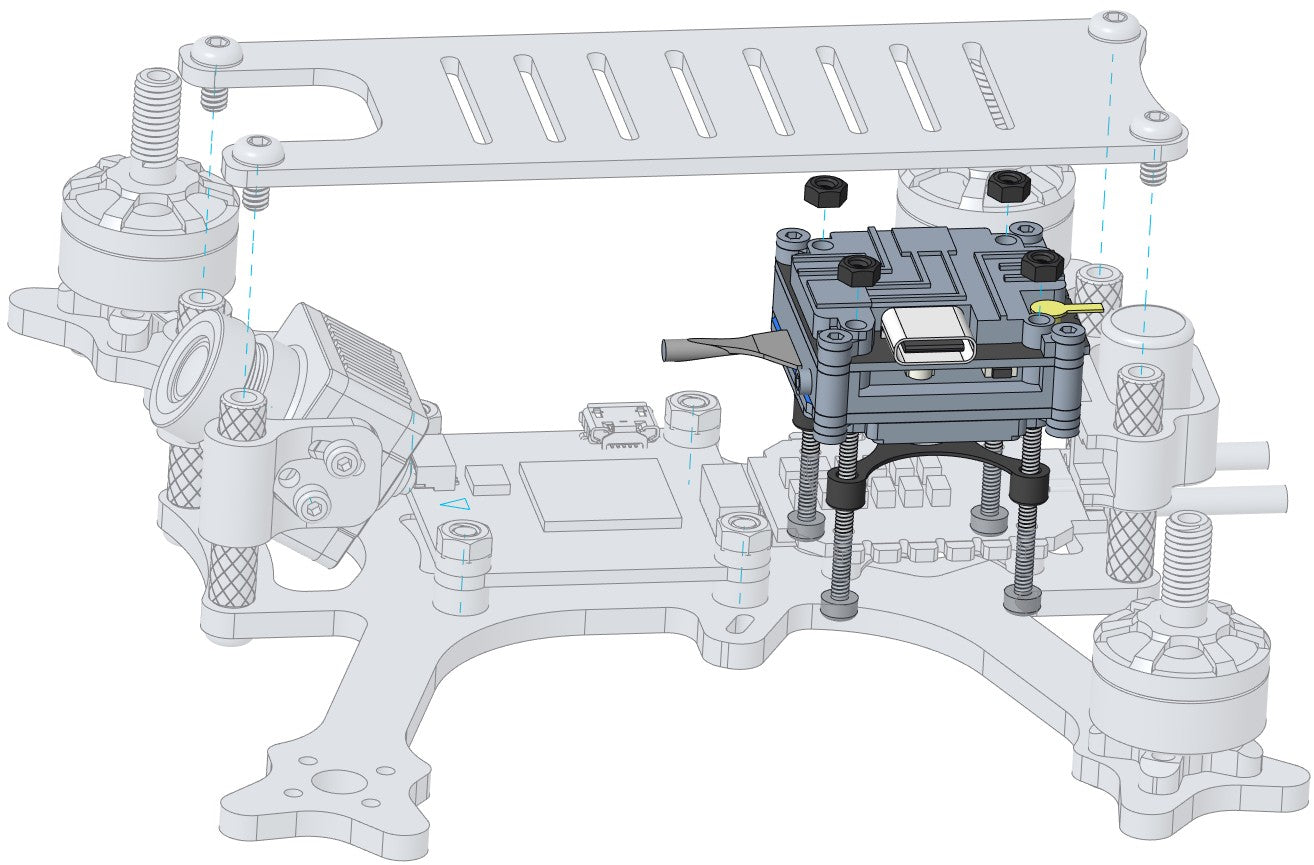

Assembly Drawings
